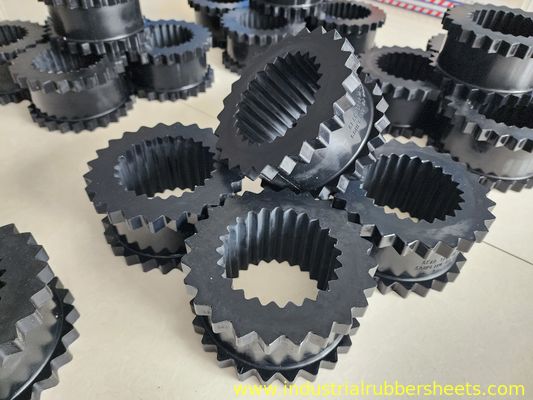

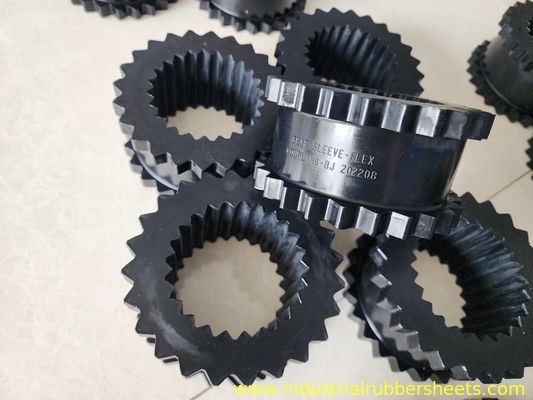

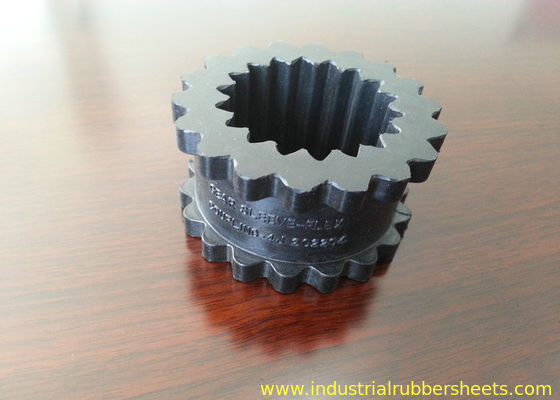

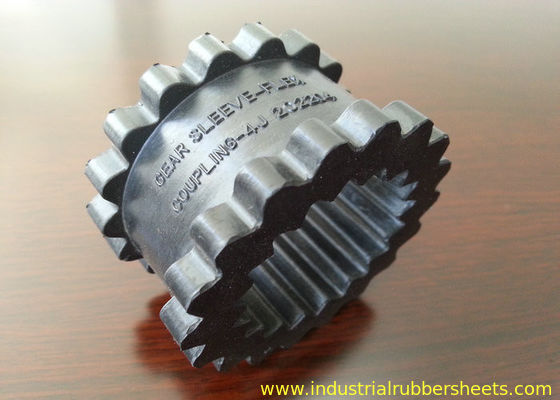

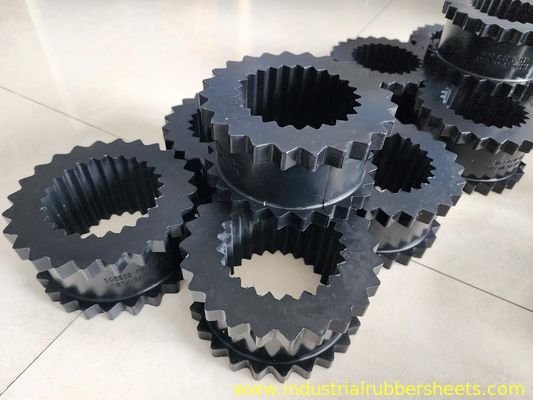

3J-11J Gear Rubber Coupling with 120°C Temperature Range, High Tensile Strength, and Oil Resistant for Screw Air Compressor
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ROHS/FCC/SGS |
| Model Number | 3A2006 |
| Minimum Order Quantity | 10pieces |
| Price | negotiation |
| Packaging Details | Packed in cartons |
| Delivery Time | 10 working days after received your payment |
| Payment Terms | T/T,L/C,Paypal,Western Union |
| Supply Ability | 10000kgs per month |
Product Details
| Material | NBR, CSM/SBR, Polyurethane | Color | Black, Red |
|---|---|---|---|
| Tensile Strength | 12-55Mpa | Hardness | 80-98shore A |
| Elongation | 350% | Density | 1.25g/cm3 |
| Size | 3J, 4J, 5J, 6J, 7J, 8J, 9J, 10J, 11J | ||
| Highlight | pu coupling,rubber coupling |
||
Product Description
3J - 11J Gear Rubber Coupling, Polyurethane Coupling For Screw Air Compressor
Product Overview
High-performance gear rubber couplings and polyurethane couplings specifically designed for screw air compressors, available in sizes 3J through 14J.
Technical Specifications
| Item | 14J | 13J | 11J | 10J | 9J | 8J | 7J | 6J | 5J | 4J | 3J |
|---|---|---|---|---|---|---|---|---|---|---|---|
| OD (mm) | 333 | 284 | 208 | 179.4 | 152 | 128.6 | 110.4 | 95.3 | 74.6 | 58.7 | 48 |
| ID (mm) | 193 | 165 | 122.3 | 102 | 87 | 75 | 64.5 | 54.6 | 44 | 34 | 26.5 |
| Thickness (mm) | 165 | 138 | 101.6 | 87.3 | 76.2 | 63.5 | 55.6 | 47.6 | 39.7 | 31.8 | 25.5 |
| Gear Qty (Piece) | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 20 | 20 | 18 | 18 |
| Weight (g) | 7550 | 6000 | 1750 | 1210 | 700 | 407 | 262 | 171 | 81 | 40 | 20 |
Key Features
- Specifically designed for air compressors
- Manufactured using serious production lines
- Top quality with competitive pricing
- Personalized packaging options available
- OEM services provided with A&V verification
Product Characteristics
Claw type surface-to-surface design provides effective protection, vibration damping, and shock absorption during operation. The circumferential offset design with quincunx elastic body arrangement avoids stress concentration during installation deviations.
Effectively compensates for axial, radial, and angular displacement. Unlike traditional column pin couplings that operate under shear stress, our claw-type couplings work under extrusion pressure, enabling higher load capacity, superior wear resistance, and extended service life.
CJ Series Coupling Advantages
- Simple structure with stable performance and reliable operation
- Three-component design for easy installation and maintenance
- Multiple material options for hub and elastic body to suit various environments
- Surface-matching claw type design with involute arc elasticity for higher torque transmission
- Insulating elastic body pads prevent metal-to-metal contact, eliminating lubrication requirements
Material Specifications
Materials: Polyester, CSM/SBR
Colors: Yellow, red, purple, green, black, etc.
Surface: Smooth
Tensile Strength: 12-55 MPa
Hardness: 80-98 Shore A
Elongation: 400%-650%
Density: 1.25 g/cm³
Elasticity Impact: >25%
Tear Strength: 35-155 KN/m
Akron Abrasion Loss: <0.05 cm³/1.61 km
Compression Set (22h*70°C): <10%
Working Temperature: 120°C
Available Sizes
Standard sizes: Gear 3J, 4J, 5J, 6J, 7J, 8J, 9J, 10J, 11J
Custom sizes available according to buyer's drawings and specifications
Important: When making an inquiry, please confirm the product number and required quantity.
