L Type Flange Cast Iron GG25 Polyurethane Coupling with 80-98 Shore A Hardness and ISO9001-2000 Certification
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ROHS/FCC/SGS |
| Model Number | 3A2006 |
| Minimum Order Quantity | 10pieces |
| Price | negotiation |
| Packaging Details | Packed in cartons |
| Delivery Time | 10 working days after received your payment |
| Payment Terms | T/T,L/C,Paypal,Western Union |
| Supply Ability | 10000kgs per month |
Product Details
| Material | NBR, CSM/SBR Or TPU | Color | Black, Red |
|---|---|---|---|
| Hardness | 80-98shore A | Size | L035-225 |
| Working Temperature | -20oC - +100oC | ||
| Highlight | pu coupling,flexible jaw coupling |
||
Product Description

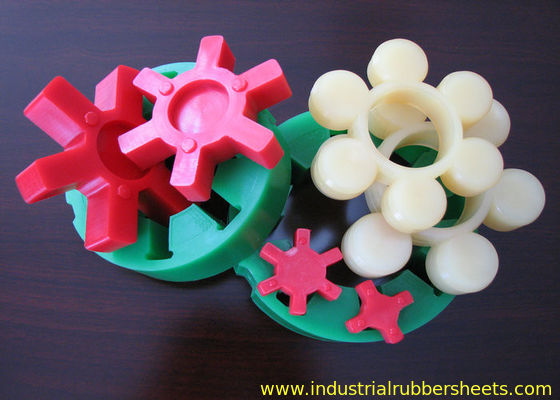

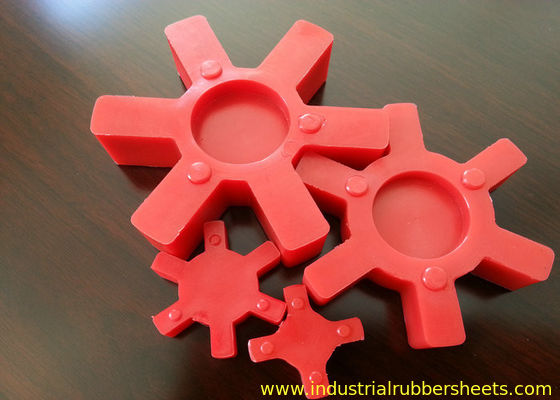

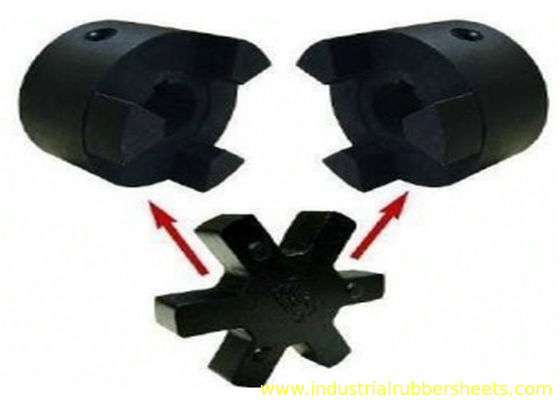

L Type Flange Cast Iron Polyurethane Coupling, Flexible Jaw Coupling
Product Overview
L type rubber coupling, L polyurethane coupling, L PU coupling designed for reliable power transmission in industrial applications.
Specifications
- Material: Cast iron GG25
- Good stability
- Easy to maintain
- ISO9001-2000 certificate
Coupling Features
- Jaw coupling/HRC coupling/KC coupling/FL coupling
- Flange cast iron, Insert Rubber
- Taper bore universal series
- Keyway dimensions conform to DIN6885, GB1095-1979 standards
Dimensions Table
| Size | Type | A | B | D | E | Standard | Metric Bore | Inch Bore | Bore Min | Bore Max |
|---|---|---|---|---|---|---|---|---|---|---|
| L035 | 1 | 16 | 20.5 | 6.6 | -- | 3 | 3 | 8 | 1/8" | 3/8" |
| L050 | 1 | 28 | 43.2 | 15.6 | -- | 6 | 6 | 15 | 3/16" | 5/8" |
| L070 | 1 | 35 | 50.8 | 19 | -- | 9 | 9 | 19 | 3/16" | 3/4" |
| L075 | 1 | 45 | 54.7 | 21 | -- | 9 | 9 | 25 | 3/16" | 1" |
| L090 | 1 | 54 | 54.7 | 21 | -- | 9 | 9 | 28 | 3/16" | 1 1/8" |
| L095 | 1 | 54 | 63.7 | 25.5 | -- | 9 | 9 | 28 | 3/8" | 1 1/8" |
| L099 | 1 | 64.5 | 72.5 | 27 | -- | 12 | 12 | 35 | 7/16" | 1 3/8" |
| L100 | 1 | 64.5 | 88.5 | 35 | -- | 12 | 12 | 35 | 7/16" | 1 3/8" |
| L110 | 1 | 85 | 108 | 43 | -- | 15 | 15 | 48 | 1/2" | 1 7/8" |
| L150 | 1 | 96 | 115.4 | 45 | -- | 15 | 15 | 48 | 5/8" | 1 7/8" |
| L190 | 1 | 115 | 133.4 | 54 | 101.6 | 19 | 19 | 55 | 5/8" | 2 1/4" |
| L225 | 1 | 127 | 153.4 | 64 | 108 | 19 | 19 | 65 | 3/4" | 2 5/8" |
Additional Standard Sizes
Polyurethane Coupling
GR14, GR19, GR24, GR28, GR38, GR42, GR48, GR55, GR65, GR75, GR90, GR100, GR110, GR125, GR140, GR160, GR180
MT1, MT2, MT3, MT4, MT5, MT6, MT7, MT8, MT9, MT10, MT11, MT12, MT13
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225, L276
FALK-R 10R, 20R, 30R, 40R, 50R, 60R, 70R, 80R

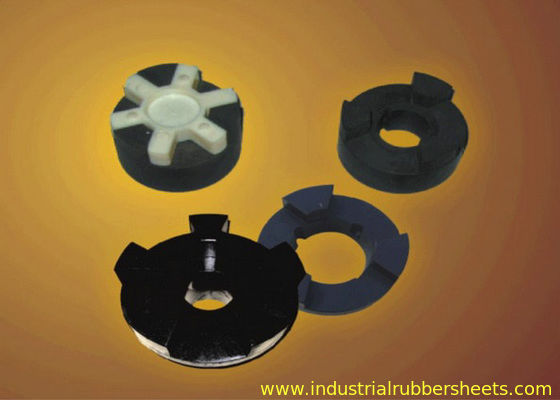

Rubber Coupling
Hb80, Hb95, Hb110, Hb125, Hb140, Hb160, Hb180, Hb200, Hb240, Hb280, Hb315
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225
NM50, NM67, NM82, NM97, NM112, NM128, NM148, NM168, NM194, NM214, NM240, NM265
Gear 3J, 4J, 5J, 6J, 7J, 8J, 9J, 10J, 11J
Special sizes can be built according to buyer's drawings and specifications.
Important: When making an enquiry, please confirm the product number and quantity for accurate pricing and delivery.
