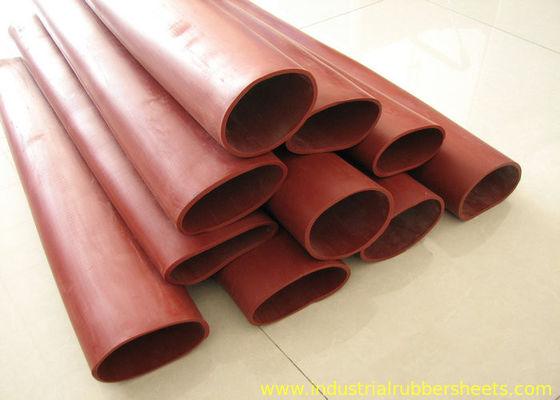

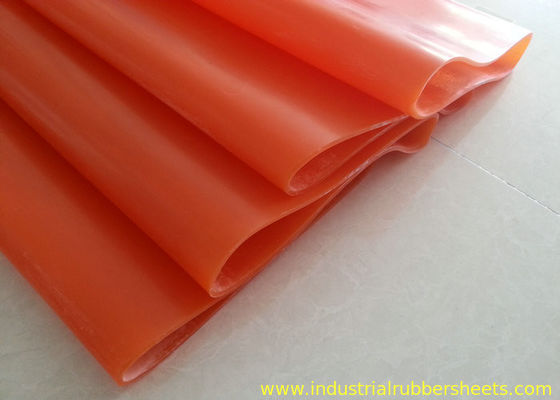

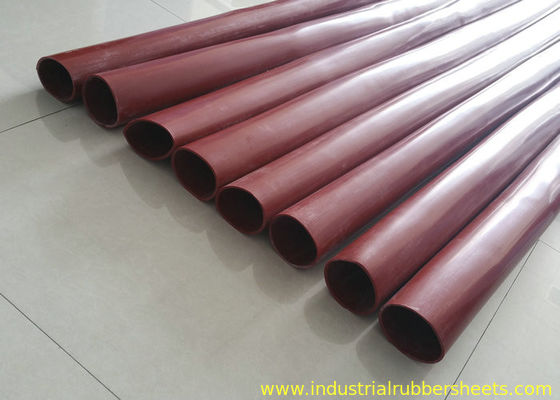

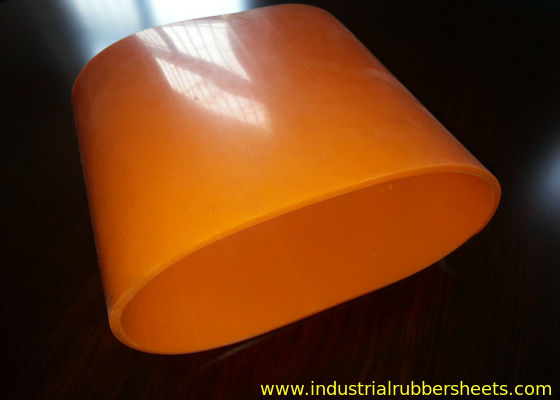

High Tear Resistant Silicone Tube Extrusion for Corona Roller with High Temperature Resistance
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ROHS/FCC/SGS |
| Model Number | 3A1003 |
| Minimum Order Quantity | 20kgs |
| Price | USD3-15.00/kg |
| Packaging Details | packing in rolls, cartons and pallets |
| Delivery Time | 7-15days after receive the buyer's payment |
| Payment Terms | T/T,L/C,Paypal,Western Union,D/P |
| Supply Ability | 100000kgs per month |
Product Details
| Features | Flexible, Non-toxic, Odorless | Application | For Corona Roller |
|---|---|---|---|
| Quality | Industrial Grade | Material | High Tear Resistant Silicone Rubber |
| Hardness | 60-70shore A | Elongation | 400% - 600% |
| Density | 1.25g/cm3 | Working Temperature | -60°C - +260°C(moment 300°C) |
| Resistant | 18-25KV/mm | Wall Thickness | 3-4mm |
| Resistance | High Temperature, UV, Ozone, Chemicals | Inner Diameter | 1mm - 50mm |
| Oem Odm | Available | Temperature Range | -60°C To +200°C |
| App | For Industrial Roller | Process | Extrusion |
| Customization | Size, Color, Hardness, Length, Printing | Fda Compliance | Yes |
| Reinforced | Insert 1-4PLY Fabric | Flexibility | Flexible |
| Keyword | Silicone Tube | Compression Set | 35% |
| Insert | Polyester | Size | As Per The Buyer's Drawing |
| Highlight | flexible silicone tubing,silicone rubber pipe |
||
Product Description
2m Length Silicone Tube Extrusion For Corona Roller / Silicone Rubber Sleeving
Product Overview
Orange, red super silicone sleeve, silicone tube, silicone pile special for corona roller maximum 2m length
Made with high quality silicone rubber material that provides excellent resistance to high voltage and flame retardation, specifically designed for corona machines. The high voltage corona sparkle is well-proportioned, making it easy to print color on plastic film with surface activation and millipore after corona treatment.
Capable of resisting 25KV at 1mm wall thickness. Ideal for roller sleeves, high-voltage terminals, protective sleeves, and flexing tubing for all types of corona machines.
Technical Specifications
| Material | 100% virgin silicone from Germany Silicone |
|---|---|
| Available Colors | Orange, dark red, black, etc. |
| Tensile Strength | 8-12 Mpa |
| Hardness | 60-70 shore A |
| Elongation | 400%-720% |
| Density | 1.25 g/cm³ |
| Working Temperature | -60°C to +250°C |
| Voltage Resistance | 18-25 KV/mm |
| Wall Thickness | 3.0mm, 4.0mm |
Standard Sizes
All sizes available in 2m length. OEM sizes available upon agreement.
Ø32mm x Ø38mm
Ø32mm x Ø40mm
Ø34mm x Ø42mm
Ø46mm x Ø54mm
Ø50mm x Ø58mm
Ø55mm x Ø62mm
Ø60mm x Ø66mm
Ø60mm x Ø68mm
Ø63mm x Ø71mm
Ø67mm x Ø75mm
Ø75mm x Ø83mm
Ø80mm x Ø88mm
Ø90mm x Ø98mm
Ø98mm x Ø102mm
Ø106mm x Ø114mm
Ø140mm x Ø150mm
Ø145mm x Ø153mm
Ø162mm x Ø172mm
Important Note
When making an inquiry, please confirm the following details:
- Color
- Quality requirements
- Hardness specifications
- Size requirements
- Quantity needed
