Industrial Grade Silicone Rubber Diaphragm Sheet For Solar Laminator Press

Industrial Grade Silicone Rubber Diaphragm Sheet For Solar Laminator Press
Features Gallery Product Description Request A Quote
Material: Virgin Germany "Wacker" Silicone
Grade: Industrial Grade
Quality: High Tear Resisitant
Surface: Smooth, Sand
Color: Dark Grey
Tensile Strength: 12Mpa
Hardness: 60-70shore A
Elongation: 720%
Density: 1.25g/cm3
Tear Strength: 42N/mm
Working Temperature: -60°C - +260°C(moment 300°C)
Thickness: 3 Or 4mm
Width: 1.5-3.6m
Length: 1-20m
High Light:

silicone gasket sheet


flexible rubber sheet

Basic Infomation
Place of Origin: China
Brand Name: 3A Rubber
Certification: ROHS/FCC/SGS
Model Number: 3A1001
Payment & Shipping Terms
Packaging Details: Packed in rolls and pallets
Delivery Time: 10-20 working days after received your payment
Payment Terms: T/T, L/C, Paypal, Western Union
Supply Ability: 100000kgs per month
Product Description

Silicone Membrane, silicone sheet, silicone roll, silicone rubber sheet special for solar laminator press


The Fifth Generation Solar laminating Silicone Rubber Membrane

Although also called diaphragms, sheets, or membranes, the solar panel industry tends to use the term membrane.

In direct response to the particular needs of the solar industry, we developed the Fifth Generation Fluorosilicone membrane. grey, durometer 70 silicone also remains a popular option for many solar panel manufacturers.

Specifically designed to resist the deterioration caused by EVA-outgassing, the Fifth Generation is used around the world by the leading producers of both thin-film and crystalline solar panels.

Building on their success, we continues to research and develop products specific to the various industries they serve.



Product description and advantages

• Special covering layer (black) on silicone backing(grey)
• Bond of the two layers cannot be separated mechanically
• Black covering layer is resistant to decomposing outgassing  during lamination process
• Constant quality thanks to quality management
• Durability results in longer machine running times and thus shorter set-up times

Standard dimensions

Width:                                   Max up to 3800mm
Material thickness:           4 mm
Fabrication even beyond the standard width

material: 100% virgin Germany silicone rubber
grade: industrial grade
quality: high tear resistant
color: grey.
surface: smooth/smooth, smooth/sand
reinforce: insert 1 PLY fabric
tensile strength: 12Mpa
hardness: 60-70shore A
elongation: 720%
density: 1.25g/cm3
tear strength: 42N/mm
working temperature: -60°C - +260°C(moment 300°C)
thickness: 3, 4mm
width: 1.5-3.6m
length: 1-50m

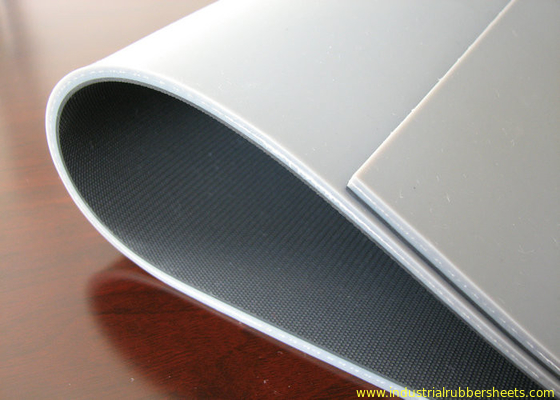

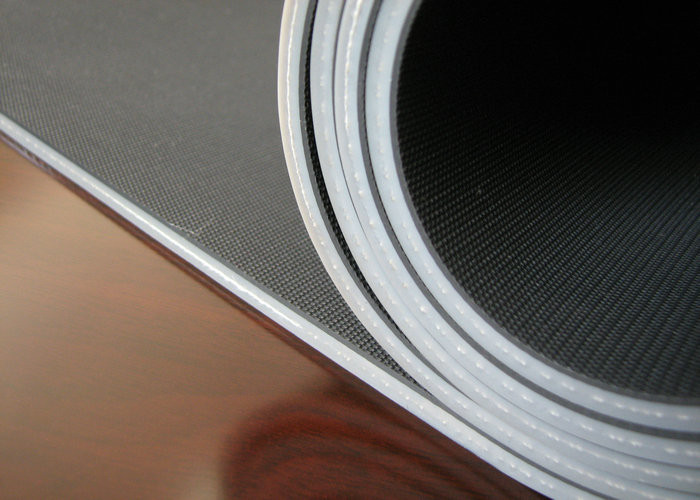

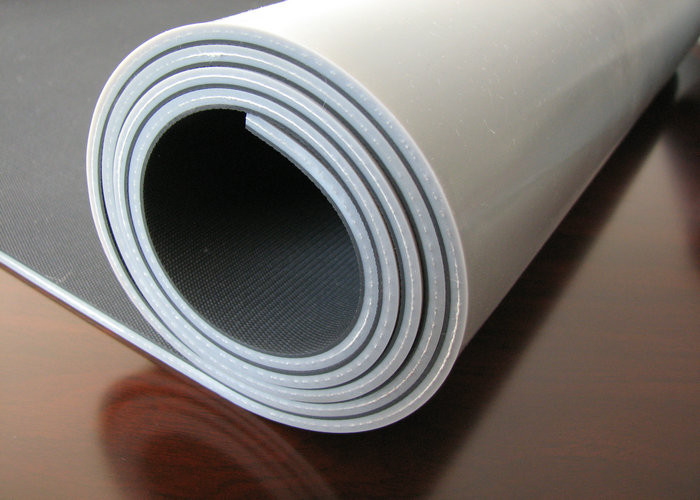

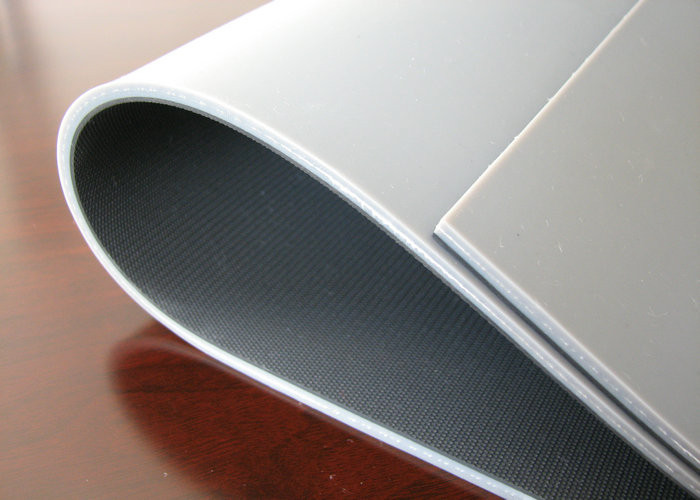

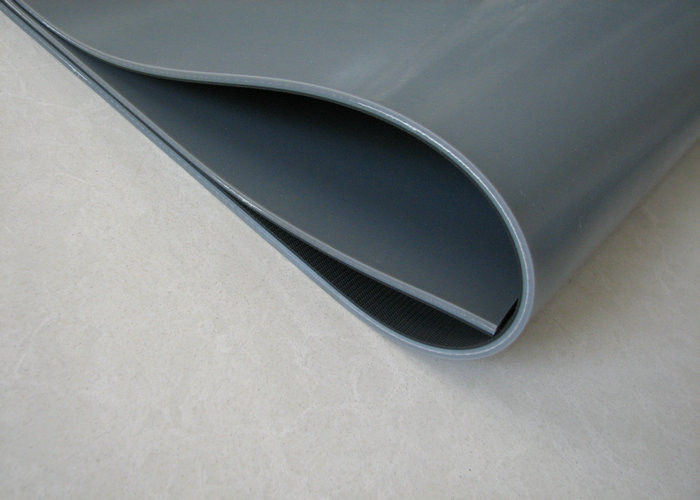

Industrial Grade Silicone Rubber Diaphragm Sheet For Solar Laminator Press 0
