60-70SH A Silicone Tube for Corona Roller 5-32mm ID

  • 60-70SH A Silicone Tube for Corona Roller 5-32mm ID
  • 60-70SH A Silicone Tube for Corona Roller 5-32mm ID
  • 60-70SH A Silicone Tube for Corona Roller 5-32mm ID
  • 60-70SH A Silicone Tube for Corona Roller 5-32mm ID
  • 60-70SH A Silicone Tube for Corona Roller 5-32mm ID
  • 60-70SH A Silicone Tube for Corona Roller 5-32mm ID
Place of Origin China
Brand Name 3A Rubber
Certification ISO9001
Model Number 3A1003
Minimum Order Quantity 20kgs
Price USD3-15.00/kg
Packaging Details Packing in rolls, cartons and pallets
Delivery Time 7-15days
Payment Terms L/C,D/P,T/T,Western Union,MoneyGram,D/P
Supply Ability 10000kgs/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Silicone Tube Keyword Silicone Profile
Material Fume Silicone Application For Corona Roller
Color Red, Orange, Translucent Hardness 60-70SH A
Elongation 700% Elongation At Break 300-600%
Shape Tube Cured Platinum Cured
Resistance High Temperature, UV, Ozone, Chemicals Fda Compliance Yes
Temperature Range -60°C To +200°C Tolerance ±0.1mm
Tear Resistance 25-35 KN/m Inside Diameter 5-32mm
Lead Time 7-15 Days Rohs Compliant Yes
Quality High Tear Resistant Compression Set 35%
Chemical Resistance Excellent
Highlight

corona roller silicone tube extrusion

,

high hardness silicone tube extrusion

,

corona roller customized silicone hose
Leave a Message
Product Description
High Hardness Customized Silicone Tube Extrusion For Corona Roller
Dark Red, Orange, Translucent Silicone Tube, Silicone Tubing Special for Corona Roller
Our corona silicone tubes and sleeves are manufactured using premium imported fume silicone material, engineered to withstand high voltage while providing excellent flame retardant properties. These specialized components ensure uniform high voltage corona spark distribution, enabling effective surface activation for improved printing on plastic films after corona treatment. Rated to resist 25KV at 1mm wall thickness, these tubes are ideal for roller sleeves, high-voltage terminals, protective sleeves, and flexible tubing in various corona machine applications.
Key Specifications
Material 100% virgin fume silicone material
Available Colors Orange, dark red, translucent, black, and custom options
Tensile Strength 9.8Mpa
Hardness 60-70 Shore A
Elongation 700%
Density 1.25g/cm³
Temperature Range -60°C to +250°C
Voltage Resistance 18-25KV/mm
Wall Thickness Options 2.0, 3.0, 4.0, 6.0mm
Standard Sizes
  • Ø32mm x Ø38mm x 2-20m
  • Ø32mm x Ø40mm x 2-20m
  • Ø34mm x Ø42mm x 2-20m
  • Ø46mm x Ø54mm x 2-20m
  • Ø50mm x Ø58mm x 2-20m
  • Ø55mm x Ø62mm x 2-20m
  • Ø60mm x Ø66mm x 2-20m
  • Ø60mm x Ø68mm x 2-20m
  • Ø63mm x Ø71mm x 2-20m
  • Ø67mm x Ø75mm x 2-20m
  • Ø75mm x Ø83mm x 2-20m
  • Ø80mm x Ø88mm x 2-20m
  • Ø90mm x Ø98mm x 2-20m
  • Ø98mm x Ø102mm x 2-20m
  • Ø106mm x Ø114mm x 2-20m
  • Ø140mm x Ø150mm x 2-20m
  • Ø145mm x Ø153mm x 2-20m
  • Ø162mm x Ø172mm x 2-20m
Custom sizes available upon request. All products are carefully packed in protective bags and crates for safe transportation.

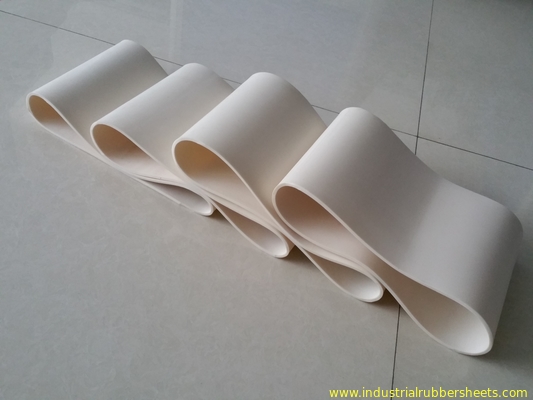

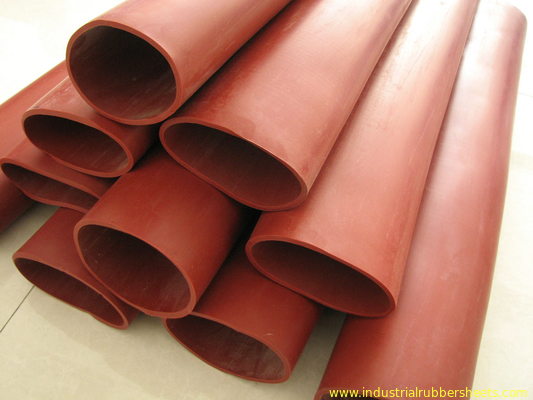

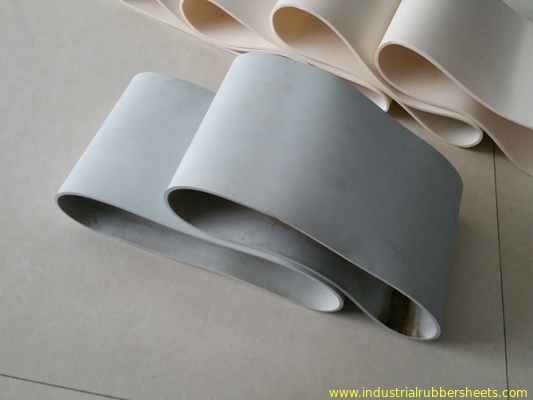

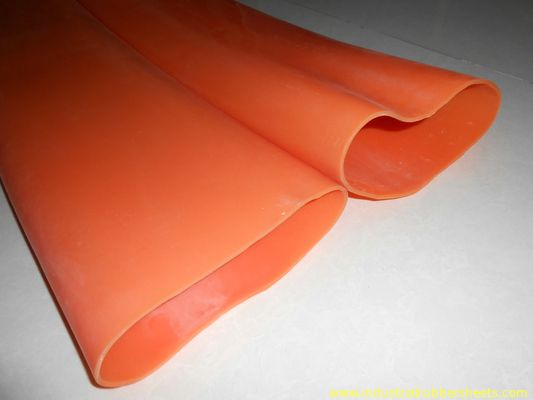

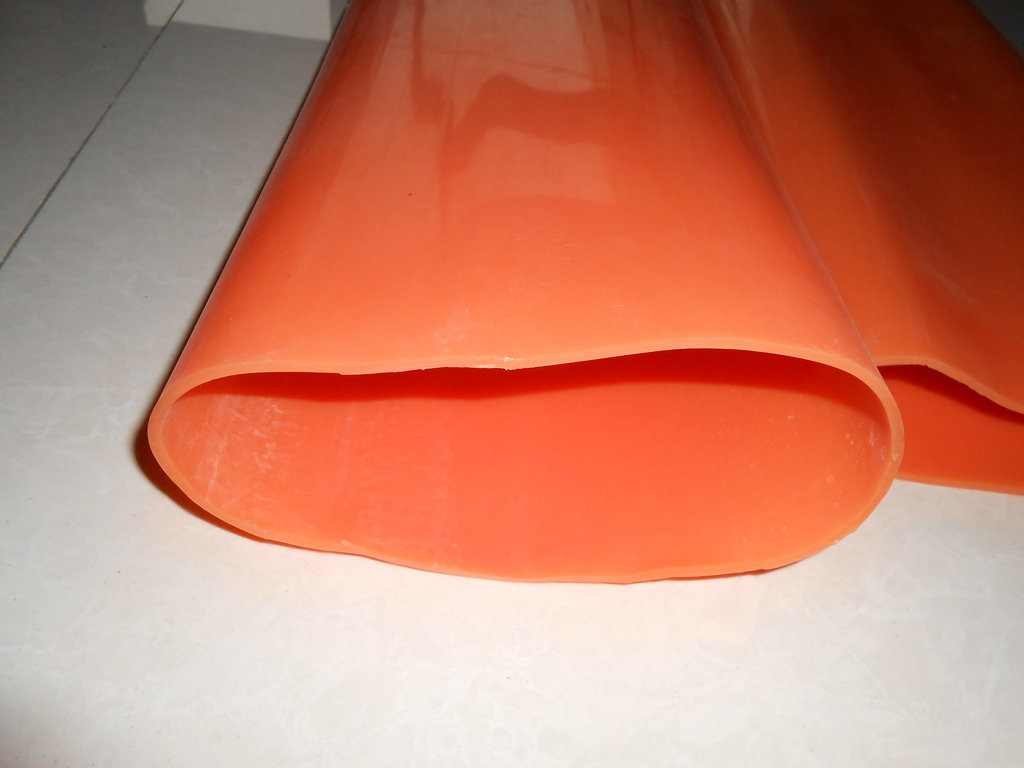

Product Gallery
