High Hardness Customized Silicone Tube Extrusion for Corona Roller with 60-70SH A Hardness
Product Details
| Name | Silicone Tube | Keyword | Silicone Profile |
|---|---|---|---|
| Material | Fume Silicone | Application | For Corona Roller |
| Color | Red, Orange, Translucent | Hardness | 60-70SH A |
| Elongation | 700% | Elongation At Break | 300-600% |
| Shape | Tube | Cured | Platinum Cured |
| Resistance | High Temperature, UV, Ozone, Chemicals | Fda Compliance | Yes |
| Temperature Range | -60°C To +200°C | Tolerance | ±0.1mm |
| Tear Resistance | 25-35 KN/m | Inside Diameter | 5-32mm |
| Lead Time | 7-15 Days | Rohs Compliant | Yes |
| Quality | High Tear Resistant | Compression Set | 35% |
| Chemical Resistance | Excellent | ||
| Highlight | corona roller silicone tube extrusion,high hardness silicone tube extrusion,corona roller customized silicone hose |
||
Product Description
High Hardness Customized Silicone Tube Extrusion For Corona Roller
Dark Red, Orange, Translucent Silicone Tube, Silicone Tubing Special for Corona Roller
The corona silicone tube and silicone sleeve are manufactured using high-quality imported fume silicone material, specifically engineered for corona machines. This material provides excellent resistance to high voltage and flame retardation properties.
The high voltage corona sparkle is evenly distributed, facilitating effective surface activation and microporous treatment for superior color printing on plastic films. Capable of resisting 25KV at 1mm wall thickness, these tubes are ideal for roller sleeves, high-voltage terminals, protective sleeves, and flexing tubing in various corona machine applications.
Specifications
| Material | 100% virgin fume silicone material |
|---|---|
| Available Colors | Orange, dark red, translucent, black, etc. |
| Tensile Strength | 9.8 MPa |
| Hardness | 60-70 Shore A |
| Elongation | 700% |
| Density | 1.25 g/cm³ |
| Working Temperature | -60°C to +250°C |
| Voltage Resistance | 18-25 KV/mm |
| Wall Thickness Options | 2.0, 3.0, 4.0, 6.0 mm |
Standard Sizes
| Inner Diameter * Outer Diameter | Length |
|---|---|
| Ø32mm * Ø38mm | 2-20m |
| Ø32mm * Ø40mm | 2-20m |
| Ø34mm * Ø42mm | 2-20m |
| Ø46mm * Ø54mm | 2-20m |
| Ø50mm * Ø58mm | 2-20m |
| Ø55mm * Ø62mm | 2-20m |
| Ø60mm * Ø66mm | 2-20m |
| Ø60mm * Ø68mm | 2-20m |
| Ø63mm * Ø71mm | 2-20m |
| Ø67mm * Ø75mm | 2-20m |
| Ø75mm * Ø83mm | 2-20m |
| Ø80mm * Ø88mm | 2-20m |
| Ø90mm * Ø98mm | 2-20m |
| Ø98mm * Ø102mm | 2-20m |
| Ø106mm * Ø114mm | 2-20m |
| Ø140mm * Ø150mm | 2-20m |
| Ø145mm * Ø153mm | 2-20m |
| Ø162mm * Ø172mm | 2-20m |
OEM and customized sizes available upon agreement

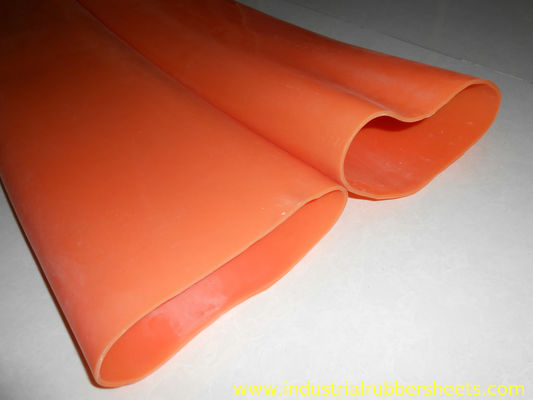

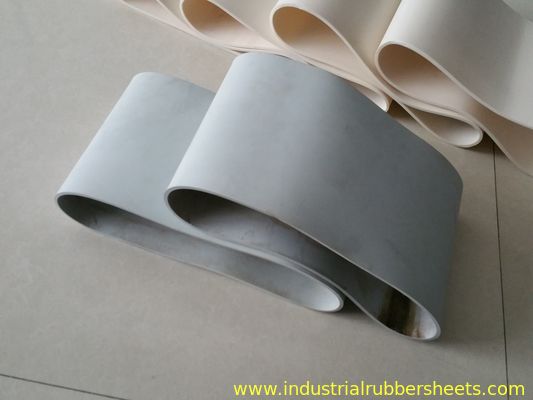

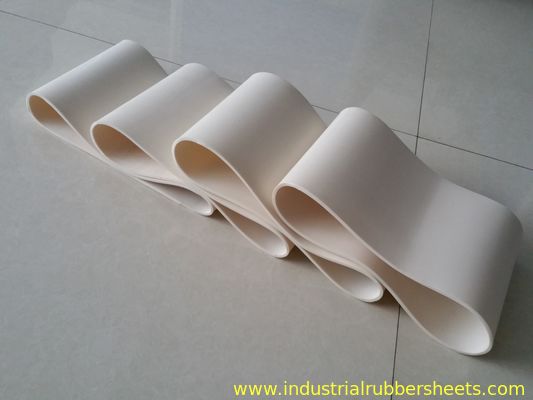

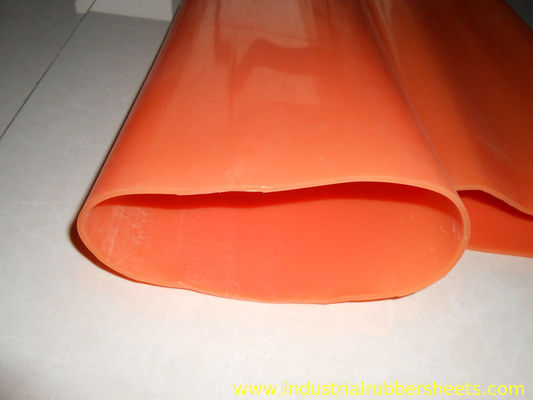

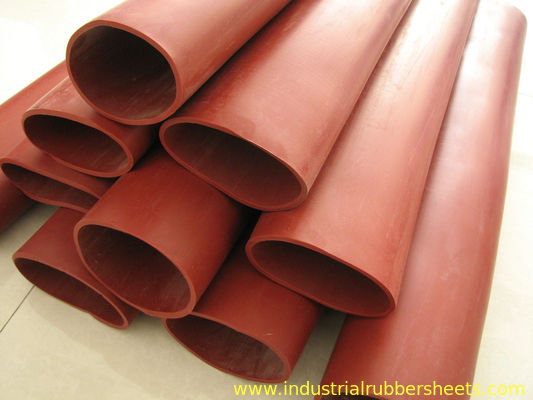

Product Images
Packed in protective bags and sturdy crates for secure shipping
