Food Grade Platinum Cured Silicone Hose 60 Shore A for Water Air

  • Food Grade Platinum Cured Silicone Hose 60 Shore A for Water Air
  • Food Grade Platinum Cured Silicone Hose 60 Shore A for Water Air
  • Food Grade Platinum Cured Silicone Hose 60 Shore A for Water Air
  • Food Grade Platinum Cured Silicone Hose 60 Shore A for Water Air
  • Food Grade Platinum Cured Silicone Hose 60 Shore A for Water Air
  • Food Grade Platinum Cured Silicone Hose 60 Shore A for Water Air
Place of Origin China
Brand Name 3A Rubber
Certification ISO9001
Model Number 3A1003
Minimum Order Quantity 20kgs
Price USD3-15.00/kg
Packaging Details Packing in rolls, cartons and pallets
Delivery Time 7-15days
Payment Terms L/C,D/P,T/T,Western Union,MoneyGram
Supply Ability 100000kgs/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Flexible, Non-toxic, Odorless Name Silicone Hose
Keyword Silicone Hose Material Virgin Silicone
Application For Water And Air Color Translucent
Quality Food Grade Hardness 60shore A
Rohs Compliant Yes Customization Size, Color, Printing
Reinforced Insert 1-4PLY Fabric Insert Polyester
Inner Diameter 1mm-50mm Oem Odm Available
Uv Resistance Excellent Shape Tube
Cured Platinum Cured Resistant 18-25KV/mm
Lead Time 7-15 Days Temperature Resistance Up To 200°C
Outer Diameter 3mm-60mm
Highlight

reinforced silicone tube extrusion

,

smooth surface silicone tube extrusion

,

water and air silicone reinforced hose
Leave a Message
Product Description

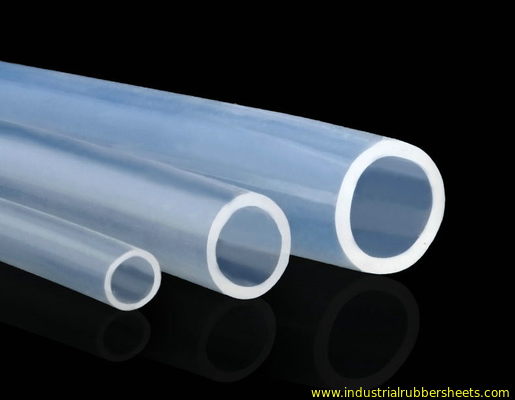

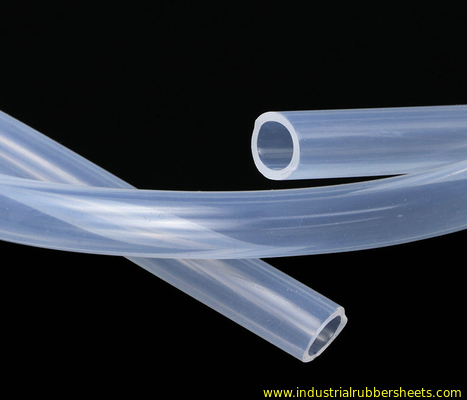

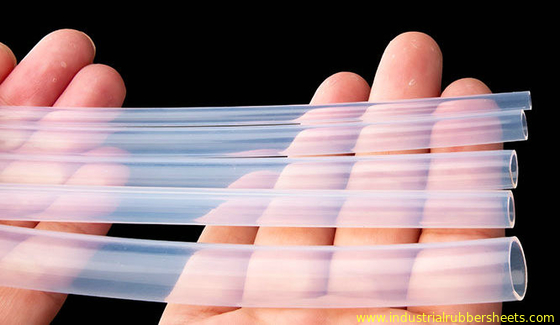

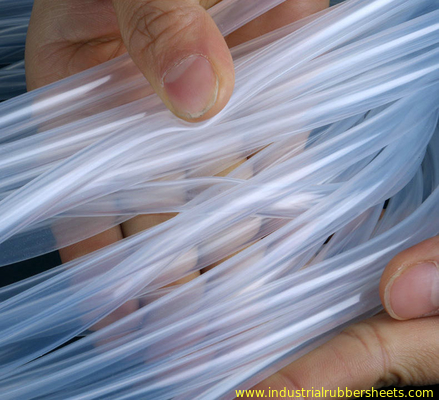

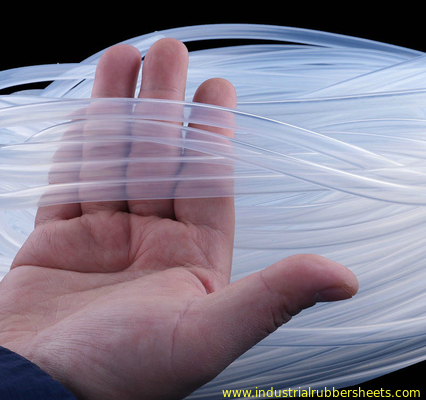

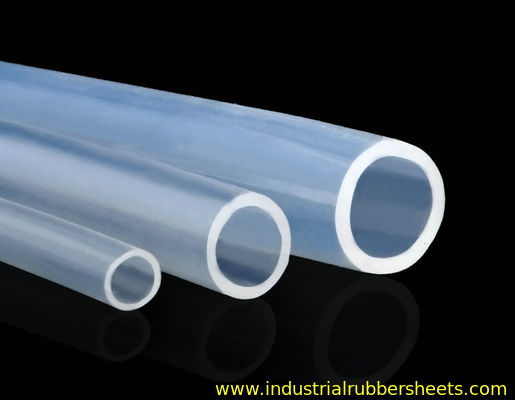

Food Grade Platinum Cured Smooth Surface Silicone Tube Extrusion For Water And Air
Food Grade Translucent Silicone Hose, Silicone Tube, Silicone Tubing For Water and Air
Our premium silicone hoses and tubes are extruded or molded using high-quality silicone material with precision molds to meet exact specifications. These products offer exceptional tensile strength, flexibility, and resistance to pulling, with a wide range of hardness options. They feature excellent aging resistance, ozone resistance, heat resistance, insulation properties, and resistance to fuel oil and lubricants. Suitable for use in air, water, or oil environments at temperatures ranging from -60°C to +250°C.
Product Grades
  • Industrial Grade: Made with standard extruded silicone, vulcanized with imported peroxide (odorless)
  • Food Grade: Manufactured with transparent fumed silicone, platinum vulcanized (non-toxic and tasteless)
  • Medical Grade: Produced with medical-grade transparent fumed silicone, platinum vulcanized with FDA and LFGB certification
Applications
Ideal for corona rollers or transferring water, air, oil, and other media in various industrial and food processing applications.
Specifications
Material 100% virgin silicone material
Quality Industrial grade, food grade under postcured or platinum cured
Color Transparent, translucent, dark red, orange, black, milk white, blue, grey etc.
Surface Smooth
Fiber Reinforced Insert 1-5PLY polyester fiber
Tensile Strength 7.5-9.8Mpa
Hardness 50, 60, 70, 80+/-5shore A
Elongation 350-720%
Density 1.25+/-0.05g/cm3
Tear Strength 26-42N/mm
Working Temperature -60°C - +250°C
Wall Thickness 1.0, 2.0, 3.0, 4.0, 5.0mm
Standard Sizes
Ø0.5mm x Ø1.0mm x 5-20kgs
Ø0.5mm x Ø1.5mm x 5-20kgs
Ø0.5mm x Ø2.0mm x 5-20kgs
Ø0.8mm x Ø1.9mm x 5-20kgs
Ø1.0mm x Ø2.0mm x 5-20kgs
Ø1.0mm x Ø3.0mm x 5-20kgs
Ø1.0mm x Ø4.0mm x 5-20kgs
Ø1.5mm x Ø2.5mm x 5-20kgs
Ø1.5mm x Ø3.0mm x 5-20kgs
Ø1.6mm x Ø3.2mm x 5-20kgs
Ø2.0mm x Ø3.0mm x 5-20kgs
Ø2.0mm x Ø4.0mm x 5-20kgs
Ø2.0mm x Ø5.0mm x 5-20kgs
Ø2.0mm x Ø6.0mm x 5-20kgs
Ø3.0mm x Ø4.0mm x 5-20kgs
Ø3.0mm x Ø5.0mm x 5-20kgs
Ø3.0mm x Ø6.0mm x 5-20kgs
Ø3.0mm x Ø8.0mm x 5-20kgs
Ø3.0mm x Ø9.0mm x 5-20kgs
Ø4.0mm x Ø5.0mm x 5-20kgs
Ø4.0mm x Ø6.0mm x 5-20kgs
Ø4.0mm x Ø7.0mm x 5-20kgs
Ø4.0mm x Ø8.0mm x 5-20kgs
Ø5.0mm x Ø8.0mm x 5-20kgs
Ø5.0mm x Ø9.0mm x 5-20kgs
Ø5.0mm x Ø10.0mm x 5-20kgs
Ø6.0mm x Ø9.0mm x 5-20kgs
Ø6.0mm x Ø10.0mm x 5-20kgs
Ø6.0mm x Ø12.0mm x 5-20kgs
Ø7.0mm x Ø9.0mm x 5-20kgs
Ø7.0mm x Ø10.0mm x 5-20kgs
Ø7.0mm x Ø12.0mm x 5-20kgs
Ø8.0mm x Ø10.0mm x 5-20kgs
Ø8.0mm x Ø12.0mm x 5-20kgs
Ø8.0mm x Ø14.0mm x 5-20kgs
Ø9.0mm x Ø12.0mm x 5-20kgs
Ø9.0mm x Ø14.0mm x 5-20kgs
Ø9.0mm x Ø16.0mm x 5-20kgs
Ø10.0mm x Ø14.0mm x 5-20kgs
Ø10.0mm x Ø16.0mm x 5-20kgs
Ø10.0mm x Ø18.0mm x 5-20kgs
Ø12.0mm x Ø16.0mm x 5-20kgs
Ø12.0mm x Ø18.0mm x 5-20kgs
Ø12.0mm x Ø20.0mm x 5-20kgs
Ø14.0mm x Ø18.0mm x 5-20kgs
Ø14.0mm x Ø20.0mm x 5-20kgs
Ø14.0mm x Ø22.0mm x 5-20kgs
Ø16.0mm x Ø18.0mm x 5-20kgs
Ø16.0mm x Ø20.0mm x 5-20kgs
Ø20.0mm x Ø30.0mm x 5-20kgs
Ø30.0mm x Ø40.0mm x 5-20kgs
Ø40.0mm x Ø50.0mm x 5-20kgs
Note: OEM and customized sizes available upon agreement. Packing options include rolls, bags, cartons, pallets, or crates.
Food Grade Silicone Fiber Reinforced Hose Specifications
Item Silicone fiber hose, silicone braided hose, silicone reinforced hose
Material Food grade silicone material
Reinforced Braided polyester fiber
Color Transparent, red, blue, black or custom colors
Surface Smooth
Tensile Strength 7.5-9.8Mpa
Hardness 50-70shore A
Elongation 300%
Density 1.25g/cm3
Working Pressure 10Kgs
Minimum Working Temperature -30°C
Maximum Working Temperature +250°C
ID (Inside Diameter) 4~50mm
Wall Thickness 3~5mm
Tolerance ID less than 1/2'', ±0.3mm; ID more than 1/2'', ±0.5mm
Available Sizes for Reinforced Hoses
id4mm x od9mm
id5mm x od11mm
id6mm x od10mm
id6mm x od12mm
id7.5mm x od14.5mm
id8mm x od12mm
id8mm x od14mm
id8mm x od16mm
id9mm x od15mm
id10mm x od15mm
id10mm x od17mm
id10mm x od18mm
id10mm x od19.5mm
id12mm x od20mm
id12.7mm x od20mm
id13mm x od19mm
id13mm x od20mm
id13mm x od21mm
id16mm x od24mm
id19mm x od27mm
id19mm x od28mm
id19.5mm x od27.5mm
id22mm x od32mm
id25mm x od35mm
id32mm x od42mm
id38mm x od46mm
id38mm x od48mm
id50mm x od60mm
Properties & Advantages
  • Properties: Anti-aging, erosion-resistant, high temperature resistant, shock-resistant
  • Advantages: Customizable solutions, high performance, superior quality, competitive pricing, extensive manufacturing experience
Food Grade Platinum Cured Silicone Hose 60 Shore A for Water Air 0 Food Grade Platinum Cured Silicone Hose 60 Shore A for Water Air 1 Food Grade Platinum Cured Silicone Hose 60 Shore A for Water Air 2 Food Grade Platinum Cured Silicone Hose 60 Shore A for Water Air 3 Food Grade Platinum Cured Silicone Hose 60 Shore A for Water Air 4 Food Grade Platinum Cured Silicone Hose 60 Shore A for Water Air 5
For more technical data and product information:

Please email to sales@3Arubber.com

When inquiring, please confirm: Hardness, color, size, and quantity requirements.
