Virgin Silicone Rubber Sheet and Membrane with High Tear Strength for Industrial Applications
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ISO9001 |
| Model Number | 3A1001 |
| Minimum Order Quantity | 100kgs |
| Price | USD10.00/kg |
| Packaging Details | packing in rolls and pallets |
| Delivery Time | 7-15days after receive the buyer's payment |
| Payment Terms | L/C,D/P,T/T,Western Union |
| Supply Ability | 100000kgs/month |
Product Details
| Material | Virgin Silicone | Color | Translucent, Grey, Black, Blue |
|---|---|---|---|
| Surface | Smooth, Matt, Impression Fabric | Tensile Strenth | 7.5-12Mpa |
| Hardness | 40-60shore A | Elongation | 350-720% |
| Density | 1.25 - 1.5 G/cm³ | Tear Strength | 26-42N/mm |
| Thickness | 1-6mm | Width | 1.5-3.6m |
| Length | 10m/20m/Customized | Packing | In Carton |
| Uniform Heating | Maximum 220 Degree C | Logo | Custom Logo |
| Aging Resistance | Excellent | Volume Resistance | 10^13-10^15Ω·cm |
| Specific Gravity | 1.2-1.25g/cm3 | Working Temperature | -50-220°C |
| Products | Silicone Rubber Sheet | Origin | China |
| Power | 350W | Backing | Adhesive Tape |
| Top | Impression Fabric | Grade | Industrial Grade |
| Quality | Food Grade | Uv Resistance | Good |
| Compliance | FDA, LFGB, RoHS, REACH, Custom | Rohs Compliance | Yes |
| Temperature Range | -60°C - +260°C(moment 300°C) | Ozone Resistance | Excellent |
| Backing Adhesive | Agreed | Others | As Per Buyer's Drawing |
| Surface Finish | Smooth | Application | Sealing/Gasketing/Insulation |
| Electric Thermostat | Custom | Tolerance | ±0.1mm |
| Production | Mold Compression | ||
| Highlight | Industrial Silicone Sheet,Safety Glass Industrial Silicone Sheet,Silicone Membrane |
||
Product Description

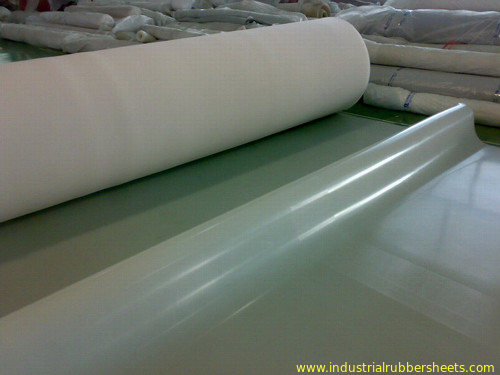

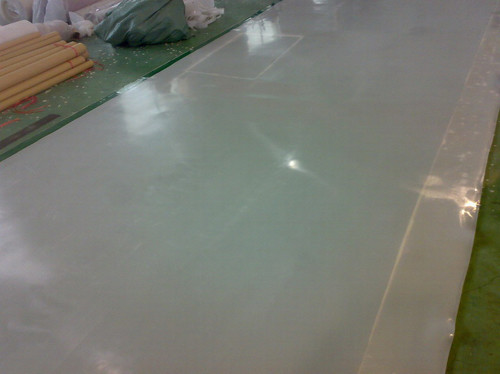

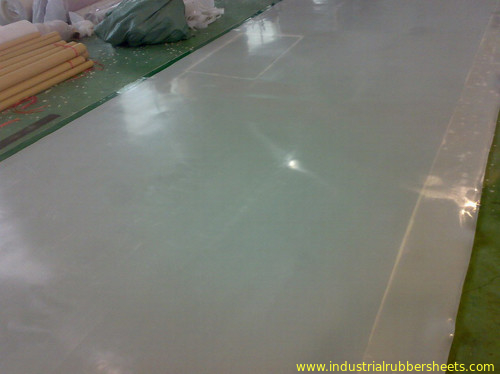

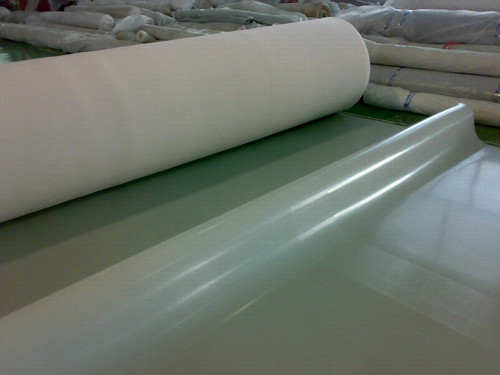

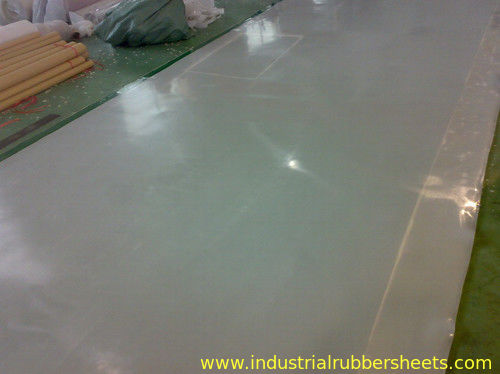

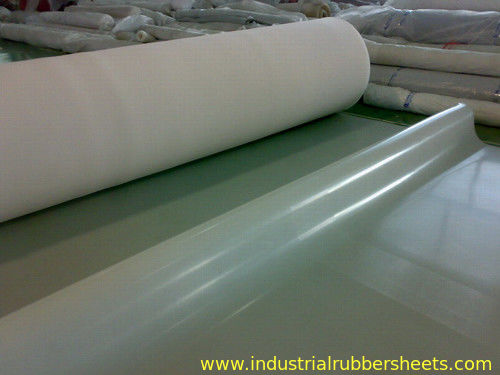

Silicone Rubber Sheet, Silicone Roll, Silicone Membrane, Silicone Diaphragm Special for Safety Glass Industrial
Our silicone sheets, membranes, and rolls are manufactured using high-quality silicone material on specialized rotocure vulcanizers or plain press vulcanizers, tailored to meet specific customer size requirements. We offer comprehensive production capabilities across various thicknesses and dimensions, ensuring seamless, joint-free products with superior surface quality and precise thickness tolerance.
Manufacturing Capabilities
- General silicone sheet (0.5-12mm x 0.5-1.5m x 1-10m) produced on 4-roller rotocure vulcanizer
- Super wide and special silicone sheet (1.0-8.0mm x 1.5-3.8m x 10-20m) produced on 2-roller rotocure vulcanizer
- Super thin and special silicone sheet (0.1-1.0mm x 0.3-1.0m x 25-50m) produced on special oven road vulcanizer
- Super thick silicone sheet produced on plain press vulcanizer
Material Properties
High-quality silicone rubber with excellent performance characteristics including anti-aging, ozone resistance, heat resistance, electric insulation, oil resistance, solvent resistance, corrosion resistance, non-toxic and odorless, and pollution-free. Suitable for working in air, water, oil and other media at temperatures from -60°C to +260°C (momentary maximum 300°C) with high stability, reliability, and non-sticky surface.
Applications

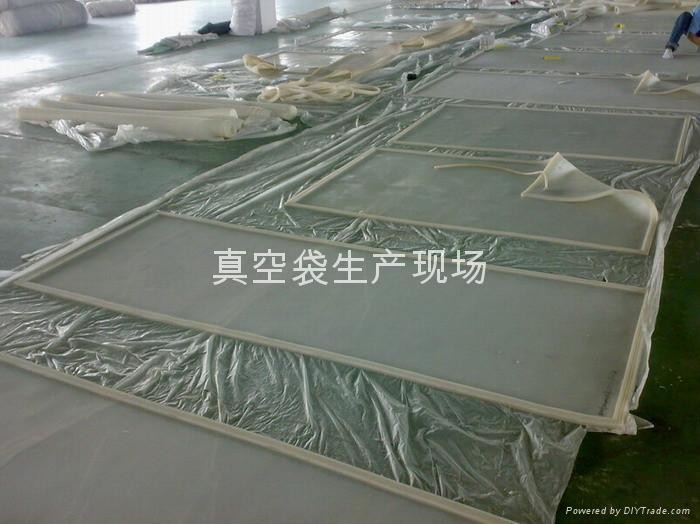

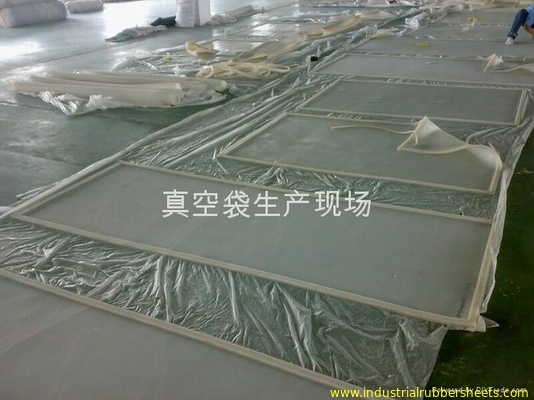

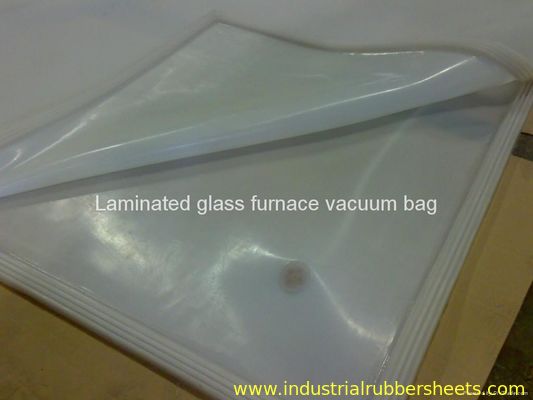

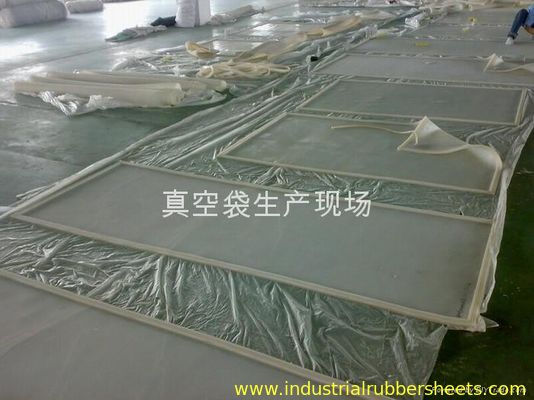

Ideal for punching various rubber seals and gaskets, and specialized applications including wooden PVC vacuum laminators, steel door vacuum laminators, safety glass vacuum laminating bags, solar photovoltaic module vacuum laminators, hot press laminators, card press laminators, and other industrial applications.
Specifications
| Parameter | Specifications |
|---|---|
| Material | 100% virgin HTV silicone material |
| Grade | Industrial grade, food grade, medical grade, FDA grade with postcured |
| Quality | High tear resistant, middle tear resistant, general tear resistant |
| Color | Translucent, dark red, black, milk white, grey, blue, etc. |
| Surface | Smooth/smooth, smooth/impression fabric, smooth/sand or double impression fabric |
| Reinforce | Insert 1 PLY fiberglass fabric, aramid fabric or wire mesh SS201, SS304, SS316 |
| Tensile Strength | 7.5-12.0 MPa |
| Hardness | 10, 20, 30, 40, 50, 60, 70, 80 +/-5 shore A |
| Elongation | 350%-720% |
| Density | 1.25-1.50 g/cm³ |
| Tear Strength | 26-42 N/mm |
| Working Temperature | -60°C to +260°C (momentary 300°C) |
| Thickness | 0.1-50 mm |
| Width | 0.1-3.6 m |
| Length | 1-50 m |
Standard Sizes
- 0.1-1.0mm x 0.3-1.0m x 25-50m
- 0.5-12.0mm x 0.5-1.5m x 10-20m
- 10.0-50.0mm x 0.5/1.0/1.2/1.5m x 1-20m
- 1.0-8.0mm x 1.5-3.8m x 10-20m
- OEM & customized sizes available upon agreement
Packing options: rolls, pallets, or crates
Special Silicone Membranes
- Grey, 9.8 MPa, 40 shore A, 750%, 42 N/mm Germany silicone for "+" and "-" press on wooden PVC vacuum laminator
- Translucent, 7.5 MPa, 50 shore A, 400%, 26 N/mm Chinese silicone for "-" press only on wooden PVC vacuum laminator
- Grey, 12.0 MPa, 60-70 shore A, 350%, 45 N/mm Germany silicone for photovoltaic module on solar vacuum laminator

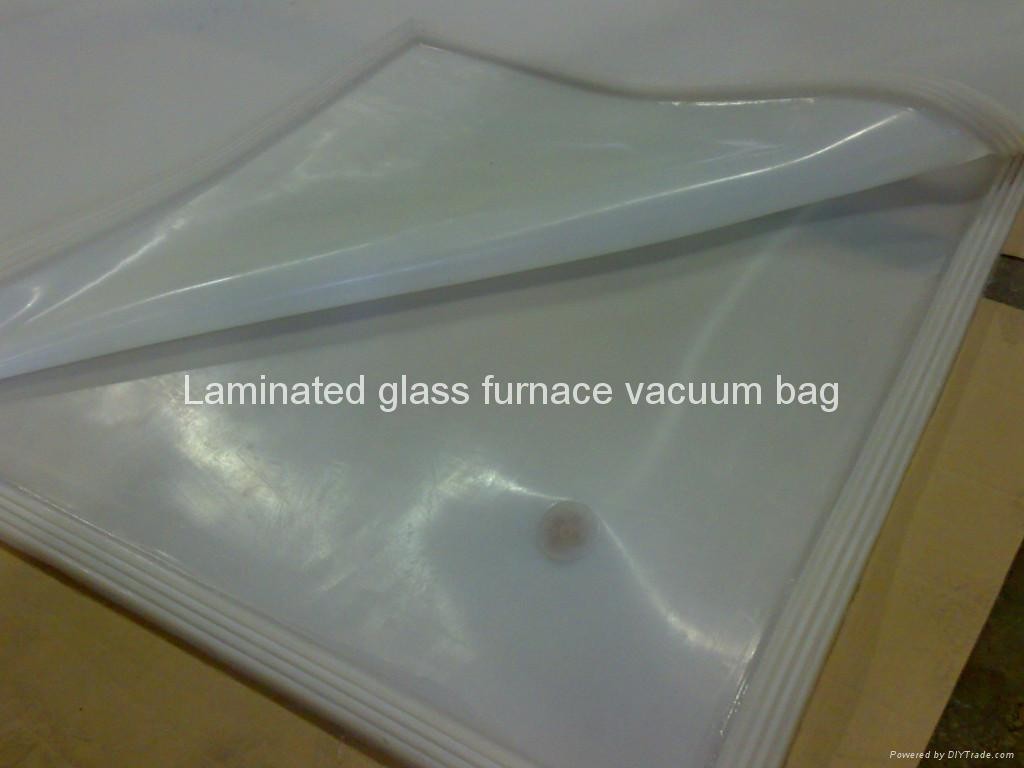

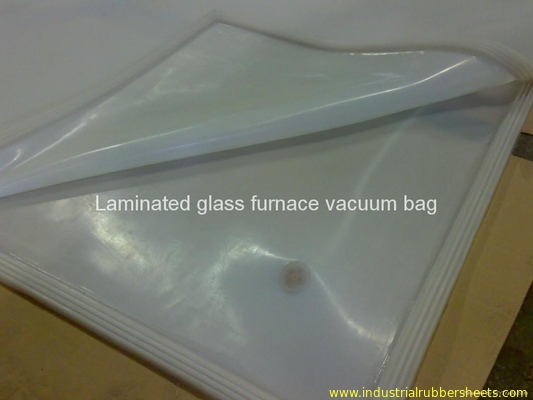

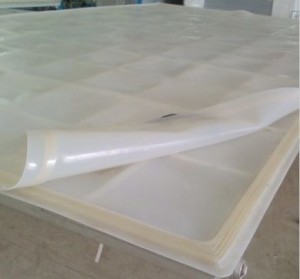

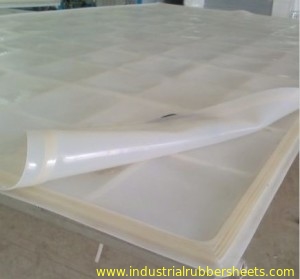

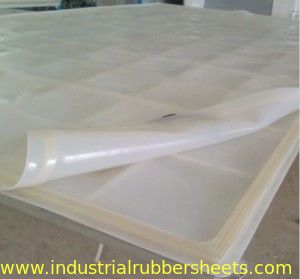

- Sky blue, 7.5 MPa, 50 shore A, 350%, 26 N/mm Chinese silicone for safety glass on glass vacuum bag and laminator
- Dark blue, 8.0 MPa, 57 shore A, 450%, 30 N/mm Chinese silicone for safety glass on glass vacuum bag and laminator
Special Products
Special supply of FDA grade silicone sheet with postcure and antistatic silicone sheet with fire-resistant, black color, smooth surface. Also available: black antistatic silicone sheet backing with or without adhesive 3M, thickness 0.2, 0.5, 0.8, 1.0, 1.2, 1.5, 2.0, 3.0mm.
Contact Information
For more data & information, please email to: sales@3Arubber.com
When you enquire, please confirm the hardness, color, size and quantity requirements.
