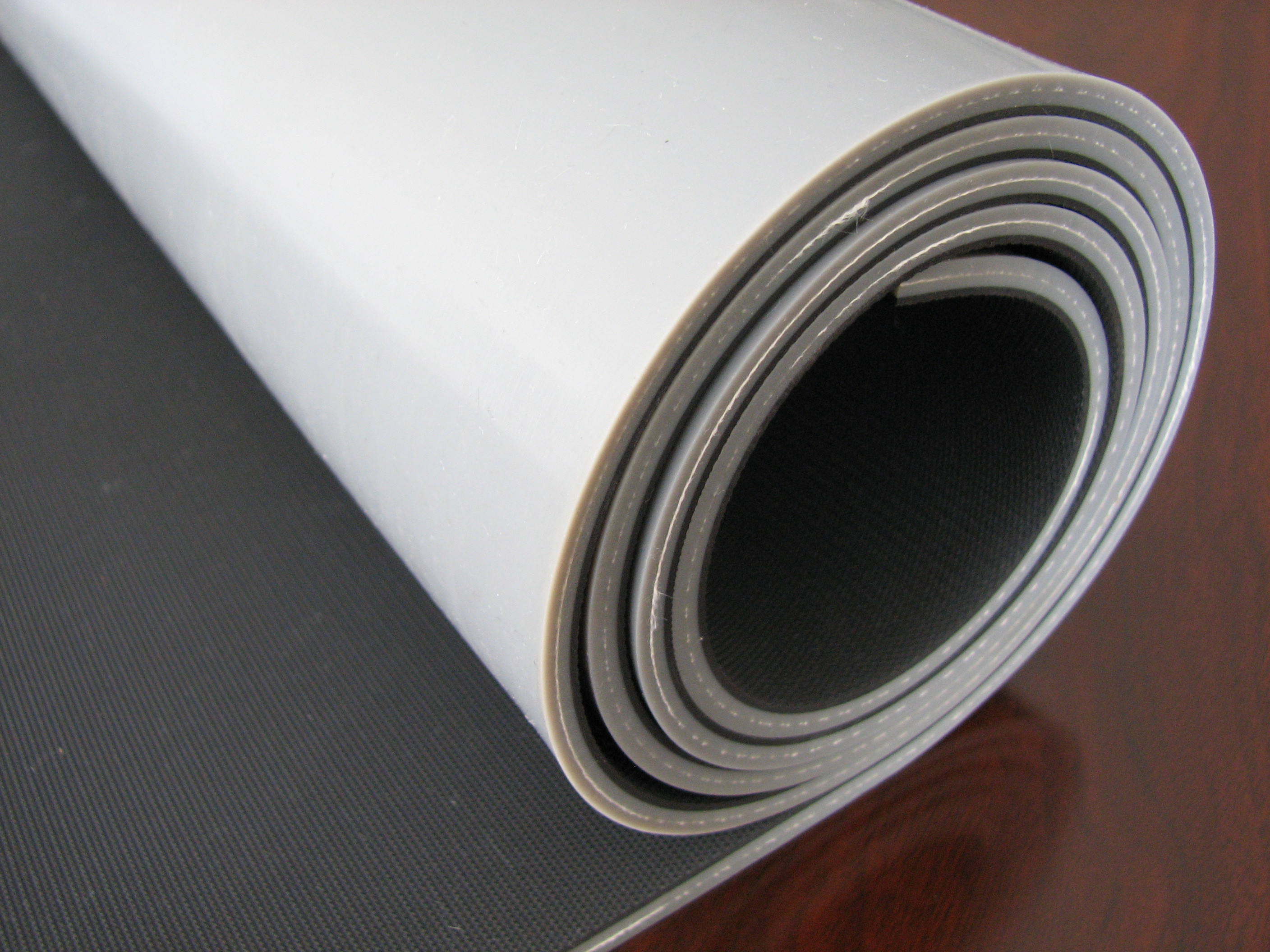

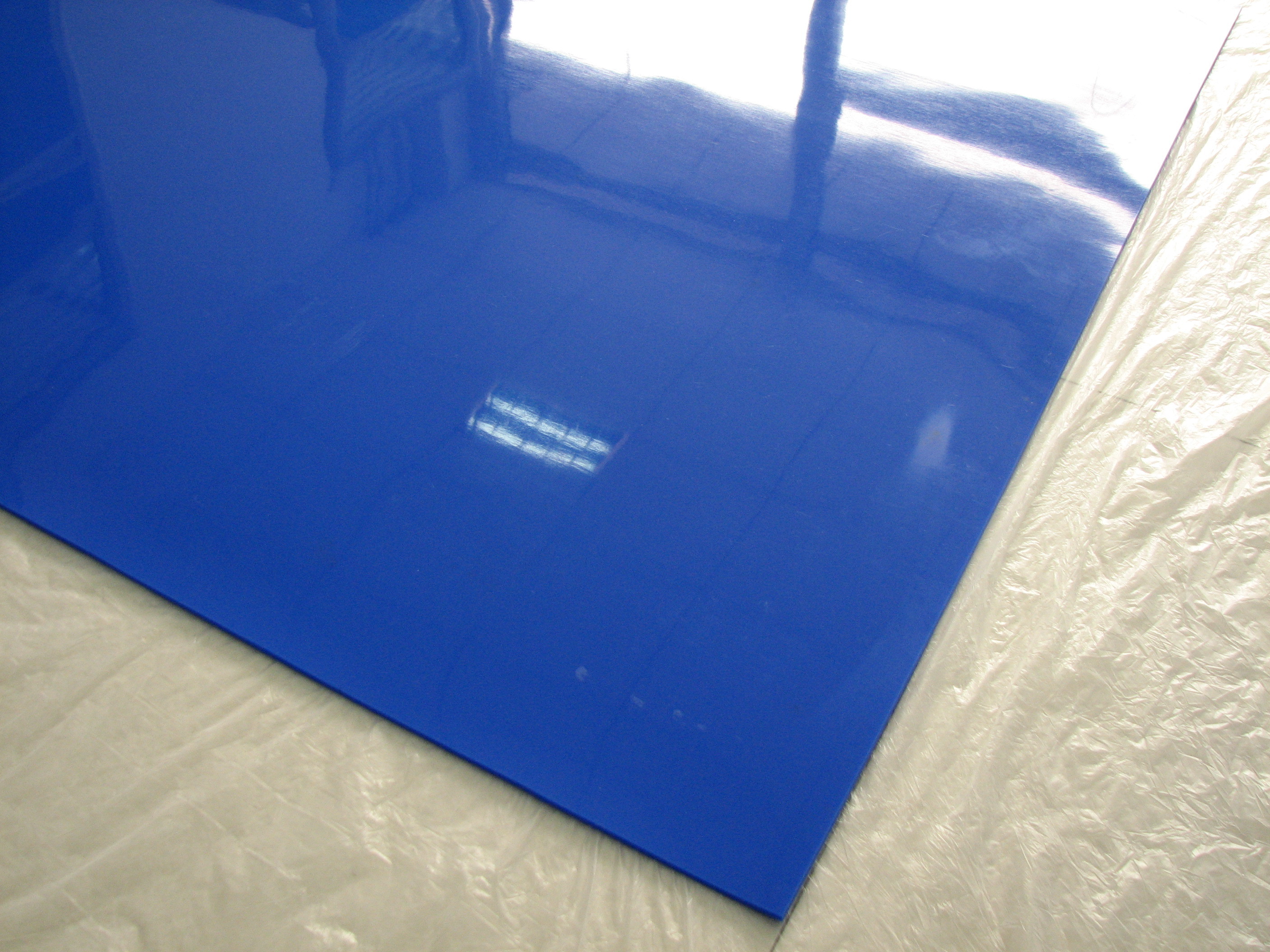

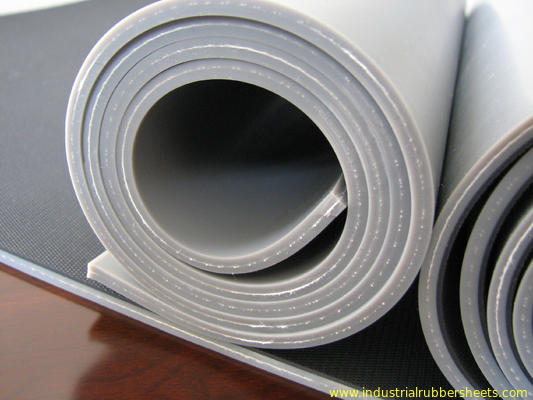

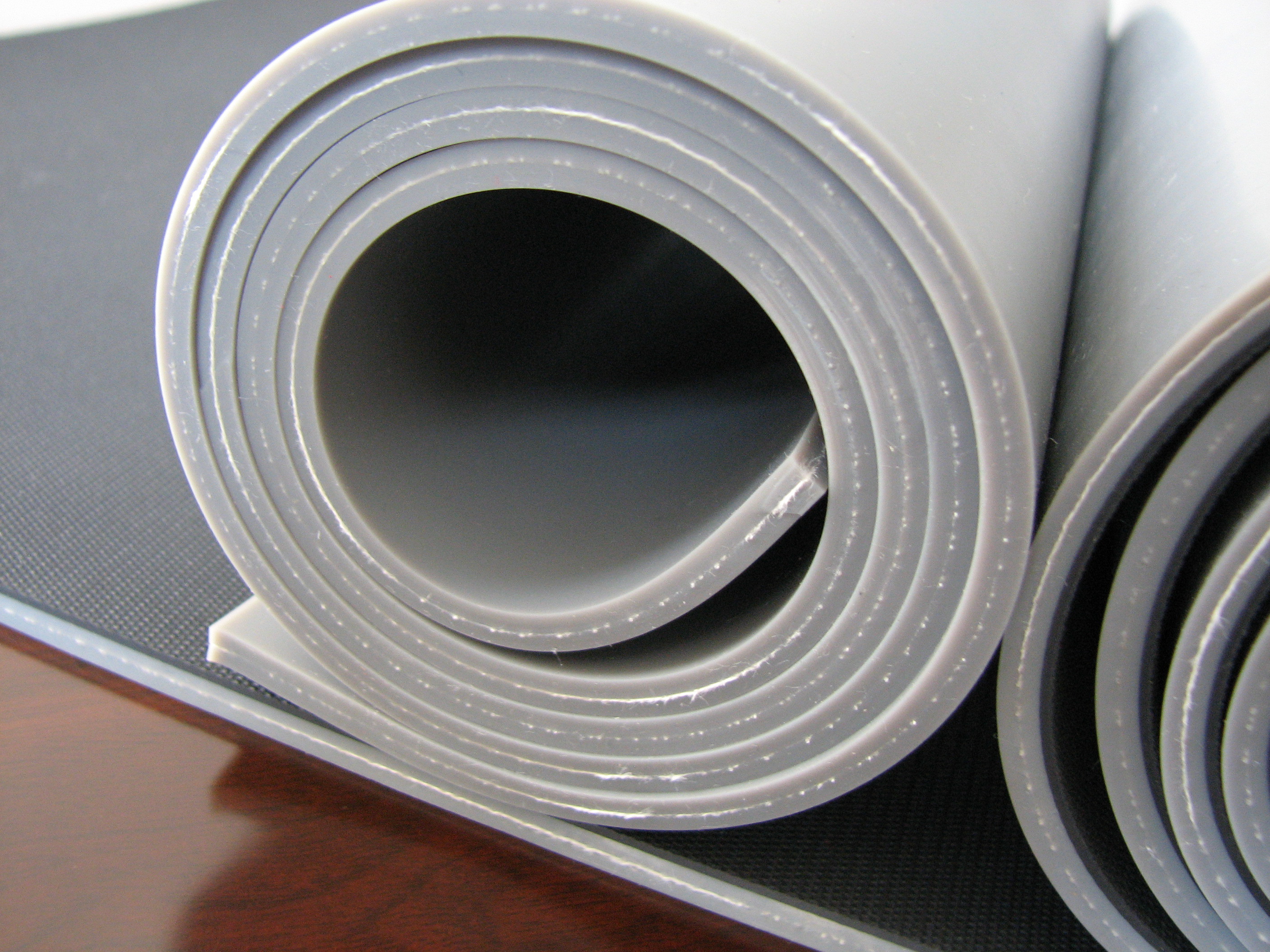

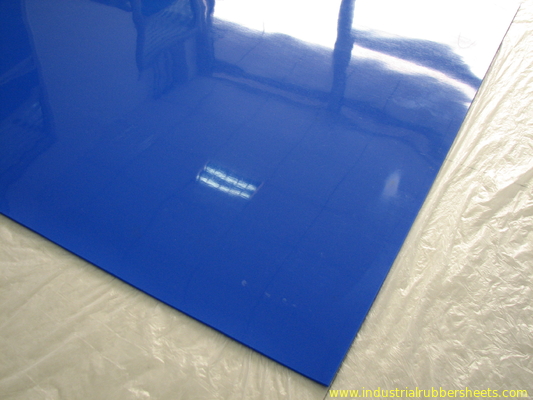

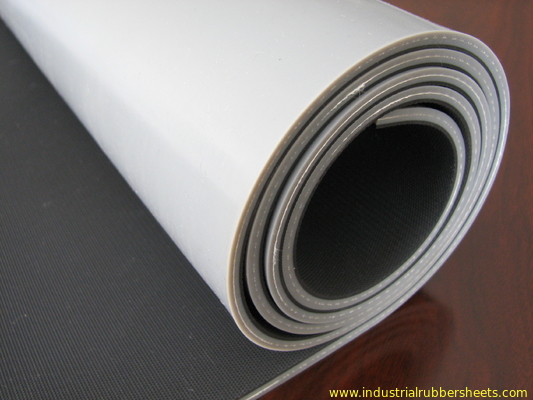

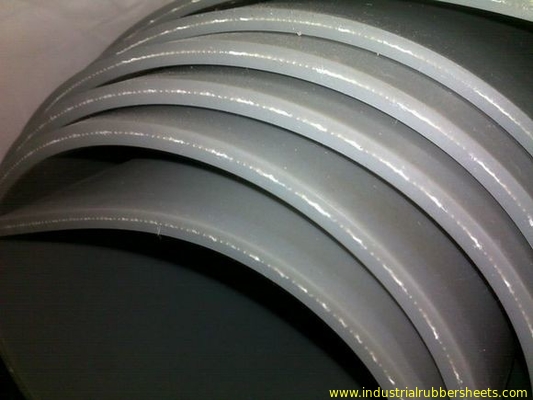

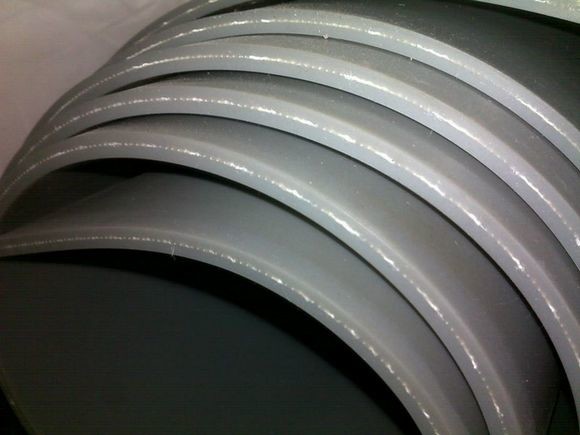

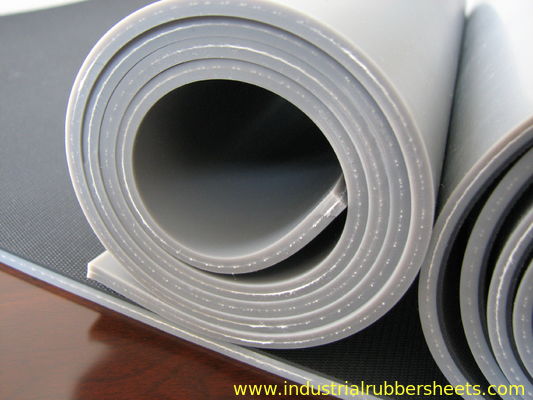

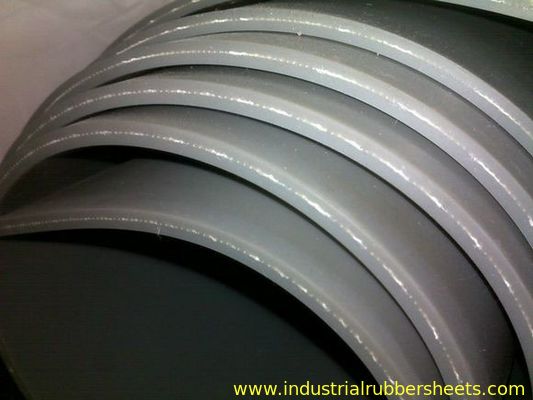

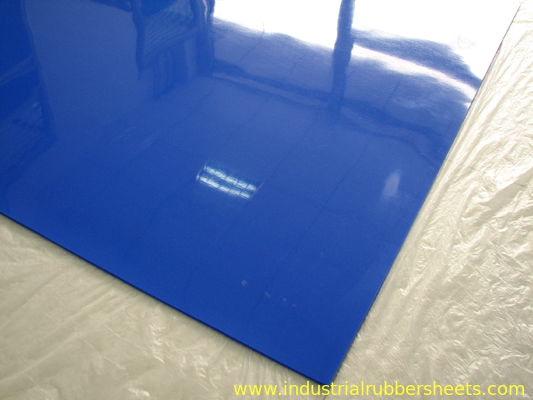

Heat Resistant Silicone Rubber Sheet with 720% Elongation and 3-4mm Thickness for Industrial Applications
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ISO9001 |
| Model Number | 3A1001 |
| Minimum Order Quantity | 100kgs |
| Price | USD10.00/kg |
| Packaging Details | packing in rolls, bags and pallets |
| Delivery Time | 7-15days after receive the buyer's payment |
| Payment Terms | L/C,D/P,T/T,Western Union,D/P |
| Supply Ability | 100000kgs/month |
Product Details
| Material | Virgin Silicone | Color | Grey, Black, Blue |
|---|---|---|---|
| Surface | Smooth Or Textured | Tensile Strenth | 7.5-12Mpa |
| Hardness | 60-70shore A | Elongation | 720% |
| Density | 1.25g/cm3 | Tear Strength | 42N/mm |
| Thickness | 3-4mm | Width | 1.5-3.6m |
| Length | 1-100m | Keyword | 4 Mm Thick Silicone Rubber Sheet |
| Top | Impression Fabric | Products | Silicone Rubber Sheet |
| Oem | OEM Service Available | Sample | Available |
| Cable | Custom | Feature | Anti-slip, Heat Resistant |
| Reinforce | Agree To Insert 1 PLY Fabric | Processing Service | Moulding, Forming And Cutting |
| Grade | Industrial Grade | Production | Mold Compression |
| Weather Resistance | Excellent | Ozone Resistance | Excellent |
| Rohs Compliance | Yes | Tensible Strengh | 7-12Mpa |
| Volume Resistance | 10^13-10^15Ω·cm | ||
| Highlight | Solar Laminator Silicone Sheet,Material Silicone Sheet,Advanced Technology Silicone Sheet |
||
Product Description

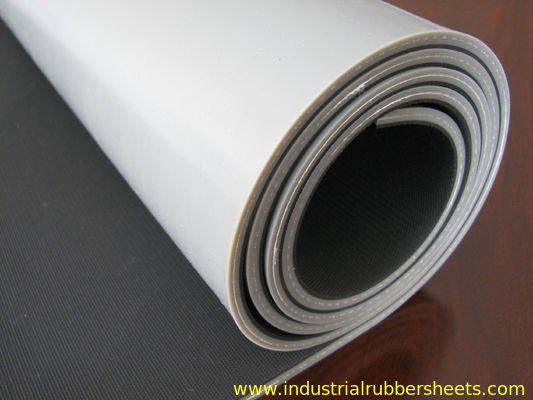

Silicone Rubber Sheet, Silicone Roll, Silicone Membrane, Silicone Diaphragm for Solar Laminator
Product Overview
Our silicone sheets, membranes, and rolls are manufactured using high-quality silicone materials on specialized vulcanizing equipment to meet diverse dimensional requirements. We utilize advanced management systems, innovative techniques, and strict quality control to deliver superior products with excellent surface smoothness and precise thickness tolerances.
Manufacturing Capabilities
- General silicone sheets (0.5-12mm x 0.5-1.5m x 1-10m) produced on 4-roller rotocure vulcanizers
- Super wide and special silicone sheets (1.0-8.0mm x 1.5-3.8m x 10-20m) produced on 2-roller rotocure vulcanizers
- Super thin silicone sheets (0.1-1.0mm x 0.3-1.0m x 25-50m) produced on special oven road vulcanizers
- Super thick silicone sheets produced on plain press vulcanizers
- Maximum width of 3800mm seamless without joints
Material Properties
High-quality silicone rubber with excellent performance characteristics including anti-aging, ozone resistance, heat resistance (operating temperature -60°C to +260°C, momentary maximum 300°C), electric insulation, oil resistance, solvent resistance, corrosion resistance, non-toxic, odorless, and pollution-free. Provides high stability, reliability, and non-sticky surface properties.
Applications
Ideal for punching various rubber seals and gaskets, and specialized applications including wooden PVC vacuum laminators, steel door vacuum laminators, safety glass vacuum laminating bags, solar photovoltaic module vacuum laminators, hot press laminators, card press laminators, and other industrial applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | 100% virgin HTV silicone material |
| Grades Available | Industrial grade, food grade, medical grade, FDA grade with postcured |
| Quality Types | High tear resistant, middle tear resistant, general tear resistant |
| Colors | Translucent, dark red, black, milk white, grey, blue, etc. |
| Surface Options | Smooth/smooth, smooth/impression fabric, smooth/sand or double impression fabric |
| Reinforcement | Insert 1 PLY fiberglass fabric, aramid fabric or wire mesh SS201, SS304, SS316 |
| Tensile Strength | 7.5-12.0 MPa |
| Hardness | 10, 20, 30, 40, 50, 60, 70, 80 ±5 Shore A |
| Elongation | 350%-720% |
| Density | 1.25-1.50 g/cm³ |
| Tear Strength | 26-42 N/mm |
| Working Temperature | -60°C to +260°C (momentary 300°C) |
| Thickness Range | 0.1-50 mm |
| Width Range | 0.1-3.6 m |
| Length Range | 1-50 m |
Standard Sizes
- 0.1-1.0mm x 0.3-1.0m x 25-50m
- 0.5-12.0mm x 0.5-1.5m x 10-20m
- 10.0-50.0mm x 0.5/1.0/1.2/1.5m x 1-20m
- 1.0-8.0mm x 1.5-3.8m x 10-20m
OEM and customized sizes available upon agreement. Packing options include rolls, pallets, or crates.
Special Silicone Membranes
- Grey silicone membrane, 9.8MPa, 40 Shore A, 750%, 42N/mm (Germany silicone) for "+" and "-" press on wooden PVC vacuum laminator
- Translucent silicone membrane, 7.5MPa, 50 Shore A, 400%, 26N/mm (Chinese silicone) for "-" press only on wooden PVC vacuum laminator
- Grey silicone membrane, 12.0MPa, 60-70 Shore A, 350%, 45N/mm (Germany silicone) for photovoltaic module on solar vacuum laminator
- Sky blue silicone membrane, 7.5MPa, 50 Shore A, 350%, 26N/mm (Chinese silicone) for safety glass on glass vacuum bag and laminator
- Dark blue silicone membrane, 8.0MPa, 57 Shore A, 450%, 30N/mm (Chinese silicone) for safety glass on glass vacuum bag and laminator
Special FDA grade silicone sheets with postcure and antistatic silicone sheets with fire-resistant properties available in black color with smooth surface. Black antistatic silicone sheet backing with or without 3M adhesive in thicknesses: 0.2, 0.5, 0.8, 1.0, 1.2, 1.5, 2.0, 3.0mm.
Contact Information
For more data and information, please email: sales@3Arubber.com
When making an enquiry, please confirm the hardness, color, size, and quantity requirements.
