Food Grade Silicone Hose 5-32mm ID, 60-70 Shore A Hardness

  • Food Grade Silicone Hose 5-32mm ID, 60-70 Shore A Hardness
  • Food Grade Silicone Hose 5-32mm ID, 60-70 Shore A Hardness
  • Food Grade Silicone Hose 5-32mm ID, 60-70 Shore A Hardness
  • Food Grade Silicone Hose 5-32mm ID, 60-70 Shore A Hardness
  • Food Grade Silicone Hose 5-32mm ID, 60-70 Shore A Hardness
  • Food Grade Silicone Hose 5-32mm ID, 60-70 Shore A Hardness
Place of Origin China
Brand Name 3A Rubber
Certification ISO9001
Model Number 3A1003
Minimum Order Quantity 20kgs
Price USD3-15.00/kg
Packaging Details packing in rolls, cartons and pallets
Delivery Time 7-15days after receive the buyer's payment
Payment Terms L/C,D/P,T/T,Western Union,MoneyGram
Supply Ability 10000kgs/week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Silicone Quality Food Grade
Color Translucent Surface Smooth
Hardness 60-70shore A Tensile Strength 7.5Mpa
Density 1.25 G/cm3 Tensible Strength 1400psi
Size Customized Aging Resistance Excellent
Thickness 1mm-5mm Tensible Strengh 7.5Mpa
Commodity Silicone Hose Products Silicone Hose
Technology Mold Compression Specific Gravity 1.2-1.25g/cm3
Elongation At Break 300-600% Uniform Heating Maximum 220℃
Working Press 10kgs Inside Diameter 5-32mm
Shape Tube Temperature -40^C ~ +260^C
Tear Resistance 25-35 KN/m Rohs Compliance Yes
Fda Compliant Yes Elongation 500-700%
Tolerance ±0.1mm Outside Diameter 6-42mm
Abrasion Resistance Good Rohs Compliant Yes
Length Customizable
Highlight

Silicone Braided Hose

,

Silicone Braided Tube

,

Silicone Hose
Leave a Message
Product Description
Silicone Braided Hose & Tube
Premium Quality Silicone Rubber Hoses for Industrial Applications

Our silicone hoses and tubes are extruded or molded using high-quality silicone material with precision manufacturing equipment. These products offer exceptional tensile strength, flexibility, and resistance to pulling, with a wide range of hardness options. They feature excellent aging resistance, ozone resistance, heat resistance, insulation properties, and resistance to fuel oil and lubricants.

Available in three grades:

  • Industrial Grade: Standard extruded silicone, peroxide vulcanized, odor-free
  • Food Grade: Transparent fumed silicone, platinum vulcanized, non-toxic and tasteless
  • Medical Grade: Medical-grade transparent fumed silicone with FDA and LFGB certification

Operating temperature range: -60°C to +250°C. Ideal for transferring water, air, oil, and other media in various industrial applications.

Product Specifications
Material 100% virgin silicone material
Quality Grades Industrial grade, food grade (postcured or platinum cured)
Available Colors Transparent, translucent, dark red, orange, black, milk white, blue, grey
Surface Finish Smooth
Fiber Reinforcement 1-5PLY polyester fiber
Tensile Strength 7.5-9.8Mpa
Hardness 50, 60, 70, 80±5 Shore A
Elongation 350-720%
Density 1.25±0.05g/cm³
Tear Strength 26-42N/mm
Working Temperature -60°C to +250°C
Wall Thickness 1.0, 2.0, 3.0, 4.0, 5.0mm
Standard Sizes
  • Ø0.5mm × Ø1.0mm × 5-20kgs
  • Ø0.5mm × Ø1.5mm × 5-20kgs
  • Ø0.5mm × Ø2.0mm × 5-20kgs
  • Ø0.8mm × Ø1.9mm × 5-20kgs
  • Ø1.0mm × Ø2.0mm × 5-20kgs
  • Ø1.0mm × Ø3.0mm × 5-20kgs
  • Ø1.0mm × Ø4.0mm × 5-20kgs
  • Ø1.5mm × Ø2.5mm × 5-20kgs
  • Ø1.5mm × Ø3.0mm × 5-20kgs
  • Ø1.6mm × Ø3.2mm × 5-20kgs
  • Ø2.0mm × Ø3.0mm × 5-20kgs
  • Ø2.0mm × Ø4.0mm × 5-20kgs
  • Ø2.0mm × Ø5.0mm × 5-20kgs
  • Ø2.0mm × Ø6.0mm × 5-20kgs
  • Ø3.0mm × Ø4.0mm × 5-20kgs
  • Ø3.0mm × Ø5.0mm × 5-20kgs
  • Ø3.0mm × Ø6.0mm × 5-20kgs
  • Ø3.0mm × Ø8.0mm × 5-20kgs
  • Ø3.0mm × Ø9.0mm × 5-20kgs
  • Ø4.0mm × Ø5.0mm × 5-20kgs
  • Ø4.0mm × Ø6.0mm × 5-20kgs
  • Ø4.0mm × Ø7.0mm × 5-20kgs
  • Ø4.0mm × Ø8.0mm × 5-20kgs
  • Ø5.0mm × Ø8.0mm × 5-20kgs
  • Ø5.0mm × Ø9.0mm × 5-20kgs
  • Ø5.0mm × Ø10.0mm × 5-20kgs
  • Ø6.0mm × Ø9.0mm × 5-20kgs
  • Ø6.0mm × Ø10.0mm × 5-20kgs
  • Ø6.0mm × Ø12.0mm × 5-20kgs
  • Ø7.0mm × Ø9.0mm × 5-20kgs
  • Ø7.0mm × Ø10.0mm × 5-20kgs
  • Ø7.0mm × Ø12.0mm × 5-20kgs
  • Ø8.0mm × Ø10.0mm × 5-20kgs
  • Ø8.0mm × Ø12.0mm × 5-20kgs
  • Ø8.0mm × Ø14.0mm × 5-20kgs
  • Ø9.0mm × Ø12.0mm × 5-20kgs
  • Ø9.0mm × Ø14.0mm × 5-20kgs
  • Ø9.0mm × Ø16.0mm × 5-20kgs
  • Ø10.0mm × Ø14.0mm × 5-20kgs
  • Ø10.0mm × Ø16.0mm × 5-20kgs
  • Ø10.0mm × Ø18.0mm × 5-20kgs
  • Ø12.0mm × Ø16.0mm × 5-20kgs
  • Ø12.0mm × Ø18.0mm × 5-20kgs
  • Ø12.0mm × Ø20.0mm × 5-20kgs
  • Ø14.0mm × Ø18.0mm × 5-20kgs
  • Ø14.0mm × Ø20.0mm × 5-20kgs
  • Ø14.0mm × Ø22.0mm × 5-20kgs
  • Ø16.0mm × Ø18.0mm × 5-20kgs
  • Ø16.0mm × Ø20.0mm × 5-20kgs
  • Ø20.0mm × Ø30.0mm × 5-20kgs
  • Ø30.0mm × Ø40.0mm × 5-20kgs
  • Ø40.0mm × Ø50.0mm × 5-20kgs

Custom sizes available upon request. Packing options include rolls, bags, cartons, pallets, or crates.

Food Grade Silicone Braided Hose Specifications
Item Silicone fiber hose, silicone braided hose, silicone reinforced hose
Material Food grade silicone material
Reinforcement Braided polyester fiber
Color Transparent, red, blue, black or custom colors
Surface Smooth
Tensile Strength 7.5-9.8Mpa
Hardness 50-70 Shore A
Elongation 300%
Density 1.25g/cm³
Working Pressure 10Kgs
Temperature Range -30°C to +250°C
Inside Diameter (ID) 4-50mm
Wall Thickness 3-5mm
Product Images

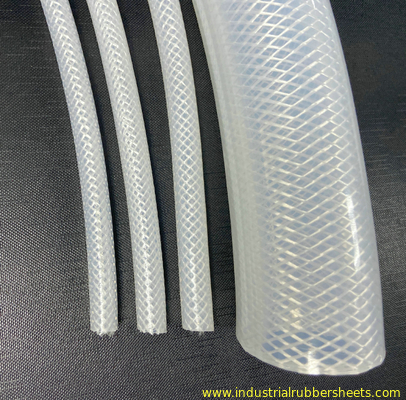

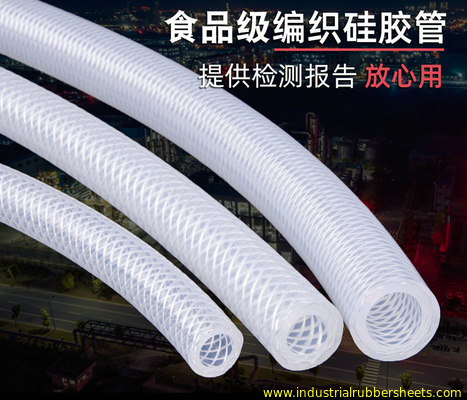

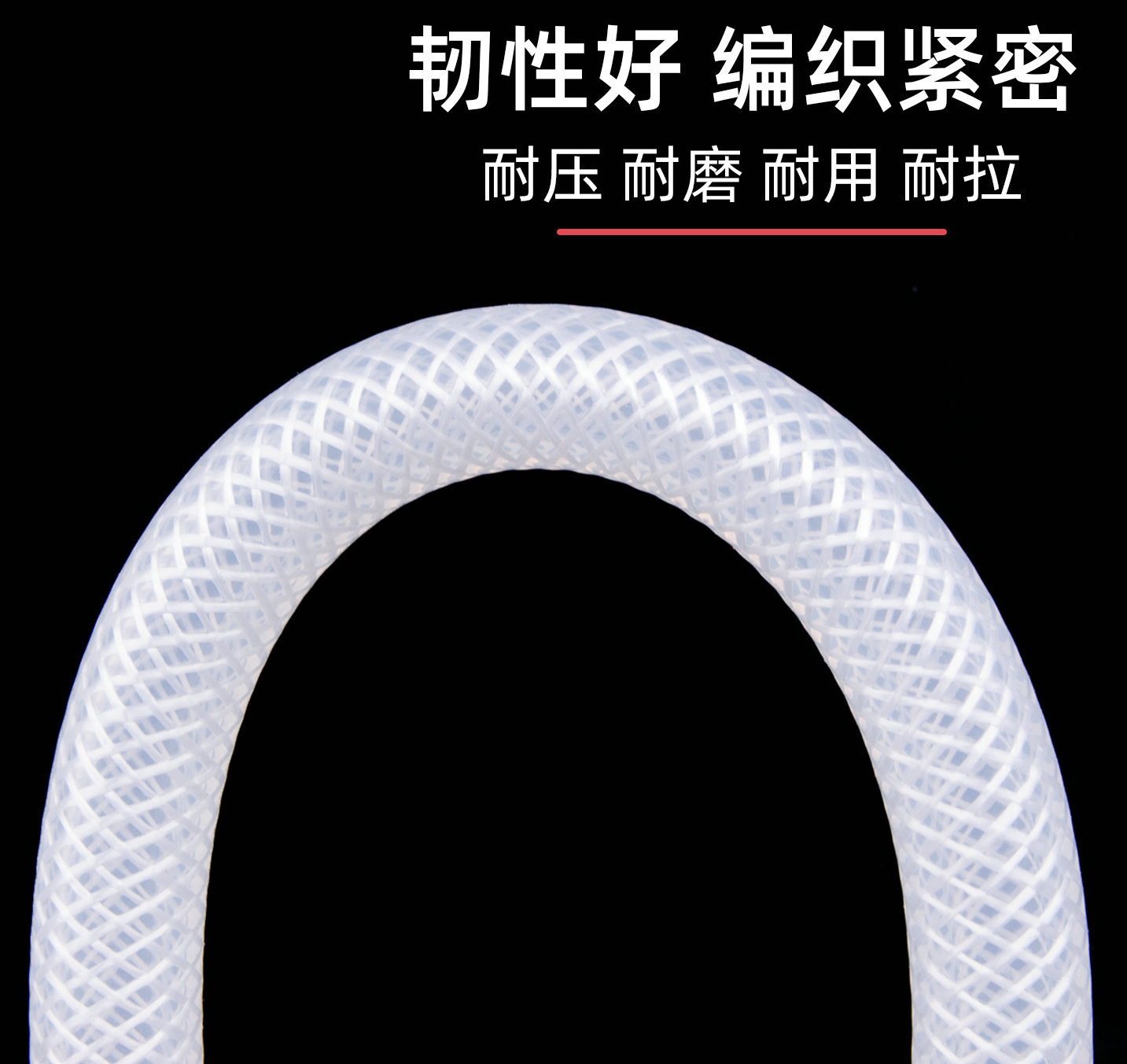

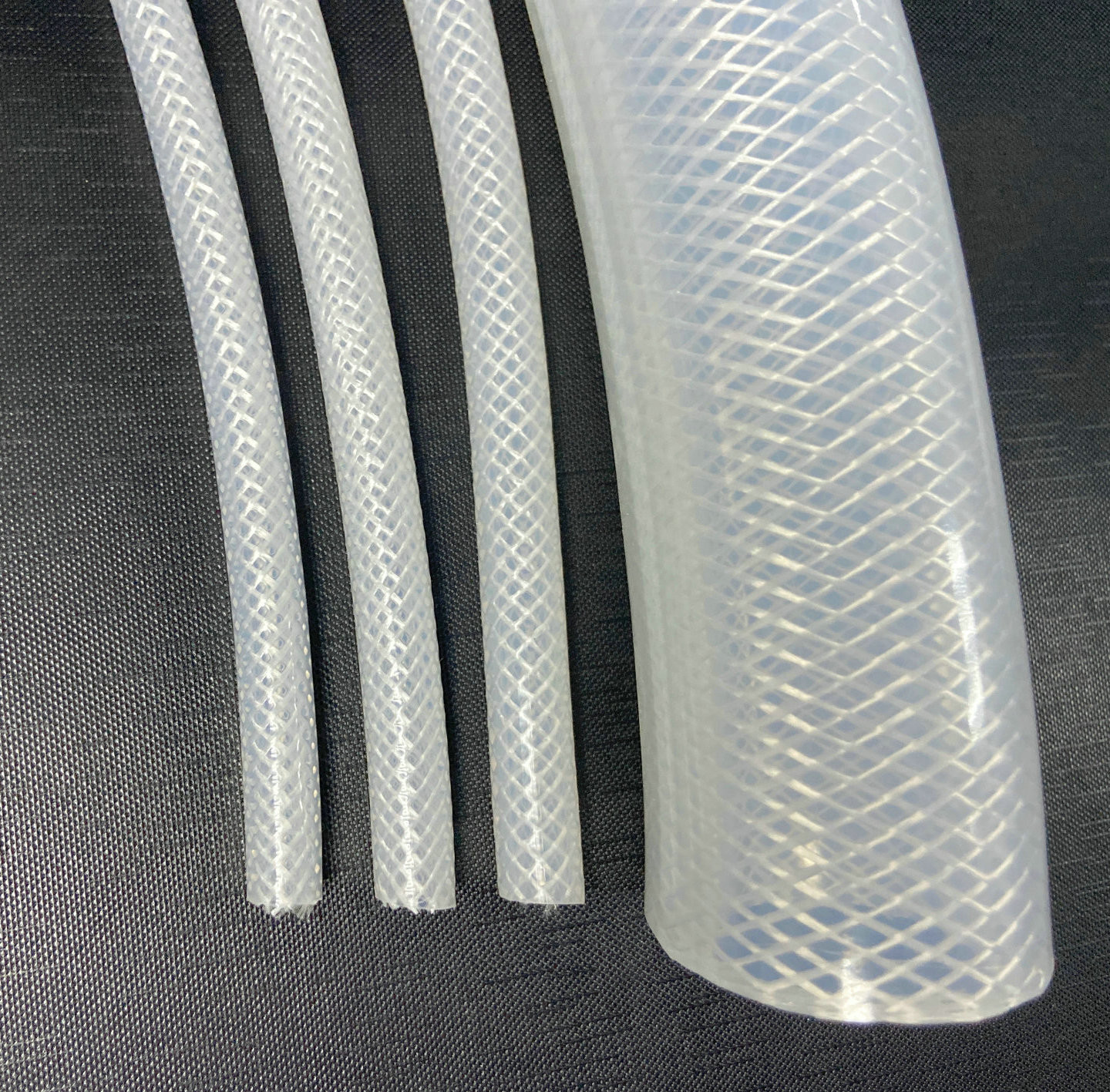

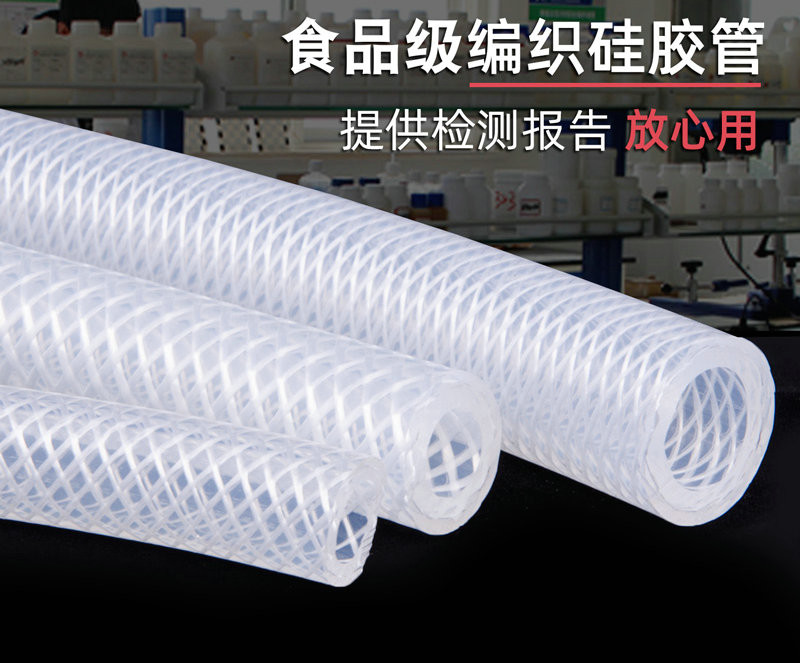

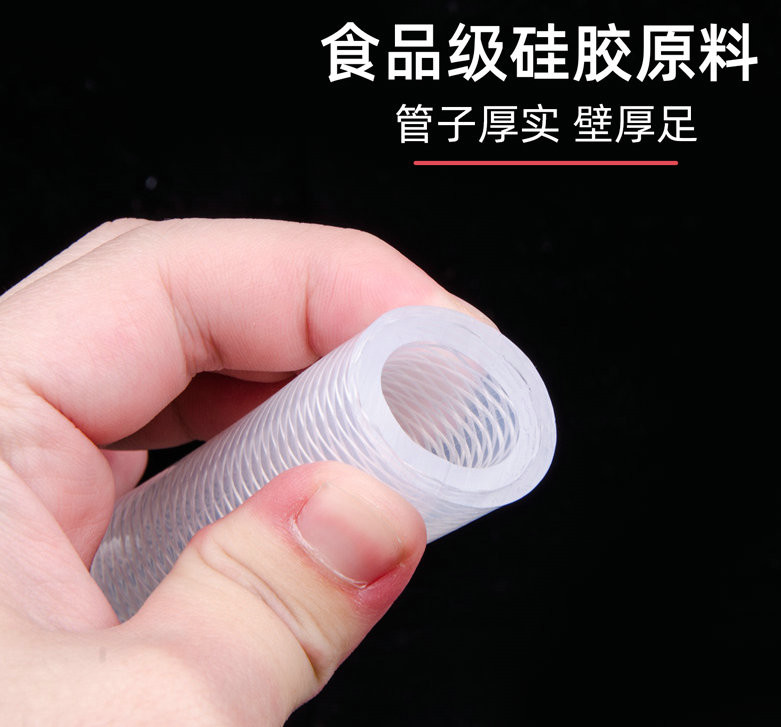

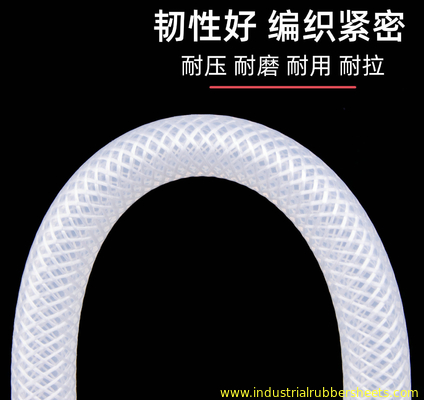

Food Grade Silicone Hose 5-32mm ID, 60-70 Shore A Hardness 0 Food Grade Silicone Hose 5-32mm ID, 60-70 Shore A Hardness 1 Food Grade Silicone Hose 5-32mm ID, 60-70 Shore A Hardness 2
For More Information

Please contact our sales team at sales@3Arubber.com for detailed specifications, pricing, and customization options.

When making an inquiry, please specify:

  • Required hardness
  • Preferred color
  • Exact size requirements
  • Quantity needed
