Food Grade Silicone Hose and Tube with High Temperature Resistance and Customizable Size

  • Food Grade Silicone Hose and Tube with High Temperature Resistance and Customizable Size
  • Food Grade Silicone Hose and Tube with High Temperature Resistance and Customizable Size
  • Food Grade Silicone Hose and Tube with High Temperature Resistance and Customizable Size
  • Food Grade Silicone Hose and Tube with High Temperature Resistance and Customizable Size
  • Food Grade Silicone Hose and Tube with High Temperature Resistance and Customizable Size
  • Food Grade Silicone Hose and Tube with High Temperature Resistance and Customizable Size
Place of Origin China
Brand Name 3A Rubber
Certification ISO9001
Model Number 3A1003
Minimum Order Quantity 20kgs
Price USD3-15.00/kg
Packaging Details packing in rolls, cartons and pallets
Delivery Time 7-15days after receive the buyer's payment
Payment Terms L/C,D/P,T/T,Western Union
Supply Ability 10000kgs/week
Product Details
Material Silicone Quality Food Grade
Color Translucent Surface Smooth
Hardness 60-70shore A Tensile Strength 7.5Mpa
Density 1.25 G/cm3 Tensible Strength 1400psi
Size Customized Aging Resistance Excellent
Thickness 1mm-5mm Tensible Strengh 7.5Mpa
Commodity Silicone Hose Products Silicone Hose
Technology Mold Compression Specific Gravity 1.2-1.25g/cm3
Elongation At Break 300-600% Uniform Heating Maximum 220℃
Working Press 10kgs Inside Diameter 5-32mm
Shape Tube Temperature -40^C ~ +260^C
Tear Resistance 25-35 KN/m Rohs Compliance Yes
Fda Compliant Yes Elongation 500-700%
Tolerance ±0.1mm Outside Diameter 6-42mm
Abrasion Resistance Good Rohs Compliant Yes
Length Customizable
Highlight

Silicone Braided Hose

,

Silicone Braided Tube

,

Silicone Hose
Leave a Message
Product Description
Silicone Braided Hose & Tube
Product Overview

High-quality silicone braided hoses and tubes manufactured using specialized extrusion and molding processes. These products offer exceptional tensile strength, flexibility, and resistance to various environmental factors while maintaining excellent performance across a wide temperature range.

Key Features
  • Excellent aging, ozone, and heat resistance
  • Superior insulation properties
  • Resistant to fuel oil and lubricants
  • Operating temperature range: -60°C to +250°C
  • Available in industrial, food, and medical grades
  • Multiple reinforcement options with polyester fiber
Technical Specifications
Material: 100% Virgin Silicone
Quality Grades: Industrial, Food, Medical
Colors: Transparent, Red, Orange, Black, White, Blue, Grey
Surface: Smooth/Smooth
Fiber Reinforced: 1-5PLY Polyester
Tensile Strength: 7.5-9.8 MPa
Hardness: 50-80 Shore A
Elongation: 350-720%
Density: 1.25 g/cm³
Tear Strength: 26-42 N/mm
Wall Thickness: 1.0-5.0 mm
Standard Sizes
Ø0.5mm x Ø1.0mm
Ø0.5mm x Ø1.5mm
Ø0.5mm x Ø2.0mm
Ø0.8mm x Ø1.9mm
Ø1.0mm x Ø2.0mm
Ø1.0mm x Ø3.0mm
Ø1.0mm x Ø4.0mm
Ø1.5mm x Ø2.5mm
Ø1.5mm x Ø3.0mm
Ø1.6mm x Ø3.2mm
Ø2.0mm x Ø3.0mm
Ø2.0mm x Ø4.0mm
Ø2.0mm x Ø5.0mm
Ø2.0mm x Ø6.0mm
Ø3.0mm x Ø4.0mm
Ø3.0mm x Ø5.0mm
Ø3.0mm x Ø6.0mm
Ø3.0mm x Ø8.0mm
Ø3.0mm x Ø9.0mm
Ø4.0mm x Ø5.0mm
Ø4.0mm x Ø6.0mm
Ø4.0mm x Ø7.0mm
Ø4.0mm x Ø8.0mm
Ø5.0mm x Ø8.0mm
Ø5.0mm x Ø9.0mm
Ø5.0mm x Ø10.0mm
Ø6.0mm x Ø9.0mm
Ø6.0mm x Ø10.0mm
Ø6.0mm x Ø12.0mm
Ø7.0mm x Ø9.0mm
Ø7.0mm x Ø10.0mm
Ø7.0mm x Ø12.0mm
Ø8.0mm x Ø10.0mm
Ø8.0mm x Ø12.0mm
Ø8.0mm x Ø14.0mm
Ø9.0mm x Ø12.0mm
Ø9.0mm x Ø14.0mm
Ø9.0mm x Ø16.0mm
Ø10.0mm x Ø14.0mm
Ø10.0mm x Ø16.0mm
Ø10.0mm x Ø18.0mm
Ø12.0mm x Ø16.0mm
Ø12.0mm x Ø18.0mm
Ø12.0mm x Ø20.0mm
Ø14.0mm x Ø18.0mm
Ø14.0mm x Ø20.0mm
Ø14.0mm x Ø22.0mm
Ø16.0mm x Ø18.0mm
Ø16.0mm x Ø20.0mm
Ø20.0mm x Ø30.0mm
Ø30.0mm x Ø40.0mm
Ø40.0mm x Ø50.0mm

Note: All sizes available in 5-20kg quantities. OEM and customized sizes available upon agreement.

Food Grade Silicone Braided Hose
Property Specification
Material Food Grade Silicone
Reinforcement Braided Polyester Fiber
Colors Transparent, Red, Blue, Black, Custom
Tensile Strength 7.5-9.8 MPa
Hardness 50-70 Shore A
Working Pressure 10 kgs
Temperature Range -30°C to +250°C
Inside Diameter 4-50 mm
Wall Thickness 3-5 mm
Product Advantages
  • Customized solutions available
  • High performance and durability
  • Premium quality materials
  • Competitive pricing
  • Extensive manufacturing experience
  • Anti-aging and erosion-resistant
  • High temperature resistance
  • Excellent shock absorption

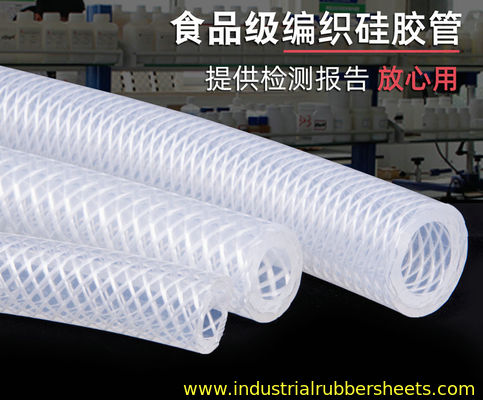

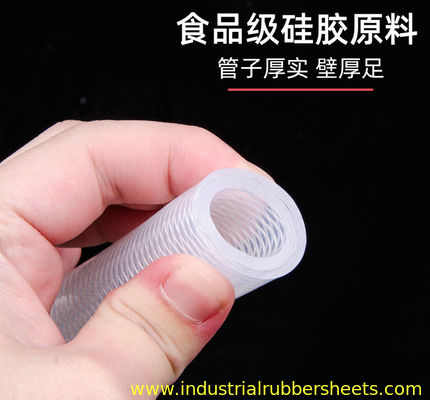

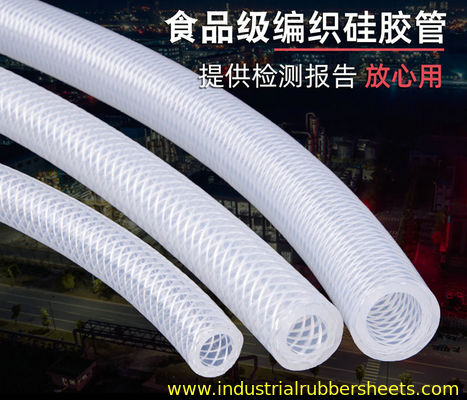

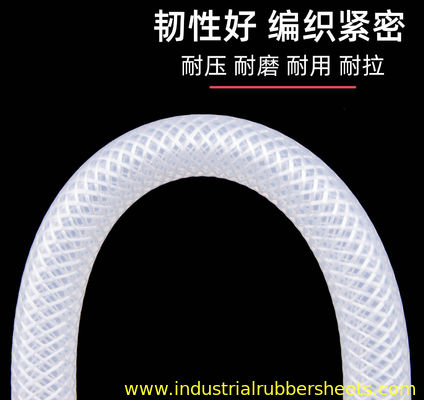

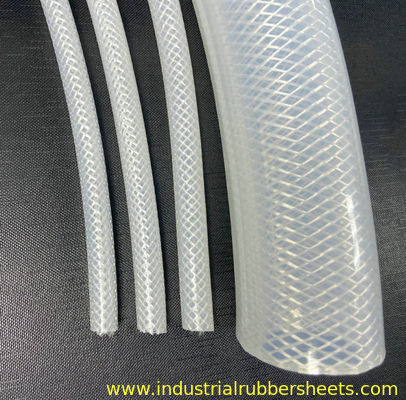

Silicone braided hose product display showing various sizes and colors Close-up view of silicone braided hose construction and texture Silicone hose applications in industrial settings

For detailed specifications and pricing information:

Please contact: sales@3Arubber.com

When inquiring, please specify: hardness, color, size, and quantity requirements.
