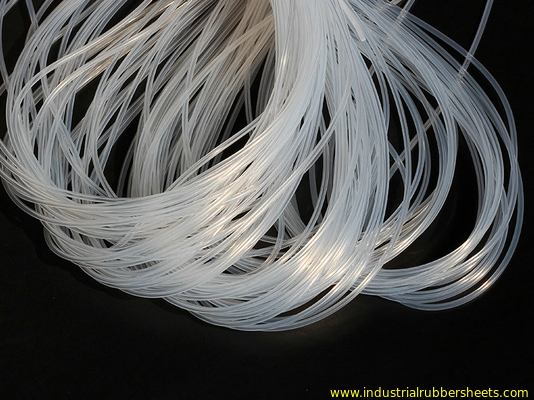

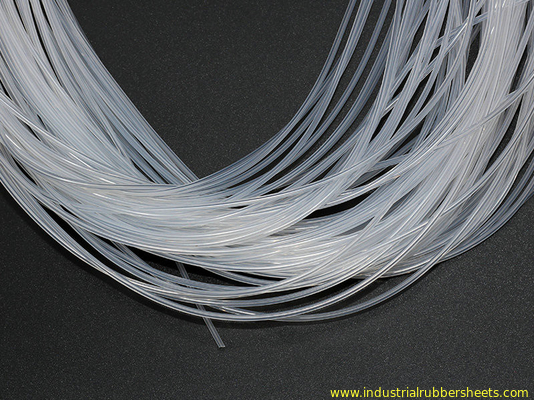

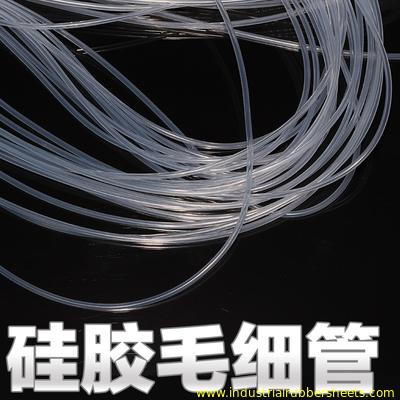

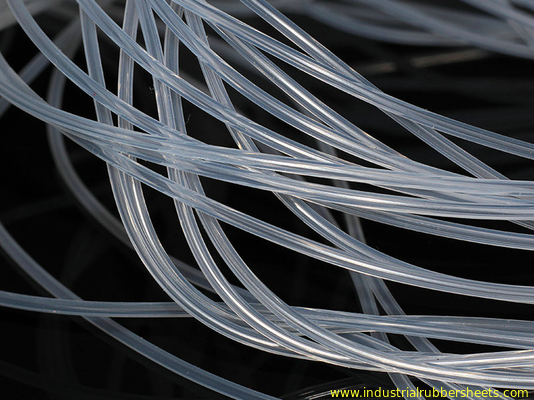

Food Grade Silicone Hose 60 Shore A for Air Water Oil -40°C to 260°C
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | High Temperature Resistance, Chemical Resistance, UV Resistance | Material | Virgin Silicone |
|---|---|---|---|
| Quality | Food Grade | Color | Translucent |
| Surface | Smooth | Tensile Strength | 7.5MPa |
| Hardness | 60shore A | Elongation | 350% |
| Density | 1.25g/cm3 | Tear Strength | 26N/mm |
| Port | Shanghai Port And Others | Temperature | -40℃ - 220℃ |
| Products | Silicone Rubber Hose | Grade | Food Grade |
| Working Temperature | -40^C ~ +260^C | Production | Mold Extrude |
| Highlight | Flexible Silicone Rubber Sheet,Durable Silicone Rubber Sheet |
||
Product Description
Flexible and Durable Silicone Rubber Tube
Food Grade Silicone Hose, Silicone Tube, Silicone Tubing, Silicone Pipe
Our silicone hoses and tubes are extruded or molded using high-quality silicone material with precise dimensions to meet customer requirements. These products offer high tensile strength, excellent flexibility, and resistance to pulling, with a wide range of hardness options. They feature superior aging resistance, ozone resistance, heat resistance, insulation properties, and resistance to fuel oil and lubricants. Suitable for use with air, water, or oil media in temperatures ranging from -60°C to +250°C.
Product Specifications
Material Properties
- Material: 100% virgin silicone material
- Quality: Available in industrial grade, food grade (postcured or platinum cured)
- Color options: Transparent, translucent, dark red, orange, black, milk white, blue, grey
- Surface: Smooth finish
- Fiber reinforcement: Optional 1-5PLY polyester fiber insertion
Technical Specifications
- Tensile strength: 7.5-9.8Mpa
- Hardness: 50, 60, 70, 80±5 Shore A
- Elongation: 350-720%
- Density: 1.25±0.05g/cm³
- Tear strength: 26-42N/mm
- Working temperature: -60°C to +250°C
- Wall thickness: 1.0, 2.0, 3.0, 4.0, 5.0mm
Standard Sizes
| Size (ID x OD) | Length |
|---|---|
| Ø0.5mm x Ø1.0mm | 5-20kgs |
| Ø0.5mm x Ø1.5mm | 5-20kgs |
| Ø0.5mm x Ø2.0mm | 5-20kgs |
| Ø0.8mm x Ø1.9mm | 5-20kgs |
| Ø1.0mm x Ø2.0mm | 5-20kgs |
| Ø1.0mm x Ø3.0mm | 5-20kgs |
| Ø1.0mm x Ø4.0mm | 5-20kgs |
| Ø1.5mm x Ø2.5mm | 5-20kgs |
| Ø1.5mm x Ø3.0mm | 5-20kgs |
| Ø1.6mm x Ø3.2mm | 5-20kgs |
| Ø2.0mm x Ø3.0mm | 5-20kgs |
| Ø2.0mm x Ø4.0mm | 5-20kgs |
| Ø2.0mm x Ø5.0mm | 5-20kgs |
| Ø2.0mm x Ø6.0mm | 5-20kgs |
| Ø3.0mm x Ø4.0mm | 5-20kgs |
| Ø3.0mm x Ø5.0mm | 5-20kgs |
| Ø3.0mm x Ø6.0mm | 5-20kgs |
| Ø3.0mm x Ø8.0mm | 5-20kgs |
| Ø3.0mm x Ø9.0mm | 5-20kgs |
| Ø4.0mm x Ø5.0mm | 5-20kgs |
| Ø4.0mm x Ø6.0mm | 5-20kgs |
| Ø4.0mm x Ø7.0mm | 5-20kgs |
| Ø4.0mm x Ø8.0mm | 5-20kgs |
| Ø5.0mm x Ø8.0mm | 5-20kgs |
| Ø5.0mm x Ø9.0mm | 5-20kgs |
| Ø5.0mm x Ø10.0mm | 5-20kgs |
| Ø6.0mm x Ø9.0mm | 5-20kgs |
| Ø6.0mm x Ø10.0mm | 5-20kgs |
| Ø6.0mm x Ø12.0mm | 5-20kgs |
| Ø7.0mm x Ø9.0mm | 5-20kgs |
| Ø7.0mm x Ø10.0mm | 5-20kgs |
| Ø7.0mm x Ø12.0mm | 5-20kgs |
| Ø8.0mm x Ø10.0mm | 5-20kgs |
| Ø8.0mm x Ø12.0mm | 5-20kgs |
| Ø8.0mm x Ø14.0mm | 5-20kgs |
| Ø9.0mm x Ø12.0mm | 5-20kgs |
| Ø9.0mm x Ø14.0mm | 5-20kgs |
| Ø9.0mm x Ø16.0mm | 5-20kgs |
| Ø10.0mm x Ø14.0mm | 5-20kgs |
| Ø10.0mm x Ø16.0mm | 5-20kgs |
| Ø10.0mm x Ø18.0mm | 5-20kgs |
| Ø12.0mm x Ø16.0mm | 5-20kgs |
| Ø12.0mm x Ø18.0mm | 5-20kgs |
| Ø12.0mm x Ø20.0mm | 5-20kgs |
| Ø14.0mm x Ø18.0mm | 5-20kgs |
| Ø14.0mm x Ø20.0mm | 5-20kgs |
| Ø14.0mm x Ø22.0mm | 5-20kgs |
| Ø16.0mm x Ø18.0mm | 5-20kgs |
| Ø16.0mm x Ø20.0mm | 5-20kgs |
| Ø20.0mm x Ø30.0mm | 5-20kgs |
| Ø30.0mm x Ø40.0mm | 5-20kgs |
| Ø40.0mm x Ø50.0mm | 5-20kgs |
OEM and customized sizes available. Packing options include rolls, bags, cartons, pallets, or crates. When inquiring, please confirm the hardness, color, size, and quantity required.
Food Grade Silicone Fiber Reinforced Hose
| Item | silicone fiber hose, silicone braided hose, silicone reinforced hose |
|---|---|
| Material | food grade silicone material |
| Reinforcement | braided polyester fiber |
| Color | transparent, red, blue, black or custom colors |
| Surface | smooth |
| Tensile strength | 7.5-9.8Mpa |
| Hardness | 50-70 Shore A |
| Elongation | 300% |
| Density | 1.25g/cm³ |
| Working pressure | 10Kgs |
| Minimum working temperature | -30°C |
| Maximum working temperature | +250°C |
| ID (Inside diameter) | 4~50mm |
| Wall thickness | 3~5mm |
| Tolerance | ID less than 1/2", ±0.3mm; ID more than 1/2", ±0.5mm |
Available Sizes
- id4mm x od9mm
- id5mm x od11mm
- id6mm x od10mm, id6mm x od12mm
- id7.5mm x od14.5mm
- id8mm x od12mm, id8mm x od14mm, id8mm x od16mm
- id9mm x od15mm
- id10mm x od15mm, id10mm x od17mm, id10mm x od18mm, id10mm x od19.5mm
- id12mm x od20mm
- id12.7mm x od20mm
- id13mm x od19mm, id13mm x od20mm, id13mm x od21mm
- id16mm x od24mm
- id19mm x od27mm, id19mm x od28mm
- id19.5mm x od27.5mm
- id22mm x od32mm
- id25mm x od35mm
- id32mm x od42mm
- id38mm x od46mm
- id38mm x od48mm
- id50mm x od60mm
Product Properties
- Anti-aging
- Erosion-resistant
- High temperature resistance
- Shock-resistant
Product Advantages
- Customizable specifications
- High performance
- Premium quality materials
- Competitive pricing
- Extensive manufacturing experience
