3mm Thick Silicone Rubber Sheet 7.5Mpa Tensile Strength -60°C to 260°C
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ISO9001 |
| Model Number | 3A1001 |
| Minimum Order Quantity | 200kgs |
| Price | USD3-15.00/kg |
| Packaging Details | packing in rolls, cartons and pallets |
| Delivery Time | 7-15days after receive the buyer's payment |
| Payment Terms | L/C,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 100000kgs/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Virgin Silicone | Quality | Food Grade |
|---|---|---|---|
| Surface | Smooth | Tensile Strength | 7.5Mpa |
| Hardness | 10-75shore A | Elongation | 350% |
| Density | 1.25g/cm3 | Tear Strength | 26-42N/mm |
| Name | Translucent Color 3 Mm Thick Silicone Sheet Rolls Fabric Reinforced High Temperature | Keyword | 3 Mm Thick Silicone Rubber Sheet |
| Backing Adhesive | Agreed | Temperature Range | -60°C - +260°C(moment 300°C) |
| Grade | Industrial Grade | Tempearture | -60~230℃ |
| Sample | Available | Volume Resistance | 10^13-10^15Ω·cm |
| Commodity | Silicone Sheet | Electric Thermostat | K,NTC,PT100 Sonde |
| Reinforce | Agree To Insert 1 PLY Fabric | Elogation | ＞300% |
| Highlight | 3 mm thick silicone sheet rolls,translucent color silicone sheet rolls,fabric reinforced high temperature silicone rubber sheets |
||
Product Description
Silicone Rubber Sheet, Silicone Roll & Silicone Membrane
Premium Quality in Various Thicknesses and Widths
Our high-performance silicone sheets, rolls, and membranes are manufactured using 100% virgin HTV silicone material on specialized vulcanizing equipment to meet diverse industrial requirements.

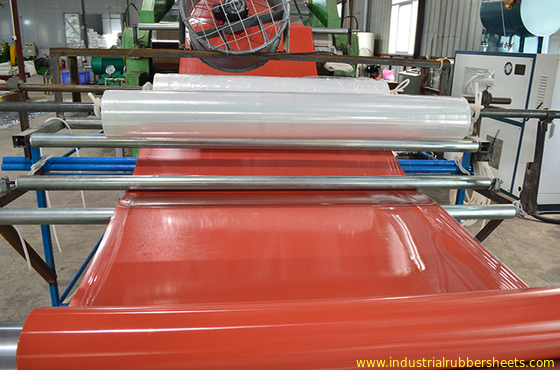

Manufacturing Process
- Standard sheets (0.5-12mm × 0.5-1.5m × 1-10m) produced on 4-roller rotocure vulcanizers
- Extra-wide sheets (1.0-8.0mm × 1.5-3.8m × 10-20m) produced on 2-roller rotocure vulcanizers
- Ultra-thin sheets (0.1-1.0mm × 0.3-1.0m × 25-50m) produced on specialized oven road vulcanizers
- Extra-thick sheets produced on plain press vulcanizers
Key Features
- Seamless construction with infinite length capability
- Super-wide production capability up to 3800mm width
- Excellent resistance to aging, ozone, heat, oil, solvents, and corrosion
- Non-toxic, tasteless, and pollution-free
- Stable performance in temperatures from -60°C to +260°C (momentary 300°C)
- Non-stick surface with high reliability
Technical Specifications
| Property | Specification |
|---|---|
| Material | 100% virgin HTV silicone (industrial, food, medical, FDA grades available) |
| Tensile Strength | 7.5-12.0 MPa |
| Hardness | 10-80 Shore A (±5) |
| Elongation | 350%-720% |
| Tear Strength | 26-42 N/mm |
| Density | 1.25-1.50 g/cm³ |
| Standard Sizes |
0.1-1.0mm × 0.3-1.0m × 25-50m 0.5-12.0mm × 0.5-1.5m × 10-20m 10.0-50.0mm × 0.5/1.0/1.2/1.5m × 1-20m 1.0-8.0mm × 1.5-3.8m × 10-20m |
Specialty Silicone Membranes
- Grey membrane (9.8MPa, 40 Shore A) for wooden PVC vacuum laminators
- Translucent membrane (7.5MPa, 50 Shore A) for wooden PVC vacuum laminators
- Grey membrane (12.0MPa, 60-70 Shore A) for solar photovoltaic modules
- Sky blue/dark blue membranes for safety glass applications
- FDA grade and antistatic silicone sheets available

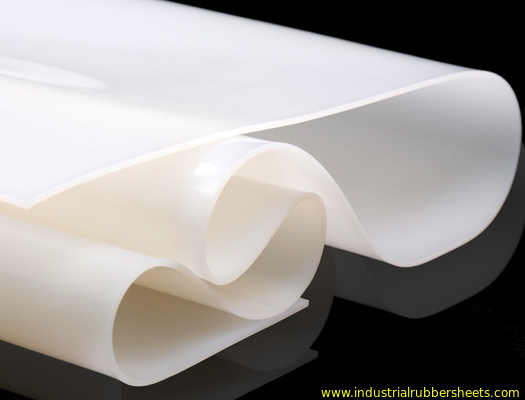

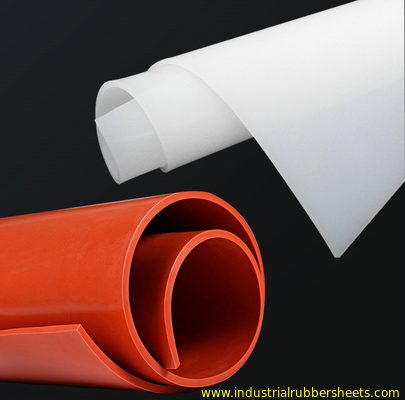

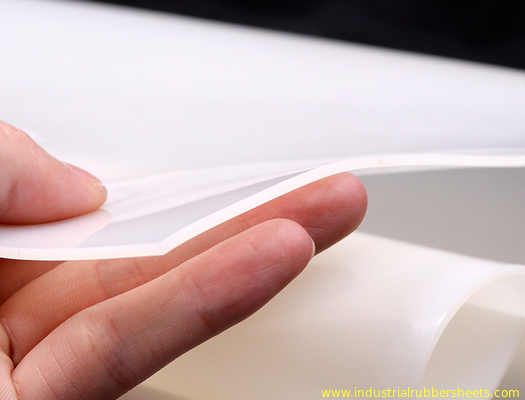

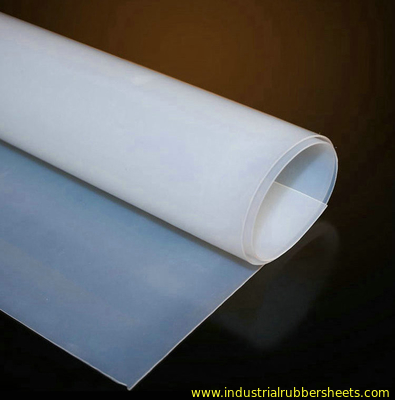

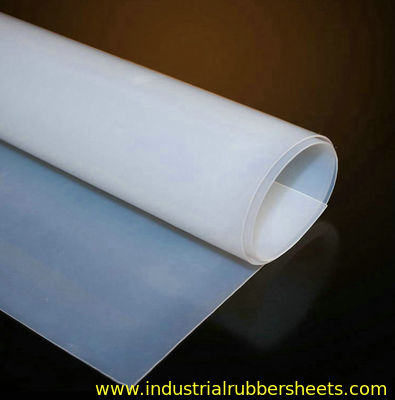

Product Images
For detailed specifications and custom requirements:
Email: sales@3Arubber.com
Please include hardness, color, size, and quantity requirements in your inquiry.
