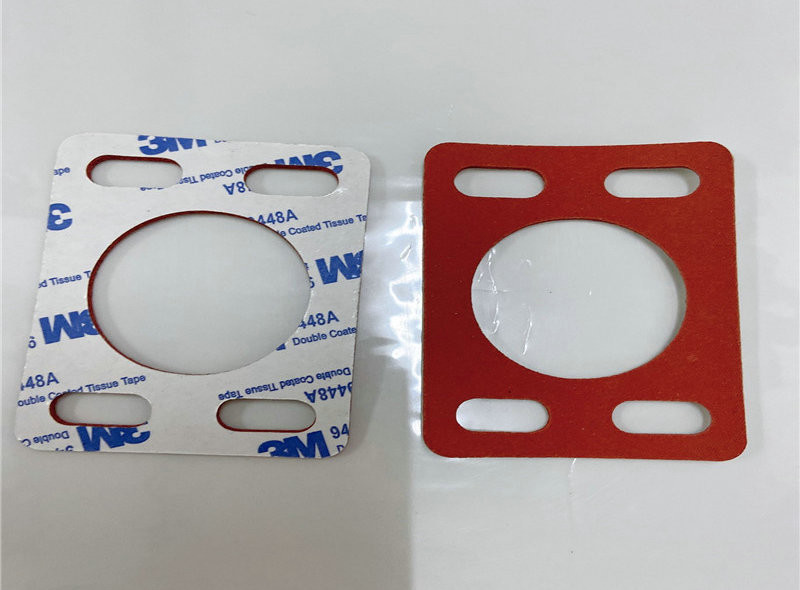

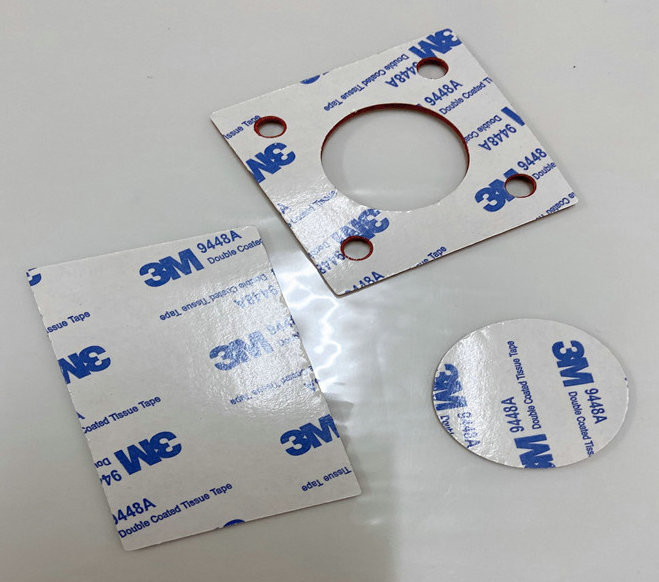

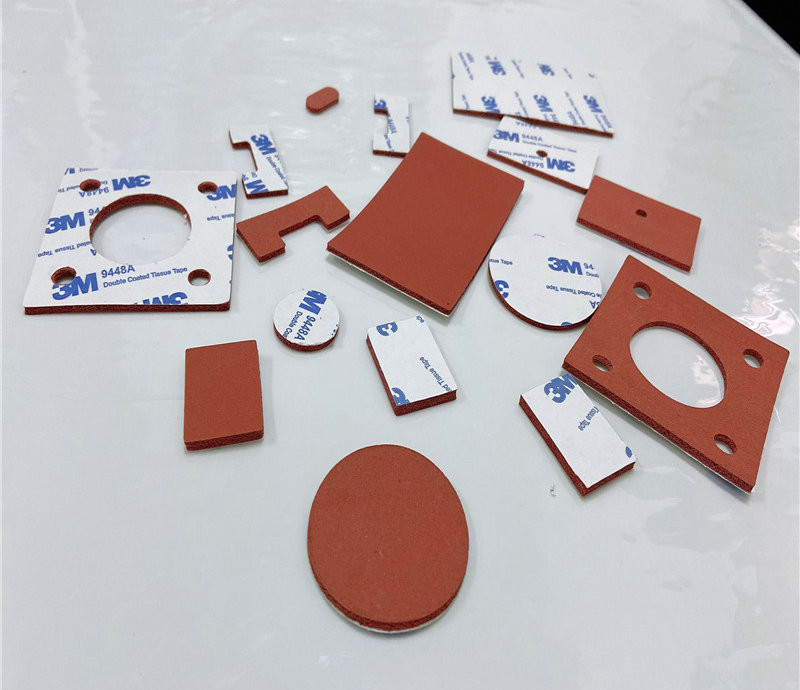

10-40 Shore A Silicone Foam Gasket Tape 200psi Tensile Strength
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ISO9001 |
| Model Number | 3A1002 |
| Minimum Order Quantity | 10pieces |
| Price | USD1.00-10.00/piece |
| Packaging Details | packing in rolls, cartons and pallets |
| Delivery Time | 7-15days after receive the buyer's payment |
| Payment Terms | L/C,D/P,T/T,Western Union,MoneyGram,Paypal,Alipay,Wechat |
| Supply Ability | 100000pieces/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Close Cell Silicone Foam | Surface | Impression Fabric |
|---|---|---|---|
| Backing | Adhesive Tape | Tensile Strength | 200psi |
| Hardness | 10-40shore A | Elongation | 100% |
| Density | 1.25-1.35 G/cm³ | Size | As Per The Buyer's Drawing |
| Standard Width | 0.5m,1.0m ,1.2m ,1.5m And 3.6m | Dielectricstrength | 20kv/mm |
| Usage | Silicone Pad | Elongation At Break | 300-700% |
| Tensilestrength | 6.2Mpa | Specific Gravity | 1.2-1.25g/cm3 |
| Cell | Close Cell And Open Cell | Certifications | FDA, RoHS, REACH |
| Finish | Smooth Or Textured Finish | Length | 1-50m |
| Flammability | UL94-V0 | Feature | Washable |
| Commodity | Silicone Sheet | Others | As Per Buyer's Drawing |
| Highlight | 200psi Silicone Foam Gasket,200psi Silicone Sponge Gasket,1.0g/Cm3 Silicone Foam Gasket |
||
Product Description

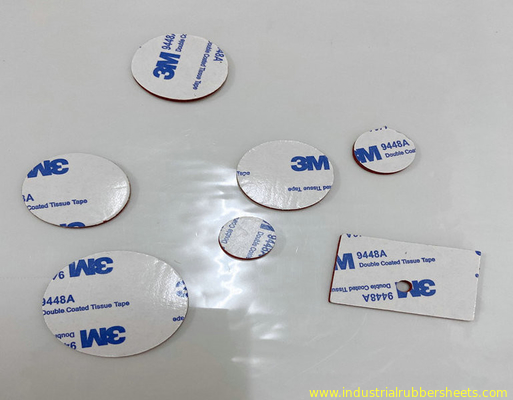

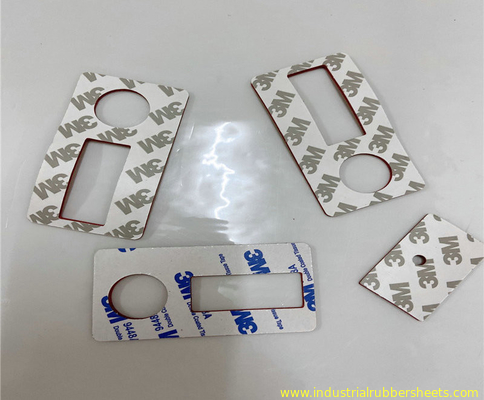

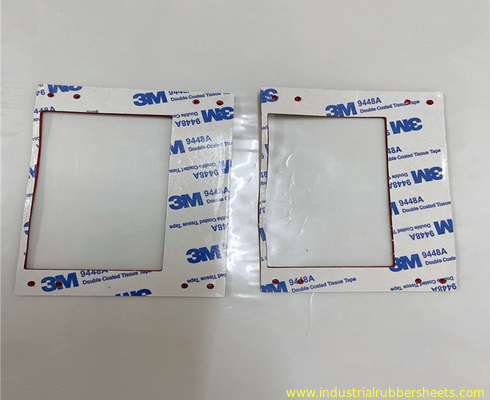

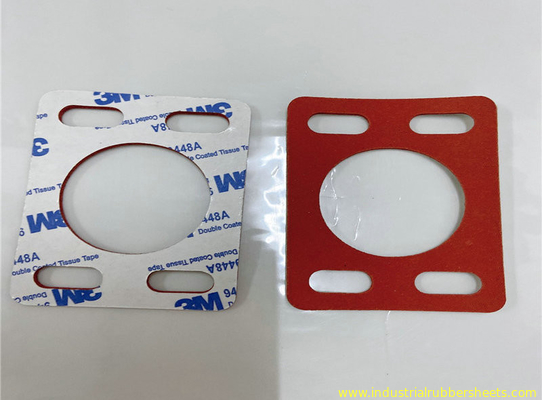

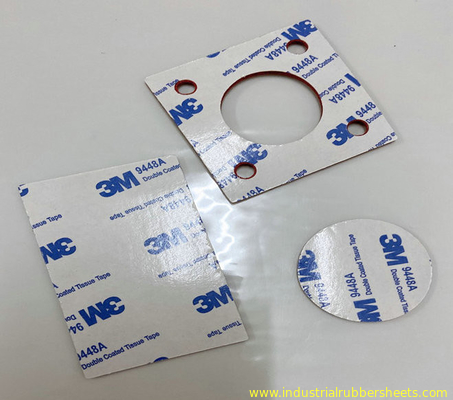

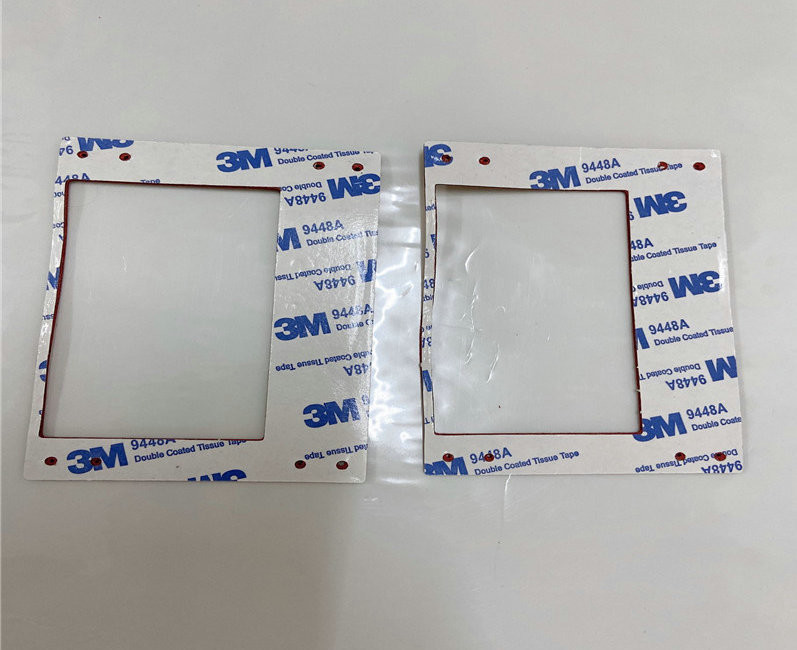

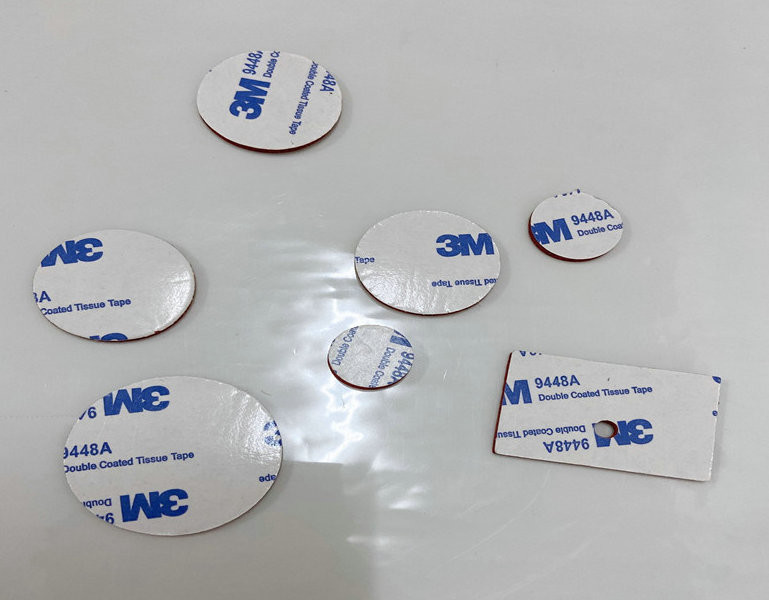

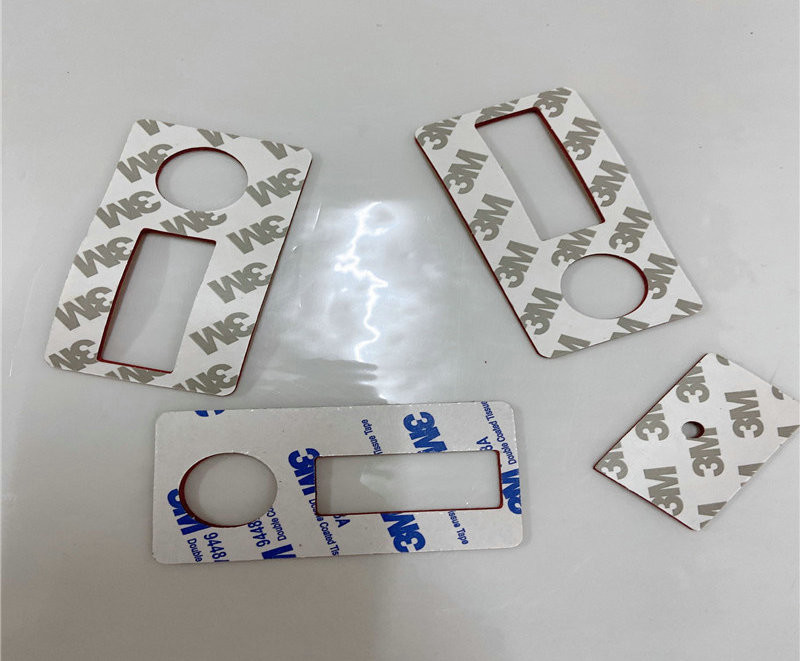

10-40 Shore A Custom Size 200psi Silicone Foam Gasket Backing Adhesive Tape
High-Performance Silicone Foam Gasket Material
Our custom-sized silicone foam gasket and washer backing adhesive tape is manufactured using specialized continuous plain press vulcanization techniques. This premium closed-cell silicone sponge material offers exceptional performance characteristics including high temperature resistance, aging resistance, ozone resistance, and excellent thermal insulation properties.
Key Features
- Excellent resistance to fuel, lubricants, and high temperatures
- Odor-free with superior durability
- High compressibility with low compression set
- Effective acoustic and thermal insulation
- Temperature range: -60°C to +220°C (continuous use), -70°C to +260°C (intermittent use)
- Available with various adhesive backing options
Technical Specifications
| Material | Virgin silicone sponge/foam |
|---|---|
| Cell Structure | Closed cell |
| Available Colors | Dark red, white, grey, black, beige, brown, blue |
| Surface Finish | Double impression fabric |
| Tensile Strength | 100-200 PSI |
| Hardness Range | 10-40 Shore A (±5) |
| Elongation | 100% |
| Density | 0.5-1.0 g/cm³ |
| Standard Thickness | 1.5-50 mm |
| Standard Width | 0.1-1.5 m (maximum 1.5m for thickness >5mm) |
| Standard Length | 0.1-10 m |
Standard Sizes
- 1.5-50mm × 1.0m × 10m
- 1.5-50mm × 1.2m × 10m
- 5.0-50mm × 1.5m × 10m
Density by Hardness
| Hardness (Shore A) | Density (g/cm³) |
|---|---|
| 10 | 0.48-0.50 |
| 15 | 0.50-0.55 |
| 20-25 | 0.60-0.65 |
| 25-30 | 0.65 |
| 30-40 | 1.00 |
Customization Options
- OEM and custom sizes available
- Various packaging options: cartons, rolls, pallets, or crates
- Adhesive backing options: Chinese general glue or USA 3M glue
- Perforated silicone sponge sheets available in 6, 8, 10mm thicknesses
- Custom extrusions, profiles, and stripes available
When requesting a quote, please specify: color, hardness, surface finish, dimensions, and quantity requirements.
