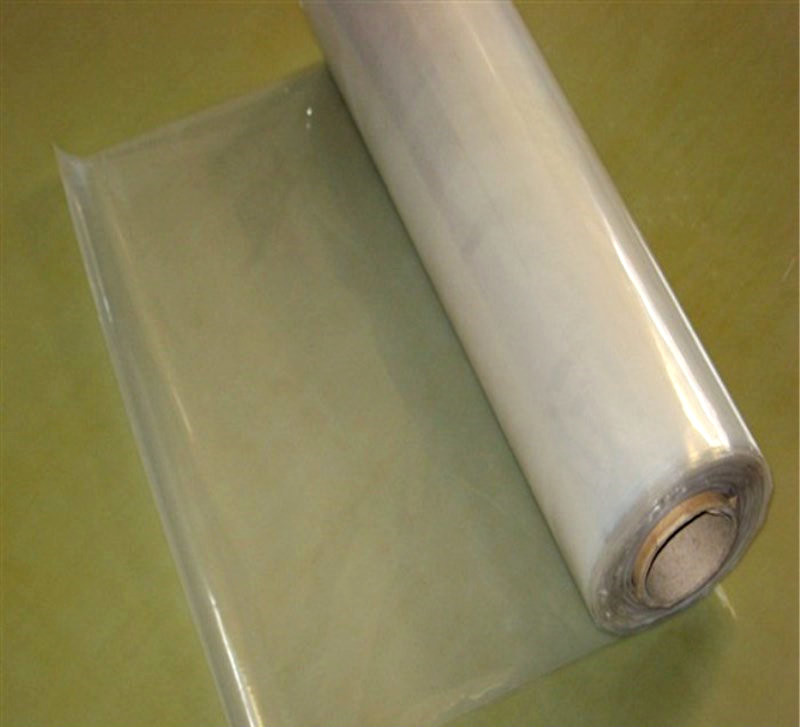

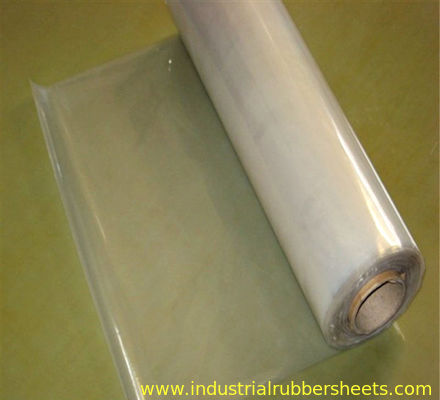

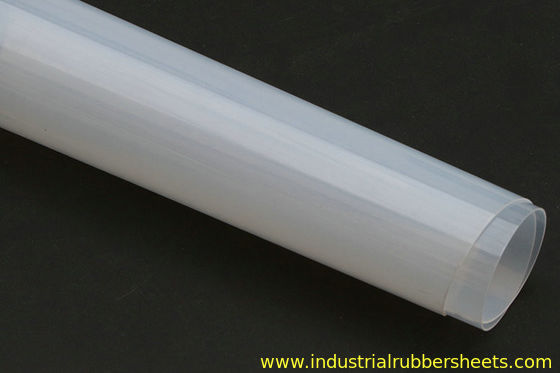

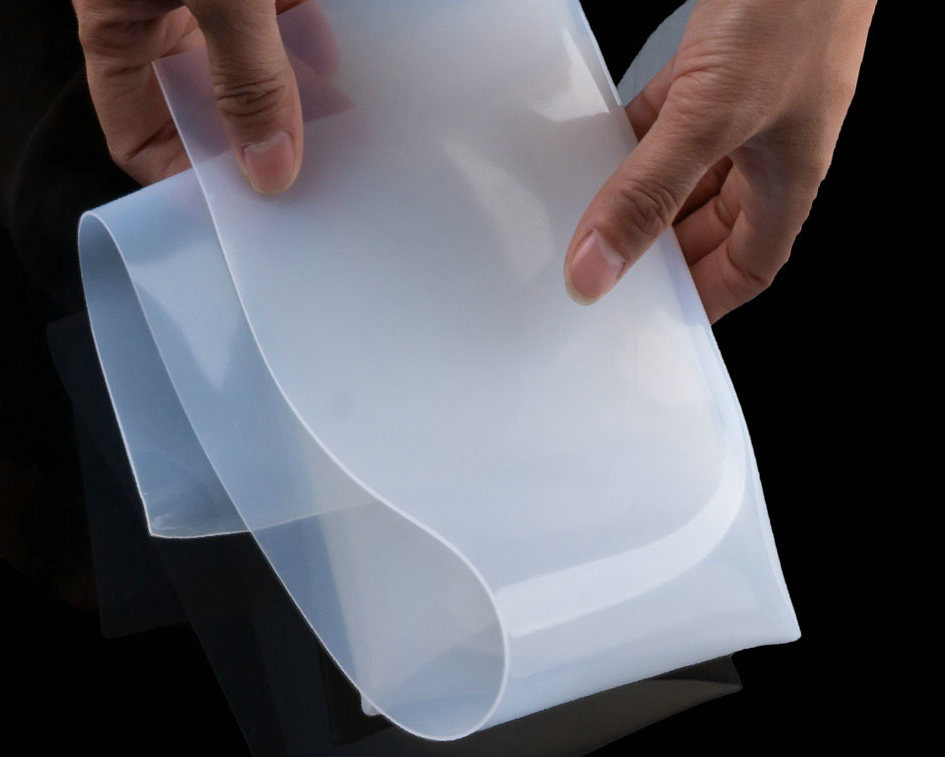

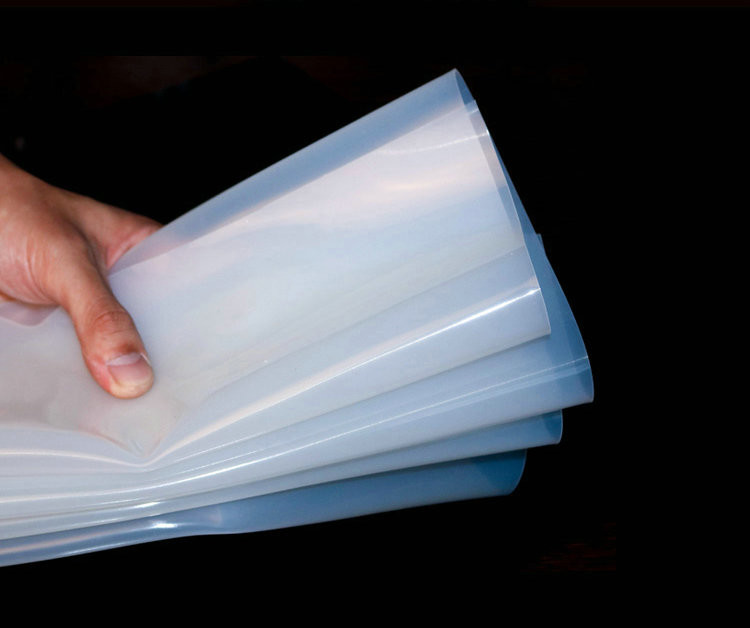

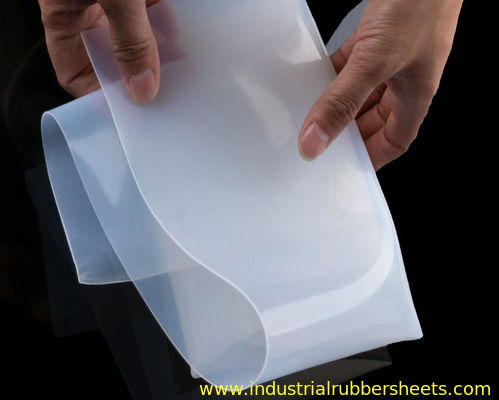

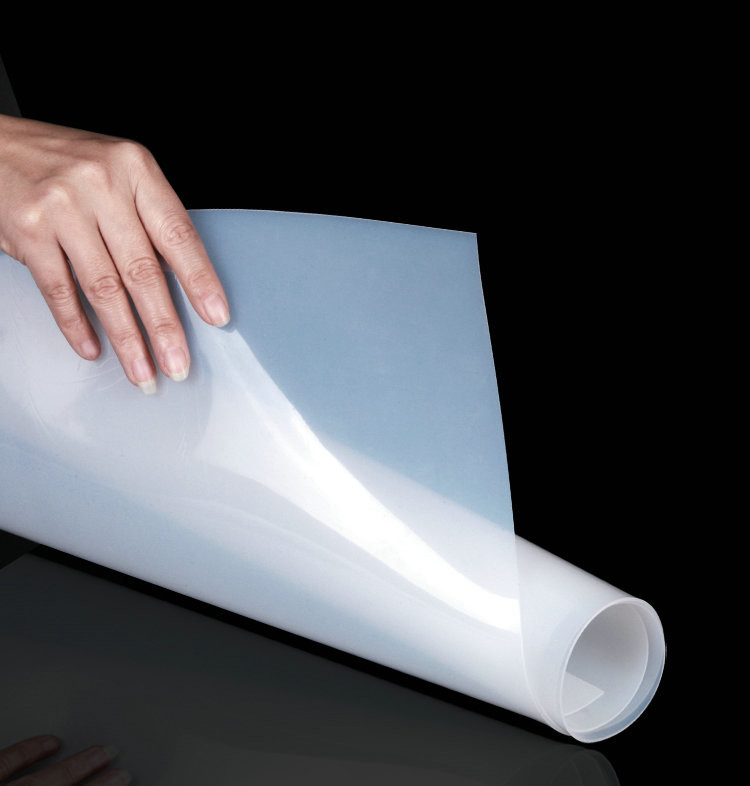

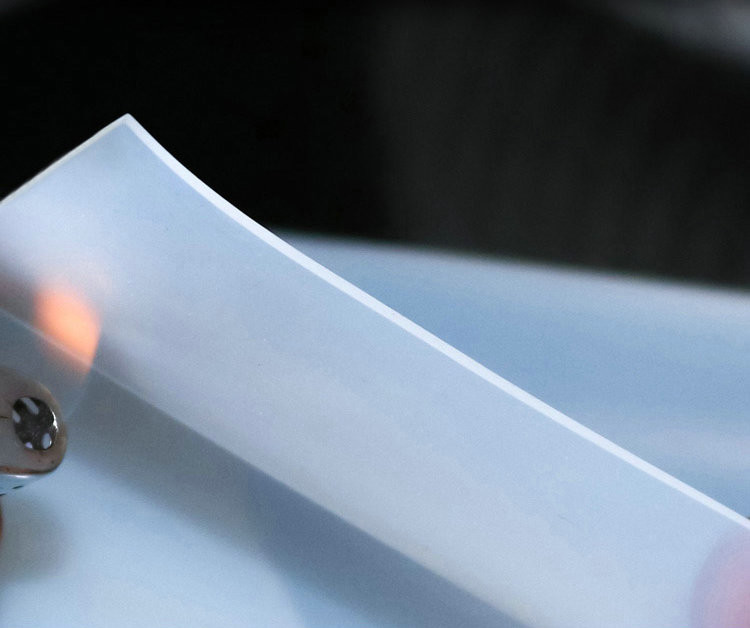

Anti-Aging Chemical Resistant Food Grade Silicone Rubber Sheet and Silicone Roll
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ISO9001 |
| Model Number | 3A1002 |
| Minimum Order Quantity | 100kgs |
| Price | USD3-15.00/kg |
| Packaging Details | packing in rolls, bags and pallets |
| Delivery Time | 7-15days after receive the buyer's payment |
| Payment Terms | L/C,D/P,T/T,Western Union,Alipay,Wechat,Paypal |
| Supply Ability | 100000kgs/month |
Product Details
| Material | Plastic+silicone+PET | Quality | Food Grade |
|---|---|---|---|
| Color | Translucent, Black, White, Red | Surface | Smooth Or Matt |
| Tensile Strength | 7.0Mpa | Hardness | 10-70shore A |
| Elongation | 300-600% | Density | 1.25g/cm3 |
| Thickness | 0.1mm-50mm | Width | 0.3-0.5mm |
| Length | 1m-50m | Packing | In Rolls And Pallets |
| Feature | Anti-slip, Heat Resistant | Uniform Heating | Maximum 220 Degree C |
| Aging Resistance | Excellent | Temperature | 170-250℃ |
| Warranty | Limited, Lifetime | Adhesive Backing | Yes, Custom |
| Custom Service | Is Available | Flammability | UL94-V0 |
| Highlight | 7.0Mpa Adhesive Backed Silicone Rubber Sheet,50m Adhesive Backed Silicone Rubber Sheet,50m Heat Resistant Silicone Rubber Sheet |
||
Product Description
Silicone Rubber Sheet Silicone Roll for Anti-Aging and Chemical Resistance

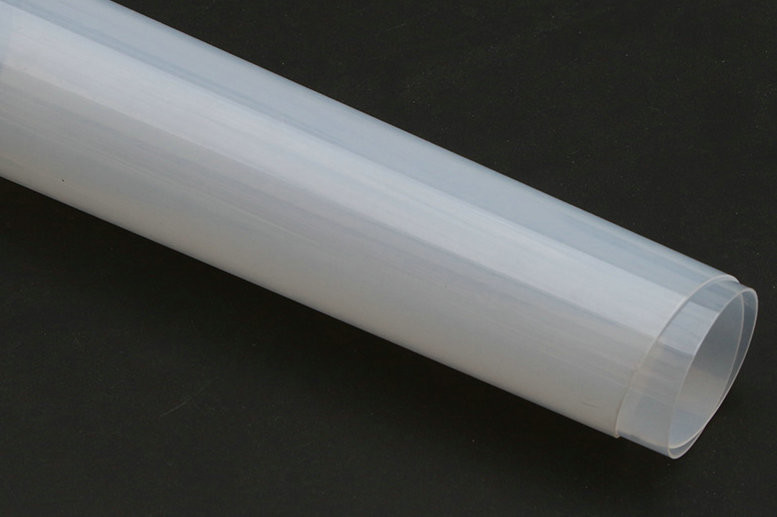

Silicone Sheet, Silicone Roll Size 0.1-1.0mm x 0.3-0.5m x 50m
Our silicone sheets, membranes, and rolls are manufactured using high-quality silicone material on specialized rotocure vulcanizers or plain press vulcanizers, tailored to specific customer requirements. We utilize advanced management, innovative techniques, and strict quality control with premium silicone materials and vulcanizer machinery to ensure superior product quality.
Our manufacturing capabilities include:
- General silicone sheets produced on 4-roller rotocure vulcanizers
- Super-wide silicone sheets produced on 2-roller rotocure vulcanizers
- Super-thin silicone sheets produced on special oven road vulcanizers
- Super-thick silicone sheets produced on plain press vulcanizers
We have successfully resolved common manufacturing challenges including lower smooth surface quality, high thickness tolerance on rotocure machines, and restricted width, length, and visible joints on press vulcanizing machines. Our super-wide drum-type vulcanizing press with 4000mm width capability allows us to produce seamless products up to 3800mm wide without joints.

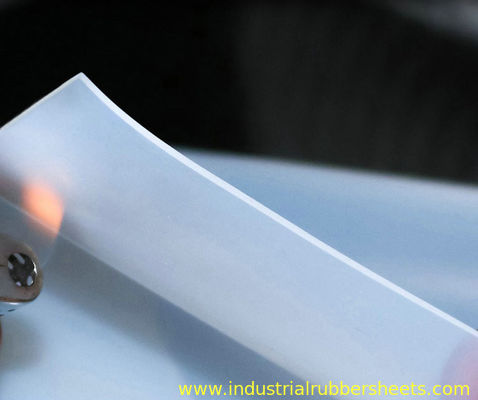

Our high-quality silicone rubber offers excellent performance characteristics including anti-aging, ozone resistance, heat resistance, electric insulation, oil resistance, solvent resistance, corrosion resistance, non-toxic and odorless properties, and pollution-free operation. It maintains high stability and reliability while remaining surface inactive without stickiness, operating effectively in air, water, oil, and other media at temperatures ranging from -60°C to +260°C (momentarily up to 300°C).
Applications include punching various rubber seals and gaskets, and specialized uses in wooden PVC vacuum press laminators, wooden door vacuum press laminators, safety glass vacuum laminating bags, solar vacuum press laminators, hot press laminators, card press laminators, and other industrial applications.
Specifications
| Material | 100% virgin HTV silicone material |
|---|---|
| Grade | Industrial grade, food grade, medical grade, FDA grade with postcured |
| Quality | High tear resistant, middle tear resistant, general tear resistant |
| Color | Translucent, dark red, black, milk white, grey, blue, etc. |
| Surface | Smooth/smooth, smooth/impression fabric, smooth/sand or double impression fabric |
| Reinforce | Insert 1 PLY fiberglass fabric, aramid fabric or wire mesh SS201, SS304, SS316 |
| Tensile Strength | 7.5-12.0 MPa |
| Hardness | 10, 20, 30, 40, 50, 60, 70, 80 +/-5 Shore A |
| Elongation | 350%-720% |
| Density | 1.25-1.50 g/cm³ |
| Tear Strength | 26-42 N/mm |
| Working Temperature | -60°C to +260°C (momentarily 300°C) |
| Thickness | 0.1-50 mm |
| Width | 0.1-3.6 m |
| Length | 1-50 m |
Standard Sizes
- 0.1-1.0mm x 0.5m x 25/50m
- 0.5-10.0mm x 0.5-1.2m x 10/20m
- 1.0-30.0mm x 0.5/1.0/1.2/1.5m x 10/20m
- 1.0-8.0mm x 1.5-3.8m x 10/20/30m
- OEM & customized sizes available upon agreement
Packing options: rolls, pallets, or crates
Special Silicone Membranes
- Light Grey: 9.8 MPa, 40 Shore A, 750%, 42 N/mm Germany silicone for "+" and "-" press on wooden PVC vacuum press laminator
- Translucent: 7.5 MPa, 50 Shore A, 400%, 26 N/mm Chinese silicone for "-" press only on wooden PVC vacuum press laminator
- Dark Grey: 12.0 MPa, 60-70 Shore A, 350%, 45 N/mm Germany silicone for photovoltaic module on solar vacuum laminator
- Sky Blue: 7.5 MPa, 50 Shore A, 350%, 26 N/mm Chinese silicone for safety glass on glass vacuum bag and laminator
- Dark Blue: 8.0 MPa, 57 Shore A, 450%, 30 N/mm Chinese silicone for safety glass on glass vacuum bag and laminator
Special Products
- FDA grade silicone sheet with postcure
- Antistatic silicone sheet with fire-resistant properties, black color, smooth surface
- Black antistatic silicone sheet backing with or without adhesive (3M)
- Thickness options: 0.2, 0.5, 0.8, 1.0, 1.2, 1.5, 2.0, 3.0 mm
Important: When making an enquiry, please confirm the application, color, hardness, size, and quantity requirements.
