Close Cell Silicone Foam Sheet with High Temperature Resistance and Aging Resistance for Extreme Environments
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ISO9001 |
| Model Number | 3A1002 |
| Minimum Order Quantity | 100kgs |
| Price | USD7.00-12.00/kg |
| Packaging Details | packing in rolls, cartons and pallets |
| Delivery Time | 7-15days after receive the buyer's payment |
| Payment Terms | L/C,D/P,T/T,Western Union,Wechat,Alipay |
| Supply Ability | 100000kgs/month |
Product Details
| Features | Flexible, Non-toxic, Odorless | Material | Silicone Sponge |
|---|---|---|---|
| Cell | Close Cell | Surface | Impression Fabric |
| Hardness | 10-40shore A | Tensile Strength | 200psi |
| Elongation | 100% | Density | 0.5-1.0g/cm3 |
| Thickness Range | 1.5-50mm | Width | 0.5-1.5m |
| Length | 0.5-10m | Aging Resistance | Excellent |
| Working Temperaturing | -60℃-+260℃ | Elogation | 100% |
| Surface Treatment | Smooth, Embossed, Etc. | Packing | In Rolls And Pallets |
| Breakdown Voltage | ≥20KV/mm | Keyword | Silicone Sponge Stripe |
| Powder | 350W | Processing Service | Moulding |
| Temperature Resistance | -60°C To 230°C | Shape | Rectangle |
| Highlight | 200psi silicone sponge sheet,0.5m length silicone sponge sheet,200psi silicone foam sheet |
||
Product Description
Silicone Foam Sheet for Heat Insulation and Protection in Extreme Environments
Product Overview

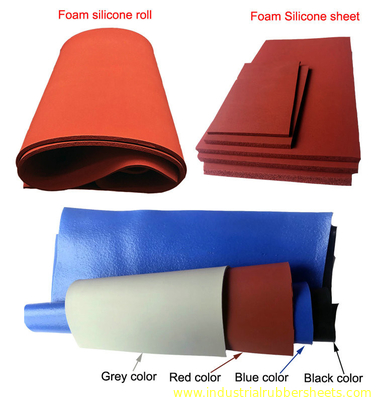

Silicone Sponge Sheet, Silicone Foam Sheet, and Rubber Sponge Sheet available in various colors including Red, White, Black, Grey, and more.
Our silicone sponge and foam sheets are manufactured using specialized continuous plain press vulcanizers with high-quality closed cell or open cell silicone sponge material and unique sponge techniques. These sheets deliver exceptional performance characteristics including high temperature resistance, aging resistance, ozone resistance, heat insulation, fuel oil resistance, lubricant resistance, odor-free composition, and excellent durability.
Featuring high compressibility and low compression set across a wide working temperature range, these sheets provide outstanding acoustic and thermal insulation properties. Suitable for long-term continuous use at temperatures ranging from -60°C to +220°C, and intermittent use from -70°C to +260°C. Ideal for various ironing tables and specialized gasket applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Virgin silicone sponge, silicone foam |
| Cell Structure | Closed cell |
| Available Colors | Dark red, white, grey, black, beige, brown, blue, etc. |
| Surface Finish | Double impression fabric |
| Tensile Strength | 100-200 PSI |
| Hardness | 10, 15, 20, 25, 30, 35, 40+/-5 shore A (currently 20-25 shore A) |
| Elongation | 100% |
| Density | 0.5-1.0 g/cm³ |
| Working Temperature | -60°C to +220°C (momentary 260°C) |
| Thickness Range | 1.5-50 mm |
| Width Range | 0.1-1.5 m (maximum 1.5 m for thickness >5 mm) |
| Length Range | 0.1-10 m |
Standard Sizes
- 1.5-50 mm * 1.0 m * 10 m
- 1.5-50 mm * 1.2 m * 10 m
- 5.0-50 mm * 1.5 m * 10 m
OEM and customized sizes available upon agreement.
Additional Options
- Packing options: cartons, rolls, pallets, or crates
- Backing adhesive available with Chinese general glue or USA 3M glue
- Perforated silicone sponge sheet: 6, 8, 10 mm * 0.9 m * 1.8 m in red, beige, or white
- Custom sizes for silicone sponge extrusion, profiles, and stripes
Important: When requesting a quotation, please specify color, hardness, surface finish, dimensions, and quantity requirements.
