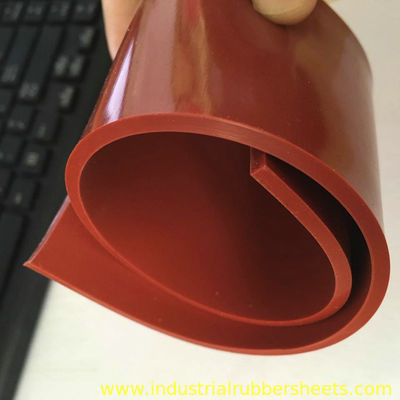

Good to Excellent Impact Resistance Virgin Silicone Rubber Sheet with Temperature Range -40°C to +260°C
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ISO9001 |
| Model Number | 3A1001 |
| Minimum Order Quantity | 100kgs |
| Price | USD3.00-16.00 per kg |
| Packaging Details | packing in rolls, bags and pallets |
| Delivery Time | 7-15days after receive the buyer's payment |
| Payment Terms | L/C,D/P,T/T,Western Union,Alipay,Wechat |
| Supply Ability | 1000000kgs/month |
Product Details
| Material | Virgin Silicone | Color | Translucent, Red, Black, Blue, White |
|---|---|---|---|
| Surface | Impression Fabric | Tensile Strength | 7.5-12Mpa |
| Hardness | 10-80shore A | Elongation | ≥250% |
| Density | 1.25-1.3g/cm³ | Thickness | 0.1-50mm |
| Width | 0.5-3.6m | Length | 0.5-20m |
| Finish | Smooth Or Textured Finish | Logo | Custom Logo |
| Thickness Range | 1.5-50mm | Shape | Rectangle |
| Tensible Strengh | 7-12Mpa | Warranty | Limited, Lifetime |
| Application | Sealing/Gasketing/Insulation | Packing | PP Bag/hard Carton |
| Others | As Per Buyer's Drawing | Surface Finish | Smooth/Textured |
| Working Temp | -40^C ~ +260^C | ||
| Highlight | ISO silicone sponge sheet,silicone sponge sheet ISO,0.5m width silicone sponge sheet |
||
Product Description
Good to Excellent Impact Resistance Silicone Rubber Sheet
Product Overview
Red, translucent, and white color silicone sheets manufactured with 100% virgin food grade silicone without odor. Engineered for industrial and construction applications requiring superior performance in demanding environments.
Key Features
- Exceptional temperature resistance from -100°C to 260°C
- Excellent chemical, oil, and ozone resistance
- FDA compliant and food-safe material
- High elasticity and flexibility across temperature extremes
- Resistant to UV light, ozone, and seawater erosion
- Low toxic fume generation and ignition resistance
Physical & Mechanical Properties
| Property | Value |
|---|---|
| Density (g/cm³) | 1.25 |
| Hardness (Shore A) | 50 ±5 |
| Tensile Strength (MPa) | 7.5 |
| Elongation (%) | 350% |
| Compression Set | 23% |
| Tear Resistance (N/mm) | 15 |
| Flex Cracking Resistance | Good to Excellent |
| Impact Resistance | Good to Excellent |
| Resilience/Rebound | Good to Excellent |
Environmental Performance
| Characteristic | Rating |
|---|---|
| Flame Resistance | Poor |
| Gas Permeability | Excellent |
| Ozone Resistance | Excellent |
| Oxidation Resistance | Excellent |
| Weather Resistance | Excellent |
| Water Resistance | Excellent |
Applications
- Medical equipment manufacturing
- Electronic equipment components
- Construction and building applications
- FDA-compliant food processing equipment
- Pharmaceutical and hygiene tool production
Limitations
Not recommended for applications involving aromatic solvents, fuels, chlorine solvents, and concentrated acids.
