Custom Silicone Heater Pad , Waterproof Non Toxic Silicone Mug

Custom Silicone Heater Pad , Waterproof Non Toxic Silicone Mug
Features Gallery Product Description Request A Quote
Material: Silicone Sponge +wire
Voltage: As Per The Buyer's Request
Cable: Custom
Power: As Per The Buyer's Request
Electric Thermostat: Custom
Uniform Heating: As Per The Buyer's Request
Heater Width: As Per The Buyer's Request
High Light:

custom silicone heater pad


waterproof silicone heater pad


non toxic silicone heater pad

Basic Infomation
Place of Origin: China
Brand Name: 3Arubber
Certification: ROHS/FCC/SGS
Model Number: 3A1006
Payment & Shipping Terms
Packaging Details: packed in cartons
Delivery Time: 10 working days after received your payment
Payment Terms: L/C, T/T, Western Union,Paypal, MoneyGram, D/P
Supply Ability: 10000 pieces per month
Product Description

Customed Silicone Heater Pad , Waterproof Non-Toxic Silicone Mug With High Quality



Description of heating pad element silicon rubber heater

Silicon rubber heater is a kind of thin film which heats upon electrified, in a standard thickness of 1.5mm, Adopting nickel chrome wires or 0.05 mm~0.10mm thick nickel chrome foils etched to some certain shapes, the heating component is wrapped with heat conducting and insulating materials on both sides, and completed in high-temperature die forming and aging heat treatment. Due to its high reliability, the product is highly competitive when comparing with other electric heating film products which normally have paste materials such as graphite paste or resistor paste, etc. coated on insulation materials. As a kind of soft red film which can be applied closely on different curved surfaces, the silastic heater can be fabricated in varies shapes and powers.
1. Fast heating with a coefficient of heat conductivity of only 1W/m.k. Due to its small thermal capacity, prompt turn on/off can be achieved.
2. High thermal efficiency: The temperature of electric heating film itself is only tens of centidegrees higher than that of the liquid when heating, which is 2-3 times energy saving than ordinary electric stoves.
3. Water, acid and alkali resistance, high-strength of electric insulation.
4. High mechanical strength with 100kg/cm² mechanical pressure.
5. Small size: Small space occupied when applying this heating product.
6. Easy application: Its self-insulation and free-of-open-fire property greatly help simplify the techniques of heat preservation and thermal insulation.
7. Its wide range of temperature,-60°C~250°C, can not be simply achieved by other electrical appliances.
8. Long service time: Under normal use, the product almost can be permanently and continuously used because nickel and chrome materials are durable to any corrosion, and the silastic has a high surface resistance up to 100kg/cm², which is uncomparable for any other electric heaters.
9. Made in any size, the temperature of the product can be precisely adjusted by temperature controller.
Technical parameters:
Material Silicone + Wire
Voltage 220-240V
Cable 4Cores, 0.5m length
Power 350W
Electric thermostat K, NTC, PT100 Sonde

Uniform heating to 220 degree C
Easy to install
Heater width to 48 inches(1.2 m)
Mount to flat or curved surfaces

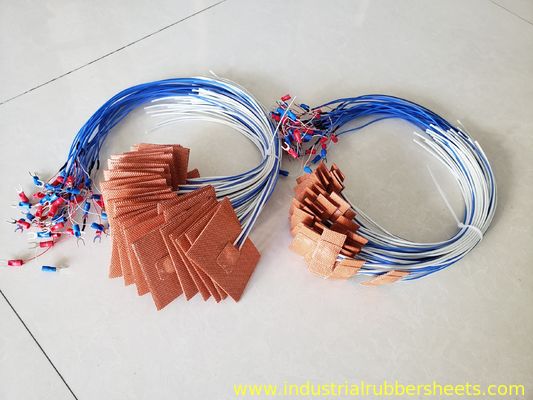

Custom Silicone Heater Pad , Waterproof Non Toxic Silicone Mug 0

Custom Silicone Heater Pad , Waterproof Non Toxic Silicone Mug 1

Custom Silicone Heater Pad , Waterproof Non Toxic Silicone Mug 2Custom Silicone Heater Pad , Waterproof Non Toxic Silicone Mug 3
