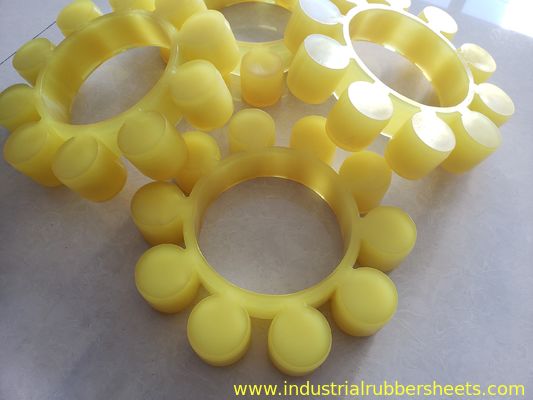

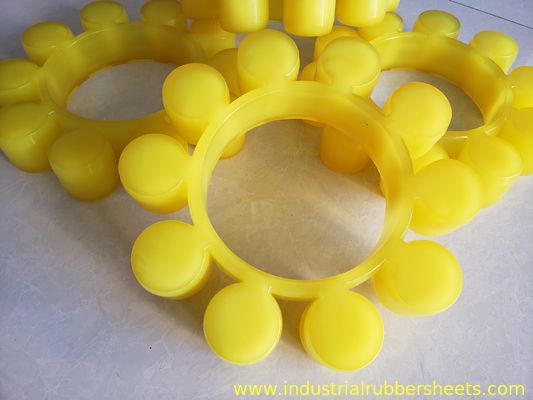

MT1-13 Size 90-95 Shore A Hardness Polyurethane Coupling Spider with Excellent Durability

  • MT1-13 Size 90-95 Shore A Hardness Polyurethane Coupling Spider with Excellent Durability
  • MT1-13 Size 90-95 Shore A Hardness Polyurethane Coupling Spider with Excellent Durability
  • MT1-13 Size 90-95 Shore A Hardness Polyurethane Coupling Spider with Excellent Durability
  • MT1-13 Size 90-95 Shore A Hardness Polyurethane Coupling Spider with Excellent Durability
  • MT1-13 Size 90-95 Shore A Hardness Polyurethane Coupling Spider with Excellent Durability
  • MT1-13 Size 90-95 Shore A Hardness Polyurethane Coupling Spider with Excellent Durability
  • MT1-13 Size 90-95 Shore A Hardness Polyurethane Coupling Spider with Excellent Durability
Place of Origin China
Brand Name 3A Rubber
Certification ROHS/FCC/SGS
Model Number 3A2006
Minimum Order Quantity 10pieces
Price negotiation
Packaging Details Packed in cartons
Delivery Time 10 working days after received your payment
Payment Terms T/T,L/C,Paypal,Western Union,D/P,Alipay,Wechat
Supply Ability 10000kgs per month
Product Details
Application MT Shaft Coupling, Excellent Durabilit Color Yellow
Hardness 90, 95, 98 Shore A Size MT1-13
Standard GB/T5272-85
Highlight

98 shore A polyurethane coupling

,

FCC polyurethane coupling

,

MT shaft polyurethane coupling
Leave a Message
Product Description
MT1-13 90-95 Shore A Polyurethane Spider Polyurethane Coupling MT Coupling Spider
Product Overview

MT1-13 90-95 Shore A Polyurethane Spider, designed for MT shaft couplings with excellent durability and performance characteristics.

Packaging & Delivery
Packaging Details Inner by polybag, and outer by carton. Or as per customer request.
Delivery Time 10 days
Product Specifications
Product Name: Polyurethane MT Coupling Parts
Material: TPU 90-98 Shore A
Size Range: MT1-13
Color: Yellow
Key Features
  • Used in MT type couplings
  • Superior quality construction
  • Excellent durability
  • Competitive pricing
Operating Conditions
  • Temperature Range: -40°C to +100°C
  • Torque Range: 22.4-2500 NM
  • Hardness: 90-98 Shore A
Application

This standard is suitable for large equipment and mechanical cushioning effect to joint of transmission shaft, providing excellent vibration absorption and buffering capabilities.

Size Specifications
Size Material D (mm) d (mm) H (mm) Lemella Qty
MT1Polyurethane4819124
MT2Polyurethane6828186
MT3Polyurethane8234186
MT4Polyurethane10042206
MT5Polyurethane12252256
MT6Polyurethane14064306
MT7Polyurethane16690308
MT8Polyurethane196100358
MT9Polyurethane2251153510
MT10Polyurethane2551404510
MT11Polyurethane2951705010
MT12Polyurethane3562155512
MT13Polyurethane3912505512
Product Images
MT Coupling Spider product view MT Coupling Spider close-up detail MT Coupling Spider installation example MT Coupling Spider dimensional view
Material Characteristics

Polyurethane elastomeric is a synthetic polymer material that combines the high strength of plastic with the high elasticity of rubber. Key characteristics include:

  • Wide hardness range (Shore A10-D80) with excellent elongation and resilience
  • High tensile strength, tear strength, and load carrying capacity
  • Outstanding wear resistance (3-5 times better than rubber materials)
  • Excellent oil resistance and compatibility with fuel and mechanical oils
  • Good resistance to oxygen and ozone
  • Superior vibration absorption and damping capabilities
  • Excellent low temperature performance
  • High radiation resistance
  • Good machining performance
Technical Specifications
  • Material: TPU, CSM/SBR, NBR, nylon, etc.
  • Color Options: Yellow, red, purple, green, black, beige, etc.
  • Surface: Smooth
  • Tensile Strength: 8-55 Mpa
  • Hardness: 70-98 Shore A
  • Elongation: 400%-650%
  • Density: 1.25 g/cm³
  • Elasticity Impact: >25%
  • Tear Strength: 35-155 KN/m
  • Akron Abrasion Loss: <0.05 cm³/1.61 km
  • Compression Set (22h*70°C): <10%
  • Working Temperature: Up to 120°C
Available Standard Sizes

We supply full range of coupling types including GR, GS, MT, ML, MH, Hb, HRC, L, T, NM, and Gear J series couplings with comprehensive size availability for polyurethane, rubber, and nylon variants.

Note: When inquiring, please confirm type, size number, and quantity requirements.
