Food Grade Silicone Tube 60 Shore A, 1-50mm Diameter

  • Food Grade Silicone Tube 60 Shore A, 1-50mm Diameter
  • Food Grade Silicone Tube 60 Shore A, 1-50mm Diameter
  • Food Grade Silicone Tube 60 Shore A, 1-50mm Diameter
  • Food Grade Silicone Tube 60 Shore A, 1-50mm Diameter
  • Food Grade Silicone Tube 60 Shore A, 1-50mm Diameter
  • Food Grade Silicone Tube 60 Shore A, 1-50mm Diameter
Place of Origin China
Brand Name 3A Rubber
Certification ISO9001
Model Number 3A1003
Minimum Order Quantity 20kgs
Price USD3.00-15.00 per kg
Packaging Details packing in rolls, cartons and pallets
Delivery Time 7-15days
Payment Terms L/C,D/P,T/T,Western Union,MoneyGram,Paypal,Alipay,Wechat
Supply Ability 100000kgs/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Silicone Quality Food Grade
Color Transparent Hardness 60shore A
Tensile Strength 7-12 MPa Elongation 350%
Density 1.25g/cm3 Tear Strength 26N/mm
Size Standard Size, Agree To Custom App For Industrial Roller
Lead Time 7-15 Days Diameter 1mm-50mm
Resistance High Temperature, UV, Ozone, Chemicals Fda Compliance Yes
Compression Set 20-40% Length Customizable
Uv Resistance Good Reinforced Insert 1-4PLY Fabric
Shape Tube Cured Platinum Cured
Outer Diameter 3mm-60mm
Highlight

7.5Mpa Transparent Silicone Hose

,

26N/mm Transparent Silicone Hose

,

5.0mm Flexible Silicone Hose
Leave a Message
Product Description

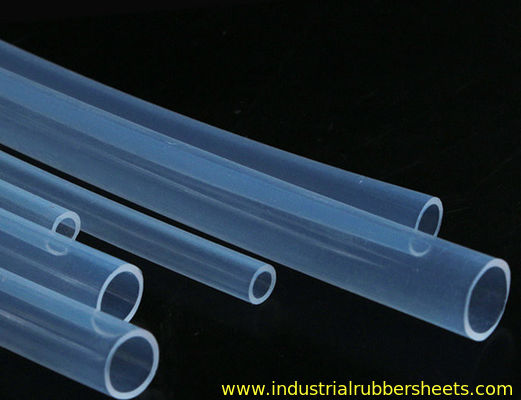

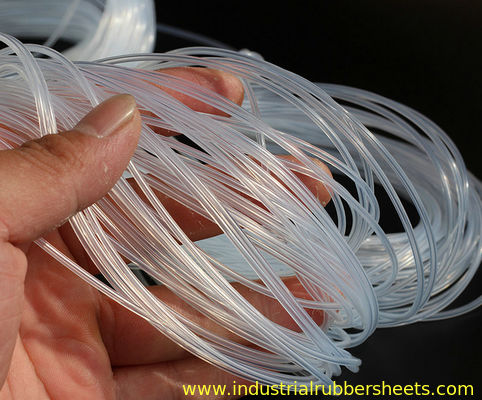

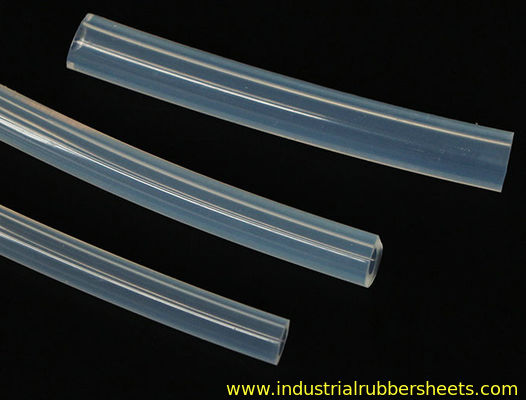

Food Grade Transparent Silicone Hose, Silicone Tube, Silicone Tubing
Premium Quality Silicone Hoses for Industrial and Food Applications

Our high-performance silicone hoses are manufactured from 100% virgin silicone material, available in industrial grade and food grade (postcured or platinum cured) options. These versatile tubes offer exceptional durability and performance across a wide temperature range.

Key Specifications
Property Specification
Material 100% virgin silicone
Quality Grades Industrial grade, Food grade (postcured or platinum cured)
Available Colors Transparent, translucent, dark red, orange, black, milk white, blue, grey
Surface Finish Smooth/smooth
Reinforcement 1-5PLY polyester fiber insert
Tensile Strength 7.5-9.8Mpa
Hardness 50, 60, 70, 80±5 Shore A
Elongation 350-720%
Density 1.25±0.05g/cm³
Tear Strength 26-42N/mm
Temperature Range -60°C to +250°C
Wall Thickness 1.0, 2.0, 3.0, 4.0, 5.0mm
Standard Sizes Available
  • Ø0.5mm × Ø1.0mm × 5-20kgs
  • Ø0.5mm × Ø1.5mm × 5-20kgs
  • Ø0.5mm × Ø2.0mm × 5-20kgs
  • Ø0.8mm × Ø1.9mm × 5-20kgs
  • Ø1.0mm × Ø2.0mm × 5-20kgs
  • Ø1.0mm × Ø3.0mm × 5-20kgs
  • Ø1.0mm × Ø4.0mm × 5-20kgs
  • Ø1.5mm × Ø2.5mm × 5-20kgs
  • Ø1.5mm × Ø3.0mm × 5-20kgs
  • Ø1.6mm × Ø3.2mm × 5-20kgs
  • Ø2.0mm × Ø3.0mm × 5-20kgs
  • Ø2.0mm × Ø4.0mm × 5-20kgs
  • Ø2.0mm × Ø5.0mm × 5-20kgs
  • Ø2.0mm × Ø6.0mm × 5-20kgs
  • Ø3.0mm × Ø4.0mm × 5-20kgs
  • Ø3.0mm × Ø5.0mm × 5-20kgs
  • Ø3.0mm × Ø6.0mm × 5-20kgs
  • Ø3.0mm × Ø8.0mm × 5-20kgs
  • Ø3.0mm × Ø9.0mm × 5-20kgs
  • Ø4.0mm × Ø5.0mm × 5-20kgs
  • Ø4.0mm × Ø6.0mm × 5-20kgs
  • Ø4.0mm × Ø7.0mm × 5-20kgs
  • Ø4.0mm × Ø8.0mm × 5-20kgs
  • Ø5.0mm × Ø8.0mm × 5-20kgs
  • Ø5.0mm × Ø9.0mm × 5-20kgs
  • Ø5.0mm × Ø10.0mm × 5-20kgs
  • Ø6.0mm × Ø9.0mm × 5-20kgs
  • Ø6.0mm × Ø10.0mm × 5-20kgs
  • Ø6.0mm × Ø12.0mm × 5-20kgs
  • Ø7.0mm × Ø9.0mm × 5-20kgs
  • Ø7.0mm × Ø10.0mm × 5-20kgs
  • Ø7.0mm × Ø12.0mm × 5-20kgs
  • Ø8.0mm × Ø10.0mm × 5-20kgs
  • Ø8.0mm × Ø12.0mm × 5-20kgs
  • Ø8.0mm × Ø14.0mm × 5-20kgs
  • Ø9.0mm × Ø12.0mm × 5-20kgs
  • Ø9.0mm × Ø14.0mm × 5-20kgs
  • Ø9.0mm × Ø16.0mm × 5-20kgs
  • Ø10.0mm × Ø14.0mm × 5-20kgs
  • Ø10.0mm × Ø16.0mm × 5-20kgs
  • Ø10.0mm × Ø18.0mm × 5-20kgs
  • Ø12.0mm × Ø16.0mm × 5-20kgs
  • Ø12.0mm × Ø18.0mm × 5-20kgs
  • Ø12.0mm × Ø20.0mm × 5-20kgs
  • Ø14.0mm × Ø18.0mm × 5-20kgs
  • Ø14.0mm × Ø20.0mm × 5-20kgs
  • Ø14.0mm × Ø22.0mm × 5-20kgs
  • Ø16.0mm × Ø18.0mm × 5-20kgs
  • Ø16.0mm × Ø20.0mm × 5-20kgs
  • Ø20.0mm × Ø30.0mm × 5-20kgs
  • Ø30.0mm × Ø40.0mm × 5-20kgs
  • Ø40.0mm × Ø50.0mm × 5-20kgs

Custom sizes available upon request. Packing options include rolls, bags, cartons, pallets, or crates.

Product Features
  • Manufactured using specialized silicone extruding or molding equipment
  • High tensile strength with excellent flexibility
  • Strong anti-pull properties with wide hardness range
  • Superior aging, ozone, and heat resistance
  • Excellent insulation properties
  • Resistant to fuel oil and lubricants
  • Suitable for air, water, or oil medium applications
  • Industrial grade: peroxide vulcanized without smell
  • Food grade: platinum vulcanized, non-toxic and tasteless
  • Medical grade available with FDA and LFGB certification
Applications

Ideal for corona rollers or transferring water, air, oil, and other media in various industrial, food processing, and medical applications.
