Translucent Food Grade Silicone Hose with High Temperature Resistance for Industrial Applications

  • Translucent Food Grade Silicone Hose with High Temperature Resistance for Industrial Applications
  • Translucent Food Grade Silicone Hose with High Temperature Resistance for Industrial Applications
  • Translucent Food Grade Silicone Hose with High Temperature Resistance for Industrial Applications
  • Translucent Food Grade Silicone Hose with High Temperature Resistance for Industrial Applications
  • Translucent Food Grade Silicone Hose with High Temperature Resistance for Industrial Applications
  • Translucent Food Grade Silicone Hose with High Temperature Resistance for Industrial Applications
Place of Origin China
Brand Name 3A Rubber
Certification ISO9001
Model Number 3A1003
Minimum Order Quantity 20kgs
Price USD4.00-15.00 per kg
Packaging Details packing in rolls, cartons and pallets
Delivery Time 7-15days
Payment Terms L/C,D/P,T/T,Western Union,Paypal,Alipay,Wechat
Supply Ability 100000kgs/month
Product Details
Material Virgin Chinese Silicone Color Translucent
Quality Industrial Grade Hardness 50-80 Shore A
Tensile Strength 7.5Mpa Elongation 500-700%
Density 1.25g/cm3 Tear Strength 20-30 N/mm
Size Standard Size, Agree To Custom Working Press 0.3-0.9Mpa
Rohs Compliance Yes Inner Diameter 1mm-50mm
Chemical Resistance Excellent Diameter 1mm-50mm
Tear Resistance 25-35 KN/m Rohs Compliant Yes
App For Industrial Roller Temperature Resistance Up To 200°C
Resistance High Temperature, UV, Ozone, Chemicals
Highlight

2.0MM Translucent Silicone Tubing

,

60 Shore A Silicone Tubing

,

26N/mm Translucent Silicone Tubing
Leave a Message
Product Description
Translucent Food Grade Silicone Hose, Silicone Tube, Silicone Tubing
High-quality silicone hose, tube, and sleeve products manufactured using specialized extrusion and molding equipment. Available in industrial grade, food grade (postcured or platinum cured), and medical grade options to meet various application requirements.
Product Specifications
Material 100% virgin silicone material
Quality Grades Industrial grade, food grade (postcured or platinum cured)
Available Colors Transparent, translucent, dark red, orange, black, milk white, blue, grey, etc.
Surface Finish Smooth/smooth
Fiber Reinforcement Insert 1-5PLY polyester fiber
Tensile Strength 7.5-9.8 MPa
Hardness 50, 60, 70, 80 ±5 Shore A
Elongation 350-720%
Density 1.25 ±0.05 g/cm³
Tear Strength 26-42 N/mm
Working Temperature -60°C to +250°C
Wall Thickness 1.0, 2.0, 3.0, 4.0, 5.0 mm
Standard Sizes
Ø0.5mm x Ø1.0mm x 5-20kgs
Ø0.5mm x Ø1.5mm x 5-20kgs
Ø0.5mm x Ø2.0mm x 5-20kgs
Ø0.8mm x Ø1.9mm x 5-20kgs
Ø1.0mm x Ø2.0mm x 5-20kgs
Ø1.0mm x Ø3.0mm x 5-20kgs
Ø1.0mm x Ø4.0mm x 5-20kgs
Ø1.5mm x Ø2.5mm x 5-20kgs
Ø1.5mm x Ø3.0mm x 5-20kgs
Ø1.6mm x Ø3.2mm x 5-20kgs
Ø2.0mm x Ø3.0mm x 5-20kgs
Ø2.0mm x Ø4.0mm x 5-20kgs
Ø2.0mm x Ø5.0mm x 5-20kgs
Ø2.0mm x Ø6.0mm x 5-20kgs
Ø3.0mm x Ø4.0mm x 5-20kgs
Ø3.0mm x Ø5.0mm x 5-20kgs
Ø3.0mm x Ø6.0mm x 5-20kgs
Ø3.0mm x Ø8.0mm x 5-20kgs
Ø3.0mm x Ø9.0mm x 5-20kgs
Ø4.0mm x Ø5.0mm x 5-20kgs
Ø4.0mm x Ø6.0mm x 5-20kgs
Ø4.0mm x Ø7.0mm x 5-20kgs
Ø4.0mm x Ø8.0mm x 5-20kgs
Ø5.0mm x Ø8.0mm x 5-20kgs
Ø5.0mm x Ø9.0mm x 5-20kgs
Ø5.0mm x Ø10.0mm x 5-20kgs
Ø6.0mm x Ø9.0mm x 5-20kgs
Ø6.0mm x Ø10.0mm x 5-20kgs
Ø6.0mm x Ø12.0mm x 5-20kgs
Ø7.0mm x Ø9.0mm x 5-20kgs
Ø7.0mm x Ø10.0mm x 5-20kgs
Ø7.0mm x Ø12.0mm x 5-20kgs
Ø8.0mm x Ø10.0mm x 5-20kgs
Ø8.0mm x Ø12.0mm x 5-20kgs
Ø8.0mm x Ø14.0mm x 5-20kgs
Ø9.0mm x Ø12.0mm x 5-20kgs
Ø9.0mm x Ø14.0mm x 5-20kgs
Ø9.0mm x Ø16.0mm x 5-20kgs
Ø10.0mm x Ø14.0mm x 5-20kgs
Ø10.0mm x Ø16.0mm x 5-20kgs
Ø10.0mm x Ø18.0mm x 5-20kgs
Ø12.0mm x Ø16.0mm x 5-20kgs
Ø12.0mm x Ø18.0mm x 5-20kgs
Ø12.0mm x Ø20.0mm x 5-20kgs
Ø14.0mm x Ø18.0mm x 5-20kgs
Ø14.0mm x Ø20.0mm x 5-20kgs
Ø14.0mm x Ø22.0mm x 5-20kgs
Ø16.0mm x Ø18.0mm x 5-20kgs
Ø16.0mm x Ø20.0mm x 5-20kgs
Ø20.0mm x Ø30.0mm x 5-20kgs
Ø30.0mm x Ø40.0mm x 5-20kgs
Ø40.0mm x Ø50.0mm x 5-20kgs
Custom Sizes: OEM and customized sizes available upon agreement.
Packaging: Rolls, bags, cartons, pallets, or crates.
Product Description
Our silicone hose, tube, and sleeve products are extruded or molded using specialized equipment with high-quality silicone material. Manufactured according to customer requirements with various inside and outside diameter specifications, these products offer:
  • High tensile strength and flexibility
  • Strong anti-pull properties with wide hardness range
  • Excellent aging, ozone, and heat resistance
  • Superior insulation properties
  • Fuel oil and lubricant resistance
  • Operation in air, water, or oil media at -60°C to +250°C
Industrial Grade: Made with standard extruded silicone and vulcanized with imported peroxide (odorless)
Food Grade: Made with food grade transparent fumed silicone, platinum vulcanized, non-toxic and tasteless
Medical Grade: Made with medical grade transparent fumed silicone, platinum vulcanized with FDA and LFGB certification
Applications include corona rollers, and transfer of water, air, oil, and other media.
Product Images

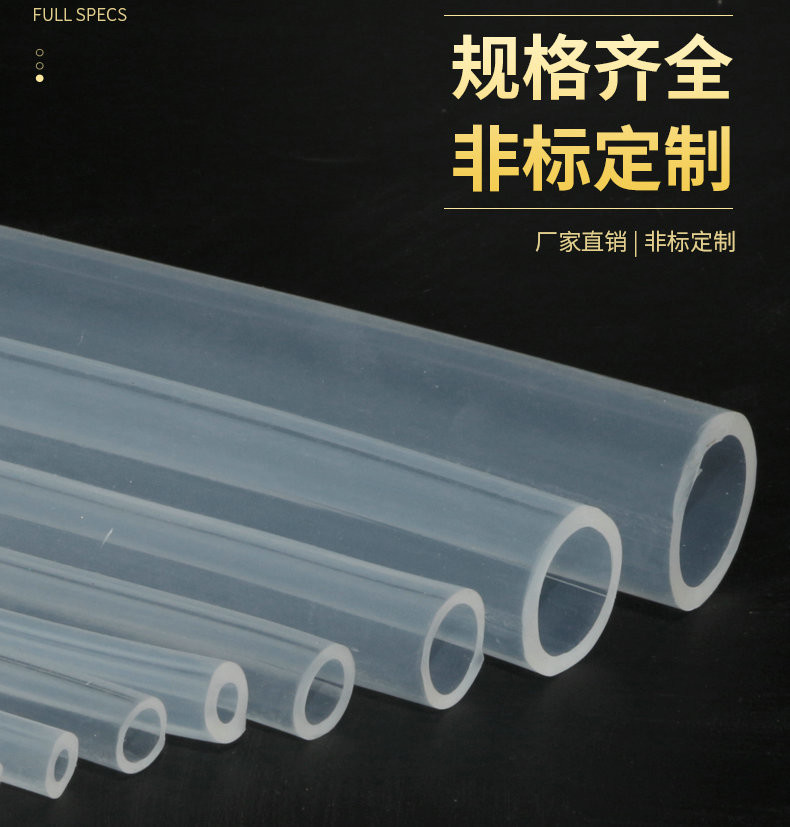

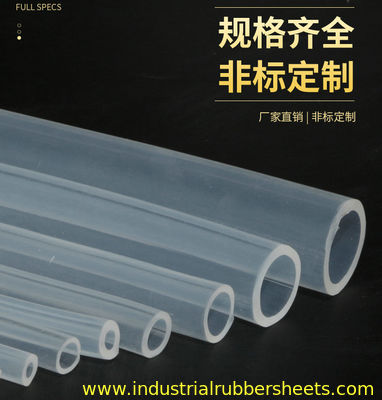

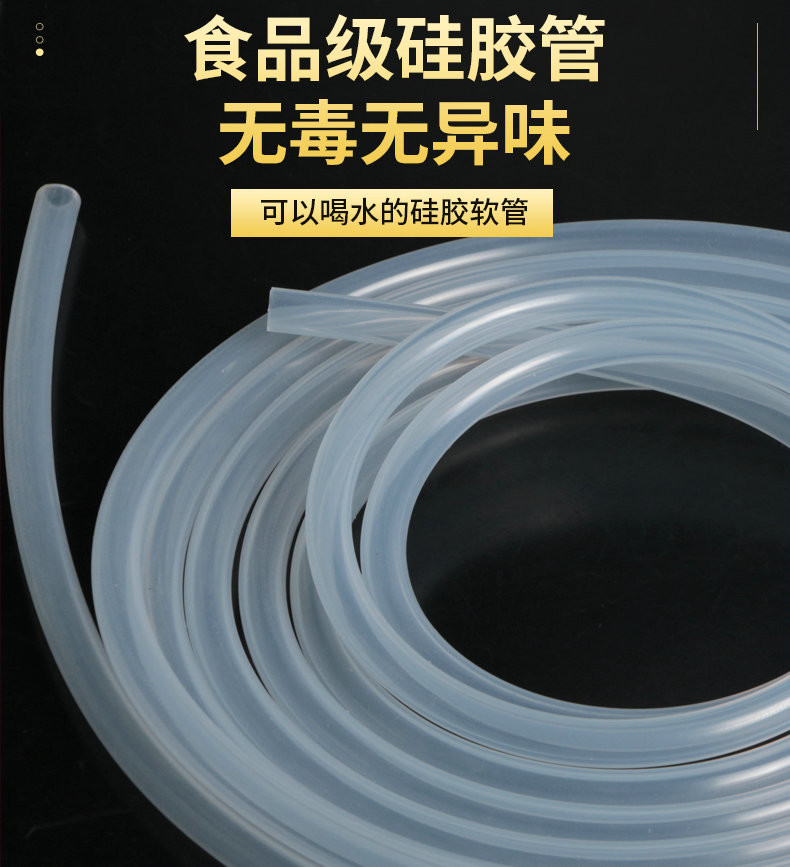

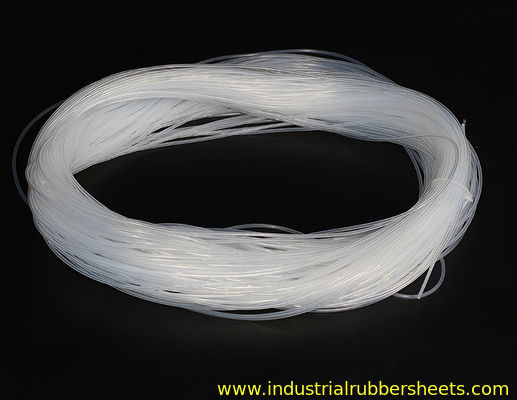

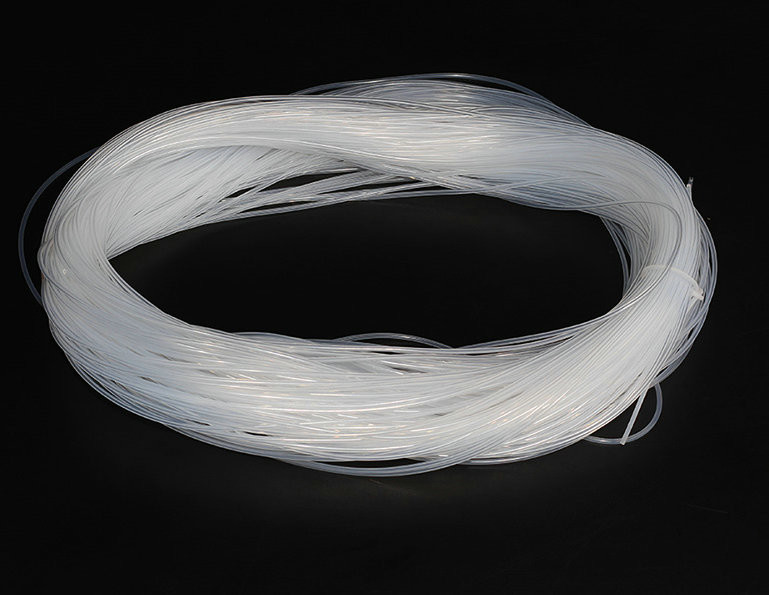

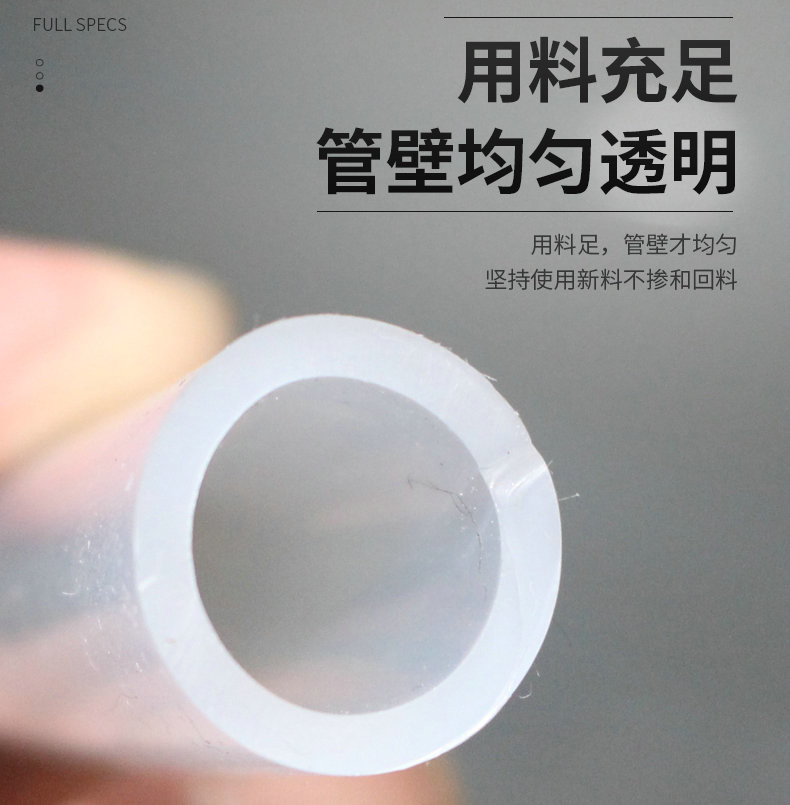

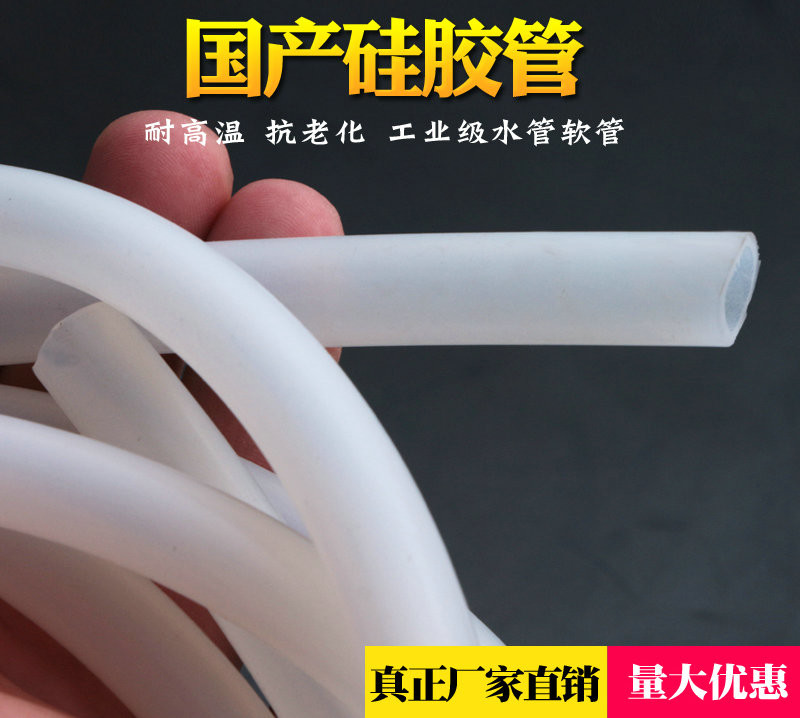

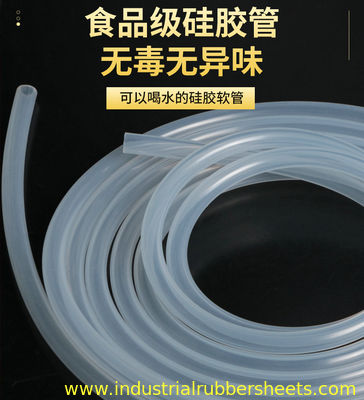

Translucent silicone hose product display Silicone tubing size comparison Food grade silicone tube applications Industrial silicone hose manufacturing Silicone tubing quality inspection
