Food Grade Silicone Rubber Sheet 1-10mm x 1.2m x 10m
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ISO9001 |
| Model Number | 3A1001 |
| Minimum Order Quantity | 200kgs |
| Packaging Details | Packing in rolls and pallets |
| Delivery Time | 7-15days after receive the buyer's payment |
| Payment Terms | L/C,D/P,T/T,Western Union,MoneyGram,Alipay,Wechat,Paypal |
| Supply Ability | 100000kgs/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Virgin Silicone | Quality | Food Grade Without Smell |
|---|---|---|---|
| Color | Red, Black | Surface | Smooth/Smooth |
| Tensile Strength | 7.5-12Mpa | Hardness | 40-75shore A |
| Elongation | 350%-720% | Density | 1.25g/cm3 |
| Tear Strength | 26-42N/mm | Thickness | 1-10mm |
| Width | 1-1.2m | Length | 10m |
| Highlight | 12Mpa Silicone Rubber Sheet,42N/mm Silicone Rubber Sheet,75 Shore A Silicone Rolls |
||
Product Description

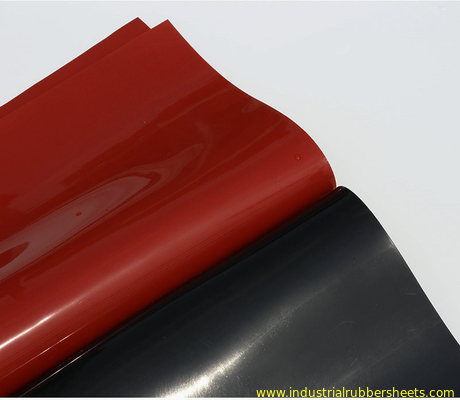

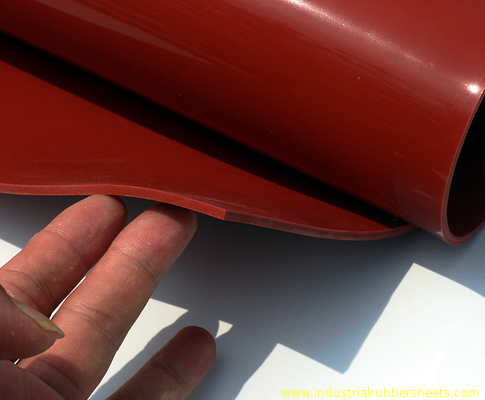

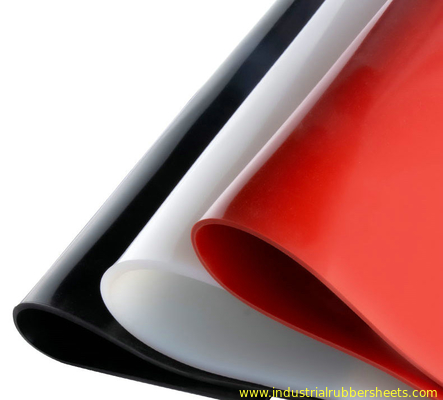

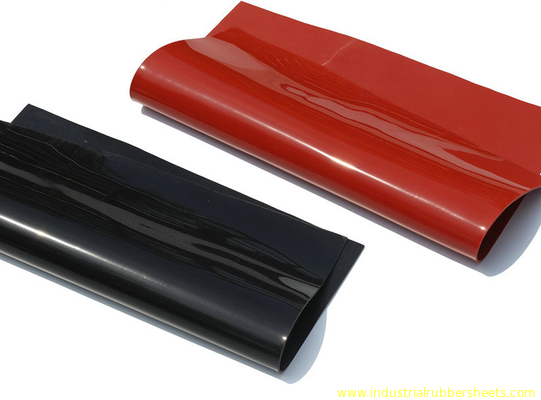

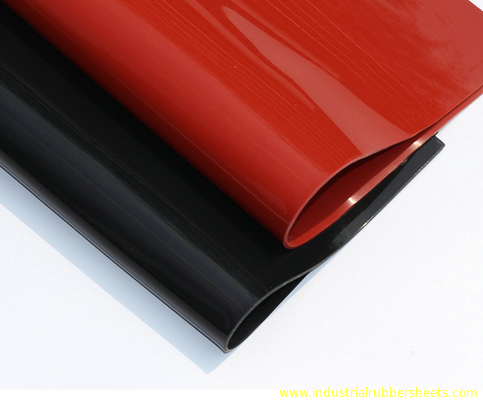

High Tensile Strength Silicone Rubber Sheets & Rolls
Premium quality silicone sheets and rolls available in various thicknesses (1-10mm), widths (1.2m), and lengths (10m). Offered in multiple colors including red, black, and translucent options.
Key Specifications
| Material | 100% virgin HTV silicone material |
|---|---|
| Grades Available | Industrial grade, food grade, medical grade, FDA grade (postcured) |
| Quality Options | High tear resistant, middle tear resistant, general tear resistant |
| Color Options | Translucent, dark red, black, milk white, grey, blue, etc. |
| Surface Finishes | Smooth/smooth, smooth/impression fabric, smooth/sand or double impression fabric |
| Reinforcement Options | 1 PLY fiberglass fabric, aramid fabric or wire mesh (SS201, SS304, SS316) |
| Tensile Strength | 7.5-12.0Mpa |
| Hardness | 10-80±5 Shore A |
| Elongation | 350%-720% |
| Density | 1.25-1.50g/cm³ |
| Tear Strength | 26-42N/mm |
| Temperature Range | -60°C to +260°C (momentary 300°C) |
Standard Sizes
- 0.1-1.0mm × 0.5m × 25/50m
- 0.5-8.0mm × 0.5-1.2m × 10/20m
- 1.0-30.0mm × 0.5/1.0/1.2/1.5m × 10/20m
- 1.0-6.0mm × 1.5-3.6m × 10/20/30m
Custom sizes available upon request. Packing options include rolls, pallets, or crates.
Special Applications
- Translucent-grey German silicone membrane for "+" and "-" press on wooden PVC vacuum press laminators
- Translucent Chinese silicone membrane for "-" press only on wooden PVC vacuum press laminators
- FDA grade silicone sheet with postcure
- Antistatic silicone sheet with fire-resistant properties (black color, smooth surface)
When requesting a quote, please specify your application requirements including color, hardness, size, and quantity.
Product Features
Our silicone sheets, membranes, and rolls are manufactured using premium silicone material on specialized vulcanizing equipment to meet exact customer requirements. Production methods vary based on product specifications:
- General silicone sheets produced on 4-roller rotocure vulcanizers
- Extra-wide silicone sheets produced on 2-roller rotocure vulcanizers
- Ultra-thin sheets produced on special oven road vulcanizers
- Extra-thick sheets produced on plain press vulcanizers
Our advanced manufacturing techniques and strict quality control ensure superior products with excellent surface smoothness and precise thickness tolerances. We offer seamless silicone sheets up to 3600mm width without joints.
Performance Characteristics
Our high-quality silicone rubber offers exceptional performance including:
- Excellent anti-aging and ozone resistance
- Superior heat resistance (-60°C to +260°C)
- High electrical insulation properties
- Outstanding oil, solvent, and corrosion resistance
- Non-toxic, odorless, and pollution-free
- Stable performance in air, water, and oil environments
- Non-sticky surface with high reliability
Applications
Ideal for various industrial applications including:
- Rubber seals and gaskets
- Wooden PVC vacuum press laminators
- Wooden door vacuum press laminators
- Safety glass vacuum laminating bags
- Solar vacuum press laminators
- Hot press laminators
- Card press laminators
