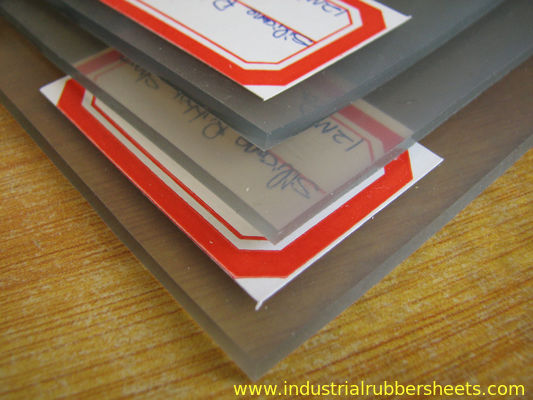

High Tear Strength Temperature Resistant Aging Resistance Silicone Rubber Sheet for Industrial Applications
| Place of Origin | China |
|---|---|
| Brand Name | 3Arubber |
| Certification | ROHS/FCC/SGS |
| Model Number | 3A1002 |
| Minimum Order Quantity | 100kgs |
| Price | USD3-15.00/kg |
| Packaging Details | packing in rolls, bags and pallets |
| Delivery Time | 10-20 working day after recieveed your payment |
| Payment Terms | T/T,L/C,Paypal,Western Union,MoneyGram,Wechat,Alipay |
| Supply Ability | 100000kgs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Surface | Smooth Or Matt | Tensible Strengh | 7-12Mpa |
|---|---|---|---|
| Hardness | 40,50,60,70,80+/-5shore A | Elongation | 700% |
| Density | 1.25g/cm3 | Thickness | 0.1-50mm |
| Width | 0.1-3.6m | Length | 1-100m |
| Production | Mold Compression | Flammability | UL94-V0 |
| Function | For Sealing | Aging Resistance | Excellent |
| Tensile Strength | 12Mpa | Usage | Widely Used |
| Rigidity | 60-80 | Lower Rubber Layer | 1.5mm,3.0mm,6.0mm |
| Proof Voltage | 15KV-50KV | Compliance | FDA, LFGB, RoHS, REACH, Custom |
| Highlight | 12Mpa Heat Resistant Rubber Sheet,Silicone Heat Resistant Rubber Sheet |
||
Product Description
Highly Versatile Silicone Rubber Sheet for Different Temperature and Pressure Conditions
High Tear Strength Silicone Rubber Sheet
Premium silicone rubber sheets engineered for demanding industrial applications across various temperature and pressure conditions.
Technical Specifications
| Material | 100% virgin HTV silicone rubber or liquid silicone |
| Grade | Industrial grade, food grade, medical grade, FDA grade postcured |
| Quality | High tear resistant, middle tear resistant |
| Color | Transparent, translucent, dark red, black, milk white, grey, blue etc. |

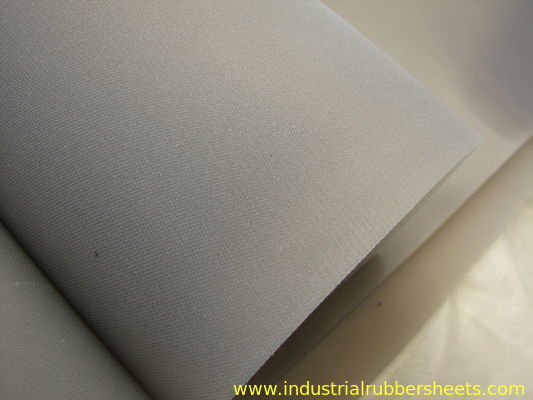

| Surface | Smooth/smooth, smooth/impression fabric, smooth/sand or double impression fabric |
| Reinforce | Insert 1 PLY fabric |
| Tensile Strength | 7-12Mpa |
| Hardness | 10, 20, 30, 40, 50, 60, 70, 80+/-5shore A |
| Elongation | 350%-720% |
| Density | 1.25g/cm³ |
| Tear Strength | 26-42N/mm |
| Working Temperature | -60°C - +260°C (moment 300°C) |
| Thickness | 0.1-50mm |
| Width | 0.1-3.6m |
| Length | 1-50m |
Physical Characteristics & Manufacturing
Manufactured using high-quality silicone rubber on drum-type vulcanizing presses or standard vulcanizing presses to meet specific customer requirements. Our advanced management, innovative techniques, and strict quality control ensure superior products. We overcome limitations of traditional vulcanizing machines, delivering seamless sheets with infinite length and widths up to 3600mm without joints.
Key Performance Features
- Excellent anti-aging properties
- Superior ozone resistance
- High heat resistance
- Excellent electrical insulation
- Oil, solvent, and corrosion resistance
- Non-toxic, odorless, and pollution-free
- High stability and reliability
- Non-sticky surface properties
Standard Sizes
Transparent, 8 Shore A:
1.2mm x 330mm x 330mm, 1.7mm x 330mm x 330mm, 2.2mm x 330mm x 330mm, 2.5mm x 330mm x 330mm, 3.0mm x 330mm x 330mm
1.2mm x 330mm x 330mm, 1.7mm x 330mm x 330mm, 2.2mm x 330mm x 330mm, 2.5mm x 330mm x 330mm, 3.0mm x 330mm x 330mm
Translucent, 10 Shore A:
3.0mm x 330mm x 330mm
3.0mm x 330mm x 330mm
Translucent, 45-75 Shore A:
0.1-2.0mm x 0.5-1.1m x 25/50/100/200m
0.5-6.0mm x 0.5-1.2m x 10/20m
1.0-30.0mm x 0.5/1.0/1.2m x 10/20m
1.0-6.0mm x 1.5-3.8m x 10/20m
0.1-2.0mm x 0.5-1.1m x 25/50/100/200m
0.5-6.0mm x 0.5-1.2m x 10/20m
1.0-30.0mm x 0.5/1.0/1.2m x 10/20m
1.0-6.0mm x 1.5-3.8m x 10/20m
Custom OEM sizes available upon agreement
Application Areas
Ideal for punching various rubber seal gaskets and specialized applications including PVC vacuum laminating presses, wooden door vacuum laminating presses, glass vacuum laminating presses, solar vacuum laminating presses, hot laminating presses, and card laminating presses.
Specialized Products
Press Applications: German silicone for "+" and "-" press on wooden PVC vacuum laminators; Chinese silicone for "-" press only on wooden PVC vacuum laminators.
Special supply of FDA grade silicone rubber sheets with postcure treatment and antistatic silicone sheets with fire-resistant properties, available in black color with smooth surface.
Important: When requesting a quote, please specify your application requirements, preferred color, hardness specifications, dimensions, and quantity.
