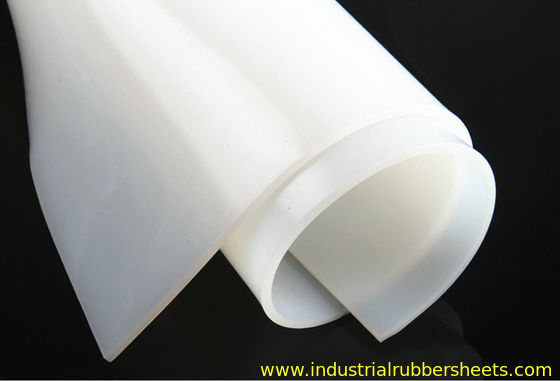

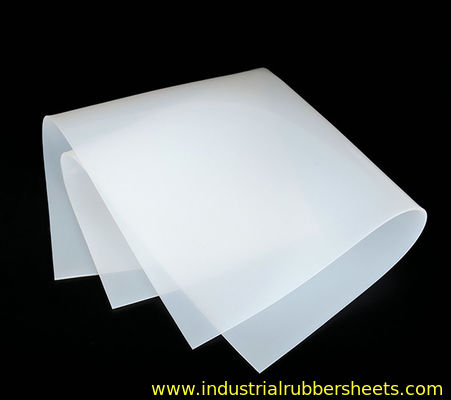

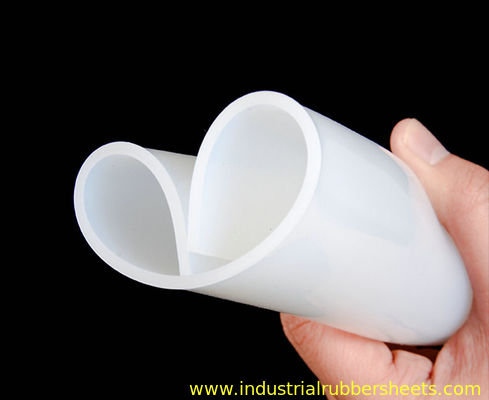

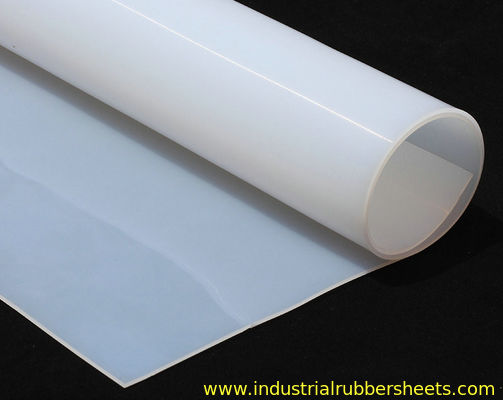

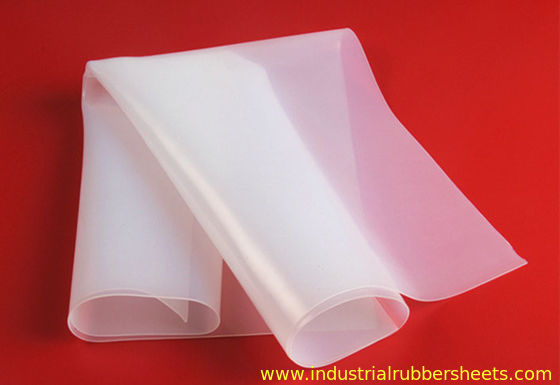

Tear Resistant Silicone Rubber Sheet with High Temperature Resistance and Custom Size Options
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ISO9001 |
| Model Number | 3A1001 |
| Minimum Order Quantity | 100kgs |
| Price | USD3-15.00/kg |
| Packaging Details | packing in rolls, bags and pallets |
| Delivery Time | 7-15days after receive the buyer's payment |
| Payment Terms | L/C,T/T,D/P,T/T,Western Union,Alipay,Paypal,Wechat |
| Supply Ability | 100000kgs/month |
Product Details
| Material | Virgin Silicone | Color | Translucent Color |
|---|---|---|---|
| Surface | Smooth | Hardness | 45-75shore A |
| Tensile Strength | 7.5Mpa | Elongation | 350% |
| Density | 1.25 G/cm³ | Thickness | 1.0-6.0mm |
| Width | 1.0, 1.2m | Length | 10m |
| Packing | In Rolls And Pallets | Working Temperature | -48~+260 C |
| Bottom | Backing Adhesive 3M | Backing Adhesive | Agreed |
| Rohs Compliant | Yes | Specific Gravity | 1.25g/cm3 |
| Temperature Resistance | -40℃-200℃ | Durability | High |
| Grade | Industrial Grade | Elongation At Break | 400% |
| Weather Resistance | Excellent | Standard Width | 0.5m,1.0m ,1.2m And 1.5m |
| Highlight | silicone gasket sheet,flexible rubber sheet |
||
Product Description
Silicone Rubber Sheet for Industrial Production
High quality 1.0-6.0mm thickness high temperature resistant transparent white silicone rubber sheet with tear resistance. Custom sizes and colors available with 1-5 years warranty.
| Name | Silicone rubber sheet |
|---|---|
| Material | Silicone |
| Size/Weight | Custom size |
| Color | Yellow, blue, green, purple, multi-color |
| Design/Logo | Silk printing, embossed, debossed |
| Feature | Non-stick, washable, waterproof, soft, smooth surface, many sizes and colors |
| Usage | Industrial production, raw material |
| MOQ | 10 square meter |
| Lead time | 5-7 working days for sample 15-30 days for mass order |
| Shipment | By air or by sea or by express |
| Package | 1 pc/opp bag, customized packing |
| Payment terms | 50% T/T in advance, balance to be paid before shipment |
Technical Specifications
Material: 100% virgin HTV silicone material
Grade: Industrial grade, food grade, medical grade, FDA grade with postcured
Quality: High tear resistant, middle tear resistant, general tear resistant
Color: Translucent, dark red, black, milk white, grey, blue etc.
Surface: Smooth/smooth, smooth/impression fabric, smooth/sand or double impression fabric
Reinforce: Insert 1 PLY fiberglass fabric, aramid fabric or wire mesh SS201, SS304, SS316
Tensile strength: 7.5-12.0Mpa
Hardness: 40, 50, 60, 70, 80+/-5 shore A
Elongation: 350%-720%
Density: 1.25-1.50g/cm³
Tear strength: 26-42N/mm
Working temperature: -60°C - +260°C (moment 300°C)
Thickness: 0.1-50mm
Width: 0.1-3.6m
Length: 1-50m
Standard Sizes
- 0.1-1.0mm * 0.5m * 25/50m
- 0.5-8.0mm * 0.5-1.2m * 10/20m
- 1.0-30.0mm * 0.5/1.0/1.2/1.5m * 10/20m
- 1.0-6.0mm * 1.5-3.6m * 10/20/30m
OEM & customized sizes are available. Packing in rolls, pallets or crate.
Special Applications
Press for Wooden Laminator: Translucent-grey Germany silicone membrane for "+" and "-" press on wooden PVC vacuum press laminator
Translucent Chinese silicone for "-" press only on wooden PVC vacuum press laminator
Special Supply: FDA grade silicone rubber sheet with postcure and antistatic silicone sheet with fire-resistant, black color, smooth surface
Important: When you enquire, please confirm the application, color, hardness, size and quantity.
