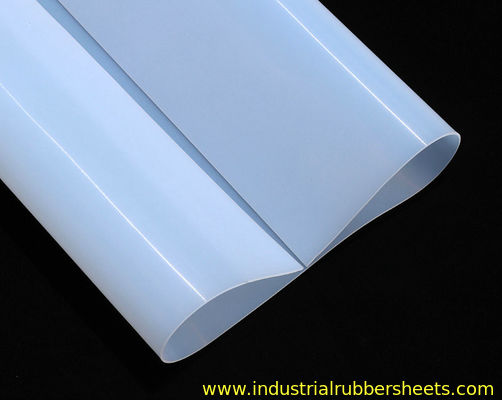

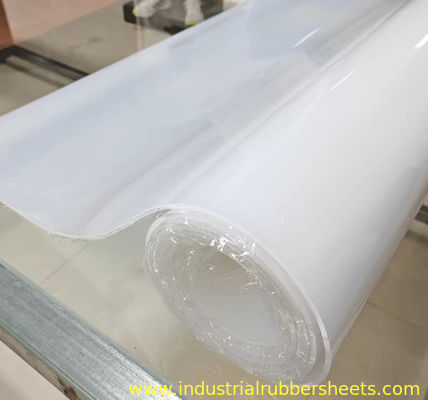

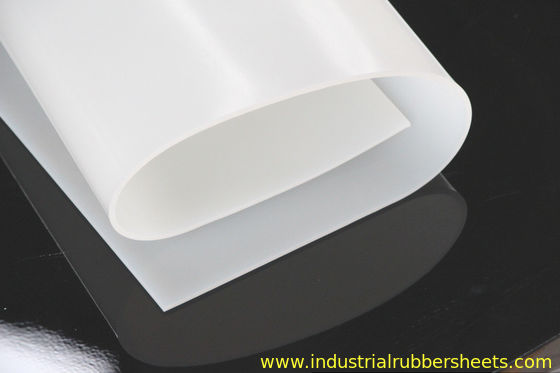

Thin Silicone Rubber Sheet with 0.1-0.8mm Thickness 60 Shore A Hardness and 7.5Mpa Tensile Strength
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ISO9001 |
| Model Number | 3A1001 |
| Minimum Order Quantity | 100kgs |
| Price | USD3.2-22.0 per kg |
| Packaging Details | packing in rolls, bags and pallets |
| Delivery Time | 7-15days after receive the buyer's payment |
| Payment Terms | L/C,T/T,D/P,T/T,Western Union,Alipay,Paypal,Wechat |
| Supply Ability | 100000kgs/month |
Product Details
| Material | Virgin Silicone | Color | Transparent/Customized |
|---|---|---|---|
| Surface | Smooth | Hardness | 60 Shore A |
| Tensile Strength | 7.5Mpa | Elongation | 350% |
| Density | 1.25g/cm3 | Thickness | 0.1-0.8mm |
| Width | 1m/1.2m/1.5m/2m/Customized | Length | 25-50m |
| Packing | In Rolls And Pallets | Uniform Heating | Maximum 220 Degree C |
| Function | For Sealing | Usage | Silicone Pad |
| Elogation | ＞300% | Adhesive Backing | Yes, Custom |
| Logo | Custom Logo | Keyword | 3 Mm Thick Silicone Rubber Sheet |
| Durability | High | Grade | Industrial Grade |
| Bottom | Adhesive 3M Glue | Working Press | 10kgs |
| Tensible Strengh | 7-12Mpa | Temperature | -40℃ - 220℃ |
| Highlight | silicone gasket sheet,flexible rubber sheet |
||
Product Description
Thin Silicone Sheet Silicone Rubber Sheet 100% Virgin Material Smooth/Smooth Smooth/Sand Surface
Product Overview
Available in thicknesses: 0.1mm, 0.2mm, 0.3mm, 0.4mm, 0.5mm, 0.8mm. Thin silicone sheet, silicone rubber sheet, silicon sheet.
| Material | 100% Virgin Silicone Rubber Material |
|---|---|
| Color | Translucent, Red, Black Color |
| Thickness | 0.1mm, 0.2mm, 0.3mm, 0.4mm, 0.5mm, 0.6mm, 0.8mm |
| Surface | Smooth/Smooth, Smooth/Sand |
| Tensile Strength | 7.5Mpa |
| Hardness | 60 Shore A |
| Elongation | 300%~350% |
| Density | 1.20+/-0.05g/cm3 |
| Break Down Voltage | 4.5Kv |
| Flammability | Can be V-0 grade |
Technical Specifications
- Material: 100% virgin HTV silicone material
- Grade: Industrial grade, food grade, medical grade, FDA grade with postcured
- Quality: High tear resistant, middle tear resistant, general tear resistant
- Color: Translucent, dark red, black, milk white, grey, blue etc.
- Surface: Smooth/smooth, smooth/impression fabric, smooth/sand or double impression fabric
- Reinforce: Insert 1 PLY fiberglass fabric, aramid fabric or wire mesh SS201, SS304, SS316
- Tensile Strength: 7.5-12.0Mpa
- Hardness: 40, 50, 60, 70, 80+/-5shore A
- Elongation: 350%-720%
- Density: 1.25-1.50g/cm3
- Tear Strength: 26-42N/mm
- Working Temperature: -60°C - +260°C (moment 300°C)
- Thickness: 0.1-50mm
- Width: 0.1-3.6m
- Length: 1-50m
Standard Sizes
- 0.1-1.0mm x 0.5m x 25/50m
- 0.5-8.0mm x 0.5-1.2m x 10/20m
- 1.0-30.0mm x 0.5/1.0/1.2/1.5m x 10/20m
- 1.0-6.0mm x 1.5-3.6m x 10/20/30m
OEM & customized sizes are available upon agreement. Packing in rolls, pallets or crates.
Special Applications
Press for Wooden Laminator: Translucent-grey Germany silicone membrane for "+" and "-" press on wooden PVC vacuum press laminator. Translucent Chinese silicone for "-" press only on wooden PVC vacuum press laminator.
Special supply FDA grade silicone rubber sheet with postcure and antistatic silicone sheet with fire-resistant, black color, smooth surface.
When you enquire, please confirm the application, color, hardness, size and quantity
