Multi Color High Impact Resistant Polyurethane Coupling Spider with 92-98 Shore A Hardness for GR/GS Type Jaw Couplings
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ISO9001 |
| Model Number | GR, GS |
| Minimum Order Quantity | 10pieces |
| Price | FCA Sanhe China USD2.00/piece |
| Packaging Details | packing in cratons |
| Delivery Time | 7-15days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 1000000pieces/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Red, Yellow, Green | Material | TPU |
|---|---|---|---|
| Hardness | 92, 95, 98shore A | Type | GR, GS |
| Structure | Jaw / Spider | Flexible Or Rigid | Flexible |
| Standard Or Nonstandard | Standard | Product Name | GR90 Spider For TS-B Rotex Jaw Coupling |
| Size | Standard Sizes | Service | OEM Or ODM |
| Highlight | pu coupling,rubber coupling |
||
Product Description

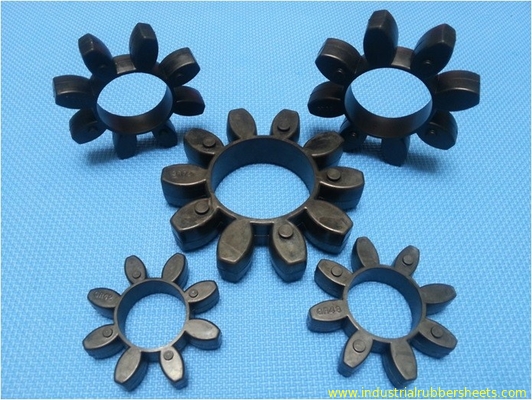

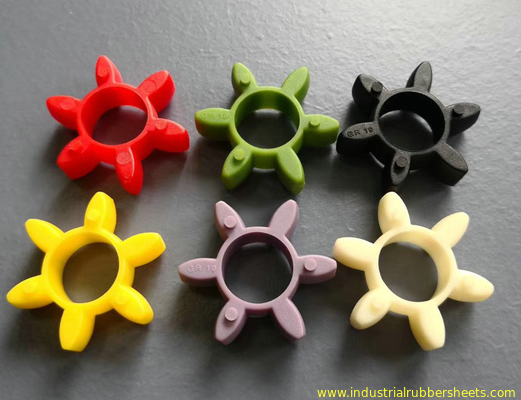

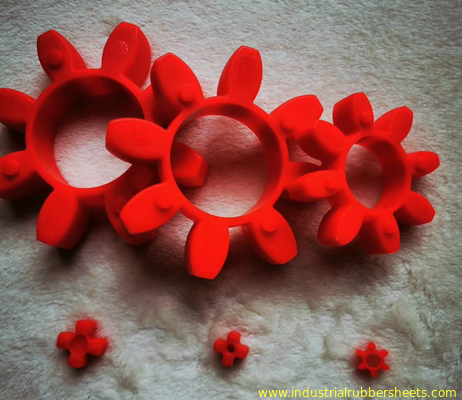

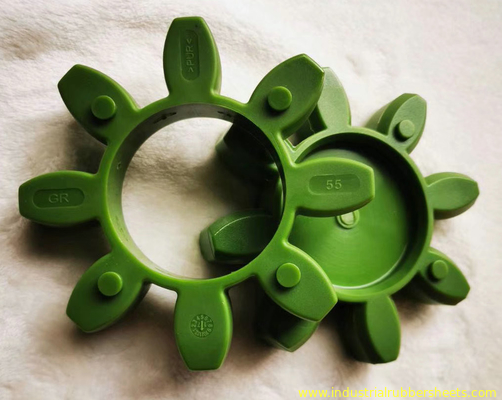

GR GS Polyurethane Coupling Spider - Multi Color High Impact Resistant
Product Description
Polyurethane Coupling Spider, also known as PU Coupling Spider, GR Coupling Spider, or GS Coupling Spider, is manufactured from high-performance polyurethane elastomer - a synthetic material combining the strength of plastic with the elasticity of rubber.
Key Features
- Wide hardness range (Shore A10-D80) with excellent elasticity
- Exceptional tensile strength and load-bearing capacity
- Superior wear resistance (3-5 times better than standard rubber)
- Excellent oil and chemical resistance
- Outstanding vibration absorption and damping properties
- Good low temperature performance and radiation resistance
- High impact resistance and fatigue resilience
- Water resistant with excellent machining properties
Technical Specifications
| Material | TPU, CSM/SBR, NBR, Nylon |
|---|---|
| Color Options | Yellow, Red, Purple, Green, Black, Beige |
| Surface Finish | Smooth |
| Tensile Strength | 8-55 MPa |
| Hardness | 70-98 Shore A |
| Elongation | 400%-650% |
| Density | 1.25 g/cm³ |
| Working Temperature | Up to 120°C |
Standard Sizes
Available in comprehensive standard sizes for various coupling types:
Polyurethane Couplings
- GR Series: GR14, GR19, GR24, GR28, GR38, GR42, GR48, GR55, GR65, GR75, GR90, GR100, GR110, GR125, GR140, GR160, GR180
- GS Series: GS5, GS7, GS9, GS12, GS14, GS19, GS24, GS28, GS38, GS42, GS48, GS550, GS65, GS75
- MT Series: MT1-MT13
- ML Series: ML1-ML13
- MH Series: MH45, MH55, MH65, MH80, MH90, MH115, MH130, MH145, MH175, MH200
- HRC Series: HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
Rubber Couplings
- Hb Series: Hb80, Hb95, Hb110, Hb125, Hb140, Hb160, Hb180, Hb200, Hb240, Hb280, Hb315
- NM Series: NM50, NM67, NM82, NM97, NM112, NM128, NM148, NM168, NM194, NM214, NM240, NM265
- FCL Series: FCL1#-FCL8#, FCL90-FCL630
- Gear Series: 3J-14J
Nylon Couplings
- NL Series: NL1-NL10
- M Series: M28, M32, M38, M42, M48, M58, M65
Packaging & Customization
Available in bags, cartons, pallets or crates. We accept OEM orders and provide customized sizes upon agreement. Special steel couplings available for FCL, NM, MH, HRC, Love Joy, Joongang, Centafelx, XL-GR, and Tyre applications.
Please specify type, size number, and quantity when making inquiries.
