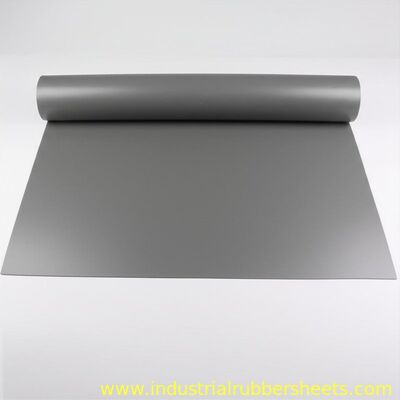

Super-Wide 3600mm Width Food Grade Silicone Rubber Sheet Heat Resistant up to 260°C

  • Super-Wide 3600mm Width Food Grade Silicone Rubber Sheet Heat Resistant up to 260°C
  • Super-Wide 3600mm Width Food Grade Silicone Rubber Sheet Heat Resistant up to 260°C
  • Super-Wide 3600mm Width Food Grade Silicone Rubber Sheet Heat Resistant up to 260°C
  • Super-Wide 3600mm Width Food Grade Silicone Rubber Sheet Heat Resistant up to 260°C
  • Super-Wide 3600mm Width Food Grade Silicone Rubber Sheet Heat Resistant up to 260°C
  • Super-Wide 3600mm Width Food Grade Silicone Rubber Sheet Heat Resistant up to 260°C
Place of Origin China
Brand Name 3Arubber
Certification ROHS/FCC/SGS
Model Number 3A1002
Minimum Order Quantity 100kgs
Price negotation
Packaging Details packed in rolls and pallets
Delivery Time 10-20 working day after recieveed your payment
Payment Terms T/T,L/C,Paypal,Western Union,D/P,MoneyGram
Supply Ability 100000kgs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Flexible, Non-toxic, Odorless Surface Smooth/smooth,
Tensible Strengh 7-12Mpa Hardness 40,50,60,70,80+/-5shore A
Elongation 350%-720% Density .25+/-0.05g/cm3 (1.5g/cm3 For Fire-Resis
Thickness 0.1-50mm Width 0.1-3.6m
Length 1-100m Warranty Limited, Lifetime
Tensile Strength 7-12 MPa Working Temperaturing -60℃-+260℃
Material Silicone Rubber Tensible Strength 7-12Mpa
Uniform Heating Maximum 220℃ Resistance To Chemicals, Oils, And UV
Rohs Compliant Yes Durability High
Grade Food Grade Heat Resistant 180℃
Tensilestrength 12Mpa
Highlight

silicone gasket sheet

,

flexible rubber sheet
Leave a Message
Product Description

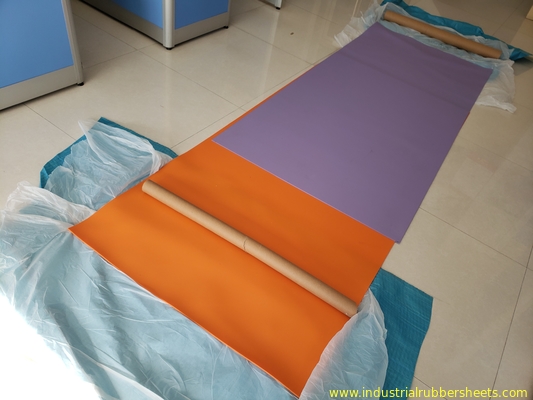

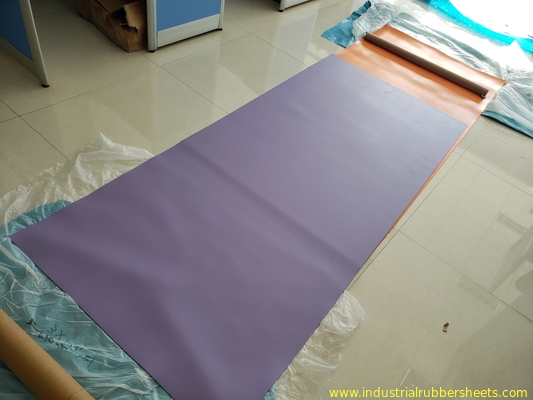

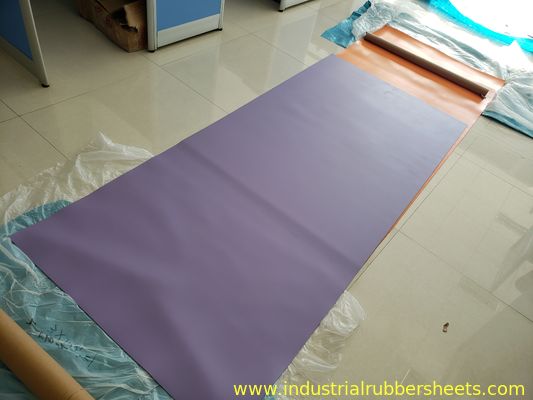

Super-Wide Silicone Rubber Sheet with Maximum 3600mm Width Without Joint
Premium silicone sheets manufactured using 100% virgin silicone material, completely odor-free and available in multiple colors and grades.
Product Overview
Our high-quality silicone rubber sheets are produced using advanced drum-type vulcanizing press technology, eliminating common manufacturing limitations. We've successfully resolved issues with surface smoothness, thickness tolerance, and restricted dimensions that plague traditional manufacturing methods. The result is superior silicone sheeting available in widths up to 3600mm without any visible joints and with virtually unlimited length capabilities.
Key Features & Benefits
  • Manufactured using 100% virgin HTV silicone rubber or liquid silicone
  • Available in industrial, food, medical, and FDA grade postcured options
  • Exceptional performance: anti-aging, ozone resistance, heat resistance
  • Excellent electrical insulation properties
  • Resistant to oil, solvents, and corrosion
  • Non-toxic, odorless, and pollution-free
  • Operating temperature range: -60°C to +260°C (momentary maximum 300°C)
  • High stability and reliability with non-sticky surface properties
  • Suitable for use in air, water, oil, and other media
Technical Specifications
Property Specification
Material 100% virgin HTV silicone rubber or liquid silicone
Quality Grades High tear resistant, middle tear resistant
Available Colors Transparent, translucent, dark red, black, milk white, grey, blue, and more
Surface Options Smooth/smooth, smooth/impression fabric, smooth/sand, or double impression fabric
Reinforcement Insert 1 PLY fabric available
Tensile Strength 7-12 Mpa
Hardness 10, 20, 30, 40, 50, 60, 70, 80 ±5 shore A
Elongation 350%-720%
Density 1.25-1.50 g/cm³
Tear Strength 26-42 N/mm
Working Temperature -60°C to +260°C (momentary 300°C)
Thickness Range 0.1-50 mm
Width Range 0.1-3.6 m
Length Range 1-50 m
Standard Sizes
Transparent, 8 shore A: 1.2mm x 330mm x 330mm, 1.7mm x 330mm x 330mm, 2.2mm x 330mm x 330mm, 2.5mm x 330mm x 330mm, 3.0mm x 330mm x 330mm

Translucent, 10 shore A: 3.0mm x 330mm x 330mm

Translucent, 45-75 shore A: Various dimensions from 0.1-2.0mm x 0.5-1.1m x 25/50/100/200m to 1.0-6.0mm x 1.5-3.8m x 10/20m

Custom OEM sizes available upon agreement
Application Information
Press Compatibility: German silicone for "+" and "-" press on wooden PVC vacuum laminators; Chinese silicone for "-" press only on wooden PVC vacuum laminators.

Special Applications: Ideal for punching various rubber seal gaskets and specialized uses including PVC vacuum laminating press, wooden door vacuum laminating press, glass vacuum laminating press, solar vacuum laminating press, hot laminating press, and card laminating press applications.

Specialty Products: FDA grade silicone rubber sheets with postcure treatment and antistatic silicone sheets with fire-resistant properties (black color, smooth surface).
Super-Wide 3600mm Width Food Grade Silicone Rubber Sheet Heat Resistant up to 260°C 0 Super-Wide 3600mm Width Food Grade Silicone Rubber Sheet Heat Resistant up to 260°C 1 Super-Wide 3600mm Width Food Grade Silicone Rubber Sheet Heat Resistant up to 260°C 2
Important: When requesting a quotation, please specify your application requirements, preferred color, hardness specifications, dimensions, and quantity needed.
