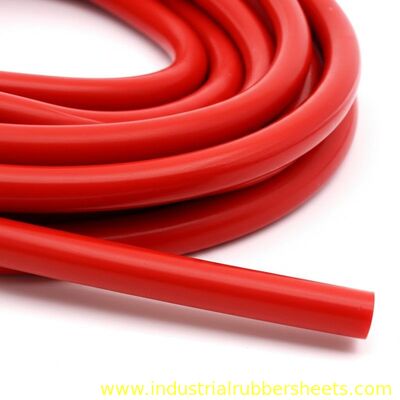

100% Virgin Silicone Tube Extrusion High Temperature Resistant Polyester Braid Reinforced Hose for Corona Roller
| Place of Origin | China |
|---|---|
| Brand Name | 3Arubber |
| Certification | RoHS/FCC/SGS |
| Model Number | 3A1003 |
| Minimum Order Quantity | 20kgs |
| Price | negotation |
| Packaging Details | packing in rolls, cartons and pallets |
| Delivery Time | 10-20 working days after recieved your payment |
| Payment Terms | L/C,T/T,Western Union,Paypal,D/P |
| Supply Ability | 100000kgs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Flexible, Non-toxic, Odorless | Application | For Car |
|---|---|---|---|
| Reinforced | Insert 1-4PLY Fabric | Material | Silicone+PLY+silicone |
| Color | Red,blue,black | Hardness | Shore A 40-80 |
| Working Press | 0.3-0.9Mpa | Wall Thickness | 2-5mm |

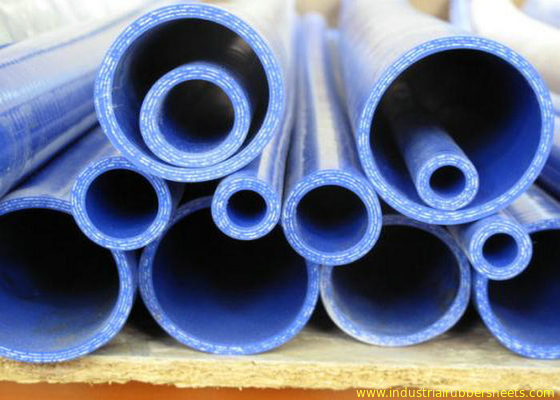

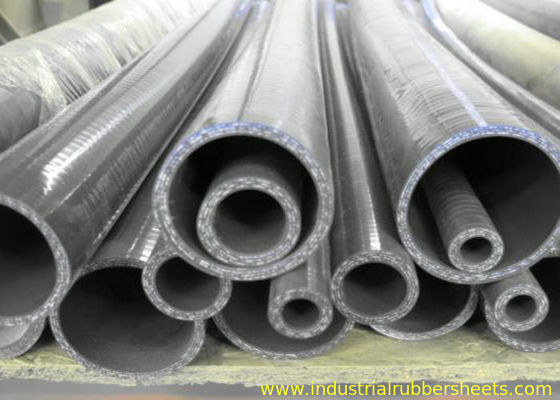

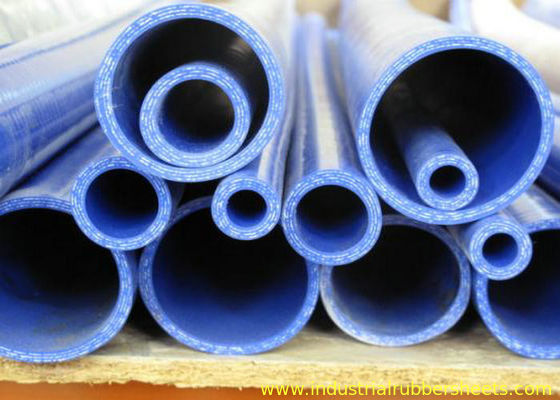

| Reinforce | Polyester Braid Reinforced | Resistant | 18-25KV/mm |
| Density | 1.25g/cm³ | Customization | Size, Color, Printing |
| Cured | Platinum Cured | Rohs Compliant | Yes |
| App | For Industrial Roller | Outer Diameter | 3mm-55mm |
| Elongation | 400%-600% | Flexibility | Flexible |
| Tensile Strength | 8-12Mpa | Resistance | High Temperature, UV, Ozone, Chemicals |
| Highlight | flexible silicone tubing,high temperature silicone rubber tubing |
||
Product Description

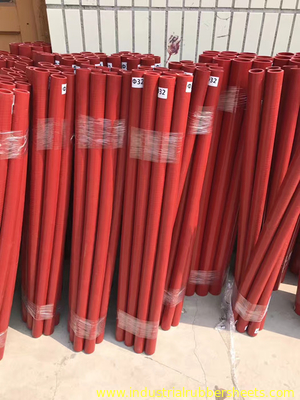

100% Virgin Red Silicone Tube Extrusion For Corona Roller Or Transfer Water Air Oil
High-quality 100% virgin silicone hose and tubing specifically designed for corona roller applications and transfer of water, air, oil, and other media. Manufactured using premium silicone rubber with exceptional durability and performance characteristics.
Physical Characteristics
Extruded using specialized machinery to produce precise inside and outside diameters according to customer specifications. Features high tensile strength, excellent flexibility, strong anti-pull properties, and a wide range of hardness options. Exceptional resistance to aging, ozone, heat, and various media including fuel oil and lubricants. Suitable for operation in air, water, or oil environments at temperatures ranging from -60°C to +250°C.
Technical Specifications
| Material | 100% virgin silicone rubber |
| Quality Grades | Industrial grade, food grade, medical grade |

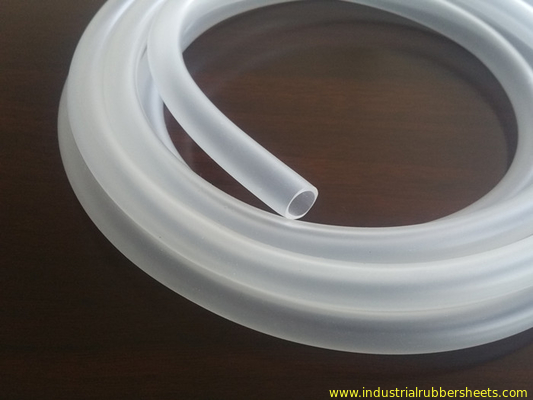

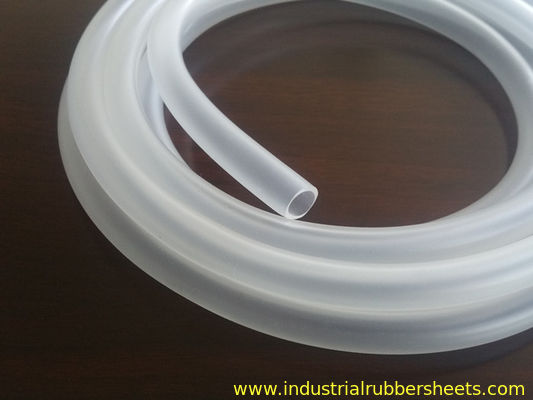

| Available Colors | Transparent, translucent, dark red, black, milk white, blue, grey |
| Surface Finish | Smooth/smooth |
| Tensile Strength | 8 MPa |
| Hardness Options | 40, 50, 60, 70 ±5 Shore A |
| Elongation | 380% |
| Density | 1.25 g/cm³ |
| Tear Strength | 26 N/mm |
| Working Temperature | -60°C to +250°C |
Standard Sizes
Ø 2mm × Ø 4mm, Ø 3mm × Ø 5mm, Ø 4mm × Ø 6mm, Ø 5mm × Ø 8mm,
Ø 6mm × Ø 9mm, Ø 7mm × Ø 10mm, Ø 8mm × Ø 12mm, Ø 9mm × Ø 12mm,
Ø 10mm × Ø 14mm, Ø 12mm × Ø 16mm, and other custom sizes available
Ø 6mm × Ø 9mm, Ø 7mm × Ø 10mm, Ø 8mm × Ø 12mm, Ø 9mm × Ø 12mm,
Ø 10mm × Ø 14mm, Ø 12mm × Ø 16mm, and other custom sizes available
