High Stability T Type PU Coupling with 80-98 Shore A Hardness and 650% Elongation for Industrial Shafts

  • High Stability T Type PU Coupling with 80-98 Shore A Hardness and 650% Elongation for Industrial Shafts
  • High Stability T Type PU Coupling with 80-98 Shore A Hardness and 650% Elongation for Industrial Shafts
  • High Stability T Type PU Coupling with 80-98 Shore A Hardness and 650% Elongation for Industrial Shafts
  • High Stability T Type PU Coupling with 80-98 Shore A Hardness and 650% Elongation for Industrial Shafts
  • High Stability T Type PU Coupling with 80-98 Shore A Hardness and 650% Elongation for Industrial Shafts
  • High Stability T Type PU Coupling with 80-98 Shore A Hardness and 650% Elongation for Industrial Shafts
Place of Origin China
Brand Name 3Arubber
Certification ROHS/FCC/SGS
Model Number 3A2006
Minimum Order Quantity 100pieces
Price neogation
Packaging Details Packed in cartons
Delivery Time 10 working days after recieved your payment
Payment Terms L/C,T/T,Western Union,Paypal
Supply Ability 10000kgs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type T Type Color Yellow,red,purple,black
Surface Smooth Tensile Strength 12-50Mpa
Hardness 80-98shore A Elongation 650%
Density 1.25g/cm³ Size Standard Size
Highlight

pu coupling

,

rubber coupling
Leave a Message
Product Description
High Stability PU Coupling For Industrial Metal Shaft Applications
Premium polyurethane and rubber couplings designed for high stability and reliable performance in various industrial metal shaft applications.
Available Standard Sizes
Polyurethane Couplings
  • GR Series: GR14, GR19, GR24, GR28, GR38, GR42, GR48, GR55, GR65, GR75, GR90, GR100, GR110, GR125, GR140, GR160, GR180
  • MT Series: MT1, MT2, MT3, MT4, MT5, MT6, MT7, MT8, MT9, MT10, MT11, MT12, MT13
  • HRC Series: HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
  • L Series: L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225, L276
  • FALK-R Series: 10R, 20R, 30R, 40R, 50R, 60R, 70R, 80R
Rubber Couplings
  • Hb Series: Hb80, Hb95, Hb110, Hb125, Hb140, Hb160, Hb180, Hb200, Hb240, Hb280, Hb315
  • HRC Series: HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
  • L Series: L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225
  • NM Series: NM50, NM67, NM82, NM97, NM112, NM128, NM148, NM168, NM194, NM214, NM240, NM265
  • Gear Series: 3J, 4J, 5J, 6J, 7J, 8J, 9J, 10J, 11J
Custom sizes available according to buyer's specifications and drawings.
Important: When submitting an inquiry, please confirm the product number and required quantity.
Material Specifications
Material: NBR, CSM/SBR or TPU Color: Black, Yellow
Hardness: 80-90 shore A Size Range: T40-210
Working Temperature: -20°C to +100°C
Product Features
  • T type rubber coupling, T type polyurethane coupling, T type PU coupling
  • Premium materials: polyurethane and rubber
  • Excellent stability and performance
  • Easy to maintain and install
  • ISO9001-2000 certified manufacturing
Coupling Types
  • Jaw coupling / SBT coupling
  • Flange cast iron with rubber insert
  • Taper bore universal series
  • Keyway dimensions conform to DIN6885 and GB1095-1979 standards
T Series Coupling Specifications & Pricing
Item No. OD (mm) ID (mm) Thickness (mm) USD/Piece (PU) USD/Piece (Rubber)
T40US$0.18
T45452010US$0.18
T5050US$0.18
T55552610US$0.18
T60602611US$0.21
T65653015US$0.21
T70703216US$0.21
T75753617US$0.28US$0.14
T80803618US$0.28US$0.16
T85854118US$0.30US$0.18
T90904118US$0.39US$0.21
T95954518US$0.39US$0.23
T1001005422US$0.49US$0.26
T1051055422US$0.53US$0.28
T1081085222US$0.62US$0.28
T1101105522US$0.71US$0.30
T1151155523US$0.85US$0.34
T1201205524US$0.88US$0.35
T1251256025US$0.97US$0.44
T1301306025US$1.04US$0.49
T1351356025US$1.15US$0.53
T1401407026US$1.18US$0.62
T1451457227US$1.24US$0.71
T1501507627US$1.34US$1.06
T1541547826US$1.76US$1.24
T1701708028US$5.29US$1.59
T18518511340US$5.65
T19019000US$6.18
T21021010036US$7.06US$3.18

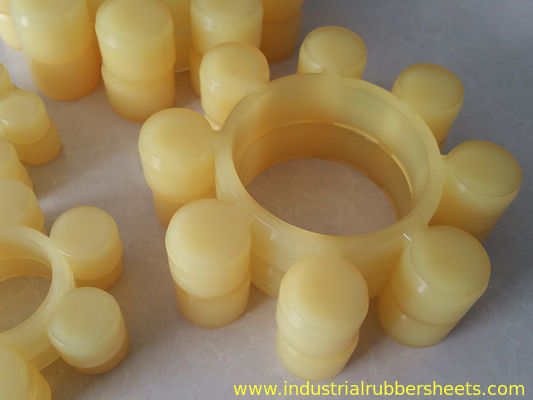

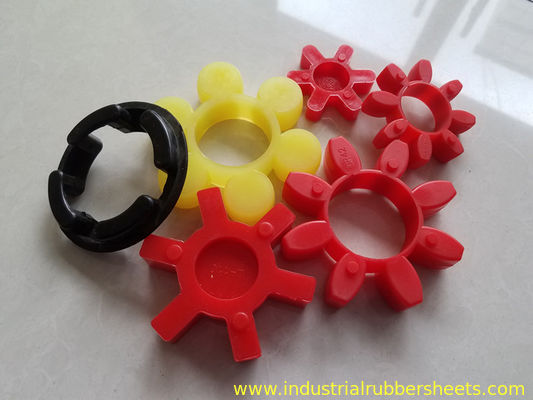

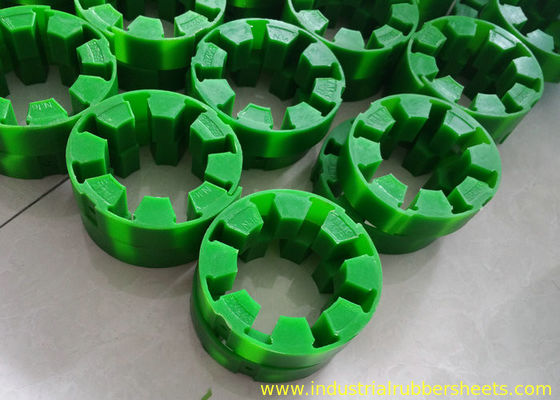

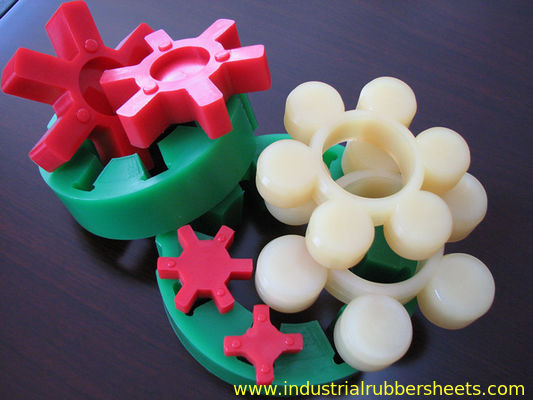

Product Images
High Stability T Type PU Coupling with 80-98 Shore A Hardness and 650% Elongation for Industrial Shafts 0 High Stability T Type PU Coupling with 80-98 Shore A Hardness and 650% Elongation for Industrial Shafts 1 High Stability T Type PU Coupling with 80-98 Shore A Hardness and 650% Elongation for Industrial Shafts 2 High Stability T Type PU Coupling with 80-98 Shore A Hardness and 650% Elongation for Industrial Shafts 3
