High Tear Resistant Silicone Tube and Sleeve for Corona Roller with 18-25KV/mm Resistance

  • High Tear Resistant Silicone Tube and Sleeve for Corona Roller with 18-25KV/mm Resistance
  • High Tear Resistant Silicone Tube and Sleeve for Corona Roller with 18-25KV/mm Resistance
  • High Tear Resistant Silicone Tube and Sleeve for Corona Roller with 18-25KV/mm Resistance
  • High Tear Resistant Silicone Tube and Sleeve for Corona Roller with 18-25KV/mm Resistance
  • High Tear Resistant Silicone Tube and Sleeve for Corona Roller with 18-25KV/mm Resistance
  • High Tear Resistant Silicone Tube and Sleeve for Corona Roller with 18-25KV/mm Resistance
  • High Tear Resistant Silicone Tube and Sleeve for Corona Roller with 18-25KV/mm Resistance
Place of Origin China
Brand Name 3Arubber
Certification RoHS/FCC/SGS
Model Number 3A1003
Minimum Order Quantity 20KGS
Price USD3-15.00/kg
Packaging Details packed in rolls and pallets
Delivery Time 10-20 Working days after recieved your payment
Payment Terms L/C,T/T,Western Union,Paypal,D/P,MoneyGram
Supply Ability 100000kgs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Flexible, Non-toxic, Odorless Application For Corona Roller
Quality Industrial Grade Material High Tear Resistant Silicone Rubber
Hardness 60-70 Shore A Elongation 500-700%
Density 1.25g/cm³ Working Temperature -60℃-+260℃
Resistant 18-25KV/mm Wall Thickness 3-4mm
Tolerance ±0.1mm Shape Tube
Outside Diameter 6-42mm Oem Odm Available
Keyword Silicone Hose Certifications FDA, RoHS
Compression Set 20-40% Chemical Resistance Excellent
Insert Polyester Size As Per The Buyer's Sample Or Drawing
Process Extrusion Resistance High Temperature, UV, Ozone, Chemicals
Rohs Compliance Yes
Highlight

flexible silicone tubing

,

high temperature silicone rubber tubing
Leave a Message
Product Description

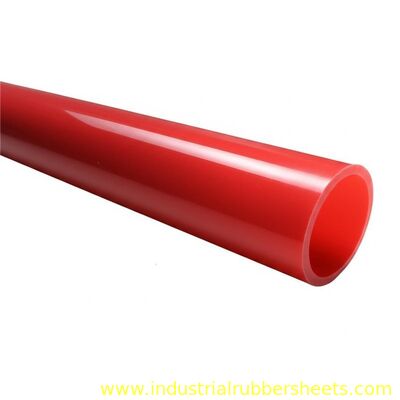

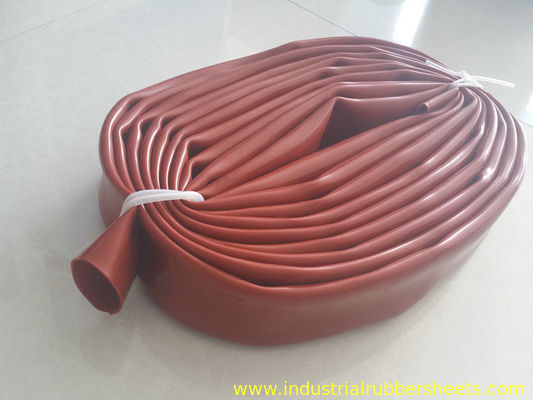

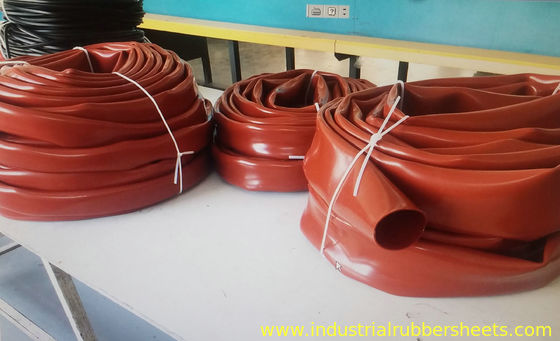

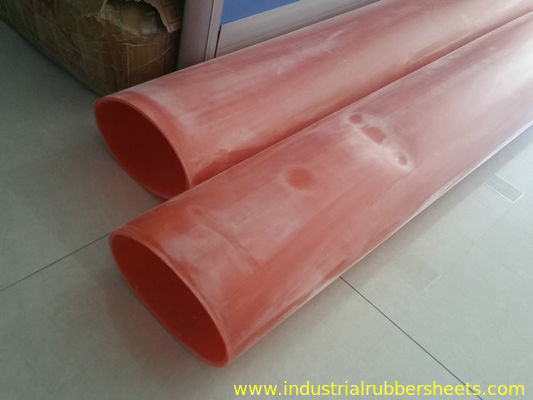

Red Translucent Silicone Sleeve Silicone Tube Extrusion For Corona Roller Maximum 2m Length
High-quality red silicone sleeve, tube, and pipe specifically engineered for corona roller applications with maximum 2-meter length capability.
Manufactured from premium silicone rubber material engineered to withstand high voltage conditions while providing flame-retardant properties. These sleeves ensure uniform high-voltage corona spark distribution, facilitating optimal surface activation and microporous treatment for enhanced color printing on plastic films. Rated to resist 25KV at 1mm wall thickness. Ideal for roller sleeves, high-voltage terminals, protective sleeves, and flexible tubing across various corona machine applications.
Technical Specifications
Material 100% virgin silicone from Germany
Color Orange, dark red, black, etc.
Tensile Strength 8-12 MPa
Hardness 60-70 Shore A
Elongation 400%-720%
Density 1.25 g/cm³
Working Temperature -60°C to +250°C
Voltage Resistance 18-25 KV/mm
Wall Thickness 3.0, 4.0 mm
Standard Sizes
  • Ø32mm x Ø38mm x 2m
  • Ø32mm x Ø40mm x 2m
  • Ø34mm x Ø42mm x 2m
  • Ø46mm x Ø54mm x 2m
  • Ø50mm x Ø58mm x 2m
  • Ø55mm x Ø62mm x 2m
  • Ø60mm x Ø66mm x 2m
  • Ø60mm x Ø68mm x 2m
  • Ø63mm x Ø71mm x 2m
  • Ø67mm x Ø75mm x 2m
  • Ø75mm x Ø83mm x 2m
  • Ø80mm x Ø88mm x 2m
  • Ø90mm x Ø98mm x 2m
  • Ø98mm x Ø102mm x 2m
  • Ø106mm x Ø114mm x 2m
  • Ø140mm x Ø150mm x 2m
  • Ø145mm x Ø153mm x 2m
  • Ø162mm x Ø172mm x 2m
Custom OEM sizes available upon agreement. When requesting a quote, please specify color, quality requirements, hardness specifications, dimensions, and quantity.
High Tear Resistant Silicone Tube and Sleeve for Corona Roller with 18-25KV/mm Resistance 0 High Tear Resistant Silicone Tube and Sleeve for Corona Roller with 18-25KV/mm Resistance 1
