Industrial Grade 100% Virgin Silicone Foam Rubber Sheet with 3M Adhesive Backing and UL94V-0 Flame Resistance
| Place of Origin | China |
|---|---|
| Brand Name | 3Arubber |
| Certification | RoHS/FCC/SGS |
| Model Number | 3A1002 |
| Minimum Order Quantity | 100kgs |
| Price | neogation |
| Packaging Details | packed in rolls and pallets |
| Delivery Time | 10-20 working days after recieved your payment |
| Payment Terms | L/C,T/T,Western Union,Paypal,D/P,MoneyGram |
| Supply Ability | 100000kgs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Top | Impression Fabric | Bottom | Adhesive 3M Glue |
|---|---|---|---|
| Cell | Close Cell | Material | Silicone Sponge |
| Hardness | 10-30 Shore A | Tensile Strength | 200psi |
| Elongation | 100% | Density | 0.5-1.0g/cm³ |
| Thickness | 1-10mm | Width | 0.1-1.0m |
| Length | 50 Or 100m | Chemical Resistance | Excellent |
| Thickness Range | 1.5-50mm | Flameresistance | UL94V-0 |
| Surface Finish | Smooth Or Textured | Weather Resistance | Excellent |
| Belt Width | 500-1200mm | Upper Rubber Layer | 3.0mm,4.5mm,6.0mm |
| Lead Time | 7-15 Days | Size | Customizd |
| Usage | Silicone Pad | Uv Resistance | Good |
| Weight | 235g | ||
| Highlight | silicone gasket sheet,flexible rubber sheet |
||
Product Description

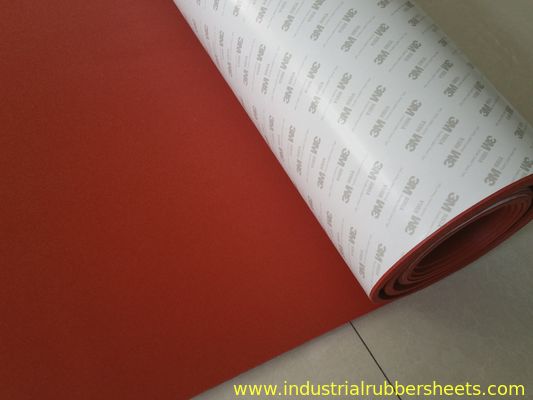

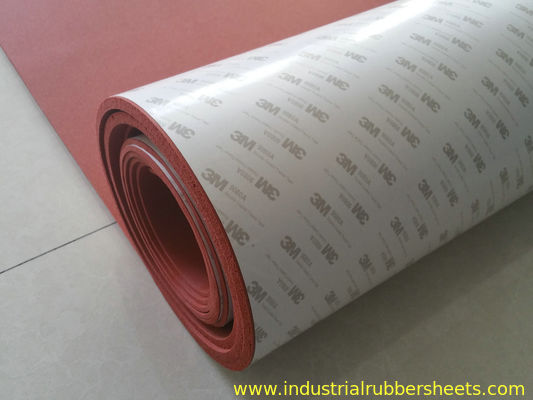

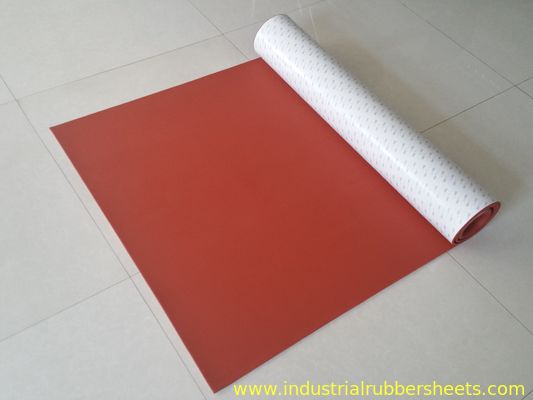

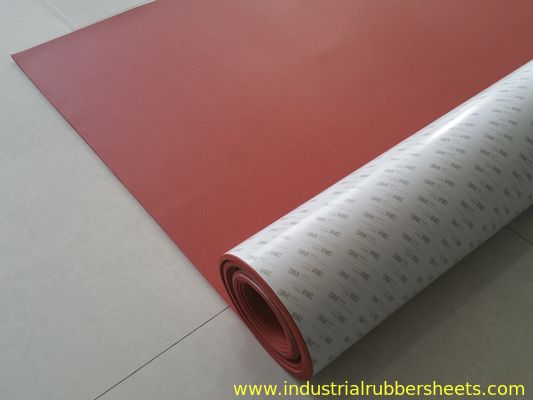

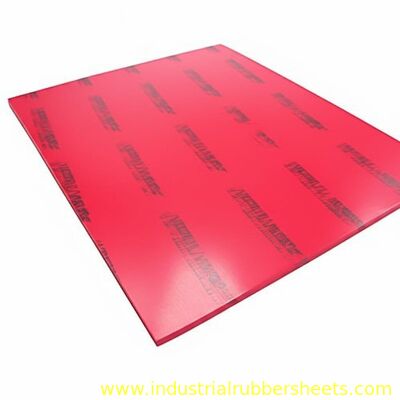

Industrial Grade 100% Virgin Silicone Foam Rubber Sheet with Backing Adhesive 3M Red
Premium 100% virgin silicone foam rubber sheets with 3M backing adhesive, available in red and blue colors for industrial applications. Our specialized manufacturing process ensures superior quality and performance across diverse industrial sectors.
Applications & Industries
Our silicone foam seals are extensively used in windows and doors, automotive, marine, shockproof products, hardware, electronics, sanitary systems, industrial equipment, household items, and agricultural applications.
Key Product Features
- Manufactured from premium grade silicone material
- Custom sizing and color options available
- Exceptional longevity and durability
- Superior high temperature resistance
- Resistant to chemicals, freezing conditions, and penetration
- Glossy surface finish with excellent elasticity
- Uniform foam structure with aging resistance
- Fire-retardant, noise isolation, and moisture proof properties
- Internal damping, anti-stress, and heat preservation capabilities
Closed Cell Silicone Sponge Sheet Specifications
| Cell Type | Closed Cell |
| Material | Virgin Silicone Sponge |
| Available Colors | Dark Red, White, Grey, Black, Beige, Brown, Blue |
| Surface Finish | Double Impression Fabric |
| Tensile Strength | 100-200 PSI |
| Hardness | 10, 15, 20, 25, 30, 35, 40+/-5 Shore A |
| Elongation | 100% |
| Density | 0.5-1.0 g/cm³ |
| Working Temperature | -60°C to +220°C (momentary 260°C) |
| Thickness Range | 1.5-50 mm |
| Width Range | 0.1-1.5 m (maximum 1.5 m for thickness >5 mm) |
| Length Range | 0.1-10 m |
Standard Sizes - Closed Cell
- 1-50 mm × 1.0 m × 10 m
- 1-50 mm × 1.2 m × 10 m
- 5-50 mm × 1.5 m × 10 m
- Perforated silicone sponge sheet: 10 mm × 0.9 m × 1.8 m
Open Cell Silicone Sponge Sheet Specifications
| Cell Type | Open Cell |
| Material | Virgin Silicone Sponge |
| Available Colors | Blue, Red, Yellow |
| Surface Finish | Natural Surface |
| Tensile Strength | 100 PSI |
| Hardness | 15, 20, 25, 30, 35, 40, 45+/-5 Shore A |
| Elongation | 100% |
| Density | 0.15-0.45 g/cm³ |
| Working Temperature | -60°C to +220°C (momentary 260°C) |
| Thickness Options | 6, 8, 10, 15 mm |
| Width Options | 1.0, 1.5 m |
| Length Range | 5-10 m |
Standard Sizes - Open Cell
- 6 mm × 1.0 m × 10 m
- 6 mm × 1.5 m × 10 m
- 8 mm × 1.0 m × 10 m
- 8 mm × 1.5 m × 10 m
- 10 mm × 1.0 m × 10 m
- 10 mm × 1.5 m × 10 m
- 15 mm × 1.0 m × 10 m
- 15 mm × 1.5 m × 10 m
Customization Options: OEM sizes available upon agreement. Backing adhesive options include Chinese general glue or USA 3M glue. When requesting a quote, please specify color, hardness, surface finish, dimensions, and quantity requirements.
