Galvanized Metal Rubber Shock Mounts with Tensile Strength 8-12Mpa and Hardness 40-60 Shore A for Industrial Vibration Damping

  • Galvanized Metal Rubber Shock Mounts with Tensile Strength 8-12Mpa and Hardness 40-60 Shore A for Industrial Vibration Damping
  • Galvanized Metal Rubber Shock Mounts with Tensile Strength 8-12Mpa and Hardness 40-60 Shore A for Industrial Vibration Damping
  • Galvanized Metal Rubber Shock Mounts with Tensile Strength 8-12Mpa and Hardness 40-60 Shore A for Industrial Vibration Damping
  • Galvanized Metal Rubber Shock Mounts with Tensile Strength 8-12Mpa and Hardness 40-60 Shore A for Industrial Vibration Damping
  • Galvanized Metal Rubber Shock Mounts with Tensile Strength 8-12Mpa and Hardness 40-60 Shore A for Industrial Vibration Damping
  • Galvanized Metal Rubber Shock Mounts with Tensile Strength 8-12Mpa and Hardness 40-60 Shore A for Industrial Vibration Damping
Place of Origin China
Brand Name 3A Rubber
Certification ROHS/FCC/SGS
Model Number 3A4002
Minimum Order Quantity 100pieces
Price negotiation
Packaging Details Packed in cartons
Delivery Time 10 working days after received your payment
Payment Terms T/T,L/C,Paypal,Western Union
Supply Ability 1000000pieces per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Rubber + Galvanized Metal Type B-MF
Color Black Tensile Strength 8-12Mpa
Hardness 40, 50, 60shore A Size Standard Size
OEM Agreed
Highlight

rubber vibration damper

,

rubber shock absorber
Leave a Message
Product Description

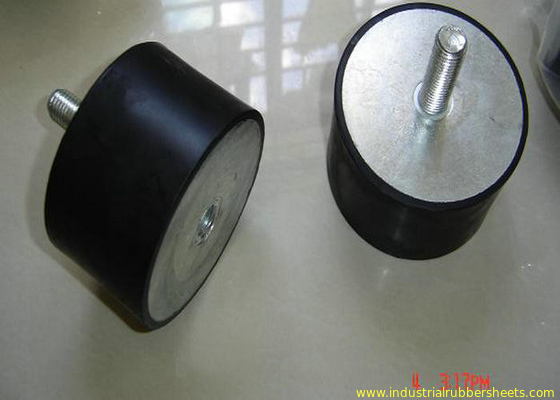

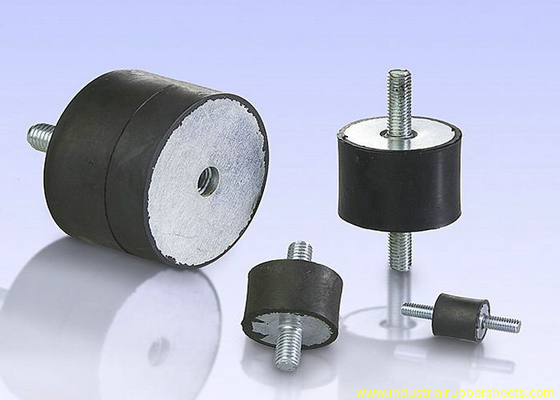

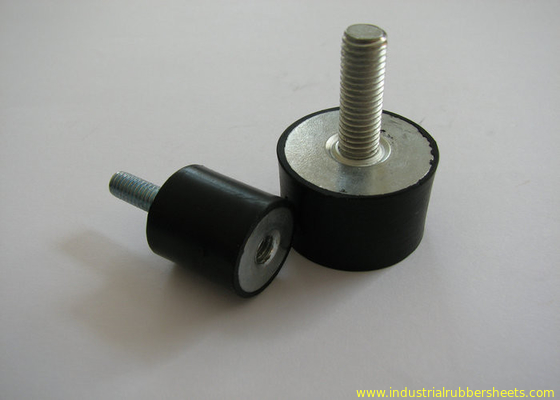

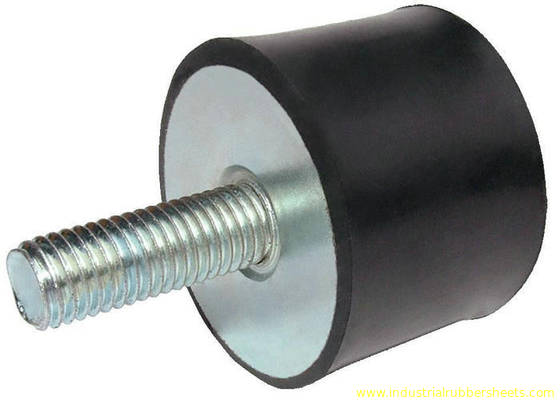

Galvanized Metal + Rubber Shock Mounts For Machinery / Rubber Vibration Dampers
B-MF rubber mounting, rubber shock mounts, rubber shock absorber, rubber to metal damper anti vibration mounts
B-MF rubber mountings are shock absorber screws featuring professional technology, unique formulation, and complete mold sets without mold cost. One side features male bolts while the other has female screws, constructed with high-quality zinc-coated metal and standard screw threads. The middle section consists of premium rubber materials including NR, NBR, EPDM, SBR (default NR). Ideal for anti-vibration and shock absorption in various machinery applications including mobile anti-vibration parts, healthcare equipment, machinery components, and computer parts.
Specifications
Material: Galvanized metal + rubber
Rubber: NR, NBR, EPDM, SBR etc. (default NR)
Quality: Industrial grade
Color: Black
Top: Screw bolt
Bottom: Screw thread
Surface: Smooth
Tensile strength: 8Mpa
Hardness: 40, 50, 60+/-5 shore A
Elongation: 350%
Density: 1.4g/cm3
Size: Standard without mold cost
OEM: Available according to buyer's drawings
Packing: Cartons
Note: Please confirm quantity and product code number or your drawings when ordering
Technical Parameters
Materials of Rubber to Metal Bonding NBR, NR, CR, EPDM, SILICONE, FKM, SBR, etc. (customizable)
Hardness 30~90 shore A
Temperature -40~+260°C (customizable)
Color Black (customizable)
Size Customizable
Certifications ISO9001 & TS16949 compliant
Materials Approved Meet RoHS directive, REACH, NSF, KTW, WRAS, etc.
Logo Customizable
QC/QA Experienced quality control and assurance system
Service OEM and ODM orders welcome (2D, 3D drawings or samples)
Guarantee High quality, reasonable price, reliable service, quick shipment
MOQ Negotiable (small orders welcome)
Applications
  • Electrical Enclosure Seals
  • Grommets
  • Light Fixture Seals
  • Rubber to Metal Bonding
  • Wire Access Seals
Compliance: ISO9001:2000 and TS 16949
Industries Served
Automotive, Consumer Appliances, Electrical Enclosures, Lighting, Marine, Transportation
Galvanized Metal Rubber Shock Mounts with Tensile Strength 8-12Mpa and Hardness 40-60 Shore A for Industrial Vibration Damping 0 Galvanized Metal Rubber Shock Mounts with Tensile Strength 8-12Mpa and Hardness 40-60 Shore A for Industrial Vibration Damping 1
Product Dimensions
Code: Product identification code
A: Diameter (mm)
B: Height (mm)
M: Thread size
H/I: Available lengths (mm)
Code A (mm) B (mm) M H / I (mm)
B0607M367M35
B0808M388M34-6-10
B1008M4108M46.5-8-10
B1010M41010M46.5-8-10
B1015M41015M46.5-8-10
B1508M4158M46-8-10-14
B1510M41510M46-8-10-14
B1515M41515M46-8-10-14
B1520M41520M46-8-10-14
B1525M41525M48-10
B1508M5158M58-10
B1510M51510M58-10
B1520M51520M58-10
B1525M51525M58-10
B1610M41610M48-10-12
B1615M41615M48-10-12
B1620M41620M48-10-12
B1610M51610M58-10-12
B1615M51615M58-10-12
B1620M51620M58-10-12
B2010M62010M68-10-12-16-18-20
B2015M62015M68-10-12-16-18-20
B2020M62020M68-10-12-16-18-20
B2030M62030M68-10-12-16-18-20
B2510M62510M610-12-14-16-18-20
B2513M62513M610-12-14-16-18-20
B2515M62515M610-12-14-16-18-20
B2520M62520M610-12-14-16-18-20
B2522M62225M6
B2525M62525M68-10-12-16-18-20
B2530M62530M68-10-12-16-18-20
B2510M82510M88-12-14-18-20
B2513M82513M88-12-14-18-20
B2515M82515M88-12-14-18-20
B2520M82520M88-12-14-18-20
B2522M82522M88-12-14-18-20
B2525M82525M88-12-14-18-20
B2530M82530M88-12-14-18-20
B3010M63010M612-15-18
B3012M63012M612-15-18
B3015M63015M612-15-18
B3017M63017M612-15-18
B3020M63020M612-15-18
B3022M63022M612-15-18
B3025M63025M612-15-18
B3030M63030M612-15-18
B3040M63040M612-15-18
B3010M83010M814-18-20-23-25-35
B3012M83012M814-18-20-23-25-35
B3015M83015M814-18-20-23-25-35
B3017M83017M814-18-20-23-25-35
B3020M83020M814-18-20-23-25-35
B3022M83022M814-18-20-23-25-35
B3025M83025M814-18-20-23-25-35
B3030M83030M814-18-20-23-25-35
B3040M83040M814-18-20-23-25-35
B4010M84010M814-18-20-23-25-35
B4015M84015M814-18-20-23-25-35
B4020M84020M814-18-20-23-25-35
B4025M84025M814-18-20-23-25-35
B4028M84028M814-18-20-23-25-35
B4030M84030M814-18-20-23-25-35
B4035M84035M814-18-20-23-25-35
B4040M84040M814-18-20-23-25-35
B4045M84045M814-18-20-23-25-35
B4010M104010M1015-18.5-20-25-28-35
B4015M104015M1015-18.5-20-25-28-35
B4020M104020M1015-18.5-20-25-28-35
B4025M104025M1015-18.5-20-25-28-35
B4028M104028M1015-18.5-20-25-28-35
B4030M104030M1015-18.5-20-25-28-35
B4035M104035M1015-18.5-20-25-28-35
B4040M104040M1015-18.5-20-25-28-35
B4045M104045M1015-18.5-20-25-28-35
B5015M105015M1015-18.5-20-25-28-35
B5020M105020M1015-18.5-20-25-28-35
B5025M105025M1015-18.5-20-25-28-35
B5030M105030M1015-18.5-20-25-28-35
B5040M105040M1015-18.5-20-25-28-35
B5045M105045M1015-18.5-20-25-28-35
B5050M105050M1015-18.5-20-25-28-35
B6030M106030M1015-18.5-20-25-28-35
B6035M106035M1015-18.5-20-25-28-35
B6040M106040M1015-18.5-20-25-28-35
B6045M106045M1015-18.5-20-25-28-35
B6050M106050M1015-18.5-20-25-28-35
B6030M126030M1228-37
B6035M126035M1228-37
B6040M126040M1228-37
B6045M126045M1228-37
B6050M126050M1228-37
B7030M127030M1228-37
B7040M127040M1228-37
B7050M127050M1228-37
B7525M127525M1228-37
B7530M127530M1228-37
B7540M127540M1228-37
B7545M127545M1228-37
B7550M127550M1228-37
B8080M128080M1235-45-57
B8080M168080M1635-45-57
B10040M1610040M1635-45-57
B10050M1610050M1635-45-57
B10055M1610055M1635-45-57
B10060M1610060M1635-45-57
B100100M16100100M1635-45-57
