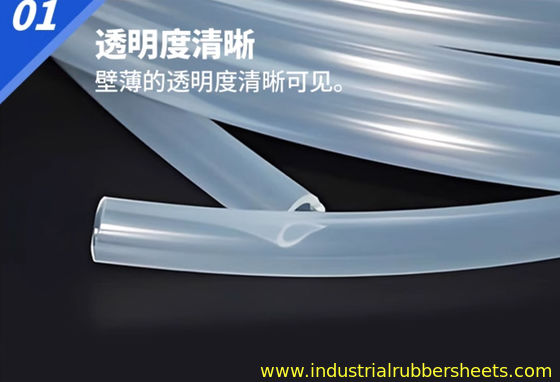

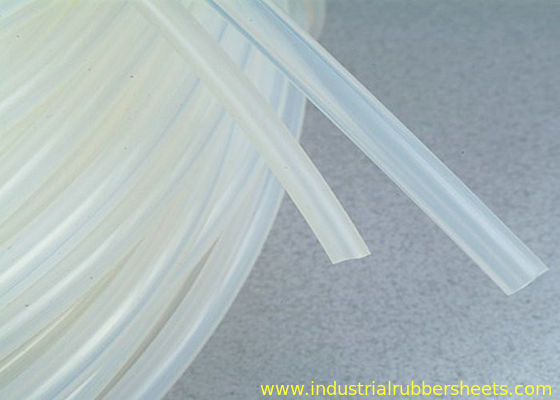

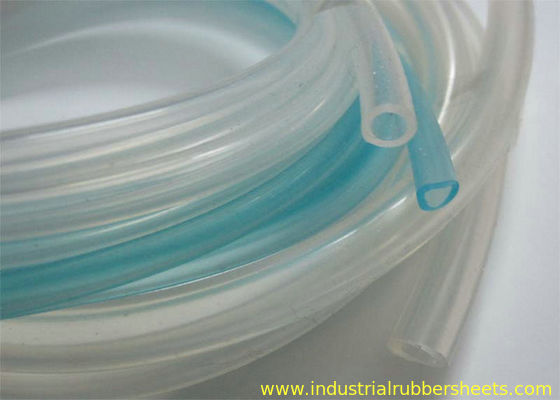

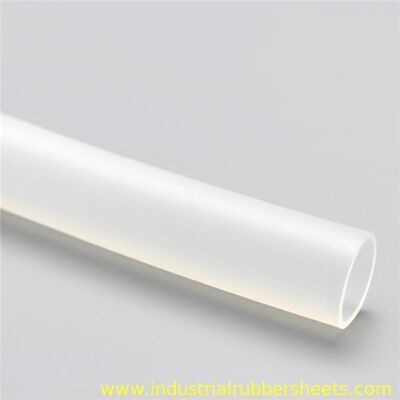

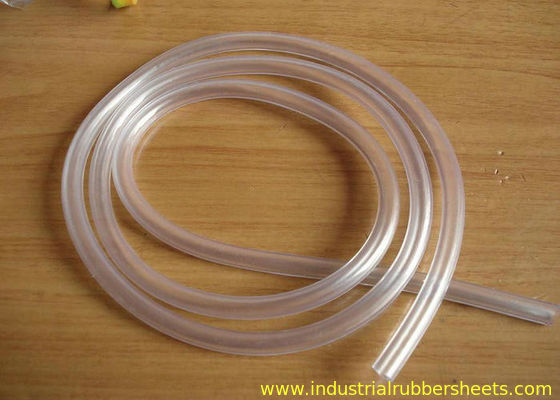

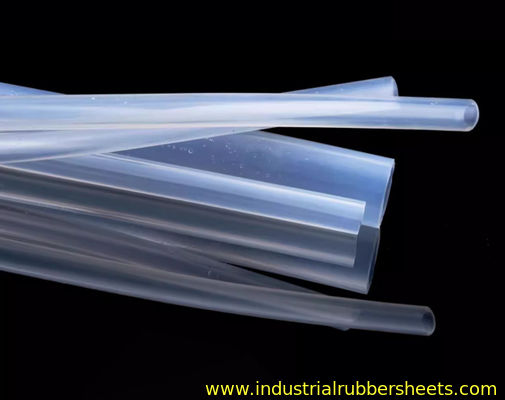

Food Grade 100% Virgin Silicone Tube Extrusion with 3-4mm Thickness and High Tensile Strength
| Place of Origin | China |
|---|---|
| Brand Name | 3Arubber |
| Certification | RoHS/FCC/SGS |
| Model Number | 3A1003 |
| Minimum Order Quantity | 20kgs |
| Price | negotation |
| Packaging Details | packing in rolls, cartons and pallets |
| Delivery Time | 10-20 working days after recieved your payment |
| Payment Terms | L/C,T/T,Western Union,Paypal,D/P |
| Supply Ability | 100000kgs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Quality | Food Grade | Material | 100% Virgin Silicone Rubber |
|---|---|---|---|
| Working Temperature | -60℃-+260℃ | Tensile Strength | 7-12 MPa |
| Hardness | 30-80shore A | Elongation | 500-700% |
| Wall Thickness | 3-4mm | Diameter | 1mm-50mm |
| Surface | Smooth | Reinforce | Polyester Braid Reinforced |
| Fda Compliance | Yes | Oem Odm | Available |
| Flexibility | Flexible | Shape | Tube |
| Produced | Extrude Or Cutting | Density | 1.2-1.25 G/cm3 |
| Process | Extrusion | Inside Diameter | 5-32mm |
| Tear Resistance | 25-35 KN/m | Temperature Range | -60°C To 200°C |
| Highlight | flexible silicone tubing,high temperature silicone rubber tubing |
||
Product Description
Food Grade 100% Virgin Silicone Tube Extrusion
High-quality food grade silicone tubing, pipe, and hose manufactured from 100% virgin silicone material. Our silicone products are extruded using specialized machinery with precision molds to meet exact dimensional requirements.
Product Features
- High tensile strength with excellent flexibility
- Strong anti-pull properties with wide hardness range
- Superior aging, ozone, and heat resistance
- Excellent insulation properties
- Resistant to fuel oil and lubricants
- Operating temperature range: -60°C to +250°C
- Suitable for air, water, and oil media applications
Available Grades
Industrial Grade: Standard extruded silicone, peroxide vulcanized
Food Grade: Transparent fumed silicone, platinum vulcanized, non-toxic and odorless
Medical Grade: Medical grade transparent fumed silicone, platinum vulcanized with FDA and LFGB certification
Food Grade: Transparent fumed silicone, platinum vulcanized, non-toxic and odorless
Medical Grade: Medical grade transparent fumed silicone, platinum vulcanized with FDA and LFGB certification
Technical Specifications
| Material | 100% Virgin Silicone |
|---|---|
| Quality Grades | Industrial Grade, Food Grade, Medical Grade |
| Available Colors | Transparent, Translucent, Dark Red, Orange, Black, Milk White, Blue, Grey |
| Surface Finish | Smooth/Smooth |
| Fiber Reinforced | Available |
| Tensile Strength | 7-9.8 MPa |
| Hardness | 50, 60, 70, 80 ±5 Shore A |
| Elongation | 350-700% |
| Density | 1.25 ±0.05 g/cm³ |
| Tear Strength | 26-42 N/mm |
| Working Temperature | -60°C to +250°C |
| Wall Thickness | 1.0, 2.0, 3.0, 4.0, 5.0 mm |
Standard Sizes
Ø2mm x Ø4mm x 5-10kgs
Ø3mm x Ø5mm x 5-10kgs
Ø4mm x Ø6mm x 5-10kgs
Ø5mm x Ø8mm x 5-10kgs
Ø6mm x Ø9mm x 5-10kgs
Ø7mm x Ø10mm x 5-10kgs
Ø8mm x Ø10mm x 5-10kgs
Ø9mm x Ø12mm x 5-10kgs
Ø10mm x Ø14mm x 5-10kgs
Ø12mm x Ø16mm x 5-10kgs
Ø14mm x Ø18mm x 5-10kgs
Ø20mm x Ø30mm x 5-10kgs
Ø30mm x Ø40mm x 5-10kgs
Ø40mm x Ø50mm x 5-10kgs
Custom Sizes: OEM sizes available upon agreement
