Silicone Sponge Rubber Sheet with Double Impression Fabric Surface and 10-30 Shore A Hardness for -60°C to +260°C Applications
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Special For Iroing Table | Surface | Double Impression Fabric |
|---|---|---|---|
| Tensile Strength | 200Psi | Hardness | 10-30 Shore A |
| Elongation | 100% | Density | 0.6-1.0g/cm³ |
| Usage | Widely Used | Working Temp | -40^C ~ +260^C |
| Products | Silicone Sponge Rubber Sheet | Working Temperature | -60°C - +240°C |
| Cell | Open Cell | Custom Service | Is Available |
| Electric Thermostat | Custom | Others | As Per Buyer's Drawing |
| Service | OEM ODM | ||
| Highlight | silicone gasket sheet,flexible rubber sheet |
||
Product Description
Silicone Rubber Sheet - Silicone Sponge Rubber Sheet for Ironing Table
High-quality silicone foam rubber sheet available in multiple hardness options (10, 15, 20, 25, 30, 35, 40 ±5 Shore A) for ironing table applications and various industrial uses.
Closed Cell Silicone Sponge Sheet Specifications
| Property | Specification |
|---|---|
| Cell Structure | Closed Cell |
| Material | Virgin Silicone Sponge |
| Color Options | Dark Red, White, Grey, Black, Beige, Brown, Blue, etc. |
| Surface | Double Impression Fabric |
| Tensile Strength | 100-200 PSI |
| Hardness | 10, 15, 20, 25, 30, 35, 40 ±5 Shore A |
| Elongation | 100% |
| Density | 0.5-1.0 g/cm³ |
| Working Temperature | -60°C to +220°C (momentary 260°C) |
| Thickness | 1.5-50 mm |
| Width | 0.1-1.5 m (maximum 1.5 m for thickness >5 mm) |
| Length | 0.1-10 m |
Standard Sizes - Closed Cell
- 1-50 mm × 1.0 m × 10 m
- 1-50 mm × 1.2 m × 10 m
- 5-50 mm × 1.5 m × 10 m
Custom OEM sizes available upon agreement. Backing adhesive options include Chinese general glue or USA 3M glue. Perforated silicone sponge sheet available in 10 mm × 0.9 m × 1.8 m.

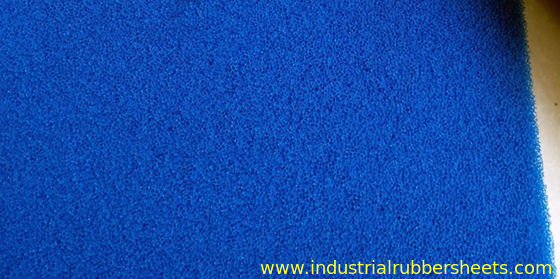

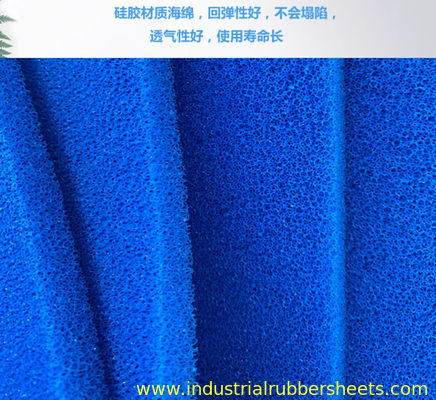

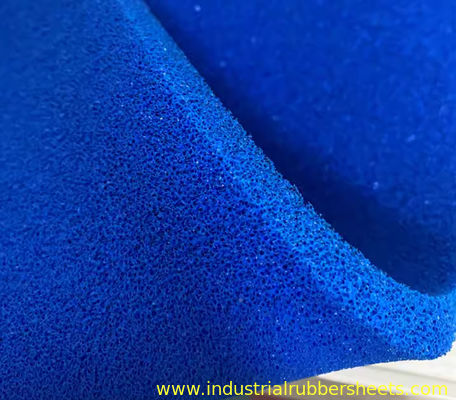

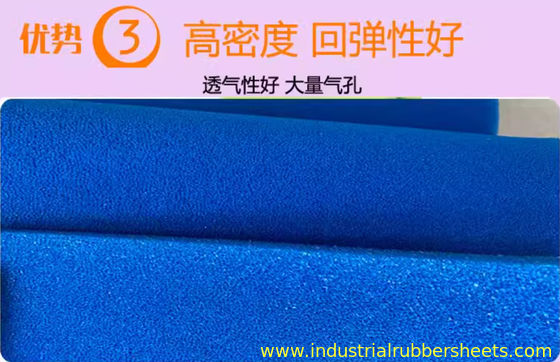

Open Cell Silicone Sponge Sheet Specifications
| Property | Specification |
|---|---|
| Cell Structure | Open Cell |
| Material | Virgin Silicone Sponge |
| Color Options | Blue, Red, Yellow, etc. |
| Surface | Natural Surface |
| Tensile Strength | 100 PSI |
| Hardness | 15, 20, 25, 30, 35, 40, 45 ±5 Shore A |
| Elongation | 100% |
| Density | 0.15-0.45 g/cm³ |
| Working Temperature | -60°C to +220°C (momentary 260°C) |
| Thickness | 6, 8, 10, 15 mm |
| Width | 1.0, 1.5 m |
| Length | 5-10 m |
Standard Sizes - Open Cell
- 6 mm × 1.0 m × 10 m
- 6 mm × 1.5 m × 10 m
- 8 mm × 1.0 m × 10 m
- 8 mm × 1.5 m × 10 m
- 10 mm × 1.0 m × 10 m
- 10 mm × 1.5 m × 10 m
- 15 mm × 1.0 m × 10 m
- 15 mm × 1.5 m × 10 m
Custom OEM sizes available upon agreement.
Important: When requesting a quotation, please specify the color, hardness, surface type, dimensions, and quantity requirements.
