Custom Silicone Heater Pad 1.5mm Thick with 200℃ Temperature Resistance
| Place of Origin | China |
|---|---|
| Brand Name | 3Arubber |
| Certification | ROHS/FCC/SGS |
| Model Number | 3A1006 |
| Minimum Order Quantity | 20pieces |
| Price | USD10.00/Pieces |
| Packaging Details | packed in cartons |
| Delivery Time | 10 working days after received your payment |
| Payment Terms | L/C,T/T,Western Union,Paypal,MoneyGram,D/P |
| Supply Ability | 10000 pieces per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Silicone Foam Rubber | Voltage | As Per The Buyer's Request |
|---|---|---|---|
| Cable | Custom | Power | As Per The Buyer's Request |
| Electric Thermostat | Custom | Uniform Heating | As Per The Buyer's Request |
| Heater Width | As Per The Buyer's Request | Adhesive Backing | Yes, Custom |
| Temperature Resistance | -60℃ To 200℃ | Service | OEM ODM |
| Usage | Widely Used | Gasket | As Per The Buyer's Drawing |
| Fda Compliance | Yes | Fda Compliant | No |
| Aging Resistance | Excellent | Tensile Strenth | 1.4Mpa |
| Temperature Range | -50℃ To 200℃ | Elongation At Break | 100% |
| Highlight | custom silicone heater pad,waterproof silicone heater pad,non toxic silicone heater pad |
||
Product Description
Custom Silicone Heater Pad - Waterproof Non-Toxic Silicone Mug with High Quality
The silicone rubber heater is a thin film heating element with a standard thickness of 1.5mm. It incorporates nickel chrome wires or 0.05mm-0.10mm thick nickel chrome foils etched into specific shapes, wrapped with heat conducting and insulating materials on both sides, and completed through high-temperature die forming and aging heat treatment.
Key Features:
- Fast heating with low thermal conductivity (1W/m.k) and small thermal capacity for prompt on/off operation
- High thermal efficiency - operates at temperatures only tens of degrees above the heated liquid, saving 2-3 times more energy than conventional electric stoves
- Resistant to water, acids, and alkalis with high-strength electrical insulation
- Exceptional mechanical strength (100kg/cm² pressure resistance)
- Compact design with minimal space requirements
- Easy installation with self-insulating properties that simplify heat preservation techniques
- Wide operating temperature range (-60°C to 250°C)
- Long service life with corrosion-resistant nickel chrome materials and high surface resistance (100kg/cm²)
- Customizable sizes with precise temperature control via thermostat
Technical Specifications:
| Material | Silicone + Wire |
|---|---|
| Voltage | 220-240V |
| Cable | 4 Cores, 0.5m length |
| Power | 350W |
| Electric Thermostat | K, NTC, PT100 Sonde |
| Heating Capacity | Uniform heating to 220°C |
| Installation | Easy to install on flat or curved surfaces |
| Maximum Width | 48 inches (1.2 m) |

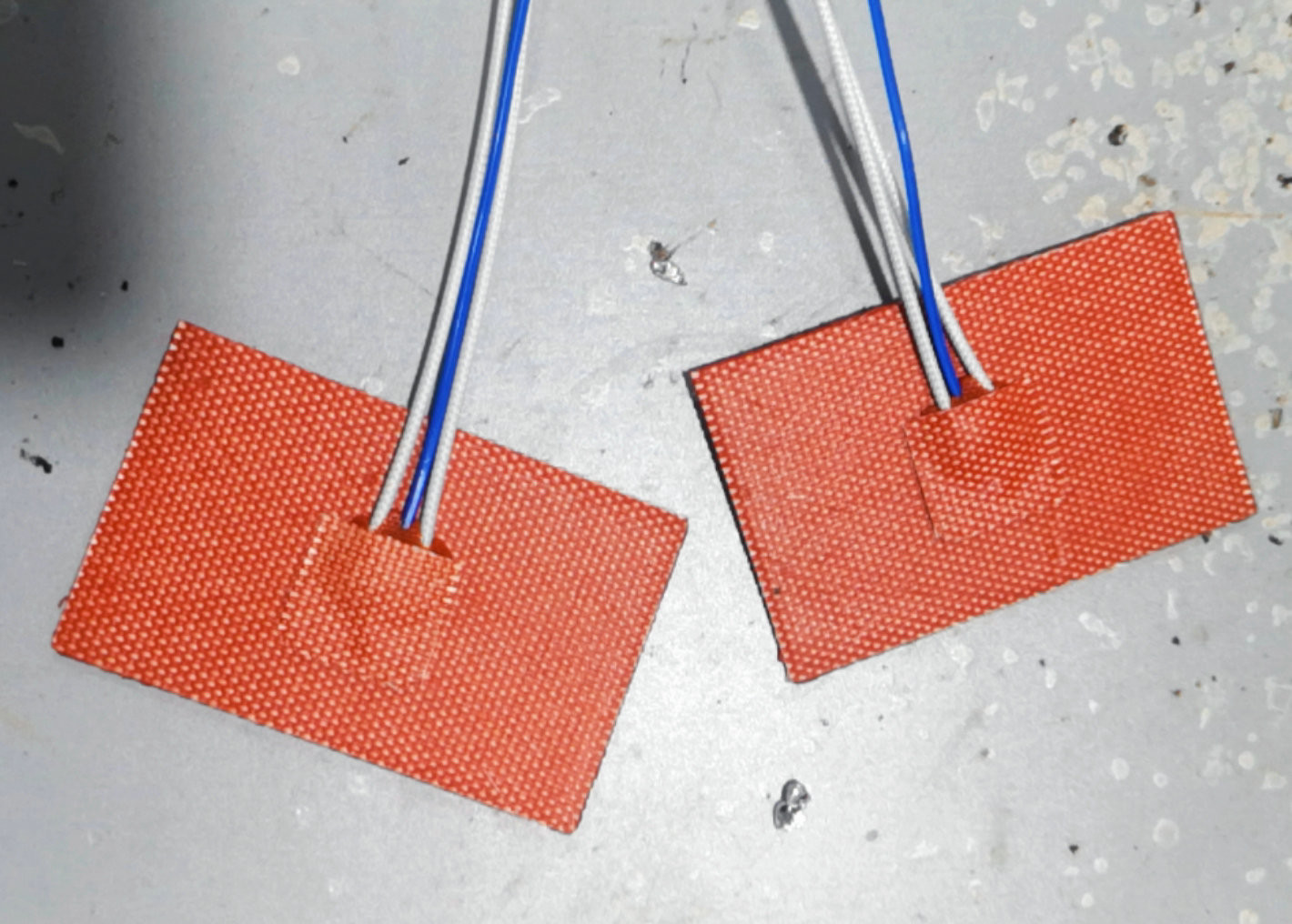

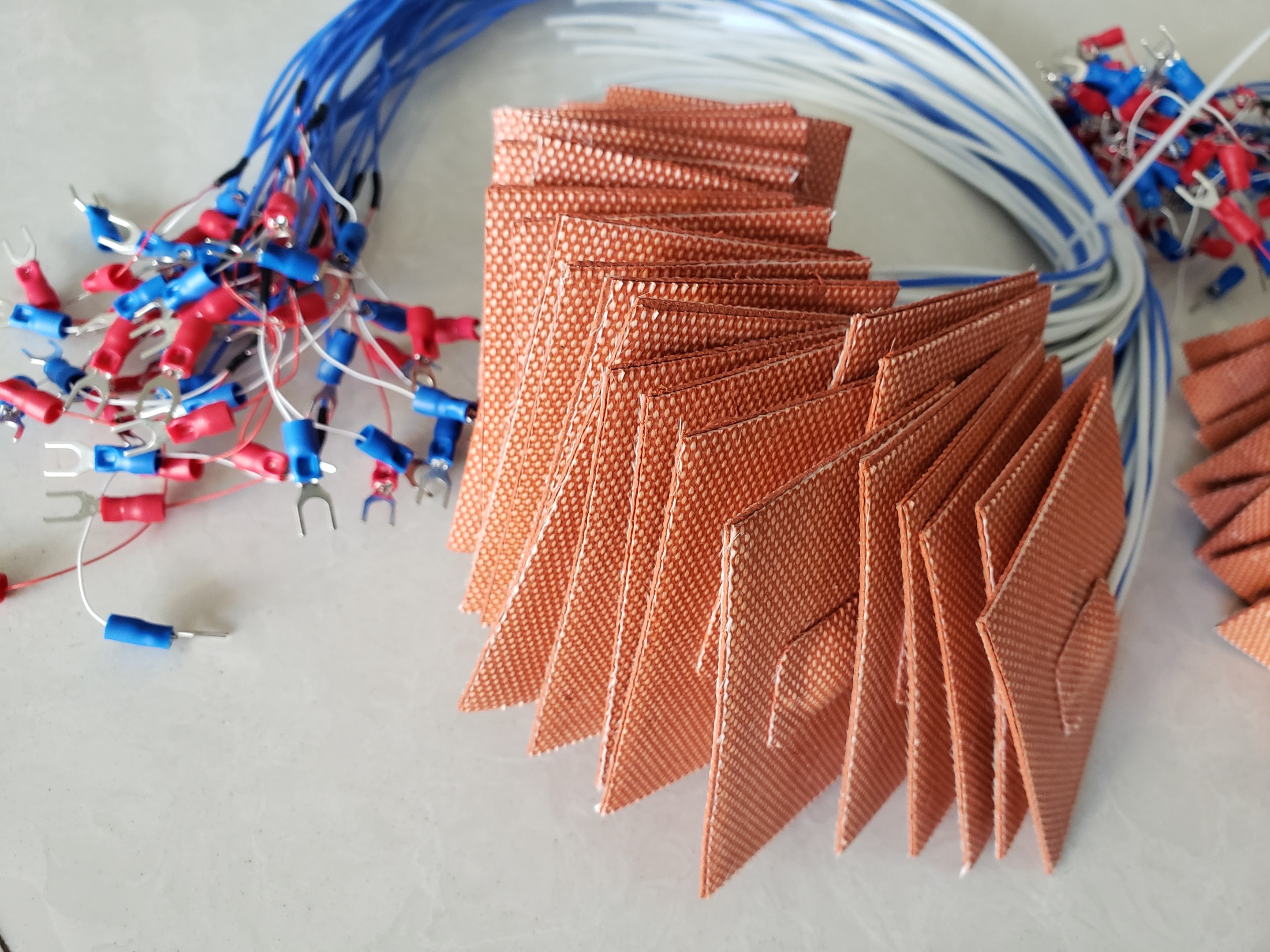

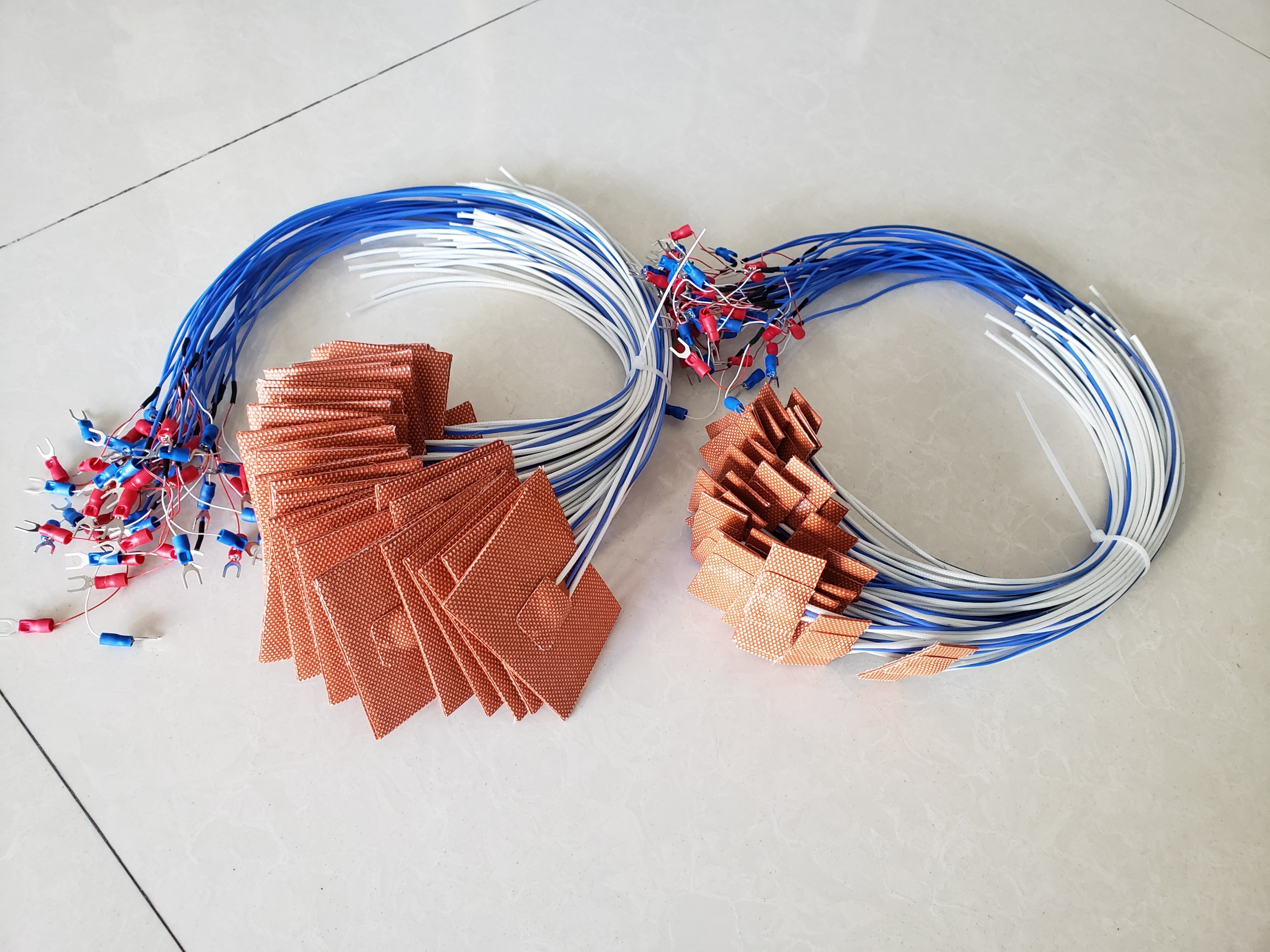

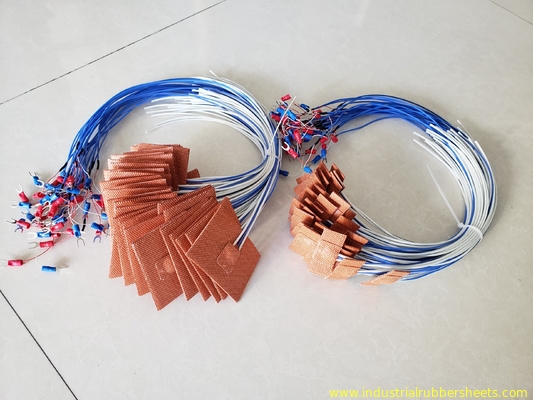

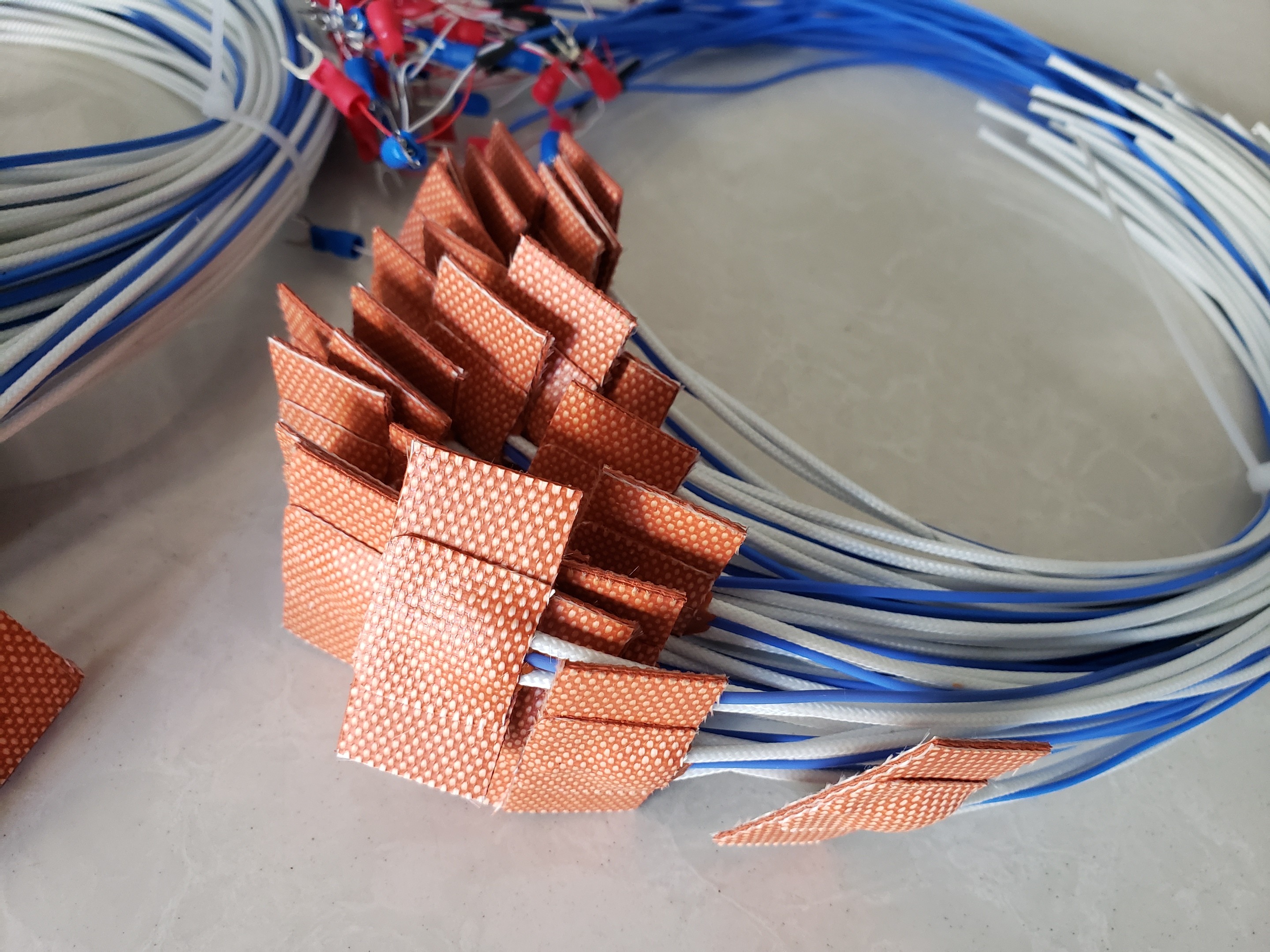

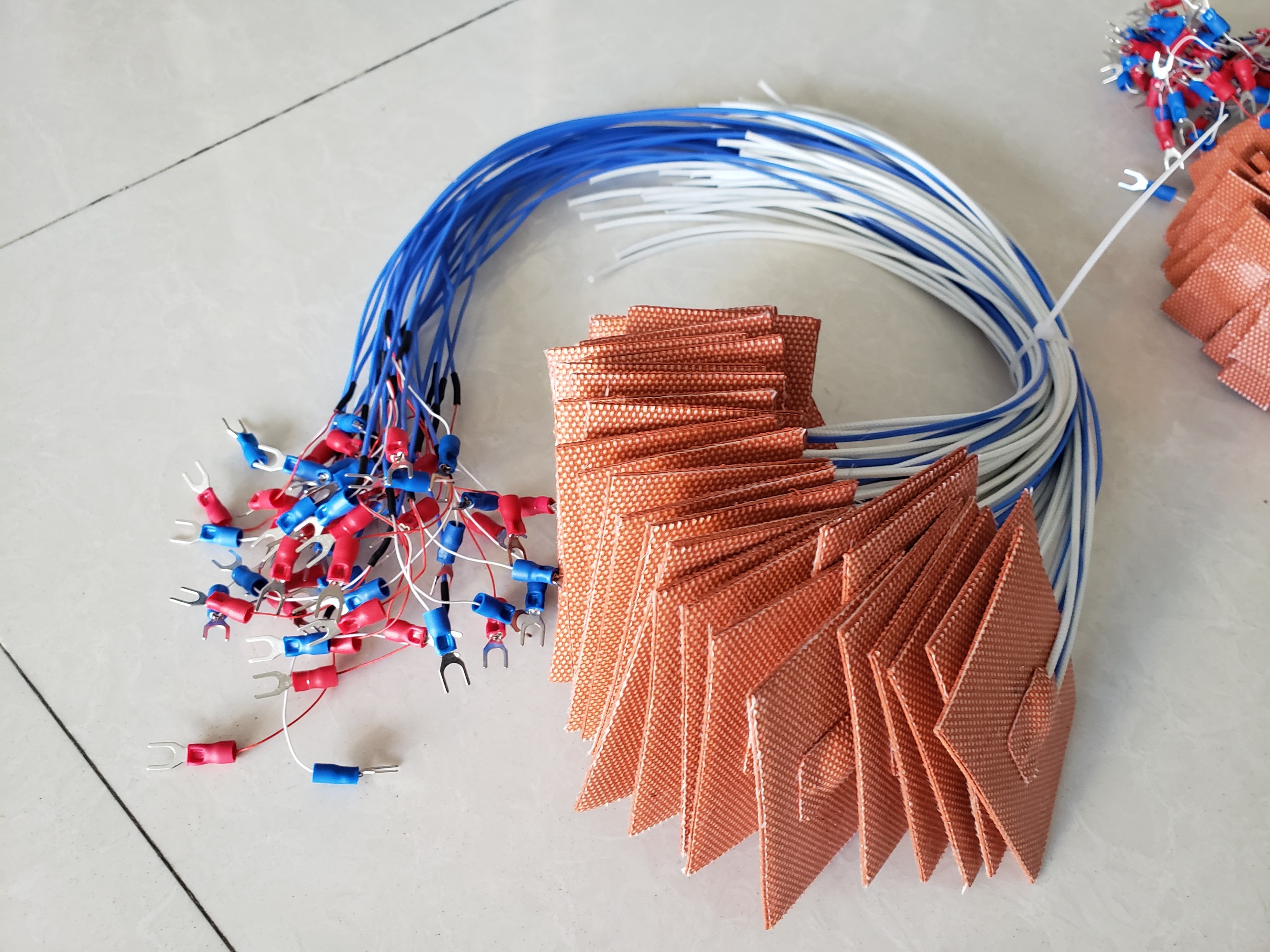

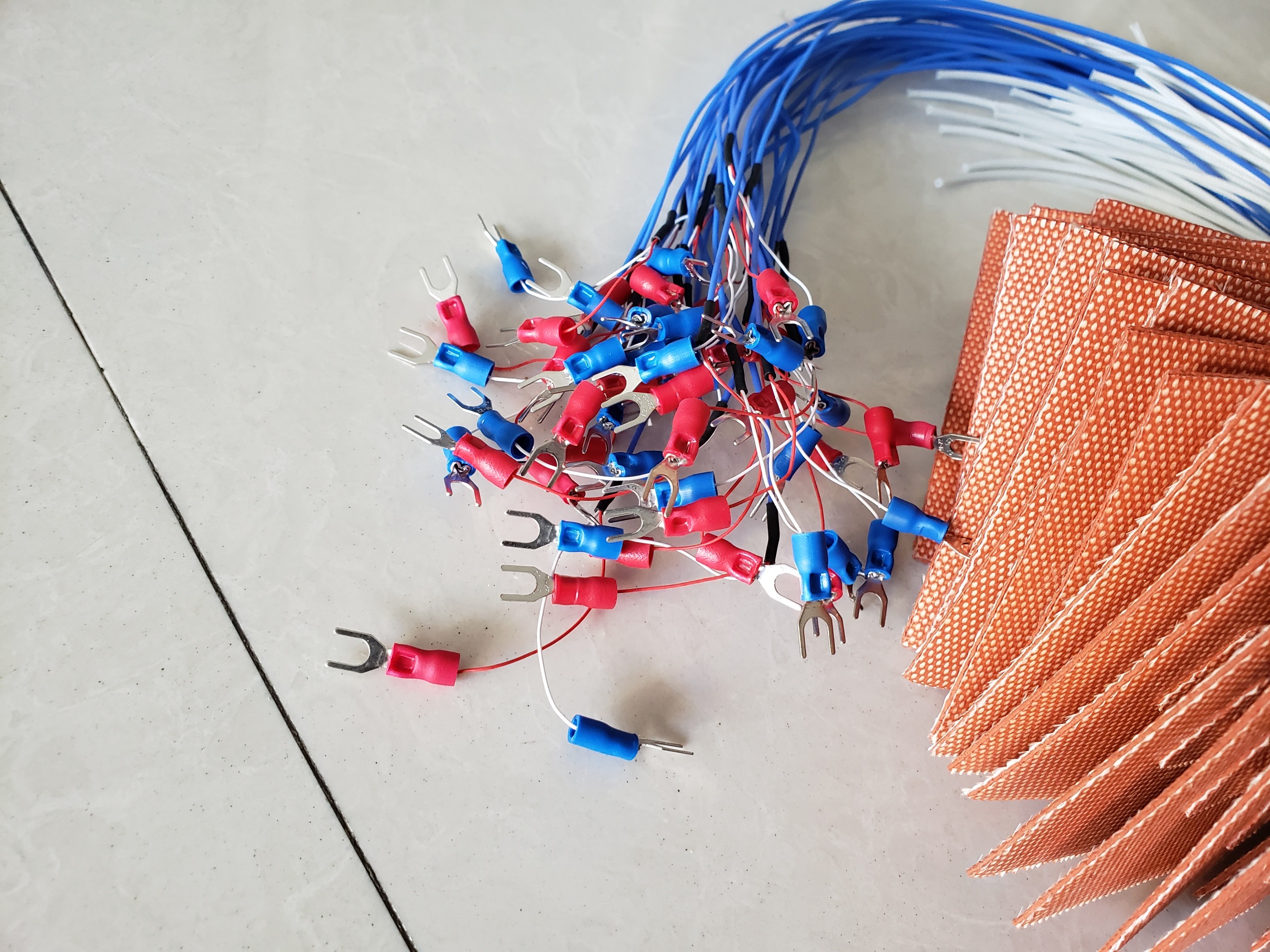

Product Images:
