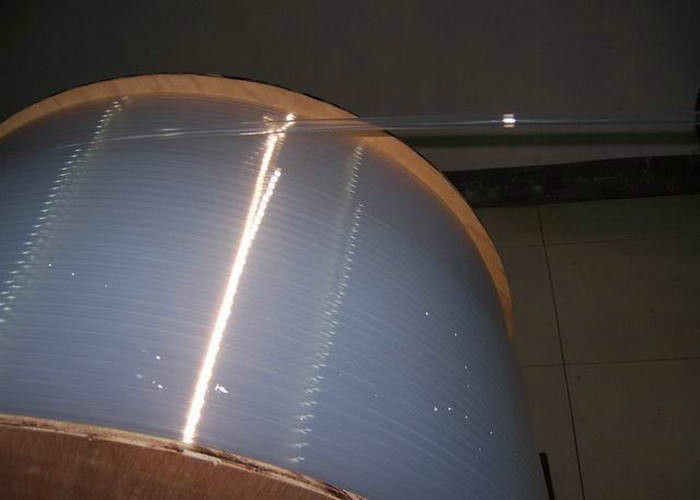

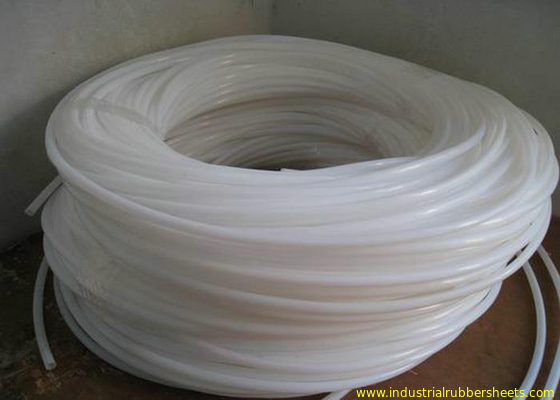

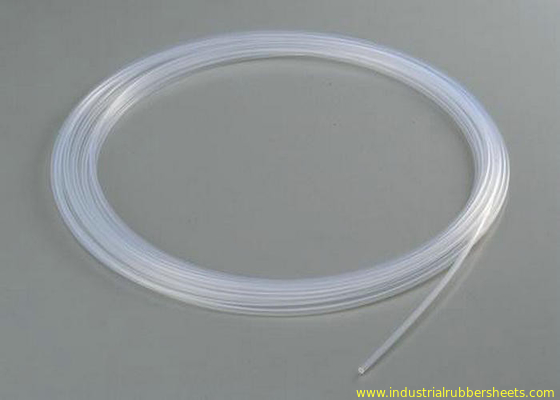

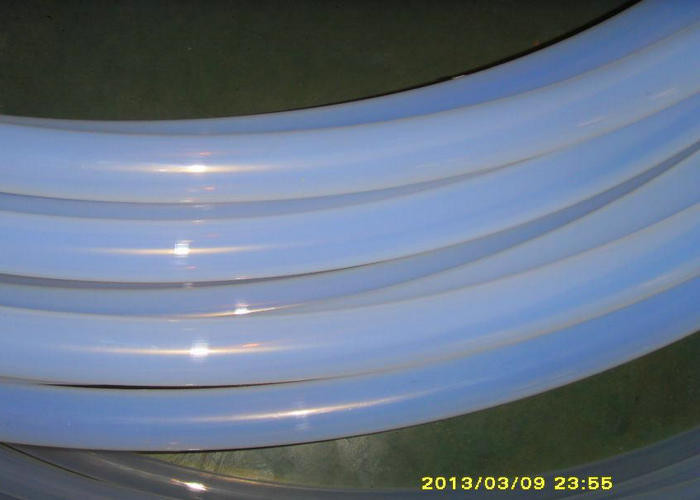

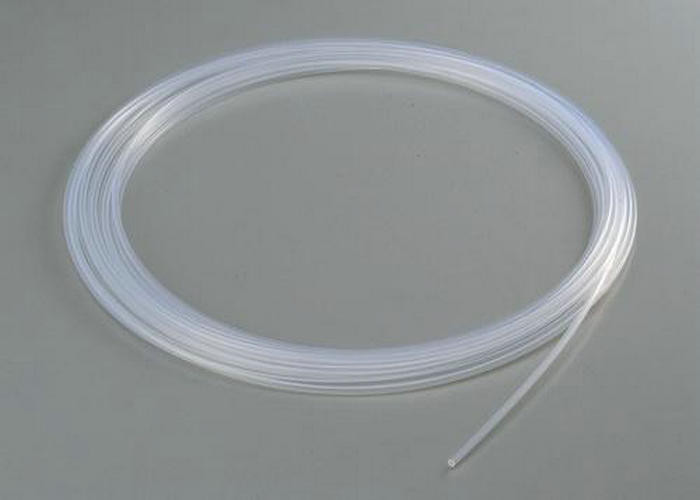

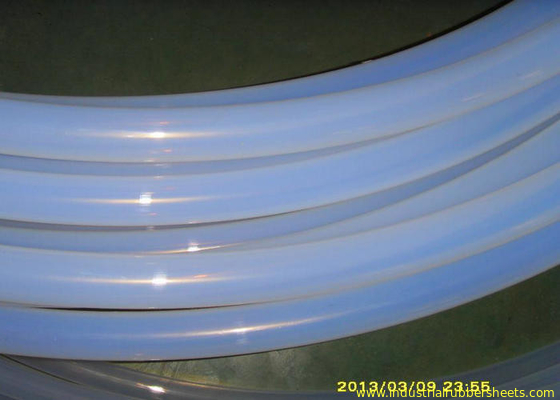

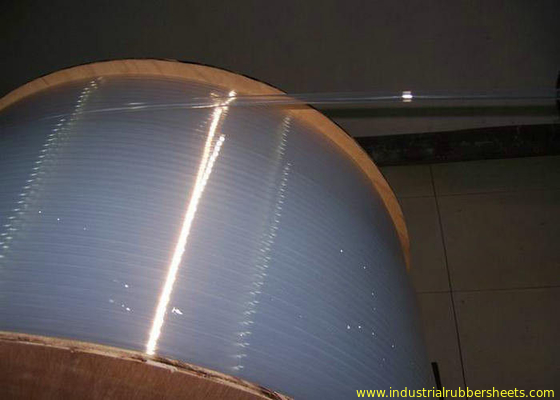

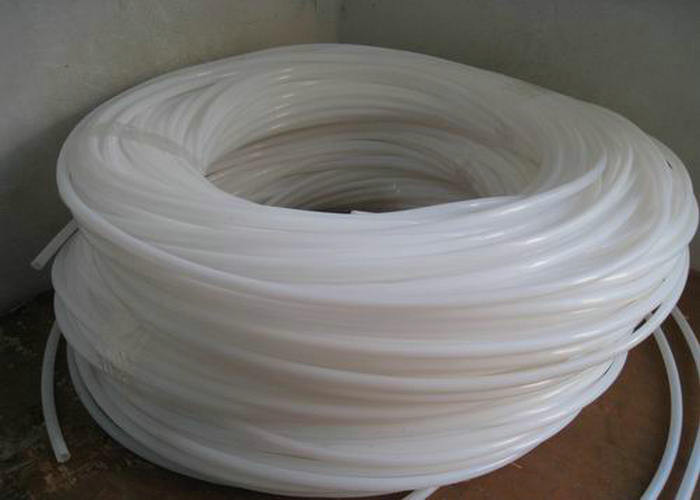

High Temperature Insulate Transparent PTFE Tube / PTFE Pipe

High Temperature Insulate Transparent PTFE Tube / PTFE Pipe
High Temperature Insulate Transparent PTFE Tube / PTFE Pipe High Temperature Insulate Transparent PTFE Tube / PTFE Pipe High Temperature Insulate Transparent PTFE Tube / PTFE Pipe High Temperature Insulate Transparent PTFE Tube / PTFE Pipe

Large Image :  High Temperature Insulate Transparent PTFE Tube / PTFE Pipe

Product Details:
Place of Origin: China
Brand Name: 3A Rubber
Certification: ROHS/FCC/SGS
Model Number: 3A3003
Payment & Shipping Terms:
Minimum Order Quantity: 1roll
Price: negotiation
Packaging Details: Packed in cartons
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, L/C, Paypal, Western Union
Supply Ability: 10000kgs per month
Detailed Product Description
Material: 100% Virgin PTFE Material Produced: Extruded
Quality: Industrial Grade, Food Grade Color: Transparent
Surface: Smooth Working Temperature: -180°C - +260°C
Hardness: 55shore D Density: 2.1-2.3g/cm3
High Light:

ptfe pipe

,

teflon tube

high temperature insulate PTFE PTFE tube / hose / pipe with transparent color

1. Good resistance to high temperature and low temperature.
2. Excellent resistant to aqua regia and all kinds of organic solvents.
3. High lubricating ability and non-sticking.
4. Excellent electric property and long life performance
5. Widely applied in fields like machinery, automobile, electronics, chemicals and valves etc



Widely used in industries of electrical, computer, chemical, high temperature areas, aerospace, military& transmission system

PTFE TUBE Specifications



High quality transparent PTFE tubing
1. Anti-corrosion
2. Antilflaming,
3. High insulation,
4. Anti high temperature





Products

High quality transparent PTFE tubing

Forbest manufacturing Co.ltd offers a wide range of standard size products and precision custom PTFE Tubing. Often referred to as PTFE Tubing, PTFE Tubing has become the gold standard in industries requiring the ultimate in lubricity, high temperature use, chemical resistance, biocompatibility, and precision extruded tolerances.

Main Properties
Very Lubricious - Lowest coefficient of friction of any polymer
Working temperature range( 260° C) to (–270° C)
Chemically Resistant (all common solvents, acids and bases)
Chemically Inert
Low extractable
Excellent Dielectric Insulation Properties

More Properties of PTFE
These properties are most of many reasons of PTFE is used in medical applications, aerospace, analytical sciences, and other demanding applications.

Character

PROPERTY zest Method Unit Specification Requirements
Specific Gravity ASTM D792 g/cm3 2.16
Tensile strength ASTM D638 Mpa 24.5
Ultimate Elongation ASTM D638 % 350
Flexural Modulus ASTM D790 Mpa 490
Impact Strength ASTM D256+23°C-54°Cj/m   -No break-107
Hardness ASTM D2240 Shore D 55
Coefficient Of Dynamic Friction     0.1
Melting Point   °C 327
Flammability UL 224   VW-1
Dieletric Constant At103-106HZ ASTM D150   2.1
Ddissipation Factor At 106 HZ ASTM D150   0.0002
Arc Resistance ASTM D495 S > 300
Volume Resistivity ASTM D257 Ω.cm > 1018
Weahter Resistance Weather-o-meter (2000h)   No break
Solvent Resistance ASTM D543   Excellent
Chemical Resistance ASTM D543   Excellent

Standard Size

SIZE Inside diameter(mm) Tolerance(mm) Outside diameter(mm ) Package (M/ROLL)
S T L
30AWG 0.30 ±0.06 0.76 0.76 0.60 305
28AWG 0.38 ±0.06 0.84 0.84 0.68 305
26AWG 0.46 ±0.06 0.92 0.92 0.76 305
24AWG 0.56 ±0.06 1.16 1.06 0.86 305
23AWG 0.66 ±0.06 1.26 1.16 0.96 305
22AWG 0.71 ±0.06 1.31 1.21 1.01 305
21AWG 0.81 ±0.06 1.41 1.31 1.11 305
20AWG 0.86 ±0.06 1.66 1.46 1.16 305
19AWG 0.96 ±0.07 1.76 1.56 1.26 200
18AWG 1.07 ±0.08 1.87 1.67 1.37 200
17AWG 1.19 ±0.08 1.99 1.79 1.49 2500
16AWG 1.34 ±0.09 2.14 1.94 1.64 153
15AWG 1.50 ±0.10 2.30 2.10 1.80 153
14AWG 1.68 ±0.10 2.48 2.28 2.08 100
13AWG 1.93 ±0.10 2.73 2.53 2.33 100
12AWG 2.16 ±0.10 2.96 2.77 2.56 100
11AWG 2.41 ±0.13 3.21 3.01 2.81 100
10AWG 2.69 ±0.13 3.49 3.29 3.09 100
9AWG 3.00 ±0.13 4.00 3.76 3.40 100
8AWG 3.38 ±0.13 4.38 4.41 3.78 100
7AWG 3.76 ±0.14 4.76 4.52 4.16 100
6AWG 4.22 ±0.15 5.22 4.98 4.72 100
5AWG 4.72 ±0.16 5.72 5.48 5.22 50
4AWG 5.28 ±0.17 6.28 6.04 5.78 1m/stick
3AWG 5.94 ±0.19 6.94 6.70 6.44 1m/stick
2AWG 6.68 ±0.19 7.68 7.44 7.18 1m/stick
1AWG 7.46 ±0.20 8.46 8.22 7.96 1m/stick
0AWG 8.38 ±0.21 9.38 9.14 8.88 1m/stick




High Temperature Insulate Transparent PTFE Tube / PTFE Pipe 0
