Heat Resistant Food Grade PTFE Mesh Conveyor Belt with Non-Stick Surface for High Temperature Applications

  • Heat Resistant Food Grade PTFE Mesh Conveyor Belt with Non-Stick Surface for High Temperature Applications
  • Heat Resistant Food Grade PTFE Mesh Conveyor Belt with Non-Stick Surface for High Temperature Applications
  • Heat Resistant Food Grade PTFE Mesh Conveyor Belt with Non-Stick Surface for High Temperature Applications
  • Heat Resistant Food Grade PTFE Mesh Conveyor Belt with Non-Stick Surface for High Temperature Applications
  • Heat Resistant Food Grade PTFE Mesh Conveyor Belt with Non-Stick Surface for High Temperature Applications
Place of Origin China
Brand Name 3A Rubber
Certification ROHS/FCC/SGS
Model Number 3A3008
Minimum Order Quantity 1roll
Price negotiation
Packaging Details Packed in rolls
Delivery Time 10 working days after received your payment
Payment Terms T/T,L/C,Paypal,Western Union
Supply Ability 10000kgs per month
Product Details
Material Glassfiber Coated PTFE Color Brown, Black, Blue
Joint Bullnose Joint,spiral And Clapper Temperature -60 ~ +320°C
Mesh 0.5x1, 1x1, 2x2.5, 4x4, 6x6, 10x10mm Width Maximum 4.0m
Highlight

ptfe conveyor belt

,

PTFE mesh screen
Leave a Message
Product Description
Heat Resistance Food Grade PTFE Mesh 10 x 10mm, PTFE Mesh Conveyor Belt
High temperature resistant PTFE open fiberglass mesh, PTFE/PTFE mesh conveyor belt
Product Specifications
We are the manufacturer of PTFE coated fiberglass mesh fabric and produce different kinds with various open mesh sizes.
Main Features
  • Heat resistance property - Able to work stably between -60°C to 260°C
  • Excellent non-sticky property - Easier to remove resins, dopes, oil and other sticky substances
  • Good mechanical property with no distortion and low friction coefficient
Applications
Used in paper printing for protection from oil and other sticky substances. Widely used in print industry as conveyor belt.
Any special requirements, please contact the research department.
PTFE Coated Fiberglass Open Mesh Conveyor Belt Features
  • High temperature resistance - Can continuously work under -140 to 320°C, maximum resistance up to 360°C
  • Permeability - Avoids wasting heat and improves drying efficiency due to permeability
  • Chemical resistance - Resists almost all chemical medicines
  • Non-stick - Easily removes all kinds of adhesives such as resin, paint and chemical medicine, easy to clean
Technical Specifications Table
Model Mesh Size Material Thickness Weight Temp Resistance Max Width Tensile Strength
1 1x1mm fiberglass 0.5mm 370g/m² -70~320°C 4000mm 310/290N/cm
2 2x2mm fiberglass 0.7mm 450g/m² -70~320°C 4000mm 350/310N/cm
3 4x4mm fiberglass 1.0mm 400g/m² -70~320°C 4000mm 390/320N/cm
4 4x4mm fiberglass 1.0mm 450g/m² -70~320°C 4000mm 390/320N/cm
5 4x4mm fiberglass and kevlar 1.2mm 600g/m² -70~320°C 4000mm 895/370N/cm
6 4x4mm fiberglass 1.0mm 500g/m² -70~320°C 4000mm 395/370N/cm
7 4x4mm Kevlar 1.0mm 500g/m² -70~320°C 4000mm 900/600N/cm
8 4x4mm fiberglass 1.0mm 550g/m² -70~320°C 4000mm 395/370N/cm
9 10x10mm fiberglass 1.2mm 450g/m² -70~320°C 4000mm 360/300N/cm
10 0.5x1mm fiberglass 0.5mm 420g/m² -70~320°C 4000mm 310/290N/cm
11 2x2.5mm fiberglass 0.9mm 600g/m² -70~320°C 3000mm 390/320N/cm
Industry Applications
  • Drying machine for non-woven textile, textile printing, silk-printing and dyeing machine
  • Shrinking machine for garment fabric, high-frequency and UV dryer
  • Conveyer belt for hot-air dryer, various food baking, quick-frozen machines
  • Oiling machine for paper glazing and waxing, plant engineering
  • Separating sheet for hardboard production etc.

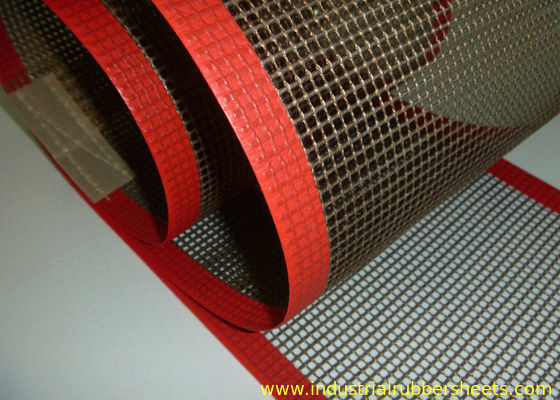

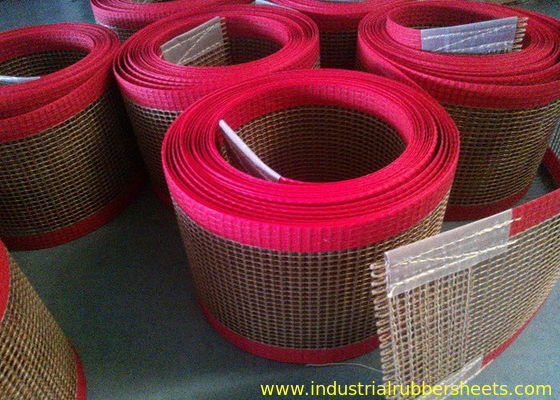

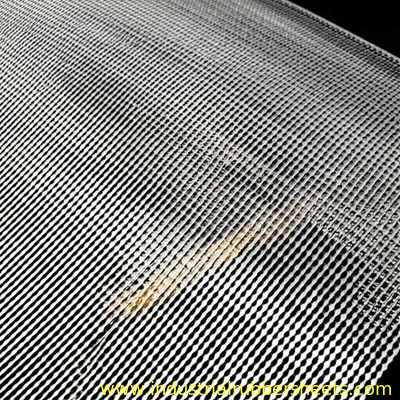

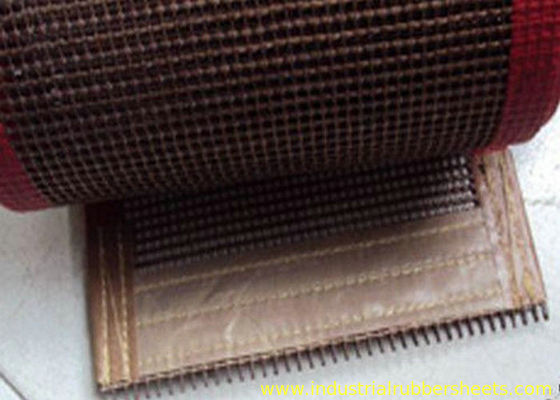

PTFE Mesh Conveyor Belt Product Image
