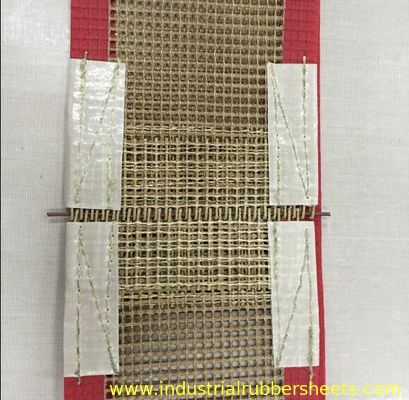

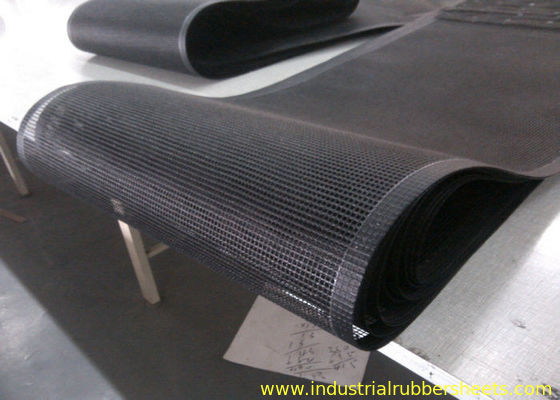

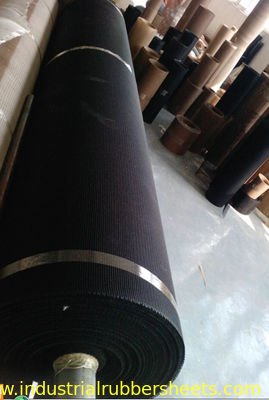

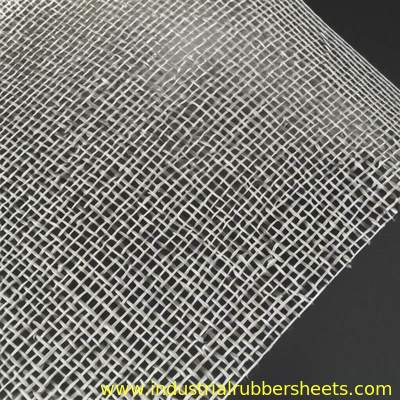

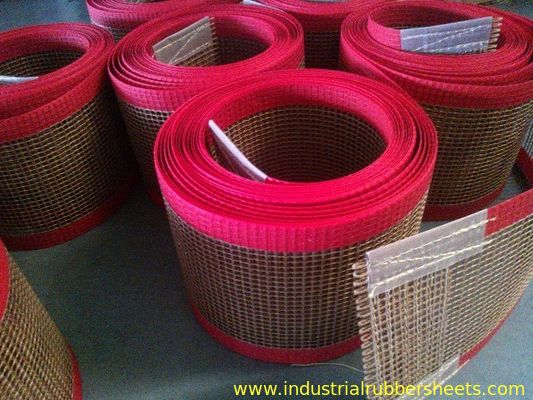

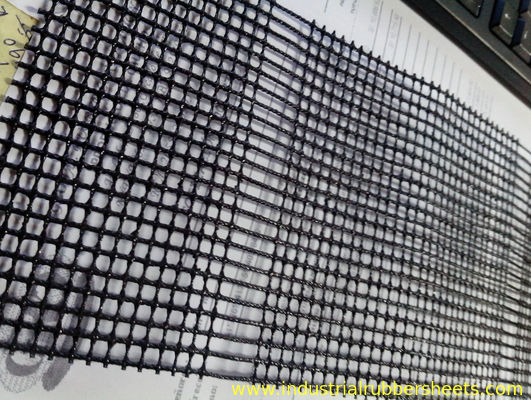

PTFE Mesh Fabric Conveyor Belt with Heat-Resistance, Chemical Resistance, and Non-Stick Surface for Industrial Applications
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ROHS/FCC/SGS |
| Model Number | 3A3008 |
| Minimum Order Quantity | 10rolls |
| Price | negotiation |
| Packaging Details | Packed in cartons |
| Delivery Time | 10 working days after received your payment |
| Payment Terms | T/T,L/C,Paypal,Western Union |
| Supply Ability | 10000kgs per month |
Product Details
| Material | PTFE+glassfiber Or Kevlar | Color | Brown, Black, Blue |
|---|---|---|---|
| Joint | Bullnose Joint,spiral And Clapper | Temperature | -60 ~ +360°C |
| Mesh | 0.5x1, 1x1, 2x2.5, 4x4, 6x6, 10x10mm | Width | Maximum 3.8m |
| Highlight | ptfe conveyor belt,PTFE mesh screen |
||
Product Description
PTFE Polyester Mesh Fabric for Conveyor Belt / Griddling Cloth
PTFE Open Mesh Belts - Conveyor Belt / Griddling Cloth made by PTFE coated fiberglass reinforced fabric mesh.
We selected quality glass, Kevlar and Nomex yarns to weave open mesh in a variety of mesh sizes, and then coated with best DuPont PTFE emulsion, which ensures our belts' superior quality.
Properties
- Smooth surface, easy to clean
- Non-stick, reusable
- Chemical resistance
- Insulating properties
- Heat resistance
Applications
- Drying machine for non-woven textile, textile printing, silk-printing and dyeing machine
- Shrinking machine for garment fabric, high-frequency and UV dryer
- Conveyor belt for hot-air dryer, various food baking, quick-frozen machines
- Oiling machine for paper glazing and waxing, plant engineering
Mesh Fabric Technical Datasheet
| Product | Mesh Size (mm) | Material | Color | Temperature (°C) | Max Width (M) | Tensile Strength (N/5CM) |
|---|---|---|---|---|---|---|
| 1 | 1*1 | Fiberglass | Brown/Black | -60/+360 | 4.07 | 1600/1500 |
| 2 | 4*4 | Fiberglass | Black | -60/+360 | 4.07 | 2200/1500 |
| 3 | 4*4 | Fiberglass | Brown | -60/+360 | 4.07 | 2100/1500 |
| 4 | 4*4 | Fiberglass+Kevlar | Golden | -60/+360 | 4.07 | 3300/2800 |
| 5 | 4*4 | Fiberglass | Brown | -60/+360 | 4.07 | 2800/1580 |
| 6 | 4*4 | Kevlar | Golden | -60/+360 | 4.07 | 3500/3300 |
| 7 | 4*4 | Fiberglass | Black | -60/+360 | 4.07 | 2800/1500 |
| 8 | 10*10 | Fiberglass | Brown | -60/+360 | 4.07 | 1100/1000 |
| 9 | 0.5*1 | Fiberglass | Brown | -60/+360 | 4.07 | 2200/1500 |
| 10 | 2*2.5 | Fiberglass | Brown | -60/+360 | 4.07 | 2200/1500 |
