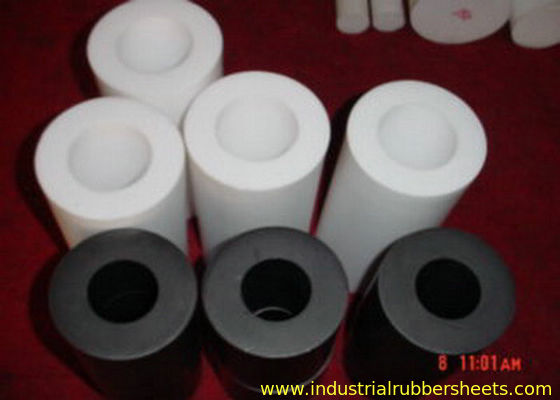

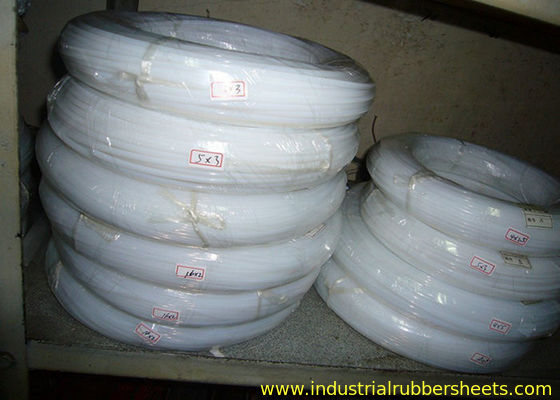

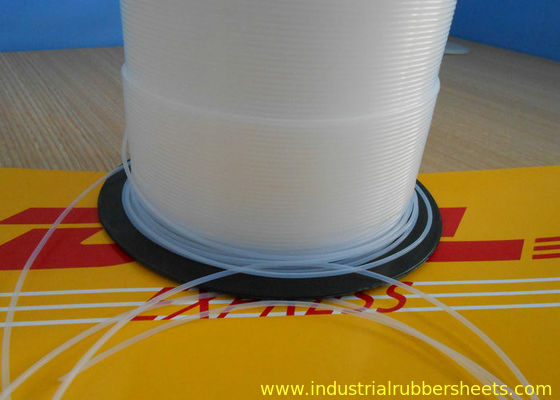

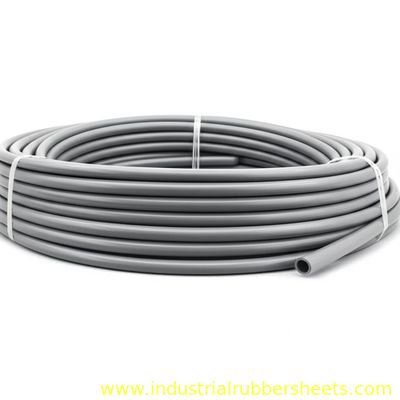

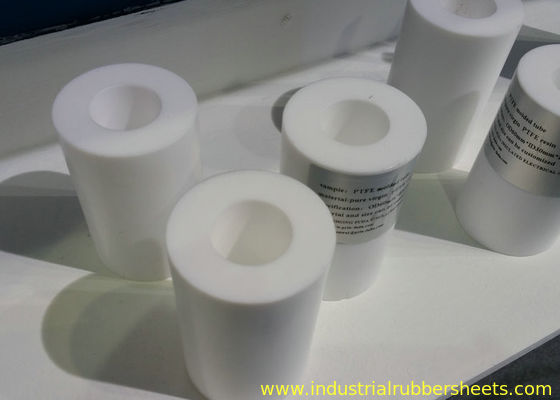

Premium Grade PTFE Hose and Tube with 20Mpa Tensile Strength, Corrosion Resistant, and Temperature Resistant -180°C to +260°C
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ROHS/FCC/SGS |
| Model Number | 3A3003 |
| Minimum Order Quantity | 100kgs |
| Price | negotiation |
| Packaging Details | Packed in cartons |
| Delivery Time | 10 working days after received your payment |
| Payment Terms | T/T,L/C,Paypal,Western Union |
| Supply Ability | 100000kgs per month |
Product Details
| Material | 100% Virgin PTFE Material | Color | White, Black |
|---|---|---|---|
| Tensile Strength | 20-30Mpa | Hardness | 50-60shore D |
| Elongation | 200-300% | Density | 2.1-2.3g/cm3 |
| Temperature Resist | -180°C - +260°C | ||
| Highlight | nylon round bar,hdpe bar |
||
Product Description
Premium Grade Construction Material PTFE Hose 20Mpa, PTFE PTFE Tube
Premium grade PTFE hose, PTFE tube, PTFE hose, PTFE tube, plastic hose, plastic tube
PTFE hose and tube are manufactured through moulding or extrusion processes using high-quality polytetrafluoroethylene (PTFE) material. As the best polymer material for chemical resistance among all known plastics, PTFE offers exceptional characteristics including corrosion resistance, weathering resistance, dielectric properties, and the lowest coefficient of friction among all known solid materials.
Operating within a wide temperature range from -180°C to +260°C, PTFE features a wax-like surface to which substances hardly adhere. The manufacturing process varies by diameter:
- Ø2-9mm: Paste extruded
- Ø10-50mm: Ram extruded
- Ø50-300mm: Moulded
PTFE maintains the best electrical properties of all plastics, making it ideal for electrical insulation across various frequencies, seal liners for corrosive media, anti-sticking applications, and lubrication materials.
Specifications
| Material | 100% virgin PTFE |
| Filling Options | Graphite, carbon, bronze or fiberglass |
| Quality Grades | Premium grade, commercial grade |
| Color Options | White, black |
| Surface | Smooth |
| Tensile Strength | 20Mpa |
| Hardness | 55+/-5 shore D |
| Elongation at Break | 200% |
| Density | 2.1-2.3g/cm³ |
| Break Down Voltage | 10KV/mm |
| Temperature Resistance | -180°C to +260°C |
| Soft PTFE Tube Sizes | Ø2-25mm x Ø4-30mm x 10-50m length |
| Extruded PTFE Tube Sizes | Ø20-400mm x Ø24-440mm x 4000mm length |
| Moulded PTFE Tube Sizes | Ø20-200mm x Ø40-400mm x 10-300mm length |
| Black Color Options | Available with 3% graphite or 10% carbon filling |
Important: When submitting an enquiry, please confirm the color, size and quantity requirements.
