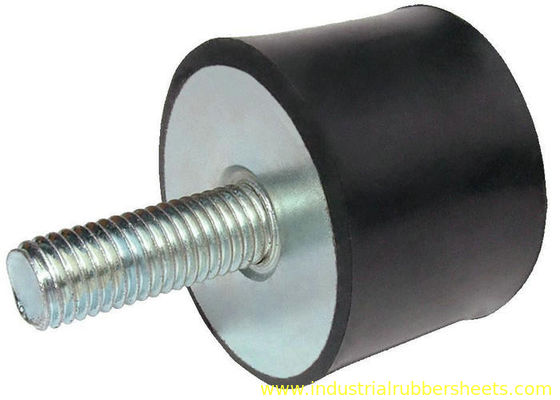

Galvanized Metal + Rubber Shock Mounts For Machinery / Rubber Vibration Dampers
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ROHS/FCC/SGS |
| Model Number | 3A4002 |
| Minimum Order Quantity | 100pieces |
| Price | negotiation |
| Packaging Details | Packed in cartons |
| Delivery Time | 10 working days after received your payment |
| Payment Terms | T/T, L/C, Paypal, Western Union |
| Supply Ability | 1000000pieces per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Rubber + Galvanized Metal | Type | B-MF |
|---|---|---|---|
| Color | Black | Tensile Strength | 8-12Mpa |
| Hardness | 40, 50, 60shore A | Size | Standard Size |
| OEM | Agreed | ||
| Highlight | rubber vibration damper,rubber shock absorber |
||
Product Description
B-MF rubber mounting, rubber shock mounts , rubber shock absorber , rubber to metal damper anti vibration mounts
B-MF rubber mountings is one of shock absorber screw with professional technology, inimitable formulation and full set of moulds without mould cost. one side is male bolts and another side is female screw made with high quality zinc coated metal and standard screwthread, the middle is high quality rubber of NR, NBR, EPDM, SBR etc.(default is NR). Apply to the anti-vibration and shock absorption for all kinds machinery, include mobile anti-vibration parts, health care equipment, machinery anti-vibration parts, computer parts.
Specifications:
material: galvanized metal + rubber
rubber: NR, NBR, EPDM, SBR etc.(default is NR)
quality: industrial grade
color: black
top: screw bolt
bottom: screw thread
surface: smooth
tensile strength: 8Mpa
hardness: 40, 50, 60+/-5shore A
elongation: 350%
density: 1.4g/cm3
size: standard without mould cost
OEM: agree to produce by the buyer's drawing
packing in cartons
***when you order, pls confirm the quantity and product code number or your drawings***
| Materials of Rubber to Metal Bonding | NBR,NR,CR,EPDM,SILICONE,FKM,SBR,ect,just as your request |
| Hardness | 30~90 shore A |
| Temperature | -40~+260 celsius degress,or as your request |
| Color | Black , or as your request |
| Size | As your request |
| Certifications | All manufacturing processes are complied with ISO9001&TS16949 |
| Materials | Materials meet RoHS directive,REACH,NSF,KTW,WRAS,etc |
| approved | |
| Logo | As your request |
| QC/QA | We have experienced quality control and assurance system |
| Sevice | OEM and ODM orders are highly welcomed according to your 2D,3D,drawing or samples |
| Guarantee | High quality,reasonable price,reliable service and quick shipment |
| MOQ | Negotiable,and small order quantity is welcomed |
| Applications of Rubber to Metal Bonding | Electrical Enclosure Seals |
| Grommets | |
| Light Fixture Seals | |
| Rubber to Metal Bonding | |
| Wire Access Seals | |
| Compliance: ISO9001:2000 and TS 16949 | |
| Industries Served of Rubber to Metal Bonding | Automotive,Consumer Appliances, |
| Electrical | |
| Enclosures | |
| Lighting | |
| Marine | |
| Transportation | |
|
Code |
A (mm) |
B (mm) |
M |
H / I (mm) |
|
B0607M3 |
6 |
7 |
M3 |
5 |
|
B0808M3 |
8 |
8 |
M3 |
4-6-10 |
|
B1008M4 |
10 |
8 |
M4 |
6.5-8-10 |
|
B1010M4 |
10 |
10 |
M4 |
6.5-8-10 |
|
B1015M4 |
10 |
15 |
M4 |
6.5-8-10 |
|
B1508M4 |
15 |
8 |
M4 |
6-8-10-14 |
|
B1510M4 |
15 |
10 |
M4 |
6-8-10-14 |
|
B1515M4 |
15 |
15 |
M4 |
6-8-10-14 |
|
B1520M4 |
15 |
20 |
M4 |
6-8-10-14 |
|
B1525M4 |
15 |
25 |
M4 |
8-10 |
|
B1508M5 |
15 |
8 |
M5 |
8-10 |
|
B1510M5 |
15 |
10 |
M5 |
8-10 |
|
B1520M5 |
15 |
20 |
M5 |
8-10 |
|
B1525M5 |
15 |
25 |
M5 |
8-10 |
|
B1610M4 |
16 |
10 |
M4 |
8-10-12 |
|
B1615M4 |
16 |
15 |
M4 |
8-10-12 |
|
B1620M4 |
16 |
20 |
M4 |
8-10-12 |
|
B1610M5 |
16 |
10 |
M5 |
8-10-12 |
|
B1615M5 |
16 |
15 |
M5 |
8-10-12 |
|
B1620M5 |
16 |
20 |
M5 |
8-10-12 |
|
B2010M6 |
20 |
10 |
M6 |
8-10-12-16-18-20 |
|
B2015M6 |
20 |
15 |
M6 |
8-10-12-16-18-20 |
|
B2020M6 |
20 |
20 |
M6 |
8-10-12-16-18-20 |
|
B2030M6 |
20 |
30 |
M6 |
8-10-12-16-18-20 |
|
B2510M6 |
25 |
10 |
M6 |
10-12-14-16-18-20 |
|
B2513M6 |
25 |
13 |
M6 |
10-12-14-16-18-20 |
|
B2515M6 |
25 |
15 |
M6 |
10-12-14-16-18-20 |
|
B2520M6 |
25 |
20 |
M6 |
10-12-14-16-18-20 |
|
B2522M6 |
22 |
25 |
M6 |
|
|
B2525M6 |
25 |
25 |
M6 |
8-10-12-16-18-20 |
|
B2530M6 |
25 |
30 |
M6 |
8-10-12-16-18-20 |
|
B2510M8 |
25 |
10 |
M8 |
8-12-14-18-20 |
|
B2513M8 |
25 |
13 |
M8 |
8-12-14-18-20 |
|
B2515M8 |
25 |
15 |
M8 |
8-12-14-18-20 |
|
B2520M8 |
25 |
20 |
M8 |
8-12-14-18-20 |
|
B2522M8 |
25 |
22 |
M8 |
8-12-14-18-20 |
|
B2525M8 |
25 |
25 |
M8 |
8-12-14-18-20 |
|
B2530M8 |
25 |
30 |
M8 |
8-12-14-18-20 |
|
B3010M6 |
30 |
10 |
M6 |
12-15-18 |
|
B3012M6 |
30 |
12 |
M6 |
12-15-18 |
|
B3015M6 |
30 |
15 |
M6 |
12-15-18 |
|
B3017M6 |
30 |
17 |
M6 |
12-15-18 |
|
B3020M6 |
30 |
20 |
M6 |
12-15-18 |
|
B3022M6 |
30 |
22 |
M6 |
12-15-18 |
|
B3025M6 |
30 |
25 |
M6 |
12-15-18 |
|
B3030M6 |
30 |
30 |
M6 |
12-15-18 |
|
B3040M6 |
30 |
40 |
M6 |
12-15-18 |
|
B3010M8 |
30 |
10 |
M8 |
14-18-20-23-25-35 |
|
B3012M8 |
30 |
12 |
M8 |
14-18-20-23-25-35 |
|
B3015M8 |
30 |
15 |
M8 |
14-18-20-23-25-35 |
|
B3017M8 |
30 |
17 |
M8 |
14-18-20-23-25-35 |
|
B3020M8 |
30 |
20 |
M8 |
14-18-20-23-25-35 |
|
B3022M8 |
30 |
22 |
M8 |
14-18-20-23-25-35 |
|
B3025M8 |
30 |
25 |
M8 |
14-18-20-23-25-35 |
|
B3030M8 |
30 |
30 |
M8 |
14-18-20-23-25-35 |
|
B3040M8 |
30 |
40 |
M8 |
14-18-20-23-25-35 |
|
B4010M8 |
40 |
10 |
M8 |
14-18-20-23-25-35 |
|
B4015M8 |
40 |
15 |
M8 |
14-18-20-23-25-35 |
|
B4020M8 |
40 |
20 |
M8 |
14-18-20-23-25-35 |
|
B4025M8 |
40 |
25 |
M8 |
14-18-20-23-25-35 |
|
B4028M8 |
40 |
28 |
M8 |
14-18-20-23-25-35 |
|
B4030M8 |
40 |
30 |
M8 |
14-18-20-23-25-35 |
|
B4035M8 |
40 |
35 |
M8 |
14-18-20-23-25-35 |
|
B4040M8 |
40 |
40 |
M8 |
14-18-20-23-25-35 |
|
B4045M8 |
40 |
45 |
M8 |
14-18-20-23-25-35 |
|
B4010M10 |
40 |
10 |
M10 |
15-18.5-20-25-28-35 |
|
B4015M10 |
40 |
15 |
M10 |
15-18.5-20-25-28-35 |
|
B4020M10 |
40 |
20 |
M10 |
15-18.5-20-25-28-35 |
|
B4025M10 |
40 |
25 |
M10 |
15-18.5-20-25-28-35 |
|
B4028M10 |
40 |
28 |
M10 |
15-18.5-20-25-28-35 |
|
B4030M10 |
40 |
30 |
M10 |
15-18.5-20-25-28-35 |
|
B4035M10 |
40 |
35 |
M10 |
15-18.5-20-25-28-35 |
|
B4040M10 |
40 |
40 |
M10 |
15-18.5-20-25-28-35 |
|
B4045M10 |
40 |
45 |
M10 |
15-18.5-20-25-28-35 |
|
B5015M10 |
50 |
15 |
M10 |
15-18.5-20-25-28-35 |
|
B5020M10 |
50 |
20 |
M10 |
15-18.5-20-25-28-35 |
|
B5025M10 |
50 |
25 |
M10 |
15-18.5-20-25-28-35 |
|
B5030M10 |
50 |
30 |
M10 |
15-18.5-20-25-28-35 |
|
B5040M10 |
50 |
40 |
M10 |
15-18.5-20-25-28-35 |
|
B5045M10 |
50 |
45 |
M10 |
15-18.5-20-25-28-35 |
|
B5050M10 |
50 |
50 |
M10 |
15-18.5-20-25-28-35 |
|
B6030M10 |
60 |
30 |
M10 |
15-18.5-20-25-28-35 |
|
B6035M10 |
60 |
35 |
M10 |
15-18.5-20-25-28-35 |
|
B6040M10 |
60 |
40 |
M10 |
15-18.5-20-25-28-35 |
|
B6045M10 |
60 |
45 |
M10 |
15-18.5-20-25-28-35 |
|
B6050M10 |
60 |
50 |
M10 |
15-18.5-20-25-28-35 |
|
B6030M12 |
60 |
30 |
M12 |
28-37 |
|
B6035M12 |
60 |
35 |
M12 |
28-37 |
|
B6040M12 |
60 |
40 |
M12 |
28-37 |
|
B6045M12 |
60 |
45 |
M12 |
28-37 |
|
B6050M12 |
60 |
50 |
M12 |
28-37 |
|
B7030M12 |
70 |
30 |
M12 |
28-37 |
|
B7040M12 |
70 |
40 |
M12 |
28-37 |
|
B7050M12 |
70 |
50 |
M12 |
28-37 |
|
B7525M12 |
75 |
25 |
M12 |
28-37 |
|
B7530M12 |
75 |
30 |
M12 |
28-37 |
|
B7540M12 |
75 |
40 |
M12 |
28-37 |
|
B7545M12 |
75 |
45 |
M12 |
28-37 |
|
B7550M12 |
75 |
50 |
M12 |
28-37 |
|
B8080M12 |
80 |
80 |
M12 |
35-45-57 |
|
B8080M16 |
80 |
80 |
M16 |
35-45-57 |
|
B10040M16 |
100 |
40 |
M16 |
35-45-57 |
|
B10050M16 |
100 |
50 |
M16 |
35-45-57 |
|
B10055M16 |
100 |
55 |
M16 |
35-45-57 |
|
B10060M16 |
100 |
60 |
M16 |
35-45-57 |
|
B100100M16 |
100 |
100 |
M16 |
35-45-57 |
