CNC Machining Precision Insulate PTFE Gasket Food Grade for Industrial Seal
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ROHS/FCC/SGS |
| Model Number | 3A3009 |
| Minimum Order Quantity | 100pieces |
| Price | negotiation |
| Packaging Details | Packed in cartons |
| Delivery Time | 10 working days after received your payment |
| Payment Terms | T/T,L/C,Paypal,Western Union |
| Supply Ability | 10000kgs per month |
Product Details
| Material | 100% Virgin PTFE | Quality | FDA Grade |
|---|---|---|---|
| Surface | Smooth | Produced | CNC Machining |
| Color | White, Black | Size | As Per The Buyer's Drawing Or Sample |
| Tensile Strength | 20-30Mpa | Hardness | 55+/-5shore D |
| Elongation | 200% | Density | 2.1-2.3g/cm3 |
| Highlight | ptfe packing material,ptfe graphite packing |
||
Product Description

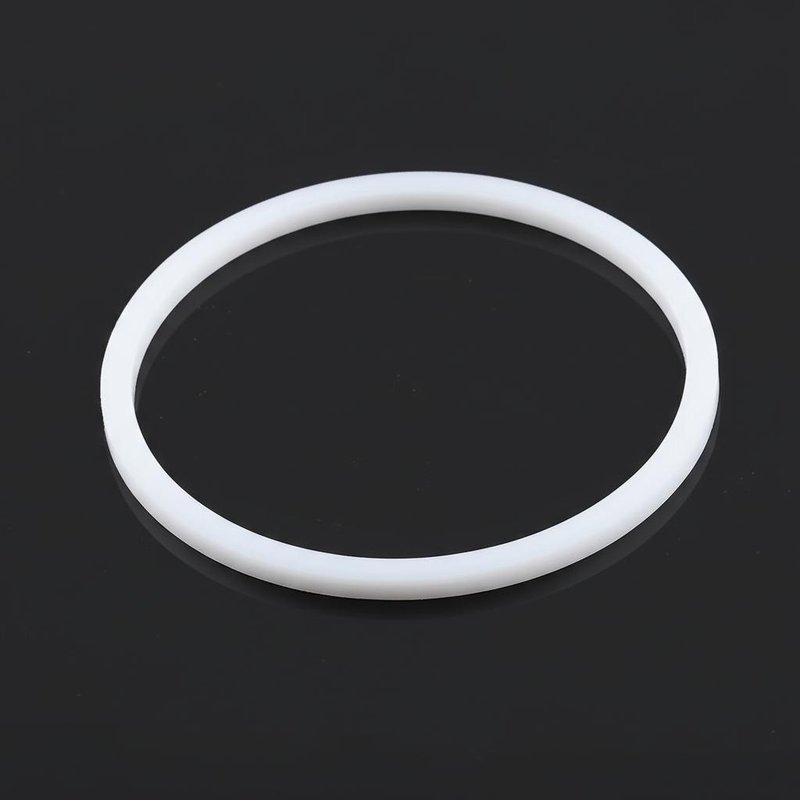

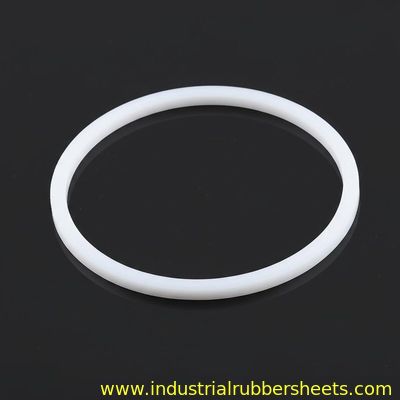

CNC Machining Precision Insulate PTFE Gasket Food Grade For Industrial Seal

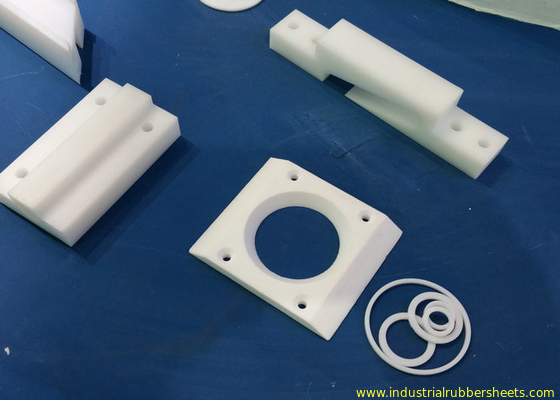

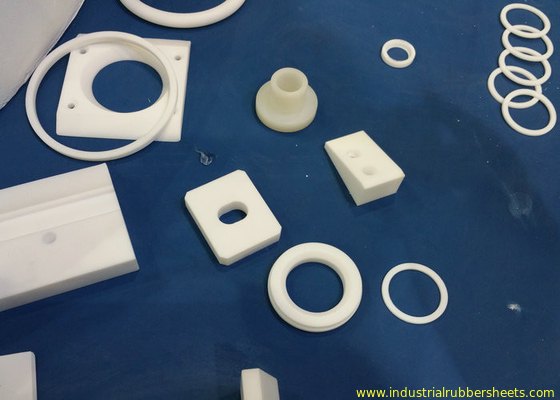

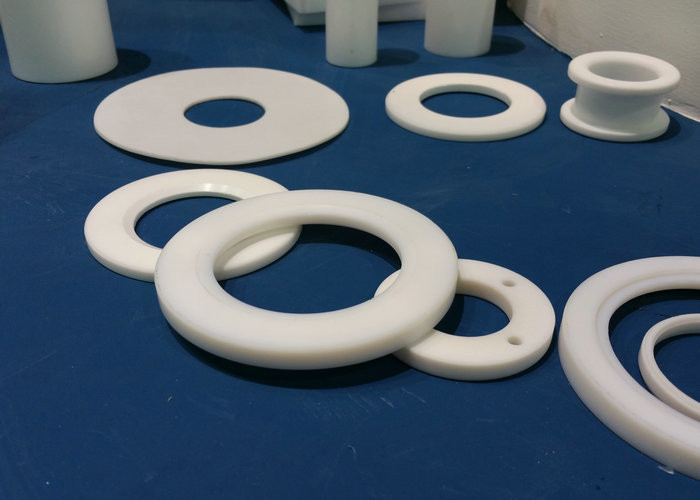

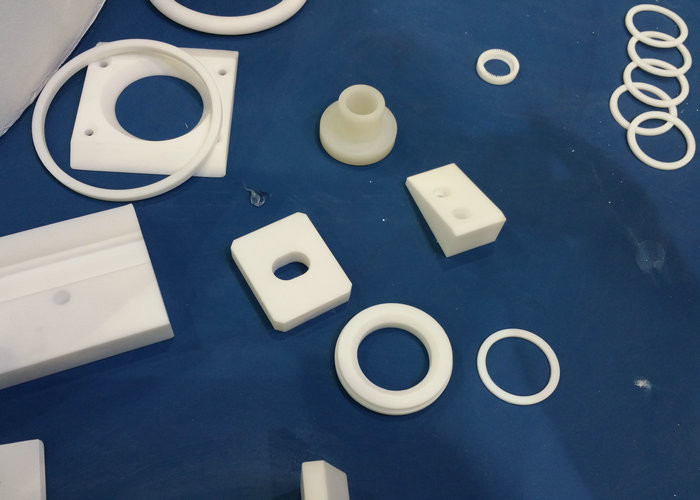

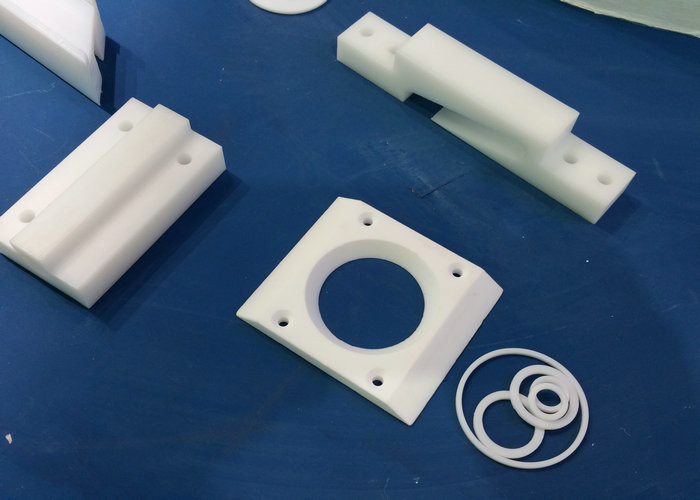

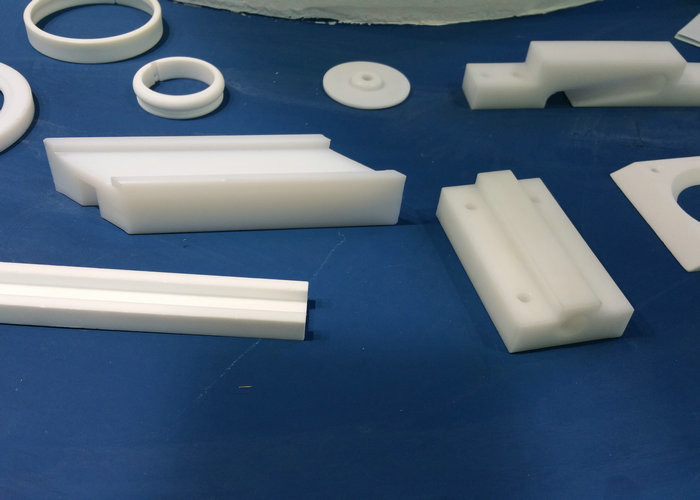

CNC machining various precision seals PTFE gasket for industrial seal
Product Specifications
Dimension: Outer Diameter, Inner Diameter, Thickness, Chamfer (If needed)
Material: Virgin PTFE, filled PTFE, PEEK
Finish: With your tolerance, Smooth surface, no black block, no Burr, no tool marks
Package: In order to protect the Gasket shape, especially for thin gasket, we will pack them in Strong Carton or wooden case, however, this will depend on your dimension and quantity
Properties of PTFE
Of all the known plastics, PTFE has some remarkable properties: it will not be attacked by corrosive acids, even if they were hot; it does not dissolve in solvents; it can be cooled to -180°C without becoming brittle and it can be heated to 260°C without impairing its performance. PTFE materials are also extremely stable and nonflammable; clean, dry, non-oily and non-staining. The material is biologically inert and does not support biological growth (that is, it is non-pyrogenic). PTFE offers an extremely low static coefficient of friction, which stems from the extremely low intermolecular forces in the PTFE molecule itself.
- Apparent Density: 2.1 ~ 2.3 g/cm³
- Tensile Strength: ≥ 14.0 MPa
- Ultimate Elongation: ≥ 140%
- Temperature: -20°F to 500°F (-180°C to 260°C)
For more properties of PTFE, please contact our sales representative!
Characteristics of PTFE Gasket
- Oil Free
- High temperature resistance
- Wear-resisting
- Insulate
- Non-stick
Applications of PTFE Gasket
- Agricultural, pumps, mining
- Rail and transport use, Wheels
- General engineering applications
- Marine, Shipping, Automotive
Packaging & Delivery
| Packaging Details | Inner plastic bag with EPE or carton board to protect the goods from pressing. Outside in Carton or wooden box. |
|---|---|
| Delivery Detail | Within 7 work days after received payment |
