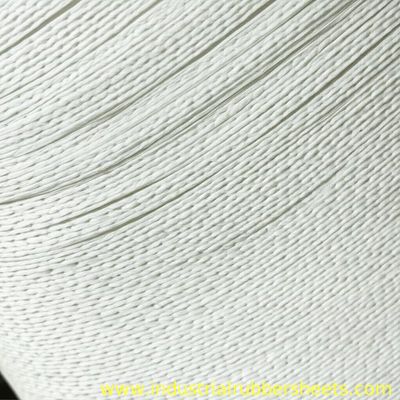

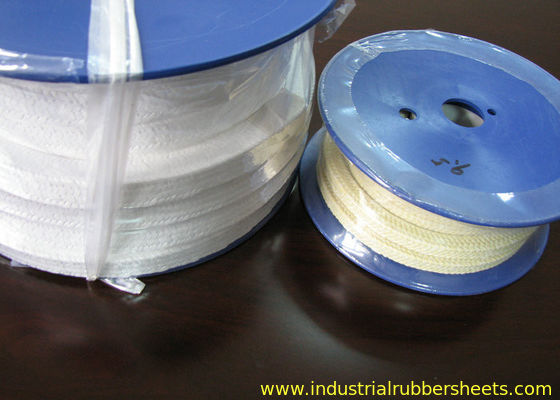

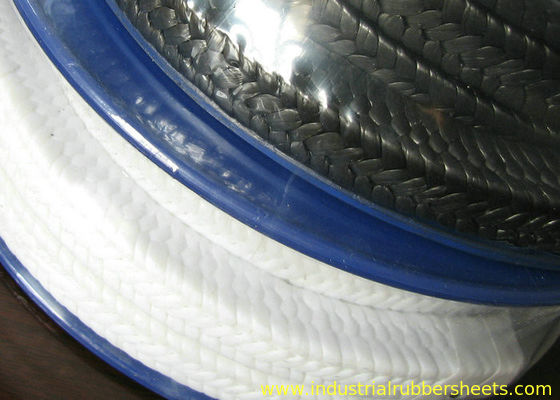

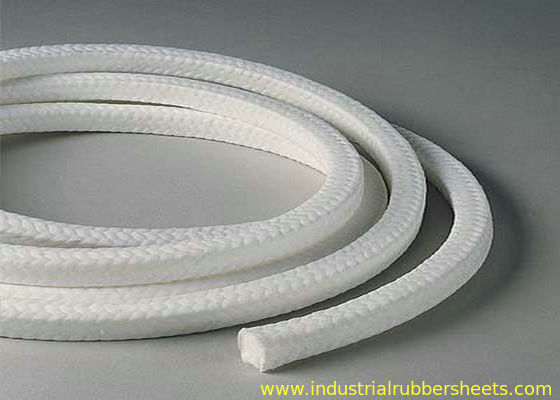

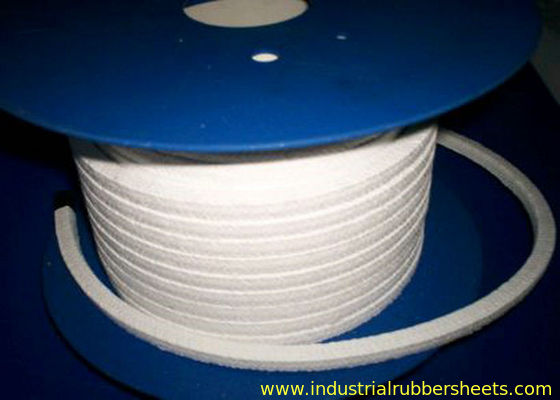

White Lattice Braid PTFE Packing with High Cross-Sectional Density for Wide Temperature Range -240°C to +288°C

  • White Lattice Braid PTFE Packing with High Cross-Sectional Density for Wide Temperature Range -240°C to +288°C
  • White Lattice Braid PTFE Packing with High Cross-Sectional Density for Wide Temperature Range -240°C to +288°C
  • White Lattice Braid PTFE Packing with High Cross-Sectional Density for Wide Temperature Range -240°C to +288°C
  • White Lattice Braid PTFE Packing with High Cross-Sectional Density for Wide Temperature Range -240°C to +288°C
  • White Lattice Braid PTFE Packing with High Cross-Sectional Density for Wide Temperature Range -240°C to +288°C
  • White Lattice Braid PTFE Packing with High Cross-Sectional Density for Wide Temperature Range -240°C to +288°C
Place of Origin China
Brand Name 3A Rubber
Certification ROHS/FCC/SGS
Model Number 3A3004
Minimum Order Quantity 10pieces
Price negotiation
Packaging Details Packed in cartons
Delivery Time 10 working days after received your payment
Payment Terms T/T,L/C,Paypal,Western Union
Supply Ability 10000kgs per month
Product Details
Material PTFE Yarn Fiber, PTFE Filament Color White
Structure Lattice Braid Working Press 2-20Mpa
Working Speed 2-20m/s Working Temperature -240°C ~ +288°C
Size 3-50mm X 3-50mm X 5, 10, 15kgs
Highlight

ptfe packing material

,

ptfe graphite packing
Leave a Message
Product Description
White Lattice Braided PTFE Packing
Hot sales pure graphite packing for steam valve pump from China
Characteristics
  • PTFE packing is a good sealing material made by braiding PTFE strips
  • High cross-sectional density and structural strength
  • Low coefficient of friction for easy shaft running
  • Long lubricant squeezed out under operating pressure
Application
  • Applicable for dynamic seal at high linear speed
  • Often used in check and needle valve stems
  • Reciprocating rods, rams, and plungers
  • Safety injection system valves
Specifications
  • Pressure: 2MPa in centrifugal pumps, 10MPa in piston pumps, 20MPa in valves
  • Temperature: <280°C
  • Linear speed: 4m/s in centrifugal pumps, 2m/s in piston pumps, 2m/s in valves
  • PH range: 0 - 14
  • Thickness: 3.0 - 50mm
Product Comparison
Commodity Item Rotating Reciprocating Static
White pure PTFE packing without lubricant and PTFE emulsion, braided from PTFE dispersion and lubricant is not impregnated for valves and lower shaft speed applications under medial pressure in food processing, paper mills, fibre plants where high purity and corrosion resistance is required working pressure (bar)
shaft speed (m/s)
temperature
PH range		 15
6
-150 ~ +260°C
0-14		 100
3
-150 ~ +260°C
0-14		 150

-150 ~ +260°C
0-14
White PTFE packing with lubricant, braided from PTFE dispersion and lubricant and PTFE emulsion are impregnated for valves and lower shaft speed applications under medial pressure in food processing, paper mills, fibre plants where high purity and corrosion resistance is required working pressure (bar)
shaft speed (m/s)
temperature
PH range		 15
6
-150 ~ +260°C
0-14		 100
3
-150 ~ +260°C
0-14		 200

-150 ~ +260°C
0-14
White PTFE packing with silicone core, braided with PTFE yarn and blended with silicone rubber core in central position with excellent compression compensation power for valves and lower shaft speed applications under medial pressure in food processing, paper mills, fibre plants where high purity and corrosion resistance is required working pressure (bar)
shaft speed (m/s)
temperature
PH range		 15
6
-150 ~ +260°C
0-14		 100
3
-150 ~ +260°C
0-14		 150

-150 ~ +260°C
0-14
White Lattice Braided PTFE Packing product illustration
