100% Virgin Natural Rubber Sheet with 15-24Mpa Tensile Strength and 35-60 Shore A Hardness for Industrial Use
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ROHS/FCC/SGS |
| Model Number | 3A5001 |
| Minimum Order Quantity | 200kgs |
| Price | negotiation |
| Packaging Details | Packed in rolls and pallets |
| Delivery Time | 10-20 working days after received your payment |
| Payment Terms | T/T,L/C,Paypal,Western Union |
| Supply Ability | 100000kgs per month |
Product Details
| Material | 100% Virgin Natural Rubber | Quality | Industrial Grade |
|---|---|---|---|
| Color | Red, Black, White, Brown, Beige, Green Etc. | Surface | Smooth Or Impression Fabric |
| Tensile Strength | 15-24Mpa | Hardness | 35-60shore A |
| Elongation | 500%-740% | Density | 0.96-1.25g/cm3 |
| Working Temperature | -35°C - +85°C | Thickness | 1-80mm |
| Width | 1-3.6m | Length | 1-20m |
| Highlight | rubber sheet rolls,waterproof rubber sheet |
||
Product Description

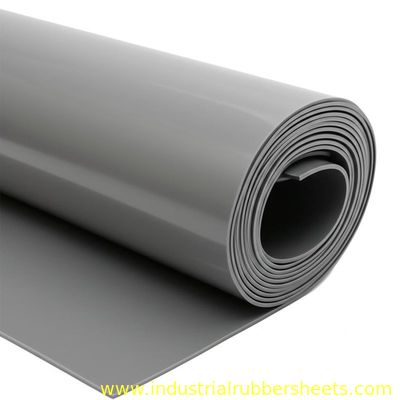

High Elasticity Industrial Rubber Sheet For PVC Vacuum Laminating Press
Wear-resistant rubber sheet made with 100% virgin natural rubber, offering superior elasticity and durability. Available in gum rubber sheet, pure natural rubber sheet, and para rubber sheet variations with 15-24Mpa tensile strength and 40 Shore A hardness.
Key Features
- 100% virgin natural rubber construction
- Food grade quality for safe applications
- Excellent tensile strength (15-24Mpa) and elongation (500%-740%)
- Wide operating temperature range (-35°C to +85°C)
- Available in multiple colors and surface finishes
- Reinforcement options with 1-3PLY fabric insertion
Technical Specifications
| Material | Pure natural rubber |
|---|---|
| Quality | Food grade |
| Color Options | Red, black, white, brown, beige, green etc. |
| Surface Finishes | Smooth/smooth, smooth/impression fabric, double impression fabric |
| Tensile Strength | 15-24Mpa |
| Hardness | 35, 40, 50, 60+/-5 Shore A |
| Elongation | 500%-740% |
| Density | 0.96-1.25g/cm³ |
| Working Temperature | -35°C to +85°C |
| Thickness | 1.0-80.0mm |
| Width | 0.1-3.6m |
| Length | 1.0-20m |
Manufacturing & Applications

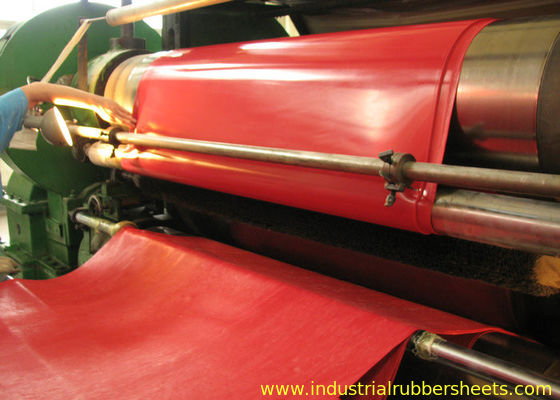

Produced using ROTOCURE vulcanizing press or standard vulcanizing press for thicker sheets (7-80mm). Made from high-quality natural rubber (NR) sourced from rubber trees, offering medium hardness with exceptional tensile strength, elongation, abrasion resistance, and elasticity. The material is completely safe and non-toxic with no odor.
Ideal for high-pressure applications requiring wear resistance and food-grade lining. Commonly used for manufacturing seals, gaskets, linings (including truck lining and drinking water lining), and specialized rubber membranes for PVC vacuum laminating presses.
When requesting a quote, please specify your requirements for tensile strength, hardness, color, dimensions, and quantity.
