High Temperature Rubber Sheet with Compression Set ≤15%, Tensile Strength 5-9MPa, and Acid Resistance for Industrial Applications
Product Details
| Length | 10m-20m | Compression Set | ≤15% |
|---|---|---|---|
| Tensile Strength | 5-9MPa | Name | Viton Rubber Sheet, Fluorubber Sheet, FKM Sheet, FPM Sheet |
| Hardness | 75±5 Shore A | Application | Apply To Punch All Kinds Of Rubber Seal, Rubber Gasket Or Special For Wooden PVC Vacuum Laminator, Steel Door Vacuum Laminator, Safety Glass Vacuum Laminating Bags, Solar Photovoltaic Module Vacuum Laminator, Hot Press Laminator, Card Press Laminator And O |
| Acid Resistance | Good | Width | 1m-2m |
| Highlight | Compression Set ≤15% High Temperature Rubber Sheet,Tensile Strength 5-9MPa Viton Rubber Sheet,Temperature Range -60°C to +320°C Fluorubber Sheet |
||
Product Description
Temperature-Rubber-Pad Minimizing Compression Set and Maximizing Elongation for Industrial
Product Overview
The High Temperature Rubber Sheet, also known as Viton Rubber Sheet, Fluorubber Sheet, FKM Sheet, or FPM Sheet, is a versatile and durable material designed for applications requiring exceptional resistance to high temperatures. Engineered to perform under extreme conditions, this material offers superior properties to meet the demanding requirements of various industrial applications.
With a compression set of ≤15%, this high-temperature rubber maintains its shape and elasticity even after prolonged exposure to compression forces, ensuring long-lasting performance and reliability. The material exhibits tensile strength ranging from 5 to 9MPa, providing the necessary toughness to withstand mechanical stresses and environmental factors.
Operating temperature range of -60°C to +320°C makes this material suitable for environments where extreme heat or cold is present. The elongation of ≥200% allows for flexibility and adaptability, ensuring secure fitting and reliable sealing in challenging conditions.
Key Features
- Product Name: High Temperature Rubber Sheet
- Compression Set: ≤15%
- Also Known As: Viton Rubber Sheet, Fluorubber Sheet, FKM Sheet, FPM Sheet
- Aging Resistance: Excellent
- Thickness Range: 0.5mm-10mm
- Oil and Acid Resistance: Good
- Hardness: 75±5 Shore A
Technical Specifications
| Tensile Strength | 5-9MPa |
| Material | Fluorubber, FKM, FPM, Viton |
| Hardness | 75±5 Shore A |
| Compression Set | ≤15% |
| Temperature Range | -60°C to +320°C |
| Elongation | ≥200% |
Applications
Industrial Applications
Ideal for use as protective covers for machinery, manufacturing facility mats, and high-temperature resistant components in industrial settings.
Automotive Industry
Suitable for engine gaskets, seals, and heat-resistant mats in vehicle maintenance workshops due to excellent oil resistance.
Chemical Industry
Perfect for tank linings and protective barriers in corrosive environments with good acid resistance.
Construction Sector
Used for insulation, sealing, and weatherproofing applications in construction projects.
Customization & Ordering Details
- Brand Name: 3A Rubber
- Model Number: 3A5007
- Place of Origin: China
- Certification: ISO9001
- Minimum Order Quantity: 100kgs
- Price: USD 12.80-22.80/kg
- Available Colors: Black, White, Brown, Green, Yellow
- Surface Options: Smooth, Impression Fabric
- Packaging: Rolls and pallets
- Delivery Time: 7-15 days
- Payment Terms: T/T, L/C, D/P, Western Union, Paypal
- Supply Capacity: 200,000 kgs/month

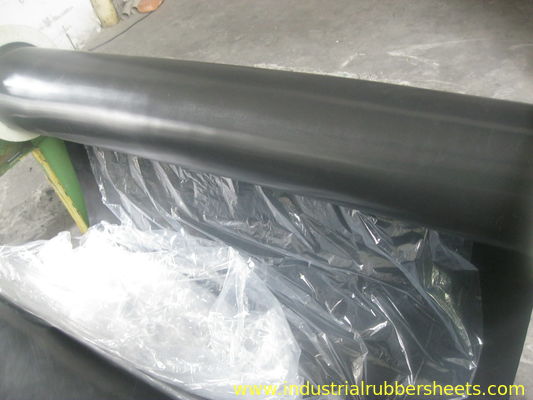

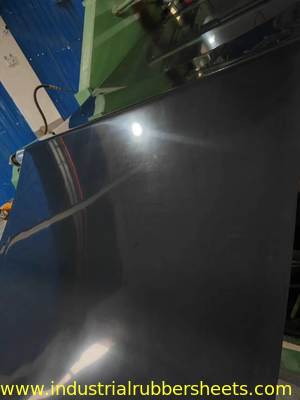

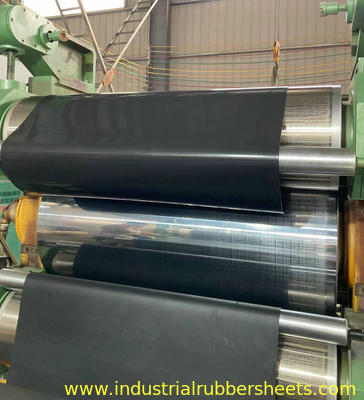

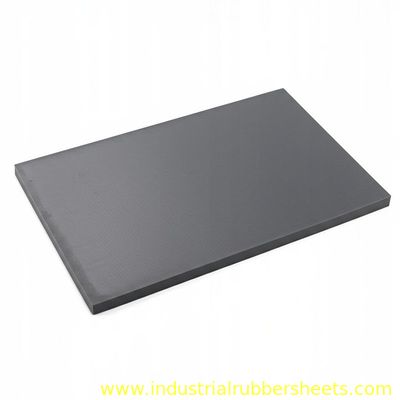

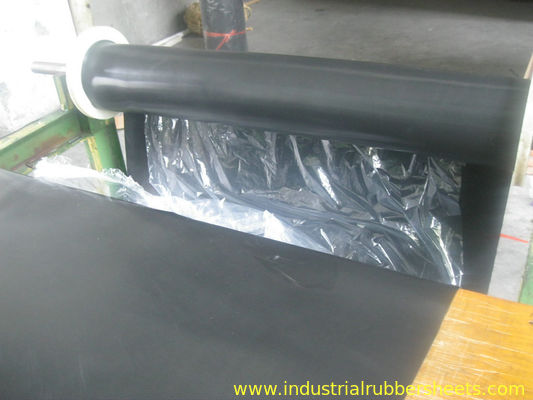

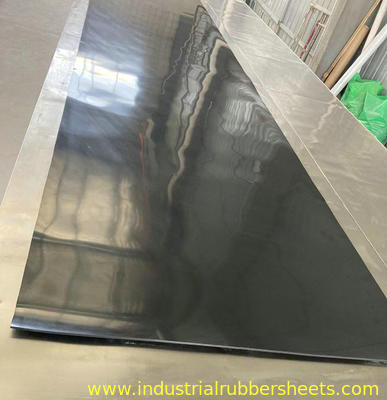

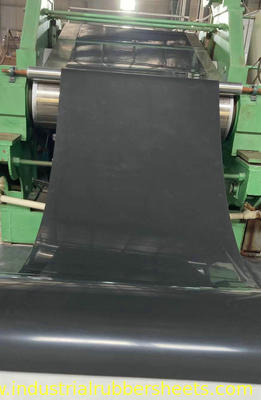

Product Images
