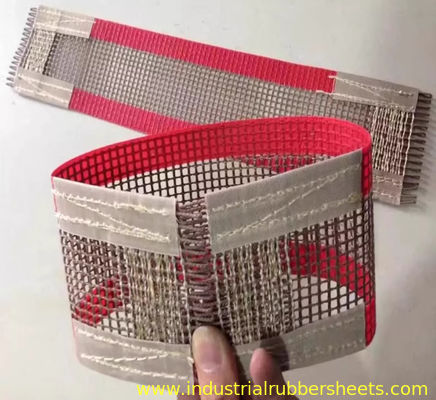

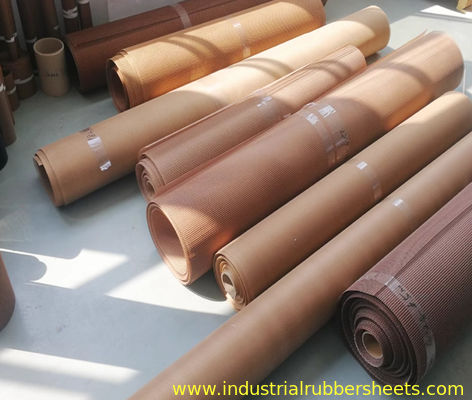

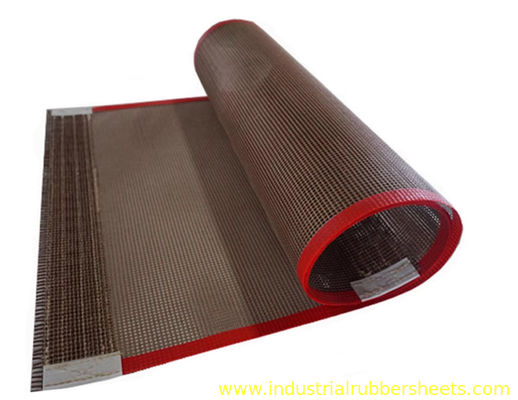

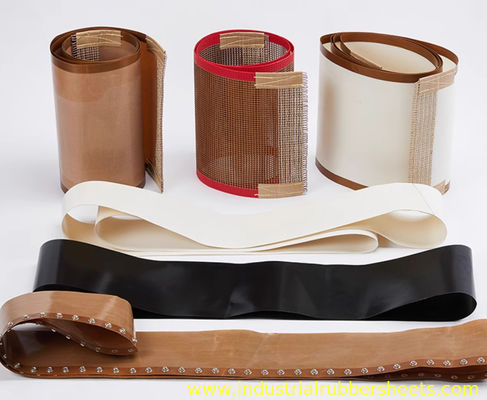

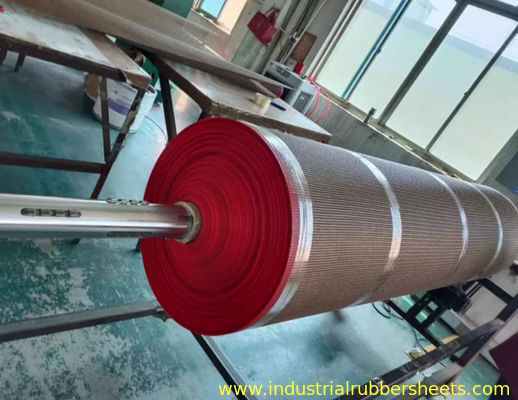

PTFE Mesh Belt with Temperature Resistance -60 to +320°C, Excellent Chemical Resistance, and High Tensile Strength

  • PTFE Mesh Belt with Temperature Resistance -60 to +320°C, Excellent Chemical Resistance, and High Tensile Strength
  • PTFE Mesh Belt with Temperature Resistance -60 to +320°C, Excellent Chemical Resistance, and High Tensile Strength
  • PTFE Mesh Belt with Temperature Resistance -60 to +320°C, Excellent Chemical Resistance, and High Tensile Strength
  • PTFE Mesh Belt with Temperature Resistance -60 to +320°C, Excellent Chemical Resistance, and High Tensile Strength
  • PTFE Mesh Belt with Temperature Resistance -60 to +320°C, Excellent Chemical Resistance, and High Tensile Strength
  • PTFE Mesh Belt with Temperature Resistance -60 to +320°C, Excellent Chemical Resistance, and High Tensile Strength
Place of Origin Bank T/T, L/C, D/P, Paypal, Western Union, Wechat, Alipay
Brand Name 3A Rubber
Certification ISO9001
Model Number 3A3010
Minimum Order Quantity 1roll
Packaging Details Packing in rolls and cartons, Pallets
Delivery Time 7-15days
Payment Terms Bank T/T,L/C,D/P,Paypal,Western Union,Wechat,Alipay
Supply Ability 100000m/month
Product Details
Color White Freezer Safe Yes
Chemical Resistance Excellent Joint Bullnose Joint,spiral And Clapper
High Tensile Strength Yes Width Maxium 4.0m
Temperature Resistance Up To 260°C Temperature -60 ~ +320°C
Highlight

Temperature Resistance PTFE Mesh

,

Freezer Safe PTFE Mesh

,

High Temperature Resistance PTFE Mesh
Leave a Message
Product Description
PTFE Mesh Temperature -60°C to +320°C
Product Overview

PTFE Mesh, also known as PTFE Mesh Belt or PTFE Mesh Conveyor Belt, is a high-temperature resistant and breathable mesh material designed for various industrial applications. Made from PTFE (polytetrafluoroethylene), this material offers excellent heat resistance and can withstand temperatures ranging from -60°C to +320°C.

Key Features
  • Temperature Range: -60°C to +320°C
  • Breathable Structure: Allows air and steam passage for efficient drying and cooling
  • Joint Options: Bullnose Joint, Spiral, and Clapper
  • Mesh Sizes: 0.5*1mm, 1*1mm, 2*2.5mm, 4*4mm, 6*6mm, 10*10mm
  • Material: PTFE (Polytetrafluoroethylene)
  • Chemical Resistance: Excellent
  • High Tensile Strength: Yes
  • Color: White
Technical Specifications
Attribute Value
Product Name PTFE Mesh
Product Type PTFE Mesh Belt
Material PTFE (Polytetrafluoroethylene)
Color White
Width Maximum 4.0m
Temperature Range -60°C to +320°C
Mesh Size 0.5*1, 1*1, 2*2.5, 4*4, 6*6, 10*10mm
Joint Type Bullnose Joint, Spiral and Clapper
Applications

PTFE Mesh is widely used in industries requiring high temperature resistance and non-stick properties:

  • Food processing and packaging
  • Industrial drying and baking
  • Conveyor belts for industrial ovens
  • Non-stick cooking and baking applications
  • Chemical industry applications
  • Pharmaceutical manufacturing
Customization Service

3A Rubber offers comprehensive customization services for PTFE Mesh Belt, including size, shape, color, and material modifications to meet your specific application requirements.

ISO9001 Certified
Minimum Order: 1 Roll
Delivery: 7-15 Days
Supply Capacity: 100,000m/month
Packaging & Shipping

PTFE Mesh is packaged in durable cardboard boxes with protective plastic wrapping. Each roll is clearly labeled for easy identification. Orders ship within 1-2 business days with tracking information provided.
