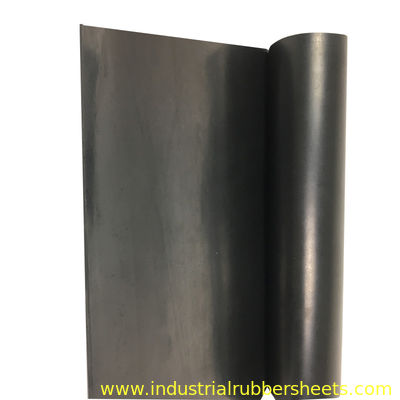

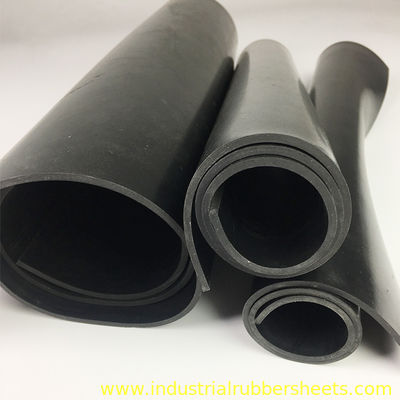

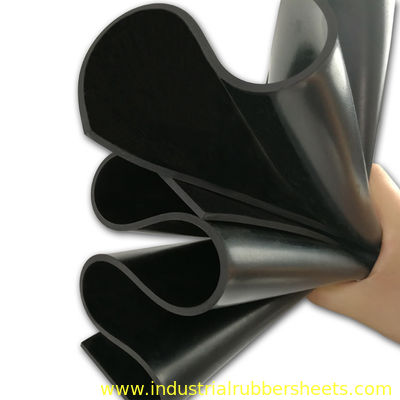

Weather Resistance Super Thin Industrial Rubber Sheet with Excellent Aging Resistance
Product Details
| Aging Resistance | Excellent | Elongation | 170%-760% |
|---|---|---|---|
| Tensile Strength | 2-24Mpa | Length | 1.0-20m |
| Thickness | 0.5-100.0mm | Temperature Range | -35°C - +85°C |
| Hardness | 35, 40, 50, 60, 70, 80, 90+/-5shore A | Chemical Resistance | Excellent |
| Highlight | Weather Resistance Industrial Rubber Sheet,Super Thin Industrial Rubber Sheet,Weather Resistance thin rubber sheet |
||
Product Description
Weather Resistance Industrial Rubber Sheet Super Thin
Our SBR rubber sheets and rolls are manufactured using high-quality Styrene Butadiene Rubber (SBR) material through drum vulcanizer (ROTOCURE) or plate vulcanizer processes. These industrial-grade rubber products feature medium hardness with exceptional tensile strength, high abrasion resistance, and are odor-free.
Available in thicknesses from 0.5-10mm with shiny surfaces (drum vulcanized) and 12-100mm thicknesses (plate vulcanized) for higher density requirements. Designed to operate under high pressure conditions within temperature ranges of -35°C to +100°C in both air and water environments. Ideal for punching various seals, gaskets, and components requiring high abrasion resistance, impact resistance, and superior cushioning performance.
Technical Specifications
| Specific Gravity (g/cm³) | Tensile Strength (Mpa) | Elongation (%) | Hardness (Shore A) | Thickness (mm) | Width (m) | Length (m) |
|---|---|---|---|---|---|---|
| 1.7 | 2 | 170 | 65±5 | 1.0-100 | 0.1-2.0 | 1-10.0 |
| 1.6 | 2.5 | 200 | 65±5 | 1.0-100 | 0.1-2.0 | 1-10.0 |
| 1.5 | 3 | 200 | 65±5 | 1.0-100 | 0.1-2.0 | 1-10.0 |
| 1.45 | 4 | 200 | 40-80±5 | 1.0-100 | 0.1-2.0 | 1-10.0 |
| 1.4 | 5 | 250 | 40-80±5 | 1.0-100 | 0.1-2.0 | 1-10.0 |
| 1.35 | 8 | 300 | 40-80±5 | 0.5-100 | 0.1-3.6 | 1-10.0 |
| 1.25 | 10 | 350 | 40-80±5 | 0.5-100 | 0.1-3.6 | 1-10.0 |
| 1.15 | 12 | 380 | 40-80±5 | 0.5-100 | 0.1-3.6 | 1-10.0 |
Additional Specifications
Material: Virgin SBR Rubber or reclaimed SBR
Quality: Industrial grade
Color: Black, white, red, grey, green, blue, etc.
Surface: Smooth/smooth, smooth/impression fabric, double impression fabric
Insertion: Reinforce and insert 1-3PLY cotton, polyester, EP fabric or wire mesh SS201, SS304, SS316
Tensile Strength: 2-12 Mpa
Hardness: 40, 50, 60, 70, 80+/-5 shore A
Elongation: 170%-380%
Density: 1.15-1.70 g/cm³
Working Temperature: -35°C to +100°C
Thickness: 0.5-100.0 mm
Width: 0.1-3.6 m
Length: 1.0-10 m
OEM: Customized sizes available upon agreement
Quality: Industrial grade
Color: Black, white, red, grey, green, blue, etc.
Surface: Smooth/smooth, smooth/impression fabric, double impression fabric
Insertion: Reinforce and insert 1-3PLY cotton, polyester, EP fabric or wire mesh SS201, SS304, SS316
Tensile Strength: 2-12 Mpa
Hardness: 40, 50, 60, 70, 80+/-5 shore A
Elongation: 170%-380%
Density: 1.15-1.70 g/cm³
Working Temperature: -35°C to +100°C
Thickness: 0.5-100.0 mm
Width: 0.1-3.6 m
Length: 1.0-10 m
OEM: Customized sizes available upon agreement
Packaging
In rolls with plastic bags inside, outer white woven bags and finally wooden pallets
For detailed technical data and information, please email:
sales@3Arubber.com
When inquiring, please specify: tensile strength, hardness, color, size and quantity
sales@3Arubber.com
When inquiring, please specify: tensile strength, hardness, color, size and quantity
Customization Services
3Arubber offers comprehensive customization services for our Industrial Rubber Sheet (Model: 3A5001). Manufactured in China with a minimum order quantity of 2 rolls. Products are packaged in rolls and delivered within 10-15 days.
Payment Methods: T/T, Western Union, PayPal,
Supply Capacity: 100,000 square meters
Custom Length: 1.0 to 20 meters
Material: Natural rubber with excellent aging resistance and ozone resistance
Available Colors: Black, white, brown, beige, red, green
Supply Capacity: 100,000 square meters
Custom Length: 1.0 to 20 meters
Material: Natural rubber with excellent aging resistance and ozone resistance
Available Colors: Black, white, brown, beige, red, green
Related Keywords
- Rubber Sheet
- SBR Rubber Sheet
- ESD Rubber Sheet
- Anti-Static Rubber Sheet
- Industrial Rubber Sheet
Packaging and Shipping
Packaging Options
- Rolls: Custom lengths and widths based on customer requirements
- Sheets: Flat sheet packaging for convenient handling and storage
- Pallets: Bulk orders packaged on pallets for efficient transportation
Shipping Methods
- Sea Freight: International shipping to major global ports
- Air Freight: Expedited shipping for urgent orders
- Land Transportation: Domestic and regional delivery services
Each order undergoes careful packaging and inspection to ensure perfect condition upon arrival. We provide proper labeling and documentation for smooth customs clearance.
