Oil Resistance High Temperature Rubber Sheet with 1m-20m Length for Industrial Applications

Place of Origin China
Brand Name 3A Rubber
Certification ISO9001
Model Number 3A5007
Minimum Order Quantity 100kgs
Price USD12.80-22.80/kg
Packaging Details Packing in rolls and pallets
Delivery Time 7-15days
Payment Terms T/T,L/C,D/P,Western Union,Paypal
Supply Ability 200000kgs/month
Product Details
Temperature Range -60°C~+320°C Insert Reinforce 1PLY Glassfiber Or Aramid Fabric
Tear Strength 20-25N/mm Hardness 60-90 Shore A
Elongation 200-400% Product Name High Temperature Rubber Sheet
Thickness 0.5mm-10mm Oil Resistance Good
Aging Resistance Excellent Application Industrial
Color Black, White, Brown, Green, Yellow Compression Set ≤35%
Density 2.0g/cm3 Flammability UL94-V2
Length 1m-20m Material Rubber
Temperature High Tensile Strength 5-9MPa
Width 1m-2m
Highlight

oil resistance high temperature rubber sheet

,

20m length high temperature rubber sheet

,

1m length heat resistant rubber sheet

Leave a Message
Product Description
Oil Resistance High Temperature Rubber Sheet 1m-20m Length
Product Overview

High Temperature Rubber Sheet is a specialized rubber material engineered to withstand extreme temperatures up to 300°C. Manufactured from premium fluorubber (FKM/FPM), this sheet offers exceptional aging resistance with tear strength ≥25N/mm. Available in widths from 1m to 2m and lengths from 10m to 20m, it's ideal for demanding applications in aerospace, automotive, and electrical industries.

Key Features
  • Product Name: High Temperature Rubber Sheet
  • Reinforcement: 1PLY Glassfiber or Aramid Fabric Insert
  • Length: 10m-20m
  • Width: 1m-2m
  • Excellent Acid Resistance
  • Superior Thermal and Electrical Insulation Properties
  • High Durability with Excellent Strength and Tear Resistance
  • Resistant to Chemicals, Oils, and Acids
Technical Specifications
Parameter Specification
Hardness 75±5 Shore A
Oil Resistance Good
Length 10m-20m
Compression Set ≤15%
Thickness 0.5mm-10mm
Material Fluorubber, FKM, FPM
Elongation ≥200%
Color Black, White, Brown, Green, Yellow
Applications

Our High Temperature Rubber Sheet is designed for punching various rubber seals, gaskets, and specialized applications including:

  • Wooden PVC Vacuum Laminators
  • Steel Door Vacuum Laminators
  • Safety Glass Vacuum Laminating Bags
  • Solar Photovoltaic Module Vacuum Laminators
  • Hot Press Laminators
  • Card Press Laminators
  • High-temperature kitchen countertops and heat shields
  • Automotive parts and components
  • Electrical insulation for wires, cables, and high-voltage equipment
  • Protective enclosures for sensitive components
Customization & Ordering Details
  • Brand Name: 3A Rubber
  • Model Number: 3A5007
  • Place of Origin: China
  • Certification: ISO9001
  • Minimum Order Quantity: 100kgs
  • Price Range: USD 12.80-22.80/kg
  • Packaging: Rolls and pallets
  • Delivery Time: 7-15 days
  • Payment Terms: T/T, L/C, D/P, Western Union, Paypal
  • Supply Capacity: 200,000 kgs/month
Technical Support & Services
  • Technical advice and support for proper product selection and usage
  • Product inspection, testing, and maintenance guidance
  • Spare parts and replacement parts provision
  • Maintenance and repair services
  • Technical assistance for customer issue resolution
Packaging & Shipping

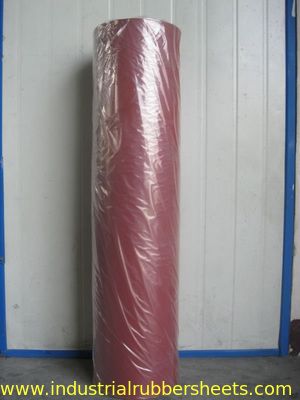

Each High Temperature Rubber Sheet is carefully packaged to ensure perfect condition upon arrival. Sheets are wrapped in multiple layers of thick plastic sheeting and placed in sealed, labeled boxes. For international shipments, products are secured in wooden crates with additional protective wrapping. We use reliable carriers with tracking to ensure safe and timely delivery.

Frequently Asked Questions
What is the brand name of the High Temperature Rubber Sheet?
The brand name is 3A Rubber.
What is the model number of the High Temperature Rubber Sheet?
The model number is 3A5007.
Where is the High Temperature Rubber Sheet produced?
The product is produced in China.
Does the High Temperature Rubber Sheet have any certifications?
Yes, it is certified to ISO9001 standards.
What is the minimum order quantity for the High Temperature Rubber Sheet?
The minimum order quantity is 100kgs.
