Natural Color Rotex GS GR Metal Polyurethane Coupling with Jaw Spider Structure

Place of Origin China
Brand Name 3A Rubber
Certification ISO9001
Model Number Rotex GS, GR
Minimum Order Quantity 10pieces
Packaging Details packing in cratons
Delivery Time 7-15days
Payment Terms L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability 1000000pieces/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Natural Color Material Metal
Type Rotex GS, GR Structure Jaw / Spider
Flexible Or Rigid Flexible Standard Or Nonstandard Standard
Product Name Rotex GS, GR Metal Coupling Size Standard Sizes
Service OEM Or ODM
Highlight

pu coupling

,

rubber coupling

Leave a Message
Product Description
Natural Color Polyurethane Coupling Rotex Metal Coupling Standard Size
Rotex Metal Coupling, GS Metal Coupling, GR Metal Coupling
The polyurethane elastomeric is a high-performance polymer material combining the strength of plastic with the elasticity of rubber. This advanced material offers exceptional durability and performance characteristics for industrial applications.
Key Features
  • Wide hardness range (Shore A10-D80) with excellent elasticity
  • Superior tensile strength and load capacity compared to standard rubber
  • Outstanding wear resistance (3-5 times better than rubber)
  • Excellent resistance to oils, fuels, and mechanical fluids
  • Superior vibration absorption and damping properties
  • Good performance in low temperature environments
  • High resistance to radiation and ozone
  • Excellent machining properties for precise applications
Our polyurethane and rubber couplings are precision-injected using high-quality TPU, CSM/SBR, or NBR materials. These components are specially designed for metal shaft couplings, offering exceptional tensile strength, wear resistance, elasticity, and fatigue resilience.
Technical Specifications
Material TPU, CSM/SBR, NBR, nylon
Color Options Yellow, red, purple, green, black, beige
Surface Finish Smooth
Tensile Strength 8-55Mpa
Hardness 70-98Shore A
Elongation 400%-650%
Density 1.25g/cm³
Elasticity Impact >25%
Tear Strength 35-155KN/m
Working Temperature Up to 120°C
Standard Sizes - Polyurethane Coupling
GR14 GR19 GR24 GR28 GR38 GR42 GR48 GR55 GR65 GR75 GR90 GR100 GR110 GR125 GR140 GR160 GR180 GS5 GS7 GS9 GS12 GS14 GS19 GS24 GS28 GS38 GS42 GS48 GS550 GS65 GS75

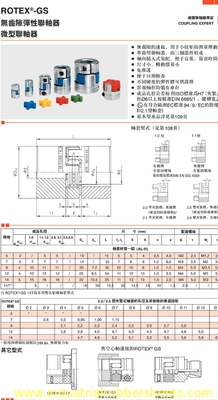

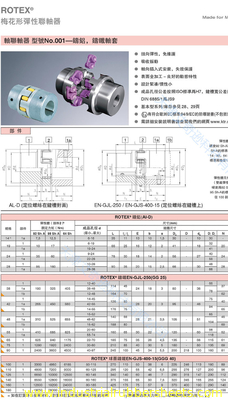

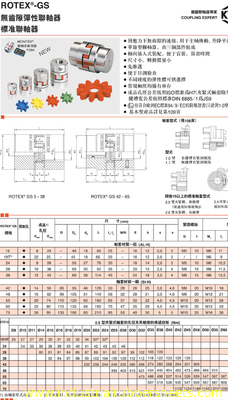

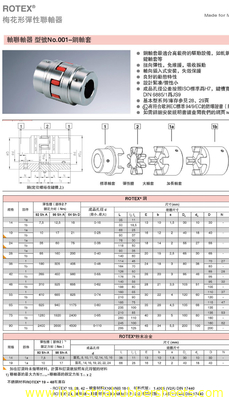

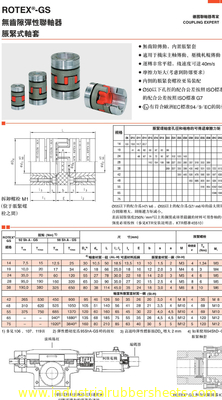

Product Images
Natural Color Rotex GS GR Metal Polyurethane Coupling with Jaw Spider Structure 0 Natural Color Rotex GS GR Metal Polyurethane Coupling with Jaw Spider Structure 1 Natural Color Rotex GS GR Metal Polyurethane Coupling with Jaw Spider Structure 2 Natural Color Rotex GS GR Metal Polyurethane Coupling with Jaw Spider Structure 3 Natural Color Rotex GS GR Metal Polyurethane Coupling with Jaw Spider Structure 4 Natural Color Rotex GS GR Metal Polyurethane Coupling with Jaw Spider Structure 5 Natural Color Rotex GS GR Metal Polyurethane Coupling with Jaw Spider Structure 6 Natural Color Rotex GS GR Metal Polyurethane Coupling with Jaw Spider Structure 7 Natural Color Rotex GS GR Metal Polyurethane Coupling with Jaw Spider Structure 8
Note: OEM and customized sizes available. Please specify type, size number, and quantity when inquiring.
