Black Color High Tensile Strength 80 Shore A Hardness Polyurethane Coupling N-Euoex DS Coupling

  • Black Color High Tensile Strength 80 Shore A Hardness Polyurethane Coupling N-Euoex DS Coupling
  • Black Color High Tensile Strength 80 Shore A Hardness Polyurethane Coupling N-Euoex DS Coupling
  • Black Color High Tensile Strength 80 Shore A Hardness Polyurethane Coupling N-Euoex DS Coupling
  • Black Color High Tensile Strength 80 Shore A Hardness Polyurethane Coupling N-Euoex DS Coupling
  • Black Color High Tensile Strength 80 Shore A Hardness Polyurethane Coupling N-Euoex DS Coupling
  • Black Color High Tensile Strength 80 Shore A Hardness Polyurethane Coupling N-Euoex DS Coupling
Place of Origin China
Brand Name 3A Rubber
Certification ISO9001
Model Number N-Euoex DS Coupling
Minimum Order Quantity 10pieces
Packaging Details packing in cratons
Delivery Time 7-15days
Payment Terms L/C,D/A,D/P,T/T,Western Union
Supply Ability 1000000pieces/month
Product Details
Color Black Material Rubber
Hardness 80shore A Type N-Euoex DS Coupling
Structure Jaw / Spider Flexible Or Rigid Flexible
Standard Or Nonstandard Standard Product Name N-Euoex DS Coupling
Size Standard Sizes Service OEM Or ODM
Highlight

pu coupling

,

rubber coupling
Leave a Message
Product Description
Rubber Polyurethane Coupling N-Euoex DS Element Black Color High Tensile Strength
Product Overview

N-Euoex DS Coupling, N-Euoex DS Spider, N-Euoex DS Element, N-Euoex DS Rubber

Polyurethane elastomeric is a synthetic polymer material that combines the high strength of plastic with the high elasticity of rubber. This advanced material offers superior performance characteristics for industrial coupling applications.

Material Characteristics
  • Wide hardness range (Shore A10-D80) while maintaining rubber-like elongation and resilience
  • High tensile strength, tear strength, and load carrying capacity exceeding standard rubber materials
  • Exceptional wear resistance (0.01-0.10cm³/1.61km), approximately 3-5 times better than rubber
  • Excellent oil resistance with low affinity for non-polar mineral oils
  • Superior resistance to oxygen and ozone degradation
  • Outstanding vibration absorption and damping capabilities
  • Good low temperature performance and high radiation resistance
  • Excellent machining properties for precise manufacturing
Product Specifications
Material TPU, CSM/SBR, NBR, nylon etc.
Color Yellow, red, purple, green, black, beige etc.
Surface Smooth
Tensile Strength 8-55 Mpa
Hardness 70-98 Shore A
Elongation 400%-650%
Density 1.25 g/cm³
Elasticity Impact >25%
Tear Strength 35-155 KN/m
Akron Abrasion Loss <0.05 cm³/1.61km
Compression Set (22h*70°C) <10%
Working Temperature 120°C
Standard Sizes - Polyurethane Couplings
GR14, GR19, GR24, GR28, GR38
GR42, GR48, GR55, GR65, GR75
GR90, GR100, GR110, GR125, GR140
GR160, GR180
GS5, GS7, GS9, GS12, GS14
GS19, GS24, GS28, GS38, GS42
GS48, GS550, GS65, GS75
MT1-MT13 Series
ML1-ML13 Series
MH45-MH200 Series
HRC70-HRC280 Series
L35-L276 Series
FALK-R 10R-80R Series
SBT T40-T210 Series
Joong Ang Series
MS Series
D Series
5H-11H Series
Standard Sizes - Rubber & Nylon Couplings

We also manufacture comprehensive ranges of rubber and nylon couplings including Hb, HRC, L, NM, NOR-MEX, FCL, Gear, Hytre, Tyre, SBT, FCLpin, GR, DL, NL, and M series with full customization capabilities.

Packaging & Customization

Available packaging: bags, cartons, pallets, or crates. OEM and customized sizes are available upon agreement. Special supply of all kinds of steel couplings for various industrial applications.

Product Images

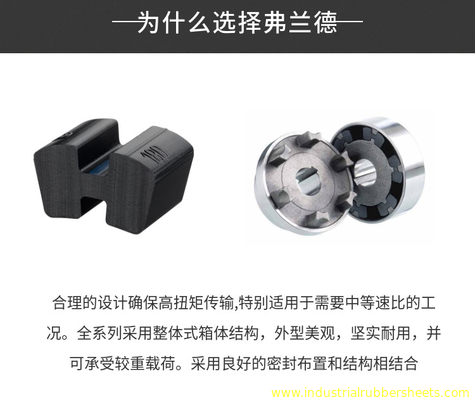

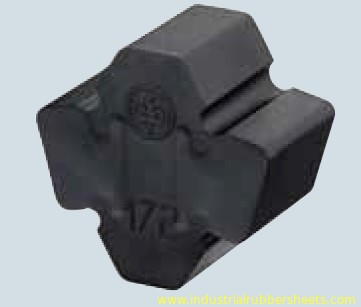

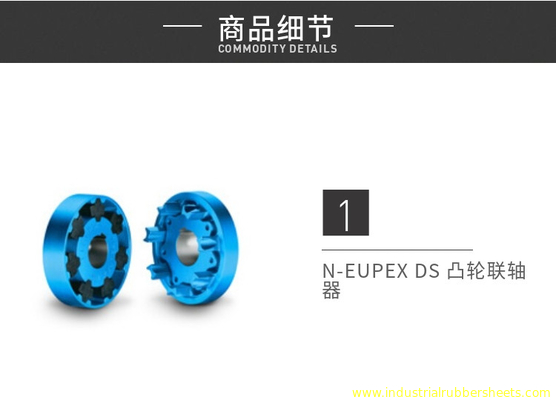

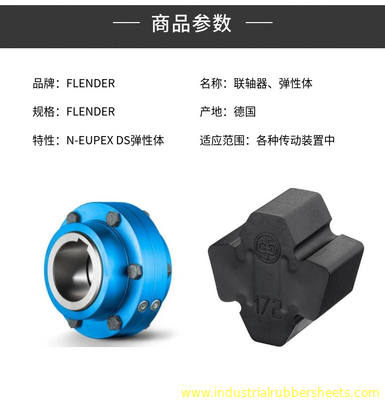

N-Euoex DS Coupling product image showing industrial application Close-up view of N-Euoex DS Element showing material texture and construction N-Euoex DS Rubber coupling installed in machinery
When making an enquiry, please confirm the type, size number, and quantity required for accurate pricing and availability.
Tags:

pu coupling

rubber coupling

flexible jaw coupling
