Standard Size Flexible Jaw Coupling with TPU Material and 92, 95, 98 Shore A Hardness for High Load Carrying Capacity

  • Standard Size Flexible Jaw Coupling with TPU Material and 92, 95, 98 Shore A Hardness for High Load Carrying Capacity
  • Standard Size Flexible Jaw Coupling with TPU Material and 92, 95, 98 Shore A Hardness for High Load Carrying Capacity
  • Standard Size Flexible Jaw Coupling with TPU Material and 92, 95, 98 Shore A Hardness for High Load Carrying Capacity
  • Standard Size Flexible Jaw Coupling with TPU Material and 92, 95, 98 Shore A Hardness for High Load Carrying Capacity
Place of Origin China
Brand Name 3A Rubber
Certification ISO9001
Model Number GR, GS
Minimum Order Quantity 10pieces
Packaging Details packing in cratons
Delivery Time 7-15days
Payment Terms L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability 1000000pieces/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Yellow Material TPU
Hardness 92, 95, 98shore A Type Omega
Structure Jaw / Spider Flexible Or Rigid Flexible
Standard Or Nonstandard Standard Product Name GR90 Spider For TS-B Rotex Jaw Coupling
Size Standard Sizes Service OEM Or ODM
Highlight

pu coupling

,

rubber coupling
Leave a Message
Product Description
Standard Size Flexible Jaw Coupling TPU Material with High Load Capacity

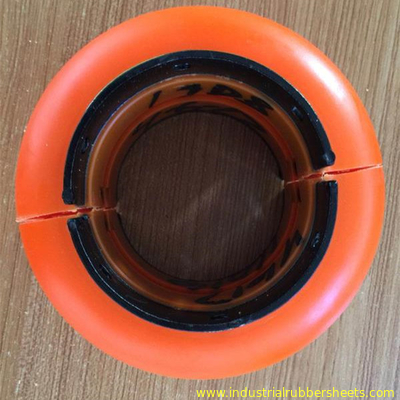

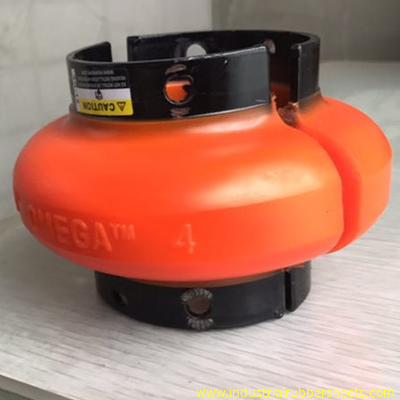

REX OMEGA Coupling with Polyurethane Spider Element

The polyurethane elastomeric is an advanced polymer material combining the strength of plastic with the elasticity of rubber. This innovative material offers exceptional performance characteristics for industrial coupling applications.

Key Material Properties
  • Wide hardness range (Shore A10-D80) with maintained elasticity even at high hardness
  • Superior tensile strength, tear resistance, and load capacity exceeding standard rubber
  • Outstanding wear resistance (0.01-0.10cm³/1.61km) - 3-5 times better than conventional rubber
  • Excellent resistance to oils, fuels, and mechanical lubricants
  • High resistance to oxygen, ozone, and radiation exposure
  • Superior vibration absorption and damping characteristics
  • Reliable performance across wide temperature ranges
  • Excellent machining properties for precision applications
Product Specifications
Material Options TPU, CSM/SBR, NBR, Nylon
Available Colors Yellow, Red, Purple, Green, Black, Beige
Surface Finish Smooth
Tensile Strength 8-55 MPa
Hardness 70-98 Shore A
Elongation 400%-650%
Density 1.25 g/cm³
Elasticity Impact >25%
Tear Strength 35-155 kN/m
Akron Abrasion Loss <0.05 cm³/1.61km
Compression Set (22h*70°C) <10%
Working Temperature Up to 120°C
Standard Sizes Available
Polyurethane Couplings: GR14-GR180, GS5-GS75, MT1-MT13, ML1-ML13, MH45-MH200, HRC70-HRC280, L35-L276, FALK-R 10R-80R, SBT T40-T210, Joong Ang CR0050-CR7080, MS0511-MS6510, D14-D65, 5H-11H
Rubber Couplings: Hb80-Hb315, HRC70-HRC280, L35-L225, NM50-NM265, NOR-MEX series, FCL1#-FCL8#, FCL90-FCL630, Gear 3J-14J, Hytre 4H-11H, Tyre F40-F160, SBT T75-T210, FCLpin #1-#8, GR42-GR75, DL1-DL11
Nylon Couplings: NL1-NL10, M28-M65
Packaging & Customization

Available in bags, cartons, pallets, or crates. We accept OEM requests and provide customized sizes by agreement. Special steel couplings available for FCL, NM, MH, HRC, Love Joy, Joongang, Centafelx, XL-GR, and Tyre applications.

When making an inquiry, please specify the type, size number, and quantity required.
